The Teseq NSG 438 ESD Simulator System (formerly by Schaffner) is one of the most commonly requested 30 kV ESD guns in the commercial electronic, automotive and military industries. ESD Guns stocks calibrated NSG 438's as well as an assortment of discharge networks and accessories (found below) for unique test applications. Process an online order now by adding this item to your cart and checking out, select your preferred shipping method or input your shipping account and tell us what method you want shipped. Two days are credited to allow for transit of the equipment, after 32 days your rental is prorated daily and invoiced/billed accordingly. Continue renting the Teseq NSG 438 as long as needed and return to our HQ in California, no RMA is required. If you require a formal quote to initiate the rental in your organization, contact us now. Teseq NSG 438 Rental Package Includes: HV Base Station w/ Internal Battery and Mount for Grounding Cable Interlock Connectors (QTY 2 Installed on Base Station) Discharge Pistol (Grounding Cable Installed) INA 4380 R/C Module (150pF/330Ohm) Contact Discharge Tip Air Contact Tip Pistol Cradle AC Power Adapter NIST Calibration Certificate with Data User Manual (PDF version below)

Read more less

The EDS MAX20 is 3CTEST’s fourth generation electrostatic discharge simulator in compliance with IEC 61000-4-2:2025 and other standards. This new product has a test voltage up to 20 kV and features 3.5 - inch high - definition color screen, along with compact mechanical design, intuitive UI design, lightweight, and impeccable waveforms . With three test modes designed in this eqent, the EDS MAX20 offers customers convenient operation tailored to their specific testing requirement, catering not only to research and development stage but also to quality check stage. Test Standards: MIL-STD-461 CS118 DO-160 SECTION 25 Bellcore GR-1089-Core ISO 14304 IEC 61000-6-2 IEC 61000-6-1 IEC 61326 IEC 61340-3-1 IEC 61000-4-2 ITU-T K.20 Features   >  3.5” HD color screen; >  Test voltage 20 kV; > 1.25 kg weight ( incl. battery ); >  Exquisite ergonomic design and UI design; > Built - in 3 test modes: standard test, sequence test and easy test; >  Changeable discharge tip; > Support remote control via optical fiber communication; >  Up to 18 working hours for rechargeable battery.   Standard Accessory Kit: Air Tip Contact Tip RC Module AC Adapter Ground Cable Alligator Clip Battery x2 Carrying Case Manual Stand

Read more less

ESDguns.com package for ESD equipment verification is everything you need to verify or calibrate an ESD simulator, less an oscilloscope usually available to most customers anyways.

Read more less

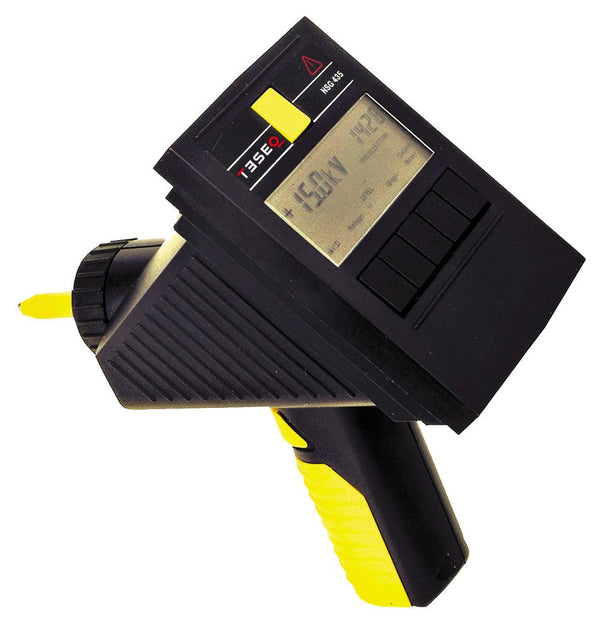

Teseq NSG 435 Overview Ergonomic design and advanced functionality. The pistol-shaped Teseq (formerly Schaffner) NSG 435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible. The Teseq / Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.The Teseq NSG 435 ESD simulator has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged. Teseq NSG 435 Features Programmable discharge voltage 200V to 16.5kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards Teseq NSG 435 Includes Air Discharge Tip Contact Discharge Tip Grounding cable Rechargeable Battery Battery Charger Tripod Mount User Manual Calibration Certificate Durable Carrying Case ESDguns.com is now a division of The EMC Shop Ordering Options New - 2-Year Manufacturer's Warranty Used - 100 Day Warranty, fresh Calibration Certificate Rental - Calibrated, Options to buy (20% of rental applied)

Read more less

The Haefely ONYX 30 kV electrostatic discharge simulator is It is the most ergonomic ESD test gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 30 kV ESD test gun in all types of test sites. The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX 30 kV ESD test gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used. Haefely ONYX 30 kV Features: Flexibility – enables users to meet many different test specifications with maximum cost effectiveness. Quick and simple – one touch operation and simple on screen menu structure. Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit. Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package. Accessory Kit for Haefely ONYX 30 kV: Test tip air discharge Test tip contact discharge 2 rechargeable battery packs Ground cable Battery charger unit includes mains adaptor set R/C module 150 pF/330 Ω according to IEC 61000-4-2 Quick start guide Manual on CD Calibration certificate Rugged Carrying Case

Read more less

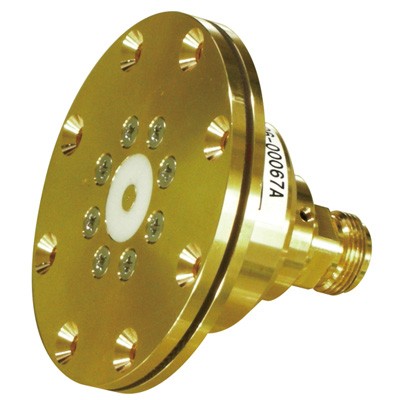

  The ESD Guns CST2 ESD Target Current Sensing Transducer is a cost-effective solution that allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz. ESD Guns CST2 Features: Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and almost every other ESD test standard Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when matched with 50 Ohm load) Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESD Guns CST2 Includes: CST2 2 Ohm ESD Current Target 20dB or 30dB Precision Attenuator RG400 Coaxial Cable N to SMA SMA to BNC Adapter Traceable Calibration Certificate User Manual Hardware and Nut Driver

Read more less

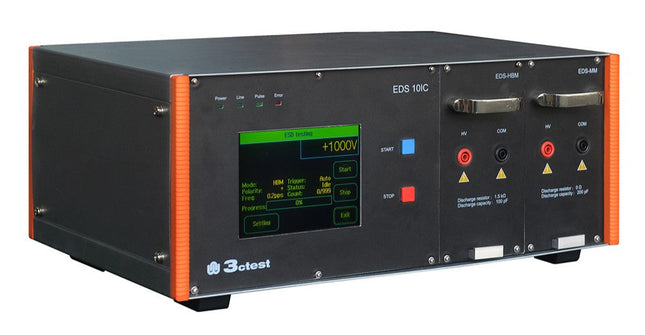

The 3ctest EDS 10IC is specially designed for HBM and MM ESD immunity test requirements, applicable to semiconductor devices like LED, transistors, IC, etc, as per IEC, ESDA, JEDEC, MIL, etc. At the same time, fully comply with the severest ESD voltage levels in the standards above. Rent, buy or lease the 3ctest EDS 10IC HBM and MM ESD Immunity Tester.  3ctest EDS 10IC Features: Touch screen intelligent operation Automatic identify RC modules and adjust the maximum voltage The lowest voltage 5V and 1V step for precise adjusting voltage Available for single or automatic discharge tests and setting times, frequency, etc Meets: ESDA ANSI/ ESD STM5.2-2009 JEDEC JESD22- A114E Jan.2007 ANSI /ESD-STM5.1 2007 MIL-STD-883G 28 Feb.2006 ANSI/JEDEC JS-001-2010 JEDEC JESD22- A115C Nov.2010

Read more less

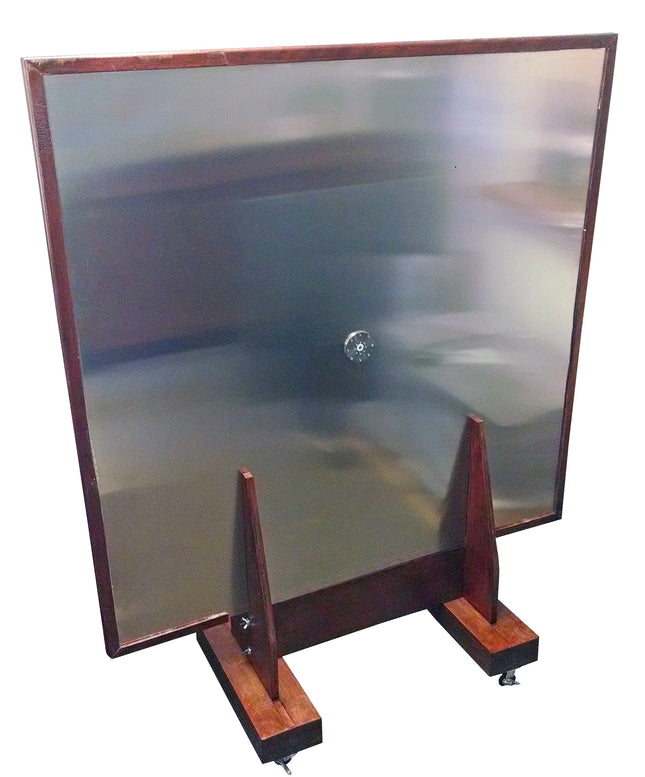

  ESDGuns.com will provide you a ready to go ESD test table/bench allowing you to bring your ESD compliance testing in house. **Shipping can be expensive please contact ESDGuns.com to identify the nearest facility available for pick-up, delivery or courier. ESD Test Table Includes: Ground Coupling Plane Horizontal Coupling Plane Vertical Coupling Plane Insulation Sheet Wood Table (Typically 5' by 3') Grounding Cables with 470 kOhm resistors

Read more less

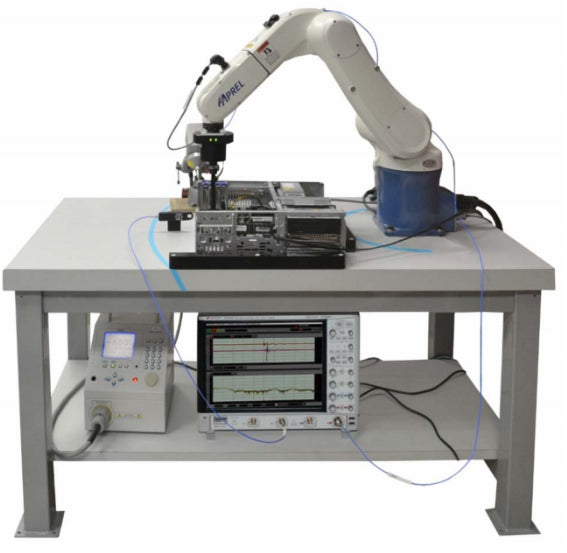

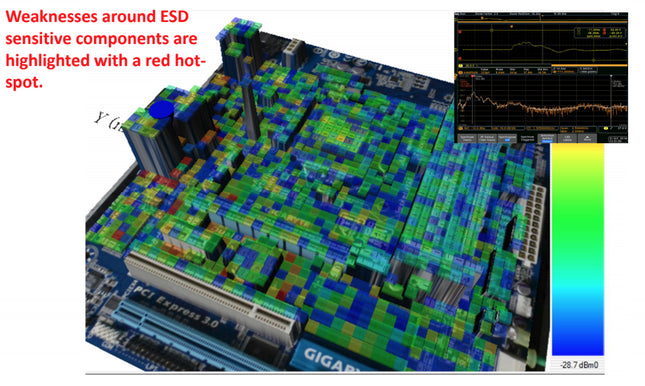

Most customers commonly measure and monitor ESD immunity testing using electrostatic meters, voltmeters or scope probes to monitor ESD events. The Aprel ESD measurement solution takes it to another level, allowing users to capture realtime data and 3D imaging of their product during and after an electrostatic discharge test sequence. Another robot can be used to automatic placement of the discharges. The better the oscilloscope, the better quality of data will be generated. The software will measure and capture events across the complete product area in real time as the esd wave travels along your device. Post test analysis will highlight sensitive components or areas in red. Allowing for easy determination of the weak points and speeding up development cycles. ESD H-Field Probe Features: Highly shielded H‐Field probe Extended barrel length 220mm provides better isolation from high electric fields Isolation provided by unique core design, rejects electric fields stopping contamination of the transmission line High isolation allows for higher signal to noise ratio (isolation from electric fields) Probe has been designed to support ESD measurements Air Trigger Probe Features: Probe has been designed to trigger on the ESD event This design allows for complete autonomy from vendor specific ESD Generators Sets the oscilloscope and spectrum analyzer to measure Synchronously Application allows for acquisition of very fast signals Broadband allowing for greater flexibility

Read more less

The ESVM High-impedance voltmeter for ESD Gun output voltage verification is a compact, cost effetive solution to verify the electrostratic discharge produced by simulators, guns pistols and generators. The ESVM ESD electrostatic voltmeter has a Measurement range: ± 1V ~ 100kV(customization), Accuracy: ± 1% ± 2 counts, Input impedance: ≥ 10 GΩ (customizable, like 30GΩ, 100GΩ), Display: 4 1/2 large LCD, Resolution: 1V. ESVM Includes: High Voltage Meter Input Tube Monitoring Probe AC Adapter Grounding Cable NIST Calibration Certificate User Manual Carrying Case ESVM Applications: Electrostatic voltage measurement ESD generator/simulator calibration Electrostatic voltmeter calibration High-impedance high-voltage measurement Suitable for use for ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more... ESVM Specifications: Range: ± 1V ~ 100 kV (customizable) Accuracy: ± 1% ± 2 counts Input impedance: 100 G ohm Display: 4 ½ large LCD/LED Resolution: 1V 20×15×50 cm (7.85×5.91×19.68 inch) 2 kg (4.41 lb)

Read more less

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites. 3ctest EDS20H Includes: 20kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS20H Features: Air- and Contact- Discharge: 1000-20,000V±5% Rise time: 0.6-1ns RC module: 150pF/330Ω Automatic identification of discharge module Voltage hold time: >5s As per: IEC61000-4-2, GB/T17626.2 LCD Touchscreen Automatic Polarity Switching Temperature & Humidity Monitoring Battery or mains operation with long battery life
