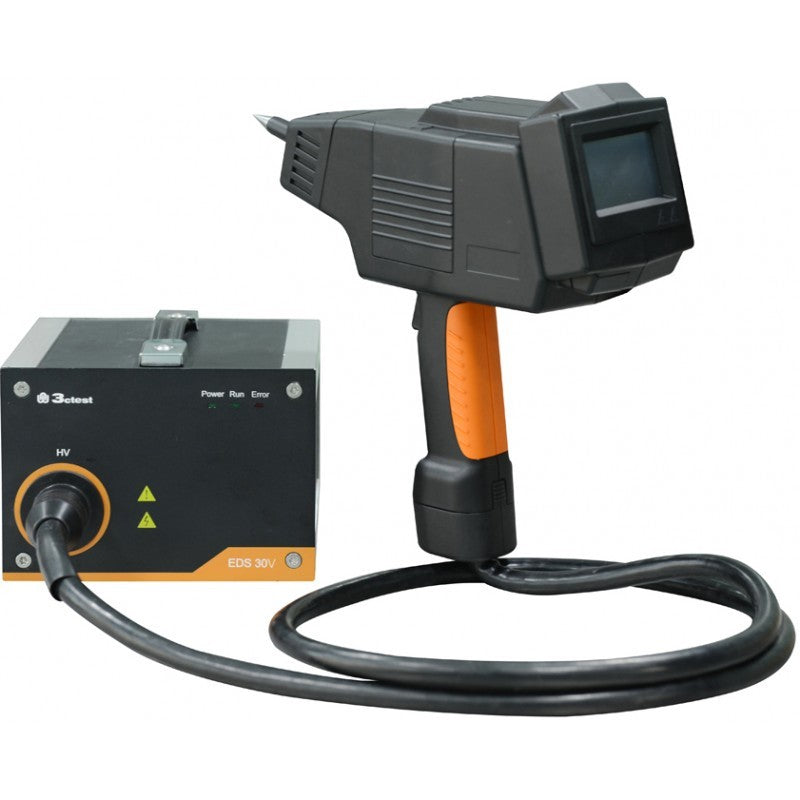

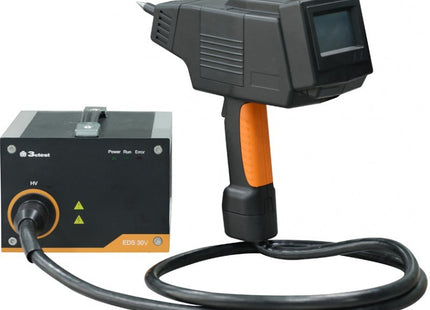

    3ctest EDS 30V Automotive ESD Test Generator Package

      Description

      The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests.

      Applications:

      • Communication
      • Information technology
      • Telecom
      • Automotive
      • Military
      • Medical
      • Aviation
      • Broadcast and TV
      • New energy and power
      • Railway

      3ctest EDS 30V Features:

      • Air- and Contact- Discharge: 1000-30,000 Volts ±5%
      • Resolution: 100 Volts
      • Hold Time: >5 seconds
      • Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz
      • Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more...
      • Integrated sensor to monitor temperature and humidity
      • Rise Time: 0.8 ns ±25% (0.6 to 1 ns)
      • Current Peak Value Accuracy: ±10%
      Product form
      Order Type

      We are unable to show availability for this product.

      Delivery Method

      EXAMPLE: Select a delivery date 1-2 days prior to your event date. It will be sent so it arrives to you on or before your selected date.

      EXAMPLE: Select the date you would like to collect from our [Your Location] store.

      EXAMPLE: Select a delivery date 1-2 days prior to your event date.

      Now select an end date Clear
      Loading...
      Updating...
      Powered By

      EXAMPLE: Nationwide postage is $[Postage Price] and will be added at checkout. Please ensure you select Post as your delivery method when you get to checkout, or your order may be cancelled.

      EXAMPLE: Pickups are between 3pm and 5pm at [Your Address}.

      EXAMPLE: Local deliveries are made to your address between 10am and 12pm on your selected delivery date.

      Delivery Date ...

      ...

      Return Date ...

      ...

      Rental Fee ...
      Price $1,195.00
      There was a problem adding the item to the cart.

      $1,195.00 + Shipping

        Description of image
          Features

        • Hold Time: >5 seconds
        • Includes Four R/C Combinations 150/330pF and 330/2kOhm
        • LCD touch screen control
        • Temperature and humidity record and protection
        • Automatic polarity switching over
        • Discharge modules can be replaced, automatic identification
        • Built-in standard test library
        • Intelligent detection the failure of air discharge

        As per standards

        • ISO 10605
        • GB/T 19951

        Ask & Learn

        Previous answers and questions posted below

        Ask Now

        • Is price listed on this page ($1195) purchase price?

          Monthly rental rate, will update the page asap.

        Description

        The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests.

        Applications:

        • Communication
        • Information technology
        • Telecom
        • Automotive
        • Military
        • Medical
        • Aviation
        • Broadcast and TV
        • New energy and power
        • Railway

        3ctest EDS 30V Features:

        • Air- and Contact- Discharge: 1000-30,000 Volts ±5%
        • Resolution: 100 Volts
        • Hold Time: >5 seconds
        • Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz
        • Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more...
        • Integrated sensor to monitor temperature and humidity
        • Rise Time: 0.8 ns ±25% (0.6 to 1 ns)
        • Current Peak Value Accuracy: ±10%
