ESDguns.com overview for product evaluation to immunity of electrostatic discharge events on satellite and spacecraft.
NASA-HDBK-4002B
Examples of Estimated Space-Generated ESD Spark Parameters
- Dielectric plate to conductive substrate
- Exposed connector dielectric
- Paint on high-gain antenna
- Conversion coating on metal plate (anodize)
- Paint on optics hood
Visit the Test Set-up and Waveform Verification pages for a general overview of ESD testing, the information should be sufficient for verifying your product before sending it to the test lab (pre-compliance).

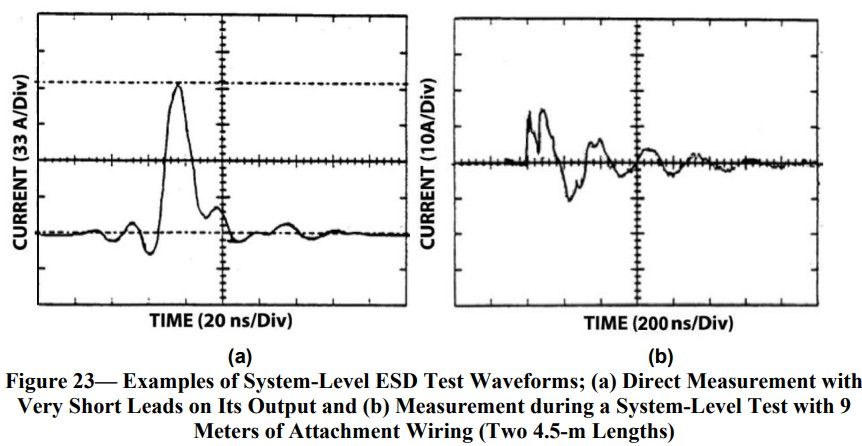

Waveforms for System Level ESD Charging Generators
The Not-So-Firm Guide to ESD Testing
Because ESD test techniques are not well established, it is important to understand the various parameters that have to be simulated, at a minimum, to perform an adequate test. On the basis of their possibility of interference to the spacecraft, the following items should be considered in designing tests:
a. Spark location.
b. Radiated fields or structure currents.
c. Area, thickness, and dielectric strength of the material.
d. Total charge involved in the event.
e. Breakdown voltage.
f. Current waveform (risetime, width, falltime, and rate of rise [in ampere per second]).
g. Voltage waveform (risetime, width, falltime, and rate of rise [in volt per second]).
ESDguns.com is offering solutions according to the latest revision of the European Space Standard: ECSS-E-ST-20-07C (Rev. 2 Issued Jan 2022)
