Browse products from ESDGuns.com for supporting immunity testing to electrostatic discharges on electronic components, subassemblies and products.
ESDGuns.com (Us!)
-
ESDGuns.com ESDGuns.com GRC Series Ground Cable w- 470k Ohm Resistors for ESD Voltage Bleeding
**If a formal quote is required please export/print the web page and send through your requisitioning system.** Metal Oxide resistors discontinued in 2020, HV Precision Resistors or Bust! Edition 3 adjusted tolerances to 10%, MO resistors are back! The indirect discharge part of ESD immunity test uses two planes, known as the vertical coupling plane (VCP) and the horizontal coupling plane (HCP) and coupled to the ground reference plane (GRP). The HCP remains in place under the EUT during the direct tests, the VCP to be placed at a 10 cm distance from the EUT. Each coupling plane requires a connected to the GRP by the ESDGuns.com GRC resistor lead, to ensure that any charge bleeds off within a few microseconds. The construction of these leads is critical: there should be a resistor close to each end, so that the length of lead between them is isolated from the connections and stray coupling to it is neutralized. Although power rating is unimportant, the resistors themselves should withstand a high pulse dv/dt without breaking down, for which low inductance carbon composition types are best suited. The ESDGuns.com GRC Resistor Cables are ideal for bleeding voltage during ESD immunity testing to IEC 61000-4-2, ISO 10605, DO-160 Section 25, Mil-STD CS118 and virtually every other compliance standard. Using high quality components and built in the USA, ESDGuns.com is the only stocking manufacturer of these ESD cables/leads, making them immediately available at an economic price. The GRC ground cables are offered with metal oxide and precision HV 470k Ohm bleeder resistors. Both are suitable to withstand a high pulse dv/dt without breaking down. Precision HV resistors are more resilient and will last much longer. High Voltage Cables: High voltage cabling rated to 20kV exceed the test levels called out for IEC 61000-4-2 test levels. Alternatively, high voltage cabling rated to 40kV exceed the voltage output of any portable ESD simulator rated to 30kV. Which GRC Resistors Should I Pick? ESD testing is difficult to keep consistent from day to day (temp/humidity), to user (test technique), and a variety of other factors. While it's our experience and view the indirect ESD dissipation via GRC cables have an insignificant impact on test results, it's possible others feel different. The primary difference between resistor types will be longevity of the resistor life. Other Considerations: Frequency of ESD testing: If you are an all day, every day ESD immunity test lab, precision HV is the most suitable route. Do you test and debug once a day, once a week or less? Metal oxide may be suitable. Type of testing, precompliance or compliance: Just troubleshooting and debugging, looking to get an idea how your product will perform? Metal oxide resistors should suffice, of course the ESD dissipatition will be more consistent with Precision HV resistors. Environment of storage and conditioning: Metal oxide resistors will be suitable in climate control labs. If the GRC cables are exposed to large swings in temperature and humidity, consider Precision HV resistors for consistency and longevity. Concern for accuracy and consistency: By now, you have a good idea. We've had customers who look to improve all areas of ESD testing because their products achilles' heel is ESD. Philosophically, repeatability in ESD may or may not help resolve real world ESD failures. ESDGuns.com offers a 2-Year warranty on the precision HV resistors and a 1-Year warranty on metal oxide resistors.
$297.00 - $499.00
-
ESDGuns.com ESD Guns IF Insulating Foil for ESD Compliance Testing
**If a formal quote is required please export the web page and send through your requisitioning system. We no longer generate formal quotes for orders under $500** Suitable for the test set-up of table-top equipment for ESD immunity per IEC-61000-4-2, the ESDGuns.com IF insulation foil is approximately .5 millimeter thick in accordance to the standard. Made of clean non-hygroscopic polyvinyl chloride (PVC) with a relative dielectric permittivity of 3.9, surface resistivity of 1014 Ω and a dissipation factor of 0.01.
$197.00
-
ESDGuns.com NIST Calibration Service 15-16kV Class ESD Generator
Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. Processing Calibrations Online: Add this calibration service to cart Checkout Accordingly (RMA form e-mailed) Send RMA form and ESD simulator to be calibrated to: ESD GunsATTN: SERV DEPT3830 Atherton Rd.Rocklin, CA 95765 Daily rentals of calibrated ESD simulators available to help minimize downtime. Sample Calibration Certificate Below.
$395.00
-

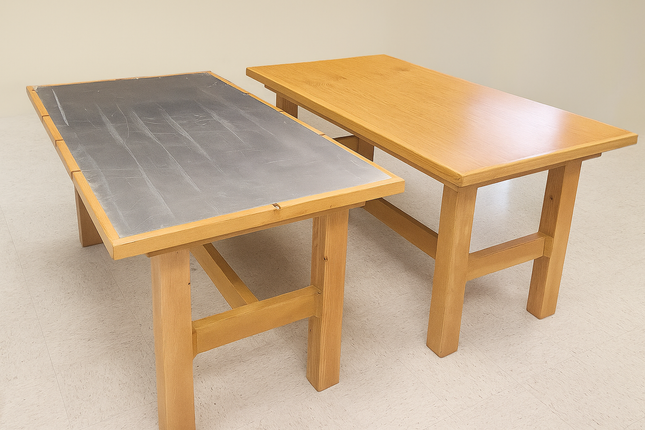

ESDGuns.com ESD Test Table-Bench with Coupling Planes and Grounding Cables
ESDGuns.com will provide you a ready to go ESD test table/bench allowing you to bring your ESD compliance testing in house. **Shipping can be expensive please contact ESDGuns.com to identify the nearest facility available for pick-up, delivery or courier. ESD Test Table Includes: Ground Coupling Plane Horizontal Coupling Plane Vertical Coupling Plane Insulation Sheet Wood Table (Typically 5' by 3') Grounding Cables with 470 kOhm resistors
$4,750.00
-

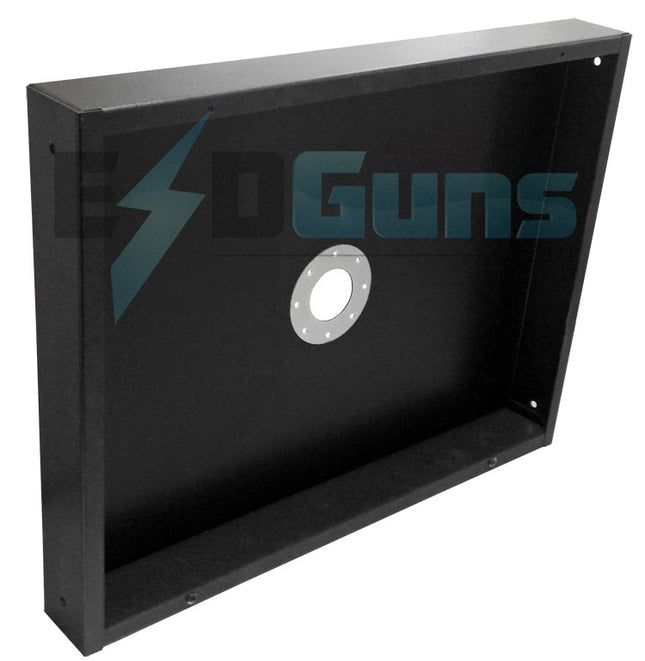

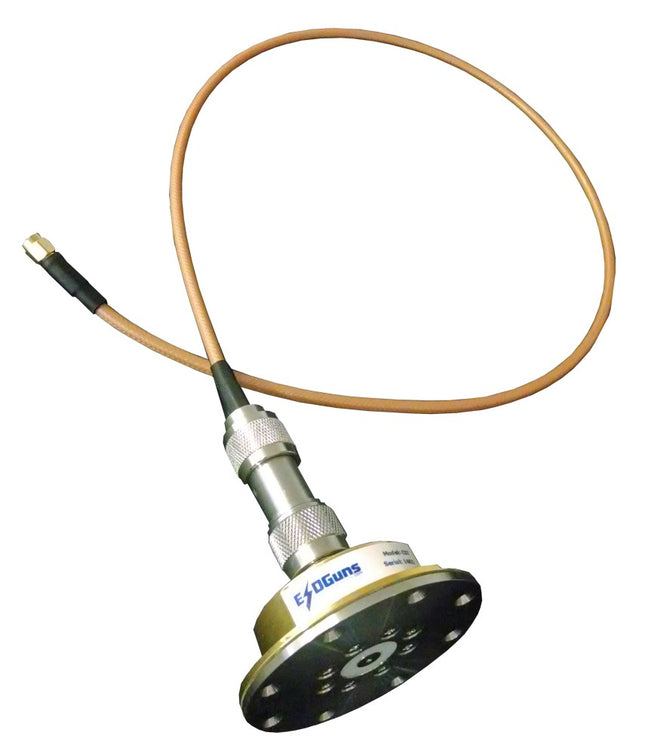

ESDGuns.com CST2 4 GHz, 2 Ohm ESD Target Current Sensing Transducer
The ESD Guns CST2 ESD Target Current Sensing Transducer is a cost-effective solution that allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz. ESD Guns CST2 Features: Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and almost every other ESD test standard Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when matched with 50 Ohm load) Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESD Guns CST2 Includes: CST2 2 Ohm ESD Current Target 20dB or 30dB Precision Attenuator RG400 Coaxial Cable N to SMA SMA to BNC Adapter Traceable Calibration Certificate User Manual Hardware and Nut Driver
$295.00 - $3,950.00
-
ESDGuns.com NIST Calibration Service 30kV Class ESD Generator-Simulator Gun
Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. Processing Calibrations Online: Add this calibration service to cart Checkout Accordingly (RMA form e-mailed) Send RMA form and ESD simulator to be calibrated to: ESD GunsATTN: SERV DEPT7401 Galilee Rd #160Roseville, CA 95678 Daily rentals of calibrated ESD simulators available to help minimize downtime. Sample Calibration Certificate Below.
$495.00
-

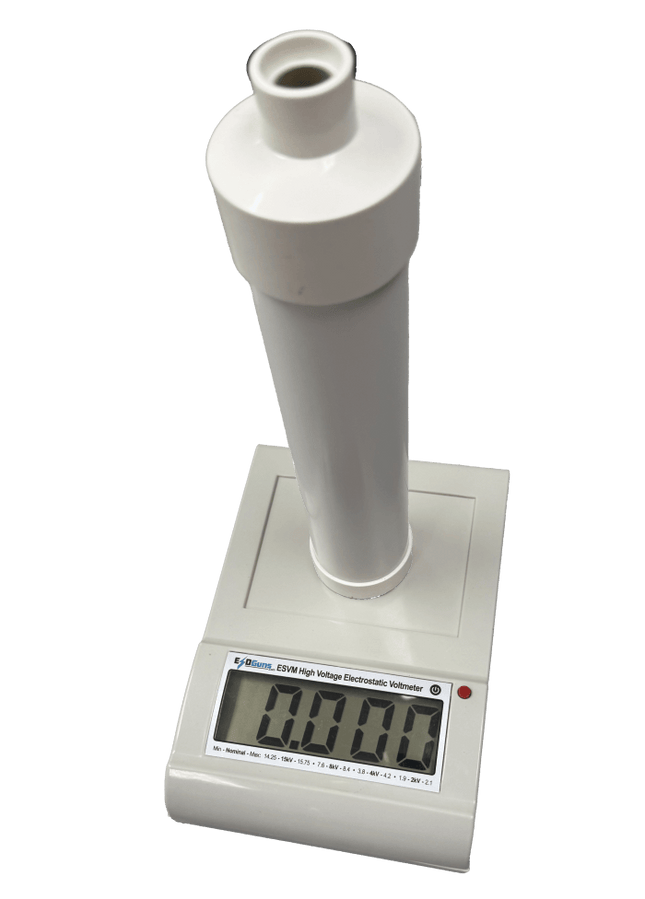

ESDGuns.com ESVM High Voltage Electrostatic Voltmeter for ESD Generator Voltage Verification
The ESVM High-impedance voltmeter for ESD Gun output voltage verification is a compact, cost effetive solution to verify the electrostratic discharge produced by simulators, guns pistols and generators. The ESVM ESD electrostatic voltmeter has a Measurement range: ± 1V ~ 100kV(customization), Accuracy: ± 1% ± 2 counts, Input impedance: ≥ 10 GΩ (customizable, like 30GΩ, 100GΩ), Display: 4 1/2 large LCD, Resolution: 1V. ESVM Includes: High Voltage Meter Input Tube Monitoring Probe 9V Battery AC Adapter Grounding Cable NIST Calibration Certificate User Manual Carrying Case ESVM Applications: Electrostatic voltage measurement ESD generator/simulator calibration Electrostatic voltmeter calibration High-impedance high-voltage measurement Suitable for use for ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more... ESVM Specifications: Range: ± 1V ~ 100 kV (customizable) Accuracy: ± 1% ± 2 counts Input impedance: 100 G ohm Display: 4 ½ large LCD/LED Resolution: 1V 20×15×50 cm (7.85×5.91×19.68 inch) 2 kg (4.41 lb)
$399.00 - $4,200.00
-
ESDGuns.com HCP Horizontal Coupling Plane Including Resistor Cable (2 x 470 kOhm resistors)
Order Horizontal Coupling Plane Including Resistor Cable (2 x 470 kOhm resistors) online today. ESDGuns.com is the ultimate online store for ESD testing. **Please contact ESDGuns.com to see if delivery is available in your area. Shipping costs can be expensive.
$695.00
-
ESDGuns.com Accredited Calibration (ISO 17025)
$0.00
-

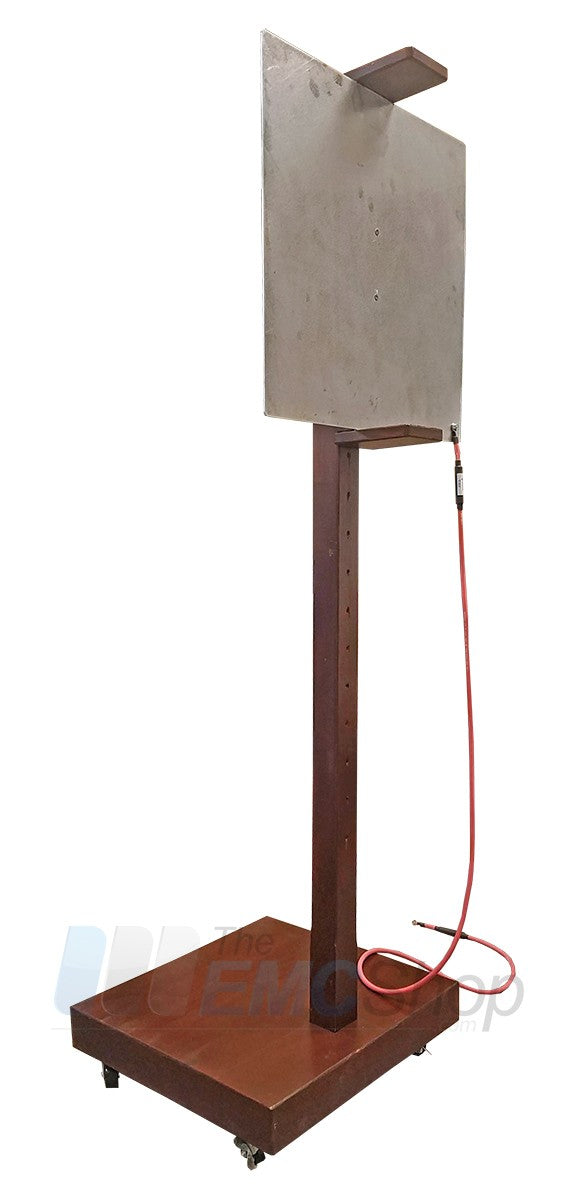

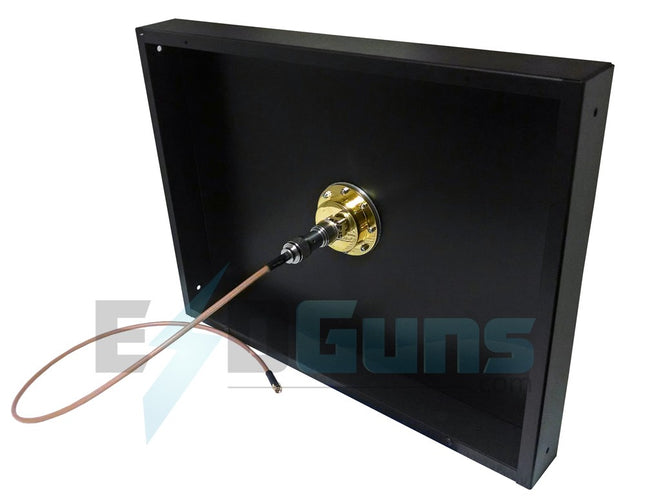

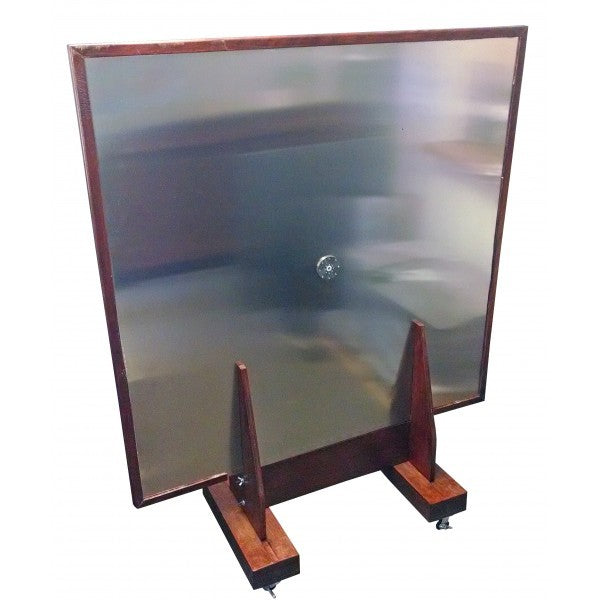

ESDGuns.com VGP Mobile Vertical Ground Plane Setup for ESD Current Target
Not compliant to edition 3, contact us for retrofit guidance, it still can be used with a tripod to get data pretty close to the fully compliant setup. Mount your ESD current target in a high quality, mobile vertical ground plane. The VGP Mobile has locking wheels allowing for easy mobility and placement during waveform verification of ESD generators.
$1,975.00
-
ESDGuns.com Calibration 16 kV ESD Simulator - ISO 17025 (A2LA)
Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. ESDGuns.com provides rental and calibration packages up to 50% off standard pricing. This keeps your test operation up and running at all times and maintaining a strong quality process. Processing Calibrations Online: Register or Login Process your order through this or another calibration product page An RMA form will be e-mailed after order submission Track progress in your online account Please submit a web request or call us now to inquiry about a rental-calibration package.
$795.00
-

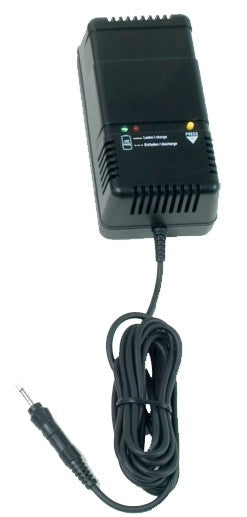

ESDGuns.com Generic Battery Charger for Teseq NSG 435 ESD Gun
Generic Battery Charger for Teseq / Schaffner NSG 435 ESD Gun
$229.00
