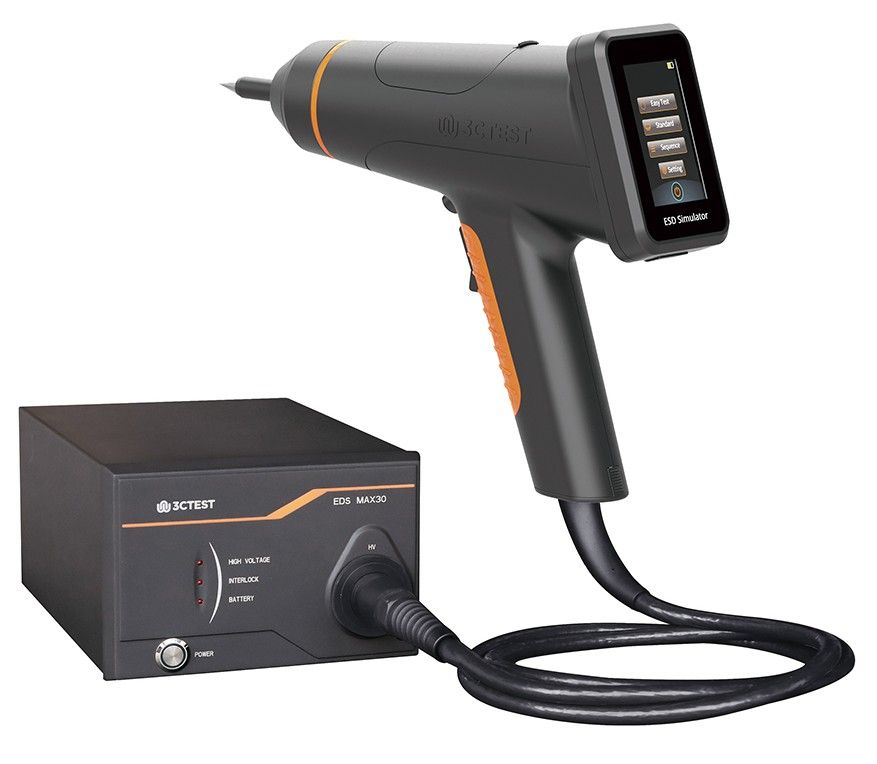

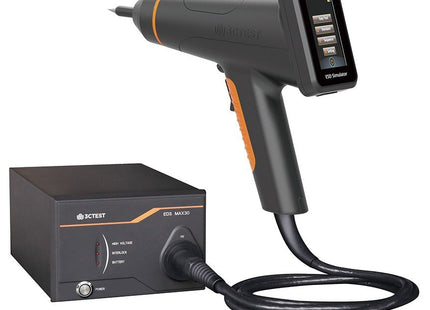

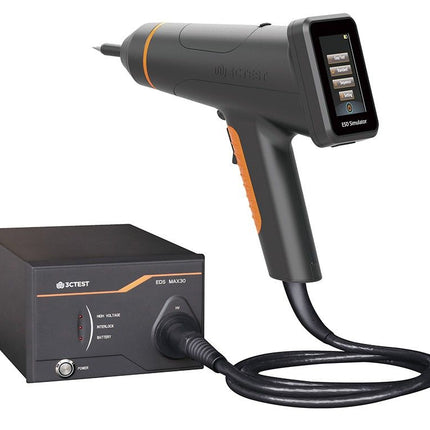

EDS MAX30 30kV ESD Generator

Name: EDS MAX30 30kV ESD Generator
Brand: 3ctest
Price: 775.0 USD
Availability: InStock
Rating: 5.0 (3 reviews)

Description

Description

The EDS MAX30 is a state-of-the-art intelligent electrostatic discharge generator with an output voltage of 30 kV. It is an electrostatic discharge simulator that integrates discharge gun head and touch screen control, and operates in accordance with ISO 10605 and GB/T 19951 standards. Users can choose AC or built-in battery, the RC module can be easily interchanged, and the built-in temperature and humidity meter ensures reliability in various testing scenarios.

Test Standards:

EN/IEC 61000-4-2
ISO 10605
MIL-STD-331
MIL-STD-461 CS118
DO-160 Section 25

ompliant With Standards	GB/T 19951:2019、ISO 10605:2023 IEC 61000-4-2:2025、GB/T 17626.2:2018
Voltage Range	0.2 kV ~ 30 kV(± 5%)
Voltage Resolution	100 V step
Polarity	Positive/Negative/ alternate
Maintain Time	5 s ~10 s
Discharge Electrode	Air discharge round head/contact discharge pointed head
RC Module	150 pF/330 ohm
RC Module Recognition	Automatically recognize and display numerical values
Control Mode	Touch screen, trigger button, fiber optic remote control
Repetition Frequency	Single, 0.1 Hz, 0.2 Hz, 0.5 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz
Trigger Method	Automatic and manual
Pulse Counter	1 ~ 9999
Scheduling Test	Up to 4 scheduling levels, tested in sequence
TDC Counting Function	Count once when the voltage of the gun head is below the set voltage threshold
Self Inspection	Before use, the self check function can be used to automatically verify
Temperature and Humidity	Built in temperature and humidity meter, can be used for environmental recording and instrument protection
Battery Pack Parameters( Optional Accessories Battery Pack TST231–3S1P)
Battery Type	Lithium battery
Module Voltage	11.1 V
Capacity	27 Wh
Battery Life	Contact discharge 8 kV, 1 Hz, alternate , about 6 hours Contact discharge 30 kV, 1 Hz, alternate, about 4 hours
Battery Charging Time	About 4 hours, fully charged automatic protection
Cycle Life	Charging and discharging times 300 times>80% battery capacity

Display	3.5-inch color screen
Scope of Working Power Supply	100 V ~ 240 V(±10%) 50/60 Hz
Language	Chinese and English
Brightness Setting	0 ~ 100% brightness setting
Screen off Setting	Automatically turn off screen without operation: 5 min/10 min/15 min/30 min/never
Record Logs	Record the last 4 sets of experimental parameters
Communication Method	Fiber optic communication
Instrument Grounding Connection Method	4 mm banana socket
Host Size	207 mm（W）160 mm（H）310 mm（D）
Instrument Weight	About 7.35 kg (including guns)
Ambient Temperature	5℃ ~ 40℃
Relative Humidity	20% ~ 80% ,RH(no condensation)
Atmospheric Pressure	86 kPa ~ 106 kPa

Standard Accessory Kit:

Air Tip
Contact Tip
RC Module
AC Adapter
Ground Cable
Alligator Clip
Battery x2
Carrying Case
Manual
Stand

Product form

Order Type Rental - 1 Month Purchase - New

R/C Modules Standard (150pF/330Ohm) Automotive (ads 300pF and 2kOhm combinations - 4 total) Military (500pF and 500/5000 Ohm combinations - 2 total)

Calibration Standard (NIST) Accredited (ISO 17025)

We are unable to show availability for this product.

Delivery Method Post

EXAMPLE: Select a delivery date 1-2 days prior to your event date. It will be sent so it arrives to you on or before your selected date.

EXAMPLE: Select the date you would like to collect from our [Your Location] store.

EXAMPLE: Select a delivery date 1-2 days prior to your event date.

Now select an end date Clear

Updating...

EXAMPLE: Nationwide postage is $[Postage Price] and will be added at checkout. Please ensure you select Post as your delivery method when you get to checkout, or your order may be cancelled.

EXAMPLE: Pickups are between 3pm and 5pm at [Your Address}.

EXAMPLE: Local deliveries are made to your address between 10am and 12pm on your selected delivery date.

Delivery Date ...

...

Return Date ...

...

Rental Fee ...

Price $775.00

There was a problem adding the item to the cart.

$775.00 + Shipping

Order Type Free pickup in our shop(s) Free pickup in our shop(s)

Quantity

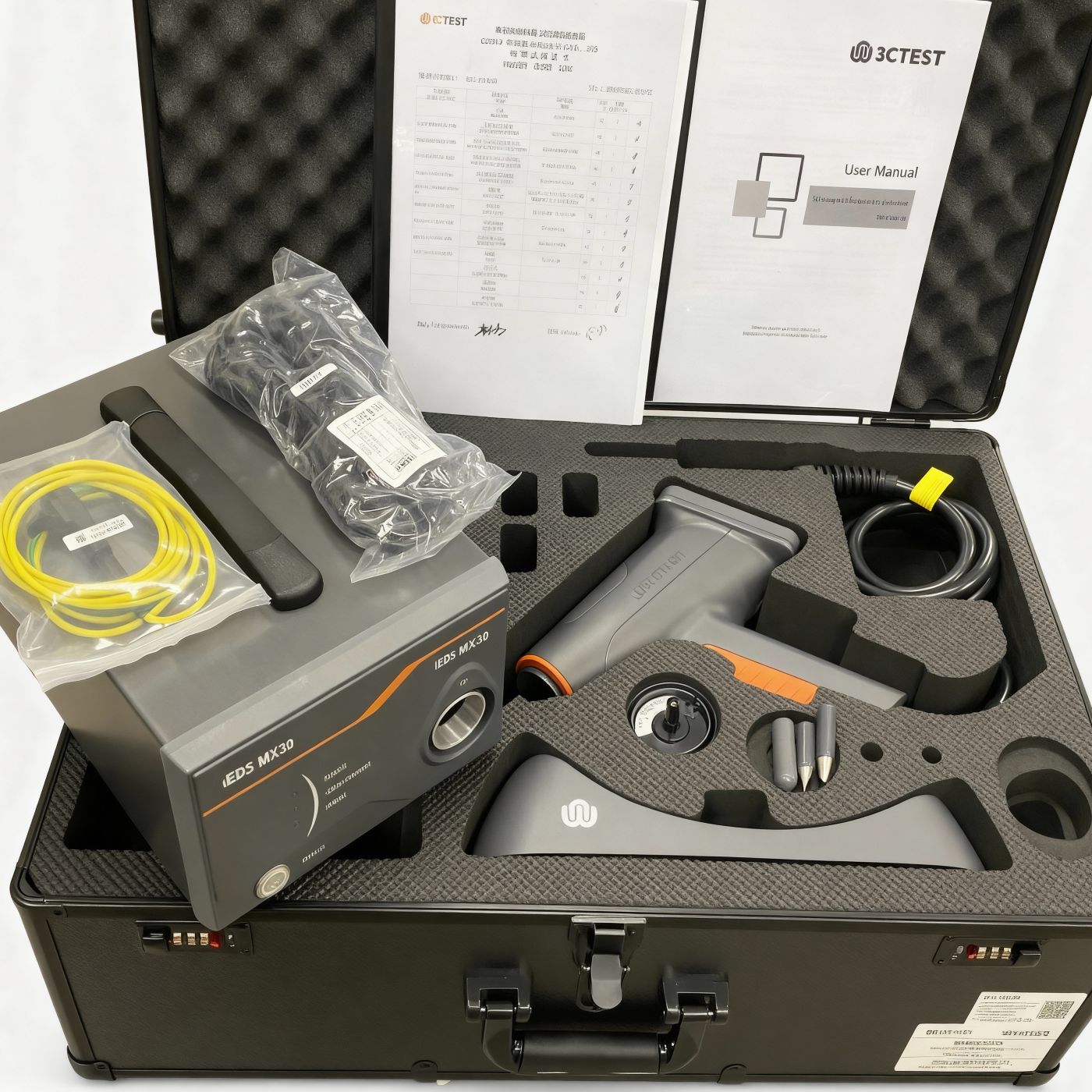

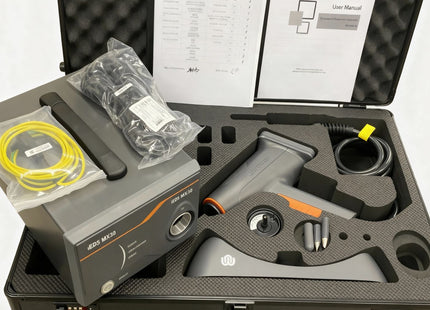

Accessory Kit

ESD pistol and base station
Contact Tip
Air Discharge Tip
150pF/330Ohm RC Module
Two Battery Packs
AC Adapter and Charger
Pistol Stand
Ground Cable
Carrying Case
Manual
Calibration Certificate with data

Downloads

Datasheet_EDS_MAX20.pdf
25092403TE-EDSMAX20-ES031001825001_-_cal.pdf
User_Manual_EDS_Max20_EN_V1.0.pdf
Equipment_Rental_FAQ_Checklist.pdf
Sample_ISO_17025_Accredited_Cal_Cert.pdf

Features

Programmable discharge voltage 500 V to 20 kV (100V steps)

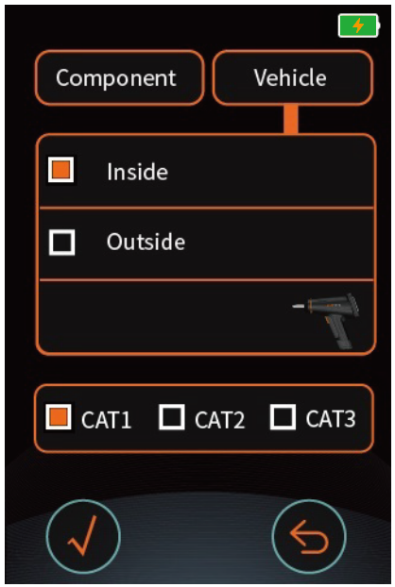

Pre-programmed ISO 10605 and IEC/EN 61000-4-2 test sequences
HD color touch screen
Temperature & Humidity Monitoring
Easily interchangeable R/C modules for MIL-STD-331, GR78-CORE, MIL-STD-464 and more
Remote control and software for automation
