EMC Partner ESD3000 Handheld, Electrostatic Discharge (ESD) Tester

    Description

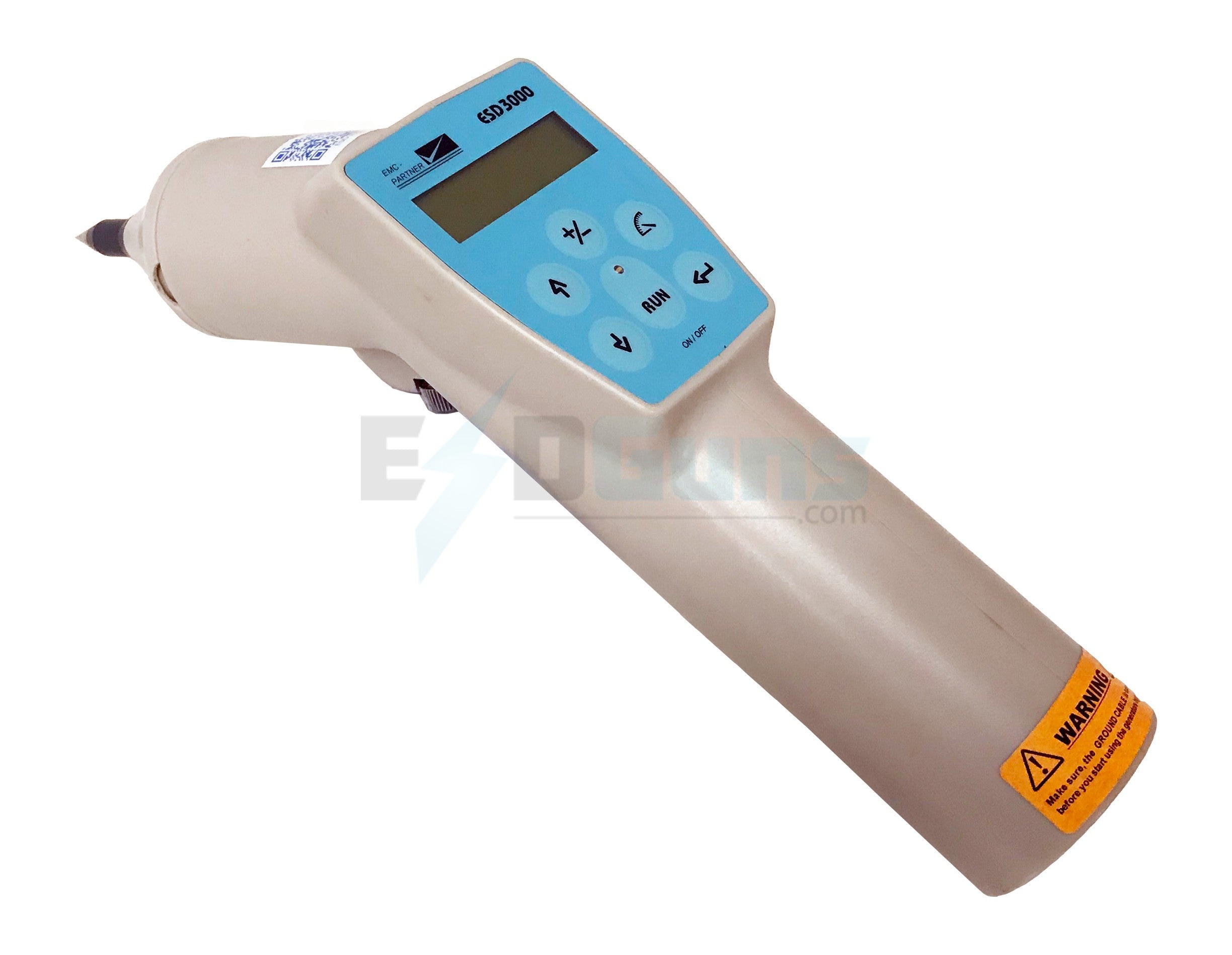

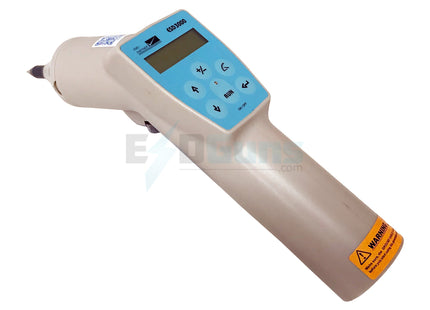

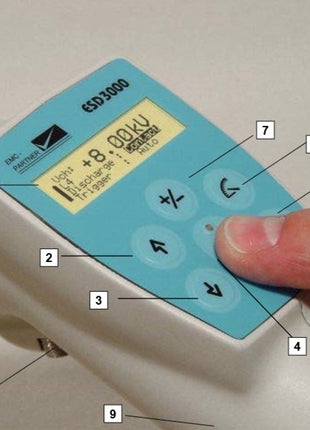

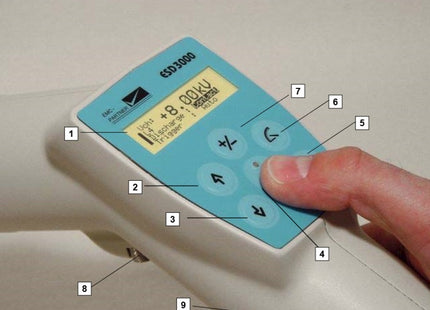

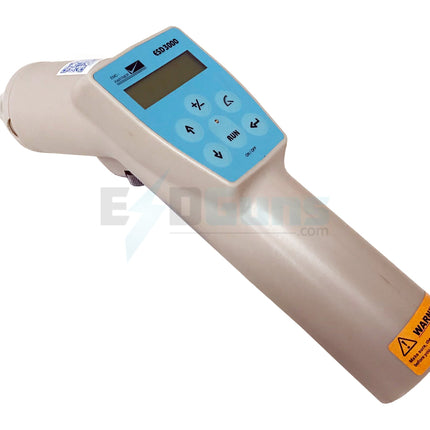

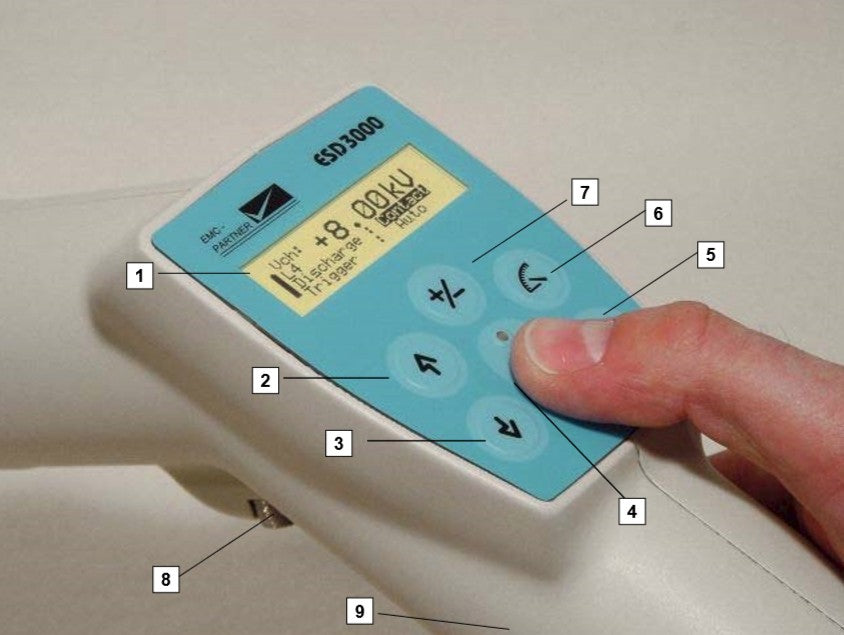

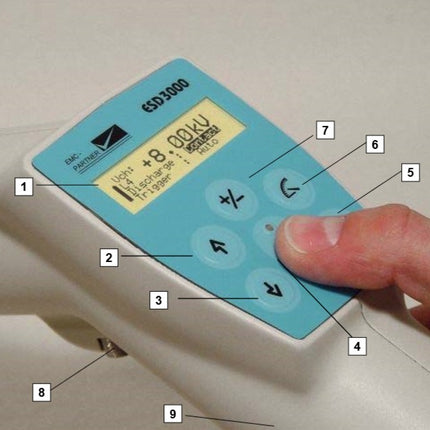

    The EMC Partner ESD 3000 is a fully automated and programmable ESD simulator. It identifies which discharge module is installed and has a level selector button enabling the user to quickly scroll through and select the voltage from the levels appropriate to the standard and discharge mode.

    The set pulse count is executed with a single pull of the trigger in either air or direct contact mode. Polarity can be programmed to alternate or can be changed with the push of the +/- button at any time. Voltage can be programmed to ramp up or down or quickly changed at any time by using the up and down arrow buttons.

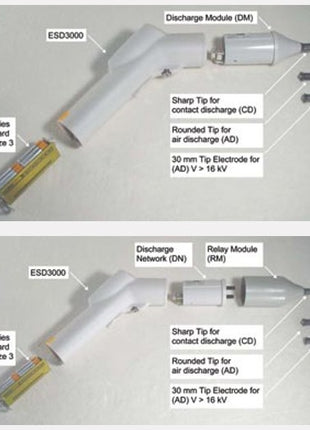

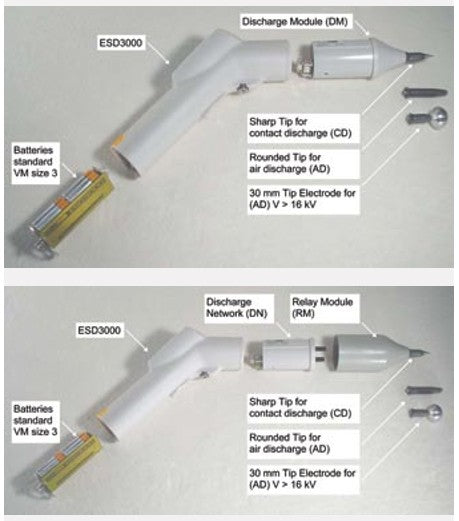

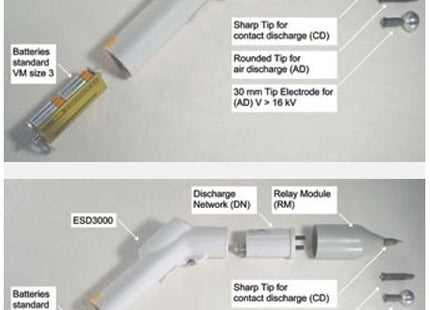

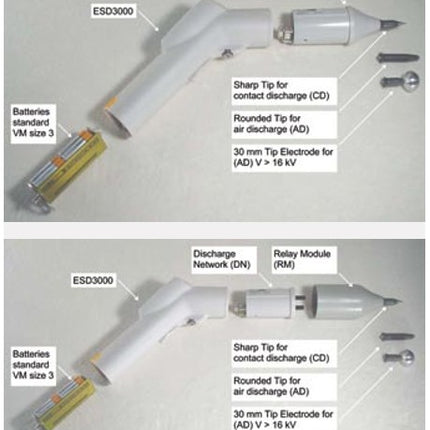

    Discharge Modules for EMC Partner ESD3000:

    • DM1 for IEC 61000-4-2,ITU-T K20: 150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
    • DM2 for ISO TR10605, PSA Peugeot-Citroën B21 7110: 330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
    • DM4 MIL-STD-883, GR78-CORE: 100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
    • DM5 for RTCA/DO-160: 150pF / 330ohm no CD +/-1kV up to 30kV
    • DM6 for IEC 61340-3-1, JEDEC 22-A114, MIL-STD-750D: 100pF / 1500ohm +/- 0.2kV up to 8kV no AD
    • DM7 for IEC 61340-3-2, JEDEC 22-A115: 200pF / 0ohm +/- 0.1kV up to 2kV no AD
      DM8 for IEC 60571, EN 50155: rise time < 0.05µs duration 0.1µs +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
    • RM32 0.7ns up to 1ns and < 400ps: +/- 1kV up to 30kV +/- 1kV up to 30kV
    • DN1 for IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100: 150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
    • DN2 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
    • DN3 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
    • DN4 for STANAG 4239, ISO 14304, MIL-STD-1512: 500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
    • DN5 for MIL-STD-331C, MIL-DTL-23659D, STANAG 4239: 500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
    • DN6 for ISO TR10605: 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV

    Accessory Kit:

    Pistol
    Ground Cable
    AC adapter w/Charging Cable
    Air tip
    Contact tip
    Calibration Certificate
    Alligator Clip
    Hardcase
    User Manual
    USB
    Remote Cable

      Product form

      In Stock  In Stock
      Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

      Request Lead Time
      Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

      International
      Depending on where you’re located, we offer next day delivery. Check your status on this link

      $895.00 + Shipping

          Accessory Kit

        Pistol
        Ground Cable
        AC adapter w/Charging Cable
        Air tip
        Contact tip
        Calibration Certificate
        Alligator Clip
        Hardcase
        User Manual
        USB
        Remote Cable

          Downloads
          Features

        • Very high accuracy and pulse repetition
        • High Quality / Rugged Design
        • Most Modular System Available
        • Upgrade over time from 16kV to 30kV
        • Discharge Networks to meet standards:
          • International IEC 61000-4-2, IEC 61340-3
          • Automotive ISO TR10605, GMW 3100
          • Avionics RTCA / DO-160
          • Military Mil-STD-464, Mil-STD-883, Mil-STD-1576
