Used/Refurbished (16kV)

Teseq NSG 435 Overview Ergonomic design and advanced functionality. The pistol-shaped Teseq (formerly Schaffner) NSG 435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible. The Teseq / Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.The Teseq NSG 435 ESD simulator has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged. Teseq NSG 435 Features Programmable discharge voltage 200V to 16.5kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards Teseq NSG 435 Includes Air Discharge Tip Contact Discharge Tip Grounding cable Rechargeable Battery Battery Charger Tripod Mount User Manual Calibration Certificate Durable Carrying Case ESDguns.com is now a division of The EMC Shop Ordering Options New - 2-Year Manufacturer's Warranty Used - 100 Day Warranty, fresh Calibration Certificate Rental - Calibrated, Options to buy (20% of rental applied)

Read more less

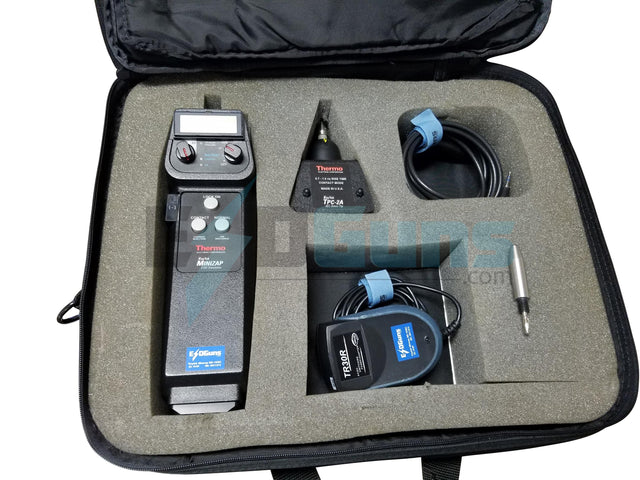

For descriptions, videos and more visit the Rent Thermo Keytek Minizap MZ-15/EC web page. Right now, ESDguns.com has an excess inventory of rental units and has allocated this unit for sale. Used Keytek Minizap MZ-15/EC Features: Recently rebuilt internal battery Fresh NIST Calibration Certificate Industry best 100 Day warranty Ships Immediately Rent Keytek Minizap ESD Simulators here. TPC-2A and TPA-2 Included Standard - additional tip and accessories available Thermo Keytek Minizap Video Overview

Read more less

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites.3ctest EDS20H Includes: 20kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS20H Features: Air- and Contact- Discharge: 1000-20,000V±5% Rise time: 0.6-1ns RC module: 150pF/330Ω Automatic identification of discharge module Voltage hold time: >5s As per: IEC61000-4-2, GB/T17626.2 LCD Touchscreen Automatic Polarity Switching Temperature & Humidity Monitoring Battery or mains operation with long battery life

Read more less

The 3M 753 HBM/MM ESD Simulator allows you to simulate electrostatic discharge events at precisely controlled output voltages. It was primarily designed as a tool for determining application trigger voltages of 3M 751 Static Event Detectors. However, it is a suitable tool for any Human Body Model and Machine Model ESD testing and debugging before going for compliance to MIL-STD-883 or JEDEC 22 A115, A115 or other HBM/MM ESD immunity standards. The ESD simulators is supplied with two color-coded snap-in discharge network assemblies, allowing users to quickly select the discharge model and polarity. The battery operated unit is light and portable, with several additional accessories provided allowing users to setup and test easily. 3M 754 HBM/MM ESD Simulator Features: Discharge Models: Human Body Model (HBM): Capacitance: 100 pF ±10% Resistance: 1500 Ohms ±1% Machine Model (MM): Capacitance = 200 pF ±10% No Resistor Output Voltage: 15 to 5,000 V Display Resolution: 1 V at or under 800 V 10 V at or above 1000 V Display Accuracy: 3% of total reading Stability: 1% after 10 minutes of settling

Read more less
