Unique and unusual electrostatic immunity test standards can call for a variety of resistance and capacitance combinations. These applications can be commercial, military, avionic or another.
Special Applications
-

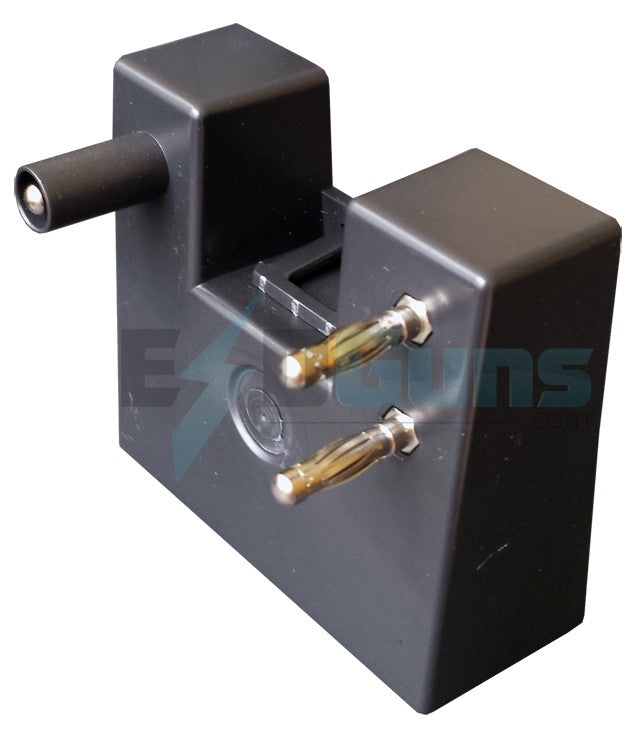

Teseq ESD Guns Teseq INA4383 Discharge Network 150pF-330Ohm per ANSI C63.16 Hand - Metal Model ESD Compliance
The Teseq (Schaffner) INA4383 Discharge Network 150pF/330Ohm per ANSI C63.16 Hand / Metal Model ESD Compliance is compatible with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 150 pF Resistance: 330 Ohm Compatible with Teseq NSG 437 and NSG 438 Models Test Standards Met: ANSI C63.16 Hand / Metal Model
$295.00 - $1,195.00
-
Langer EMV Langer-EMV P331-2 ESD Pulse Injection Generator
The P331-2 set is used for injecting ESD pulses into ICs. The P331-2 ESD generator orientates itself by mechanisms of the ESD coupling into electronic assemblies (according to IEC 61000-4-2 / HMM). The BPS 203 burst power station supplys and controls the P331-2 pulse generator. The Langer P331-2 ESD pulse injection generator is used for conducted ESD coupling in accordance with standard IEC 61000-4-2 (system level) / HMM (Human Metal Model - component level, acc. to ANSI/ESD SP5.6-2009) directly into IC pins or in conjunction with couplers for coupling into special high-speed interface pins such as USB, LVDS, Ethernet etc.
$295.00 - $2,495.00
-
Noiseken ESD Simulators Noiseken Discharge Resistors and Capacitor Units for TC-815 ESD Guns
The EMC Shop has an assortment of Noiseken Resistance/Capacitance combinations available as a lot. Inquire for pricing.
$0.00
-
EMC Partner EMC Partner ESD3000DN32-IND1 150 pF - 150 Ohm RC Module
EMC Partner ESD3000DN32-IND1 150 pF / 150 Ohm RC Module EMC Partner ESD3000DN32-IND1 Features: Meets ABD0100.1.2, IEC 801-2 Capacitance/Resistance: 150pF / 150ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-IND1 Package Includes: ESD3000DN32-IND1 RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN32-IND1 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$2,250.00
-
Teseq ESD Guns Teseq INA4550 1000pF-2000Ω Discharge Network per ES-X 44017 HMC
The Teseq INA 4550 automotive discharge network is compatible only with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 150pF Resistance: 330Ω Test Standards Met: ES-X 44017 HMC (Hyundai Motor Company) Manufacturer: Teseq ESD Guns
$990.00
