Oscilloscopes for ESD Calibration

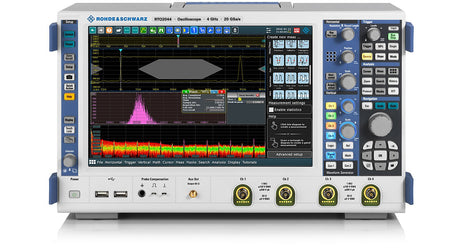

BNC Connectors Impedance 50 Ω ±1.5 % 1 MΩ ±1 % at 15pF (meas.) Up to 16-bit vertical resolution Quickly find signal faults with 1 million waveforms/s Integrated spectrum analysis Trigger on any signal detail you can see LAN interface RJ-45 connector USB interface 2 ports, type A plug and 1 port, type B plug

Read more less

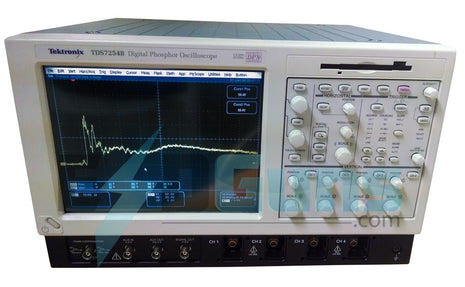

The Tektronix TDS7254B 2.5 GHz, 20 GS/s, Digital Phosphor Oscilloscope Ideal for IEC 61000-4-2 is a favorite among EMC labs for calibrating and verifying the waveform generated by ESD simulator guns. It's high sample rate of 20 Gigasamples/second at 2.5 GHz gives a precise representation of the output voltage. Tektronix TDS7254B Features: 2.5 GHz Bandwidth Up to 20 GS/s Real-time Sample Rate Suitable for all ESD immunity compliance standards requiring ESD generator verification

Read more less

2 GHz is the minimum called out in IEC 61000-4-2. However, a recent study conducted determined an oscilloscope of 3 GHz minimum is required to accurately capture rise time of 600 picoseconds. Look for the next revision of IEC 61000-4-2 to require a minimum 3 GHx osiclloscope

Read more less

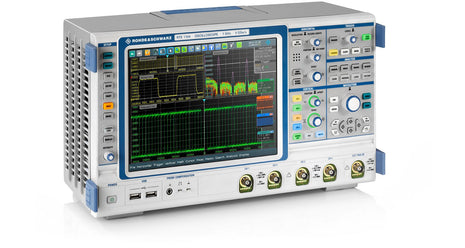

One million waveforms/s  Very low inherent noise of 100 µV at 1 mV/div and 1 GHz  Full measurement bandwidth up to 2 GHz, even at 500 µV/div  Up to 16-bit vertical resolution ❙ Memory up to 200 Msample  Minimal trigger jitter < 1 ps  Trigger hysteresis can be adjusted to signal quality The R&S®RTE was developed with the objective of minimizing noise, from matched BNC-compatible inputs with 18 GHz bandwidth to high-precision A/D converters and extremely low-noise frontends. At 1 GHz bandwidth and 1 mV/div input sensitivity, the R&S®RTE oscilloscopes have a very low RMS noise of 100 µV, allowing precise measurements even at the smallest vertical resolutions.

Read more less

The Tektronix TDS7154 is a favorite among EMC labs for calibrating and verifying the waveform generated by ESD simulator guns. It's high sample rate of 20 Gigasamples/second at 1.5 GHz gives a precise representation of the output voltage. Tektronix TDS7154 Features: 1.5 GHz Bandwidth Up to 20 GS/s Real-time Sample Rate Up to 32 Megasamples Memory Depth Suitable for ISO 10605, ANSI C63.16, Mil-STD 461G CS118 and more >400,000 Wfms/second Maximum Waveform Capture Rate Optional Communications Mask Testing Up to 2.5 Gb/s Rates Optional Clock Recovery from Serial Data Streams Optional 32-bit Serial Trigger for Isolation of Patterndependent Effects 10 MHz Timebase Reference Input for Enhanced Accuracy and Repeatability Graphical User Interface Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation Open Microsoft Windows Environment Built-in Networking

Read more less
