CST1 1 Ohm ESD Calibration Target per ANSI C63 and MIL

    Description

    The CST1 ESD calibration target is one of few 1 Ohm targets on the market available to purchase and measure the current waveform from your ESD generator according to ANSI C63, MIL, and a few other niche test standards.

    ESD Guns CST1 Includes:

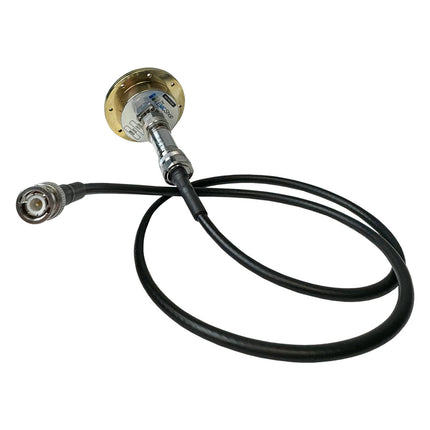

    • CST1 Current Target
    • 20 or 30dB Precision Attenuator
    • RG400 Coaxial Cable N to SMA

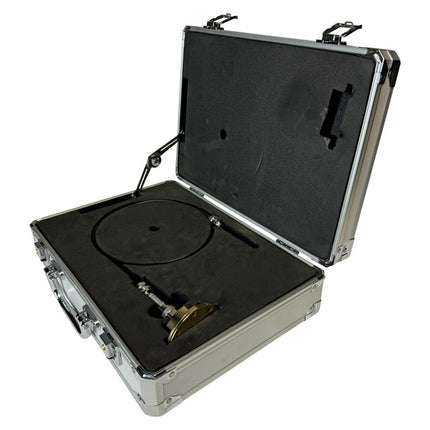

    • Hard Carrying Case
    • Traceable Calibration Certificate
    • Hardware and Nut Driver
    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $3,450.00 + Shipping

        Accessory Kit

      • CST1 1 Ohm ESD Current Target
      • 20dB or 30dB Precision Attenuator
      • RG400 Coaxial Cable N to SMA
      • SMA to BNC Adapter
      • Traceable Calibration Certificate
      • User Manual
      • Hardware and Nut Driver

        Downloads
        Features

      • Input Resistance 1 Ohm (±1%)
      • DC to 4GHz
      • 0.1V/A transfer impedance, ±1% with a 20dB attenuator
