Resistance and Capacitance modules are found in many Military and DOD electrostatic immunity test requirements, many of which refer back to MIL-STD-331. The 500pF, 500 and 5000 Ohm discharge networks are suitable to meet STANAG 4239, MIL-DTL-23659D and MIL-STD-1512.
The Teseq (Schaffner) INA 4559 Discharge Network 500 pF / 5 kOhm per Stanag 4239 is compatible with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 500 pF Resistance: 5 kOhm Compatible with Teseq NSG 437 and NSG 438 Models Test Standards Met: Stanag 4239
$0.00 - $90.00
The Teseq (Schaffner) INA 4555 Discharge Network 500 pF / 500 Ohm per MIL-STD-464, Stanag 4239 is compatible with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 500 pF Resistance: 500 Ohm Compatible with Teseq NSG 437 and NSG 438 Models Test Standards Met: MIL-STD-464 Stanag 4239
$0.00

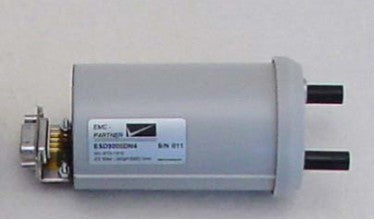

EMC Partner ESD3000DN4 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards for testing explosive devices. EMC Partner ESD3000DN4 Features: Capacitance/Resistance: 500pF / 5000ohm Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: MIL-STD-331, STANAG 4239, ISO 14304, MIL-STD-1512 EMC Partner ESD3000DN4 Package Includes: DN4 500pF/5000Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diamete 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN4 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$395.00
EMC Partner ESD3000DN32-MIL2 450 pF / 150 Ohm Network for Military ESD Testing EMC Partner ESD3000DN32-MIL2 Features: Capacitance/Resistance: 450pF / 150ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL2 Package Includes: ESD3000DN32-MIL2 RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00 - $3,975.00
EMC Partner ESD3000DN32-MIL3 500 pF / 0 Ohm Network is used to meet MIL-STD-1576. EMC Partner ESD3000DN32-MIL3 Features: Capacitance/Resistance: 500pF / 0 ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Compliance Standards: MIL-STD-1576 Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL3 Package Includes: ESD3000DN32-MIL3 500pF/0Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00 - $3,975.00
EMC Partner ESD3000DN5 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards. EMC Partner ESD3000DN5 Features: Capacitance/Resistance: 500pF / 500ohm Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: MIL-STD-331, STANAG 4239, MIL-SRL-23659D EMC Partner ESD3000DN5 Package Includes: DN5 500pF/5000Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diamete 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$395.00
