ESDguns.com, a division of The EMC Shop, stocks many models of used 30kV ESD simulators from Teseq (formerly Schaffner), EM Test, Haefely, Noiseken, Keytek and other manufacturers. Used units include a fresh traceable calibration certificate with data and waveforms and have an industry best 100 Day warranty (extended warranties available upon request).
The 3ctest EDS 30T Electrostatic Discharge ESD Generator is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 30 kV. The unit has the best price point of its 30 kV simulator comparables and is growing in popularity among engineering firms and manufacturers performing debugging and precompliance test evaluations.
$990.00 - $13,950.00
ESDGuns.com is upgrading it's rental fleet to the EM Test ESD NX30 30kV ESD simulator system with a discharge removal feature for ungrounded DUT. Purchase a used Schaffner NSG 438 ESD gun at a great price while they last. Schaffner NSG 438 Overview: The Schaffner NSG 438 ESD gun comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 438 can meet any of today’s automotive manufacturers’ standards in addition to these common compliance standards: IEC/EN 61000-4-2 ISO 10605 EN 61000-6-1 EN 61000-6-2 RTCA/DO-160 Section 25 Mil-STD-461G CS118 (March 2015 Draft) ITU-T K2 The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Included with a Schaffner NSG 438 ESD Gun: Carrying case with: Discharge pistol Cradle for discharge pistol High voltage base unit with built-in battery pack, mains adapter and battery charging unit (100 to 250 VAC) INA4380 Discharge network 150 pF/330 Ω for IEC 61000-4-2 Air discharge tip Contact discharge tip Grounding cable User manual (CD or Hardcopy) Teseq NSG 438 ESD Simulator Rentals
$14,500.00

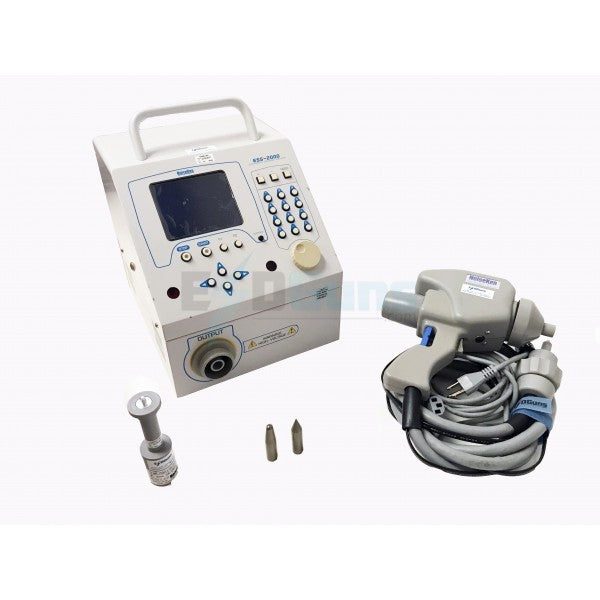

The Noiseken ESS-2000 simulator is a popular among car manufacturers such as Honda and Toyota for ISO 10605 ESD Testing. The ESS-2000 provides four operation modes, allowing the operator to conduct a single step testing for the IEC specified test voltages and for a series of stored test settings. Noiseken ESS-2000 Features: Meets and far exceeds the requirements in EN/IEC61000-4-2 Up to 30kV output in both contact and air discharges A light weight discharge gun Easily changeable capacitor and resistor units A wide range of options CE marked Controllable from an external computer using various communication interfaces.
$1,195.00 - $7,800.00
The Haefely PESD 3010 Electrostatic Discharge (ESD) Simulator / Generator Gun has been replaced by the Haefely ONYX 30 kV ESD Test Generator. The Haefely PESD 3010 is still suitable for most ESD immunity test applications and can be rented or purchased at an economical price compared to current model 30 kV ESD simulators. Please note quantities are limited as parts are no longer available and units must be scrapped once functionality fails. Haefely PESD 3010 Description: Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible. There are many standards which require discharge component (Resistor & Capacitor) values other than those described in the IEC/EN 61000-4-2 standard. With PESD 3010 it is possible to meet these requirements due to the changeable R&C modules. PESD 3010 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 3010 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results. PESD 3010 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional pushbuttons for easy and convenient setting of all test parameters.
$9,950.00
Kikusui KES4021 Description: The KES4021A ESD simulator allows you to perform immunity tests on an electrical or electronic device by simulating a direct or indirect electrostatic discharge from a charged human operator. ***Please make note the Kikusui KES4021 is a legacy model and no factory replacement or support will be available.*** Specifications: Discharge Method: Contact discharge and Air discharge Set Voltage: 0.00kV to 30.5KV (Guaranteed specifications: 0.50kV to 30.0kV) Polarity: Positive and Negative Charge Resistor: 50MΩ (combined with the discharge gun) Discharge Interval: 0.05 / 0.1s to 99.9s step operation: in step volage 0.01 to 30.0kV Memory operation: Stores 20 sets of testing conditions for each operation (a total of 80 sets) Power Supply: AC100V to 240V 50/60Hz Discharge Cycle: 1 to 999/ Continuous
$7,975.00
The Noiseken ESS-200AX 30kV ESD electrostatic simulator was a very popular unit but has been discontinued by the manufacturer. Current models are the ESS-B3011 and ESS-S3011. The ESS-200AX is still suitable for precompliance testing to IEC/EN 61000-4-2 or general test and debugging for ESD immunity. Noiseken ESS-200AX Features: 0.20 - 30kV Output Voltage Discharge Interval Programmable from 0.05 to 600 seconds Pre programmed IEC Severity Levels Storage functionality in Manual, Sweep and Program Mode
$6,950.00
Electrostatic discharges either from a human body to any other part or between two different objects can cause persistent disturbances or even destruction to sensitive electronics or controls.ESD 30N is an ESD tester to simulate ESD pulses at higher voltages up to 30kV in both air and contact discharge mode. It therefore satisifies requirements exceeding the EN/IEC 61000-4-2 test levels and complies to automotive test applications. The EM Test ESD 30N electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognised by the controls and indicated in the display.The EM Test Dito ESD 30N ESD Simulator/Generator is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the ESD 30N separating the sensitive computer from the test set-up and to avoid ground loops. EM Test ESD 30N Features:
$13,540.00
The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests. Applications: Communication Information technology Telecom Automotive Military Medical Aviation Broadcast and TV New energy and power Railway 3ctest EDS 30V Features: Air- and Contact- Discharge: 1000-30,000 Volts ±5% Resolution: 100 Volts Hold Time: >5 seconds Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more... Integrated sensor to monitor temperature and humidity Rise Time: 0.8 ns ±25% (0.6 to 1 ns) Current Peak Value Accuracy: ±10%
$1,195.00
The KeyTek Series 2000 hand-held or tripod-mounted ESD simulation test system provides a combination of performance characteristics that enable users to test to various ESD standards including IEC, ANSI, SAE and MIL-STD. Interchangeable discharge networks, current injection adapters, and tips (bundled or stand-alone) all plug directly into the discharger’s barrel, and facilitate testing to a broad range of ESD test methodologies to help users achieve market and company-driven quality objectives, and regulatory standards. The basic system is comprised of two interconnected units: the ESD-1 Discharger (or gun) that may be either hand-held or tripod mounted, and its associated Power Supply/Control Unit PSC-1. The ESD-1 Discharger contains a basic handle, polarity switch, high voltage set knob, a Digital Stored Voltage Monitor (DVM), and an audible discharge monitor that informs user when a discharge has occurred. The Power Supply/Control Unit includes selectors for repetition rates, charge rate and burst/normal modes. Keytek Series 2000 Features: Continuously selectable voltage from 0 to 25kV, positive and negative Interchangeable discharge networks, current injection adapters & tips for ESD testing to multiple standards Contact mode and air discharge testing including auxiliary adapters for air discharge generation & all five of its basic components Single-shot or programmable repetitive operating modes Hand-held or tripod-mounted Available Networks for Keytek Series 2000: DN-10 Discharge Network: IEC 61000-4-2 human-body-model Discharge Network (150 pF/330 Ω). DN-1 Discharge Network: IEC human-body-model Discharge Network (150 pF/150 Ω). ** DN-2 Discharge Network: NEMA Part DC33 and MIL STD 883E Discharge Network (100 pF/1500 Ω) DN-3 Discharge Network: Upper/lower-body-model Discharge Network (700 pF/100K/150 pF/150 Ω) DN-4 Discharge Network: Segmented-body-model Discharge Network (700 pF/100K/150 pF/150 Ω/20 pF-50 Ω) DN-6 Discharge Network: Optimum basic human-body-model network: EIA Std, PN-1361 (Draft 6, 1985) Discharge Network (100 pF/500 Ω) ** DN-10 may be substituted directly for DN-1; IEC Contact Mode module, CIA-V (for use with DN-10) may be directly substituted for DN-6 and HT-10/DT-4.
$2,950.00
The test voltage levels of the MZ-30 are more than sufficient for compliance to required IEC standard level 4 (15 kV) levels. Essentially a design tool, it allows you to identify the conditions where your product begins to degrade or malfunction (limit value), prior to production, and thus is also ideal for testing to category- or companydriven quality standards. The operation panel has keys and a rotary knob, which allow you to directly set test levels specified by the IEC standard. These controls facilitate adjustment for standardcompliance tests and other various settings. In addition to the standard 150 pF capacitor unit and 330O discharge resistor, a variety of optional components are available including a 330 pF capacitor unit and 2kO discharge resistor. The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality. The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality. Keytek Minizap MZ-30 Features: Intuitive operation Portable & self-contained Meets exact requirements of IEC 61000-4-2 Contact mode & air discharge ESD testing Generates real world, repeatable & correlatable ESD pulses E & H Field diagnostics Built-in safety features Field-configurable AC powered
$8,900.00
The Electro-Tech Systems 930D Electrostatic Discharge Simulator generates ESD discharge pulses from ±100 to ±30kV. Available RC Networks include a 1.5k ohm/100pf Human Body Model (HBM) Network, 330 ohm/150 pf IEC Network or choose from a variety of automotive, electronic, medical or military networks.The ETS 930D consists of a control unit and a discharge (gun) unit connected by a detachable 12-ft cable. The control unit houses the low voltage power supply with LED status indicators, system timing electronics, .5" LED voltage display and controls for the AUTO MODE event counter and high voltage power supply. In addition, a duplicate set of Charge/Discharge controls are provided for remote operation.The discharge unit (gun) contains the high voltage power supply and high voltage relay plus plug-in resistor and capacitor networks. It incorporates high voltage ON/OFF, MANUAL/ AUTO and RELAY/AIR discharge controls along with LED status indicators. A ¼-20 threaded hole enables the gun to be mounted to a tripod.The system has four modes of operation: AUTO COUNT, FREE RUN, MANUAL and AIR DISCHARGE. Air Discharge and Manual operations are controlled by the switches on the gun. The complete system is housed in an ABS carrying case. Electro-Tech Systems 930D: Voltage range: ±100 to ±30kV Plug-in R/C networks HBM 1500 ohm/100 pf for Mil Std. 883E testing 330 ohm/150 pf (IEC) Custom networks available Contact & air discharge Remote discharge capability Optional E & H-Field Probes Optional IEC Test Target Test in accordance with North American and European ESD simulation standards.
