ESDguns.com, a division of The EMC Shop, stocks new 30kV ESD generators from Teseq, EM Test, Haefely, Schloder and other manufacturers. New units include a fresh traceable calibration certificate with data and waveforms and typically have a 2 year warranty depending on the manufacturer. Receive 10% off Calibration Service for Life of any ESD simulator purchased through ESDguns.com

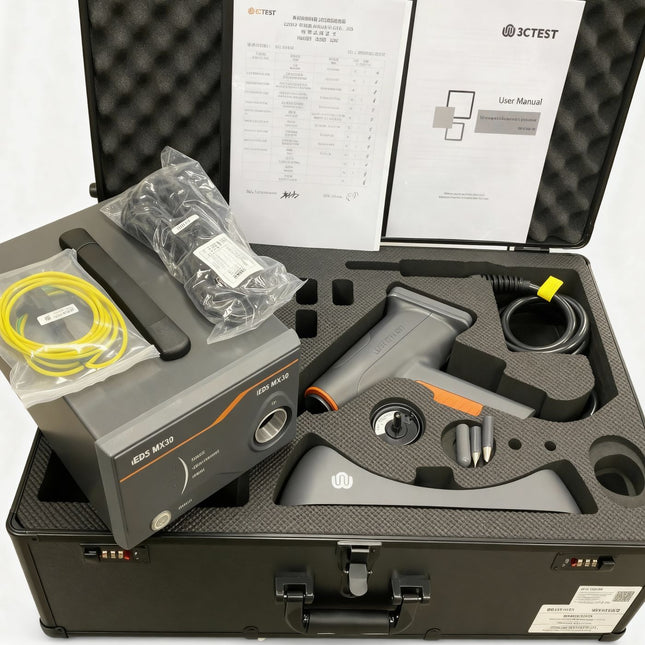

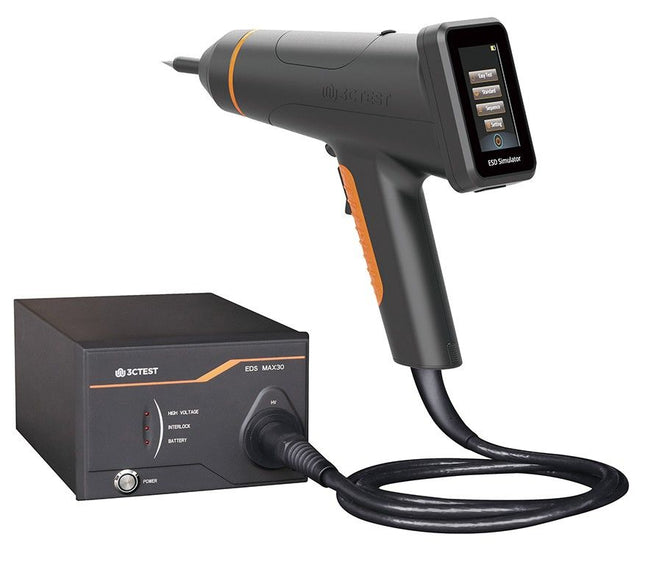

The EDS MAX30 is a state-of-the-art intelligent electrostatic discharge generator with an output voltage of 30 kV. It is an electrostatic discharge simulator that integrates discharge gun head and touch screen control, and operates in accordance with ISO 10605 and GB/T 19951 standards. Users can choose AC or built-in battery, the RC module can be easily interchanged, and the built-in temperature and humidity meter ensures reliability in various testing scenarios. Test Standards: EN/IEC 61000-4-2 ISO 10605 MIL-STD-331 MIL-STD-461 CS118 DO-160 Section 25 ompliant With Standards GB/T 19951:2019、ISO 10605:2023IEC 61000-4-2:2025、GB/T 17626.2:2018 Voltage Range 0.2 kV ~ 30 kV(± 5%) Voltage Resolution 100 V step Polarity Positive/Negative/ alternate Maintain Time 5 s ~10 s Discharge Electrode Air discharge round head/contact discharge pointed head RC Module 150 pF/330 ohm RC Module Recognition Automatically recognize and display numerical values Control Mode Touch screen, trigger button, fiber optic remote control Repetition Frequency Single, 0.1 Hz, 0.2 Hz, 0.5 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz Trigger Method Automatic and manual Pulse Counter 1 ~ 9999 Scheduling Test Up to 4 scheduling levels, tested in sequence TDC Counting Function Count once when the voltage of the gun head is below the set voltage threshold Self Inspection Before use, the self check function can be used to automatically verify Temperature and Humidity Built in temperature and humidity meter, can be used for environmental recording and instrument protection Battery Pack Parameters( Optional Accessories Battery Pack TST231–3S1P) Battery Type Lithium battery Module Voltage 11.1 V Capacity 27 Wh Battery Life Contact discharge 8 kV, 1 Hz, alternate , about 6 hoursContact discharge 30 kV, 1 Hz, alternate, about 4 hours Battery Charging Time About 4 hours, fully charged automatic protection Cycle Life Charging and discharging times 300 times>80% battery capacity Display 3.5-inch color screen Scope of Working Power Supply 100 V ~ 240 V(±10%) 50/60 Hz Language Chinese and English Brightness Setting 0 ~ 100% brightness setting Screen off Setting Automatically turn off screen without operation: 5 min/10 min/15 min/30 min/never Record Logs Record the last 4 sets of experimental parameters Communication Method Fiber optic communication Instrument Grounding Connection Method 4 mm banana socket Host Size 207 mm（W）*160 mm（H）*310 mm（D） Instrument Weight About 7.35 kg (including guns) Ambient Temperature 5℃ ~ 40℃ Relative Humidity 20% ~ 80% ,RH(no condensation) Atmospheric Pressure 86 kPa ~ 106 kPa Standard Accessory Kit: Air Tip Contact Tip RC Module AC Adapter Ground Cable Alligator Clip Battery x2 Carrying Case Manual Stand
$0.00 - $8,975.00

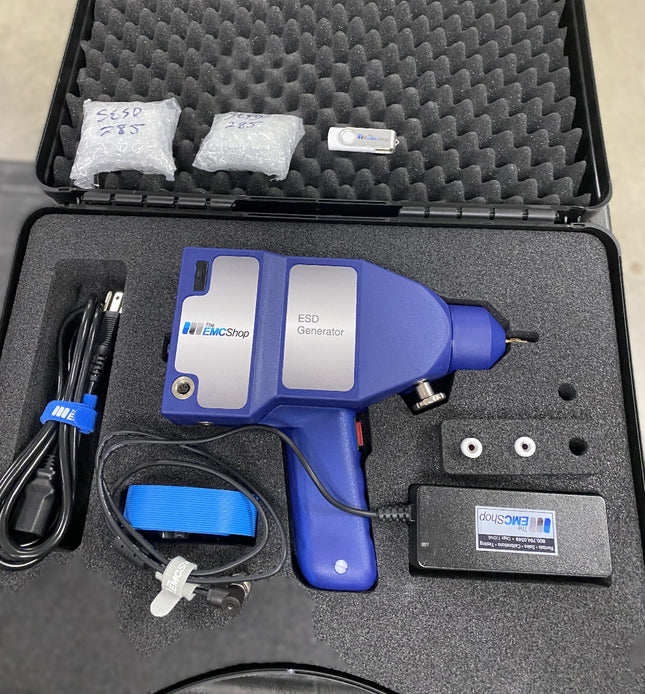

ESD30 ESD Simulator Includes Everything for Testing: ESD30 Handheld, battery operated ESD simulator Battery charger/AC Adapter Air discharge tip Contact discharge Ground cable 1 meter Manual Calibration Certificate ESD30 30kV ESD Simulator (150pF/330Ohm) The ESD30 30kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below: ESD30 Features Programmable discharge voltage 200V to 30kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design ESDguns.com is now a division of The EMC Shop
$0.00 - $795.00
The 3ctest EDS 30T Electrostatic Discharge ESD Generator is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 30 kV. The unit has the best price point of its 30 kV simulator comparables and is growing in popularity among engineering firms and manufacturers performing debugging and precompliance test evaluations.
$990.00 - $13,950.00
The Schloder SESD 30000 Electrostatic Discharge Generator is suitable for EMC testing of systems and equipment in accordance with standard IEC / EN 61000-4-2, ISO 10605 (Automotive), MIL-STD, and others. The modular structure of the simulator allows further testing according to different standards and customer definitions. Schloder SESD 30000 Includes: Electrostatic Discharge Generator with connection cable Desktop control unit with mains cable Mechanical polarity switch module 150pF Capacitor module 330 Ohm Resistor module Air Discharge Test Tip Contact Discharge Test Tip Discharge return cable Carrying Case User Manual Calibration Certificate with Data and Waveforms 10% off Calibration Service for Life
$0.00
The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests. Applications: Communication Information technology Telecom Automotive Military Medical Aviation Broadcast and TV New energy and power Railway 3ctest EDS 30V Features: Air- and Contact- Discharge: 1000-30,000 Volts ±5% Resolution: 100 Volts Hold Time: >5 seconds Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more... Integrated sensor to monitor temperature and humidity Rise Time: 0.8 ns ±25% (0.6 to 1 ns) Current Peak Value Accuracy: ±10%
$1,195.00 - $14,195.00
