CST-PRP Current Sensing Target-Portable Reference Plane for ESD Generator Calibration

    Description

    ESDGuns.com CST Current Sensing Transducer for ESD Generator Tip Verification allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz.

    ESDGuns.com CST Features:

    • Wideband up to 4GHz
      • < ± 0.5 dB up to 1GHz
      • < ± 1.2 dB up to 4GHz
    • 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V)
    • Gold plating surface
    • Excellent voltage linearity up to 30kV
    • Meets EN/IEC61000-4-2 V2009, ISO 10605 V2008, GB/T17626.2
    • Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load)
    • Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV

    ESDGuns.com CST Includes:

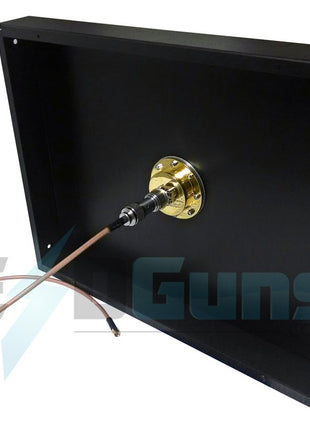

    • CST ESD Current Target
    • 30dB Precision Attenuator

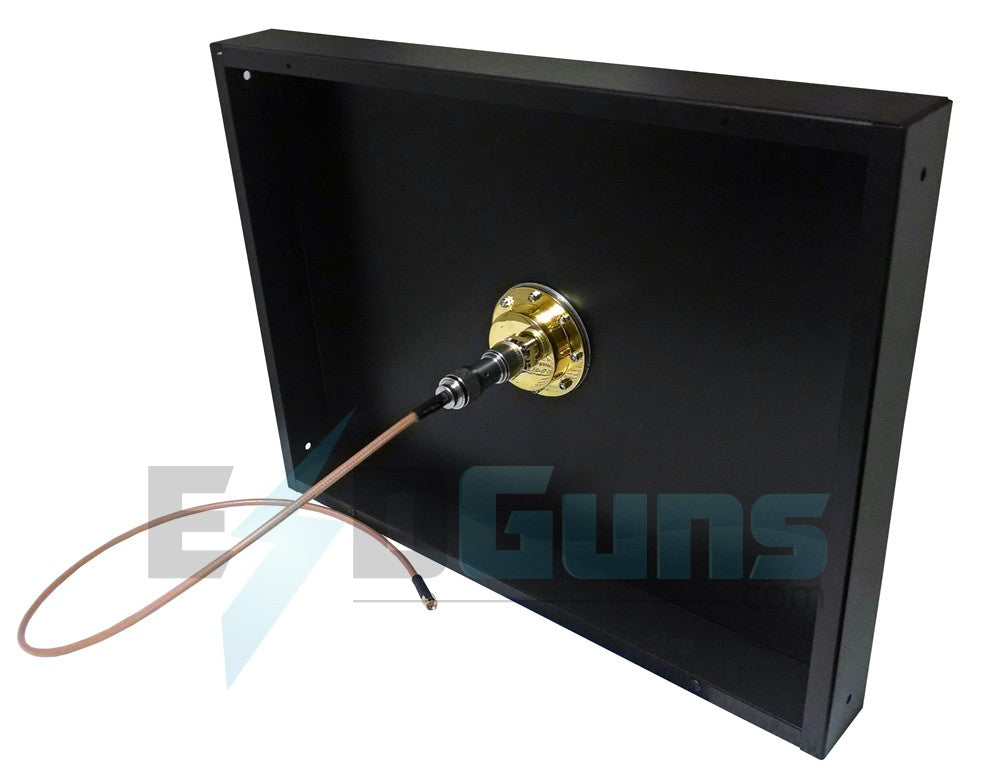

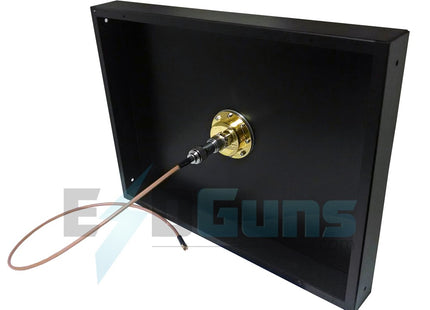

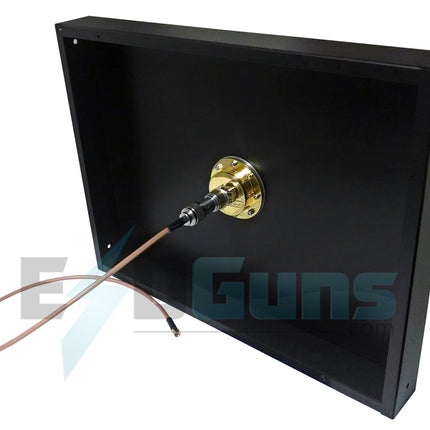

    • RG400 Coaxial Cable N to SMA

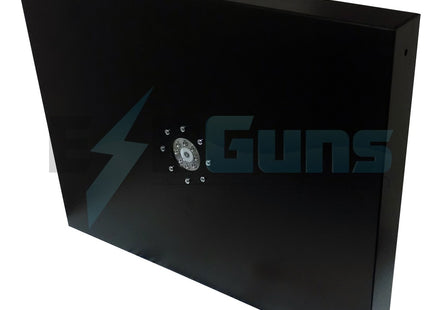

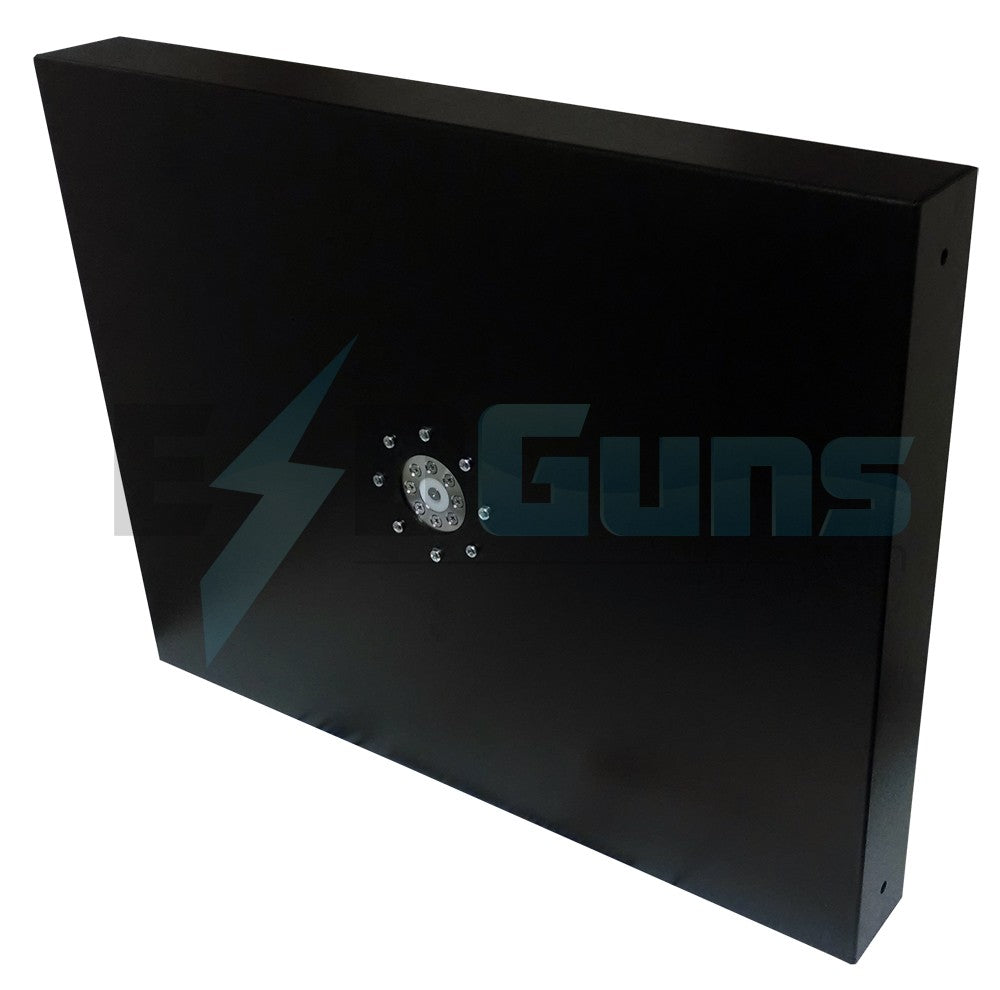

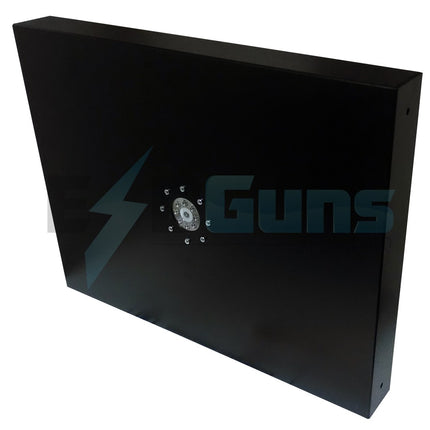

    • PRP Portable Reference Plane 17" by 13"
    • Traceable Calibration Certificate
    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $4,225.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Accessory Kit

      • CST ESD Current Target
      • 30dB Precision Attenuator
      • RG400 Coaxial Cable N to SMA
      • PRP Portable Reference Plane 17" by 13"
      • Traceable Calibration Certificate

        Features

      • Economical and Portable Option for ESD generator calibration
      • Ideal for replicating full test procedure during precompliance evaluation
      • Minimal setup required
      • 1 GHz - 2 GHz Oscilloscopes add-on available
