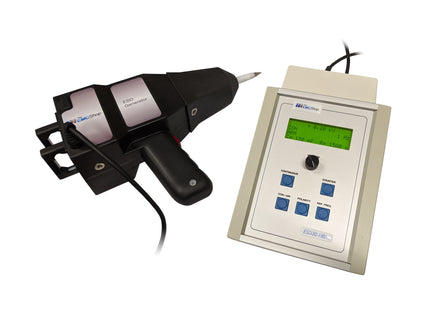

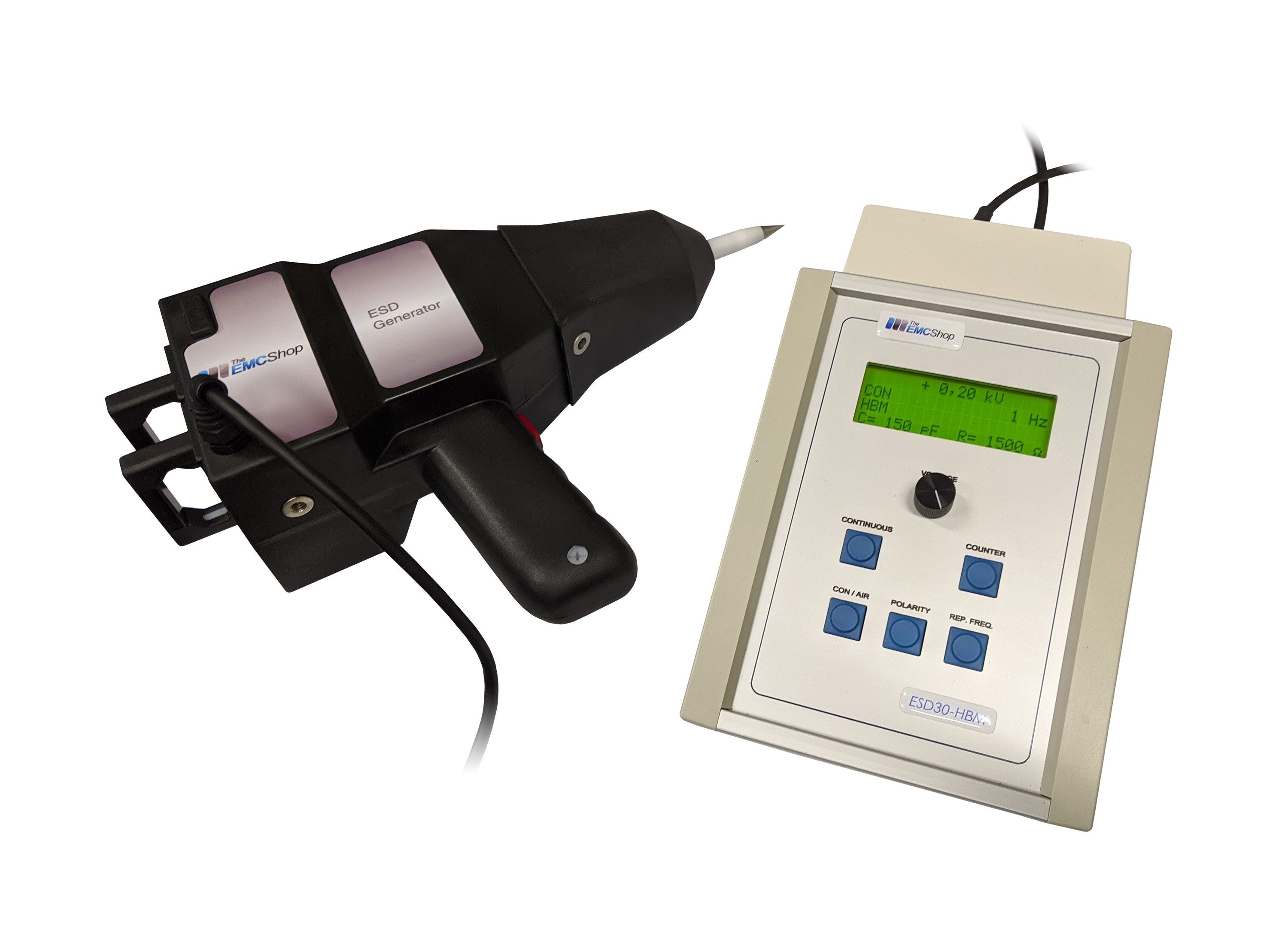

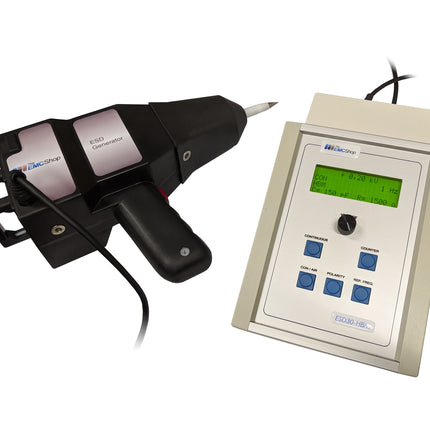

ESD30-HBM Human Body Model ESD Simulator per MIL-STD-883 and More

    Description

    The ESD30-HBM is an easy-to-use electrostatic discharge generator tailored for human body model ESD standards MIL-STD-750D, JS-001-2017, IEC 61340-3-1, JEDEC 22-A114, and more. With a straightforward interface, compact package, and low cost, the ESD30-HBM has been accepted by compliance laboratories and component-level test engineers. By disconnecting the HBM module from the tip of the ESD generator, standard system level testing can be accomplished to IEC 61000-4-2, MIL-STD 461G CS118, DO-160 Section 25, and many more.

    With a level of configurations, the ESD30-HBM can be built for all-day, everyday use to occasional use, while being budget-friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase.

    ESD30-HBM Human Body Model ESD Package Includes:

    • ESD Generator with connection cable
    • Desktop control unit with mains cable
    • Capacitor module 100 pF
    • Resistor module 1500 Ohm
    • HBM Module
    • Contact discharge test tip
    • Air discharge test tip
    • Discharge return cable, 2 m
    • Manual
    • Carrying Case
    • Traceable Calibration Certificate (Accredited Available)
    • 10% off Calibration Service for Life

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $1,299.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Accessory Kit

      • ESD Generator with connection cable
      • Desktop control unit with mains cable
      • Capacitor module 100 pF
      • Resistor module 1500 Ohm
      • HBM Module
      • Contact discharge test tip
      • Air discharge test tip
      • Discharge return cable, 2 m
      • Manual
      • Carrying Case
      • Traceable Calibration Certificate (Accredited Available)
      • 10% off Calibration Service for Life

        Features

      • Meet MIL-STD-883 and JEDEC JS-001 ESD HBM test standards
      • Ergonomic grip with big trigger key
      • Easily interchange to 150pF/330Ohm and other RC Networks, ideal for test labs
      • User defined adjustments possible: contact discharge with contact control or external triggering
