Description
The EMC Shops’ ESD30-Auto is an easy to use electrostatic discharge generator tailored for automotive ESD standards ISO 10605, SAE J113/13, GMW 3097 and more. With a straightforward interface, compact package and low cost, the ESD30-Auto has been accepted by compliance laboratories and automotive electronics manufacturers alike.
Configured with the standard package includes resistance 150pF and capacitance 330Ohm modules, suitable for basic ESD testing on commercial and military electronics (IEC 61000-4-2, MIL-STD 461, and more). With a level of configurations, the ESD30-Auto can be built for all-day, everyday use to occasional use, while being budget friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase.
ESD30-Auto ESD Generator Features
- Meets ISO 10605 and manufacturer standards
- Built-in self test feature
- Integrated automatic charge absorber
- Ergonomic & Lightweight
- Straight forward and easy to use interface
- ≥ 5 second holding time
- Remote control software available
- Optional built in battery

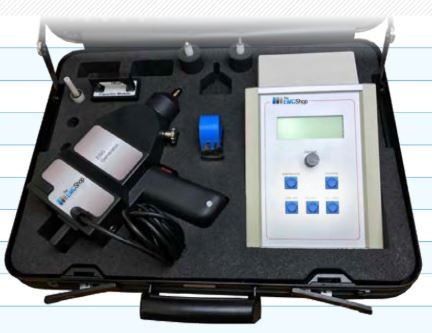

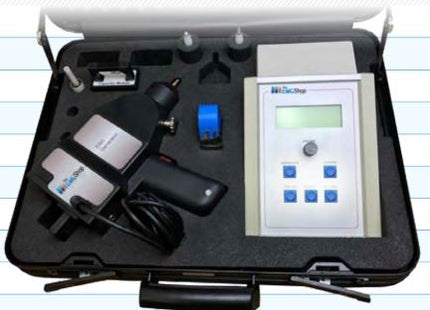

ESD30-Auto ESD Generator Includes
- ESD Generator with connection cable
- Desktop control unit with mains cable
- Capacitor module 150 pF
- Capacitor module 330 pF
- Resistor module 330 Ohm
- Resistor module 2000 Ohm
- Contact discharge test tip
- Air discharge test tip
- Discharge return cable, 2 m
- Manual
- Carrying Case
- Traceable Calibration Certificate (Accredited Available)
Additional Options for ESD30-Auto
- ESD30-FRT Fast Rise Time Tip (.45 ns)
- ESD30-Arm Support arm with balancer
- ESD30B-HBM System with built in battery (same as ESD16/30)
- ESD-SPHERE-TIP Test tip, 30 mm diameter, for Air discharge > 15 kV
- ESD-TIP-EXT Test tip, 50 mm long with spring contact, for Contact discharge
- ESD 271 VCP – vertical coupling plate incl. Earth cable (2 x 470 kOhm)
- GRC-2M Earth cable set incl. 2 x 470 kOhm resistor, 2m long
- CST2 ESD Verification Set 2 Ohm (4 GHz) for verification the ESD pulse
- VGP Vertical Ground Plane for ESD Current Target Approx 4’ by 4’
- ESD CONTROL Optical set and remote software
- ESD TEST ENVIRONMENT Turnkey setups for commercial or automotive ESD testing
