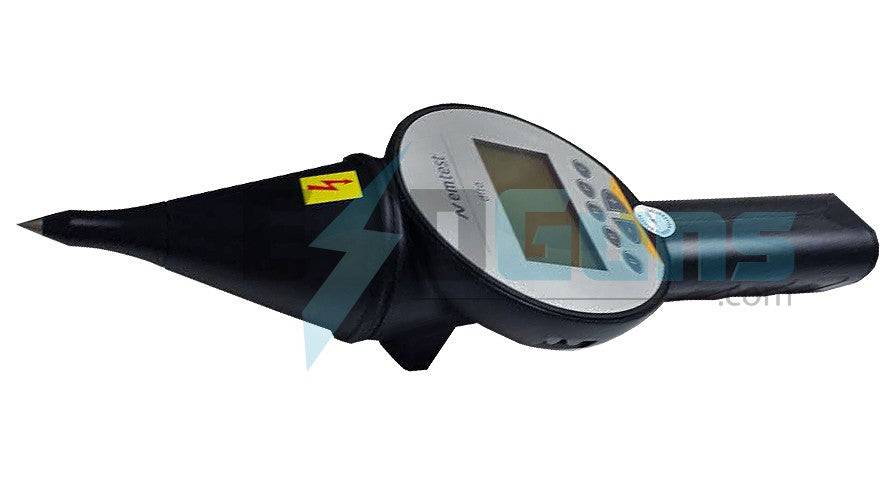

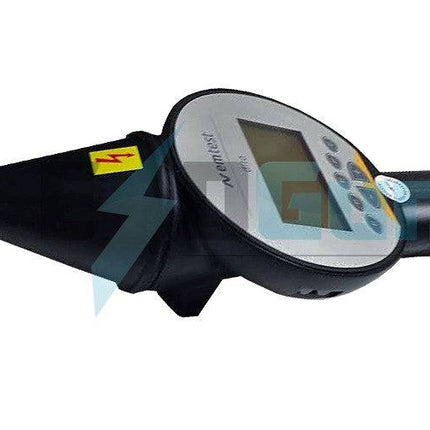

EM Test Dito 16kV ESD Gun

    Description

    The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing electronics for immunity to electrostatic discharges. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.

    The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.

    The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.

    Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network!

    EM Test Dito Features:

    • Most ergonomic design
    • Meets EN/IEC 61000-4-2 and more
    • Light weight (870g)
    • Interchangeable discharge tips
    • Interchangeable R/C networks
    • LiFePO4 power booster to perform long duration tests
    • Library of standard test routines
    • Test voltage measurement and control
    • Various test routines for testing and evaluation

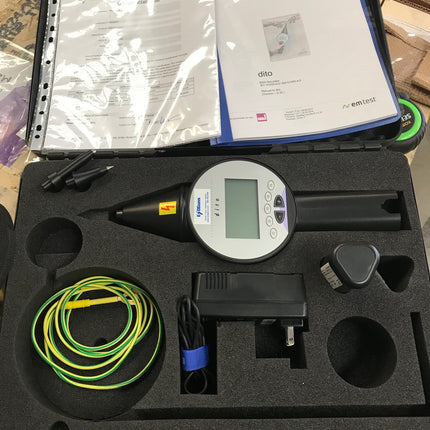

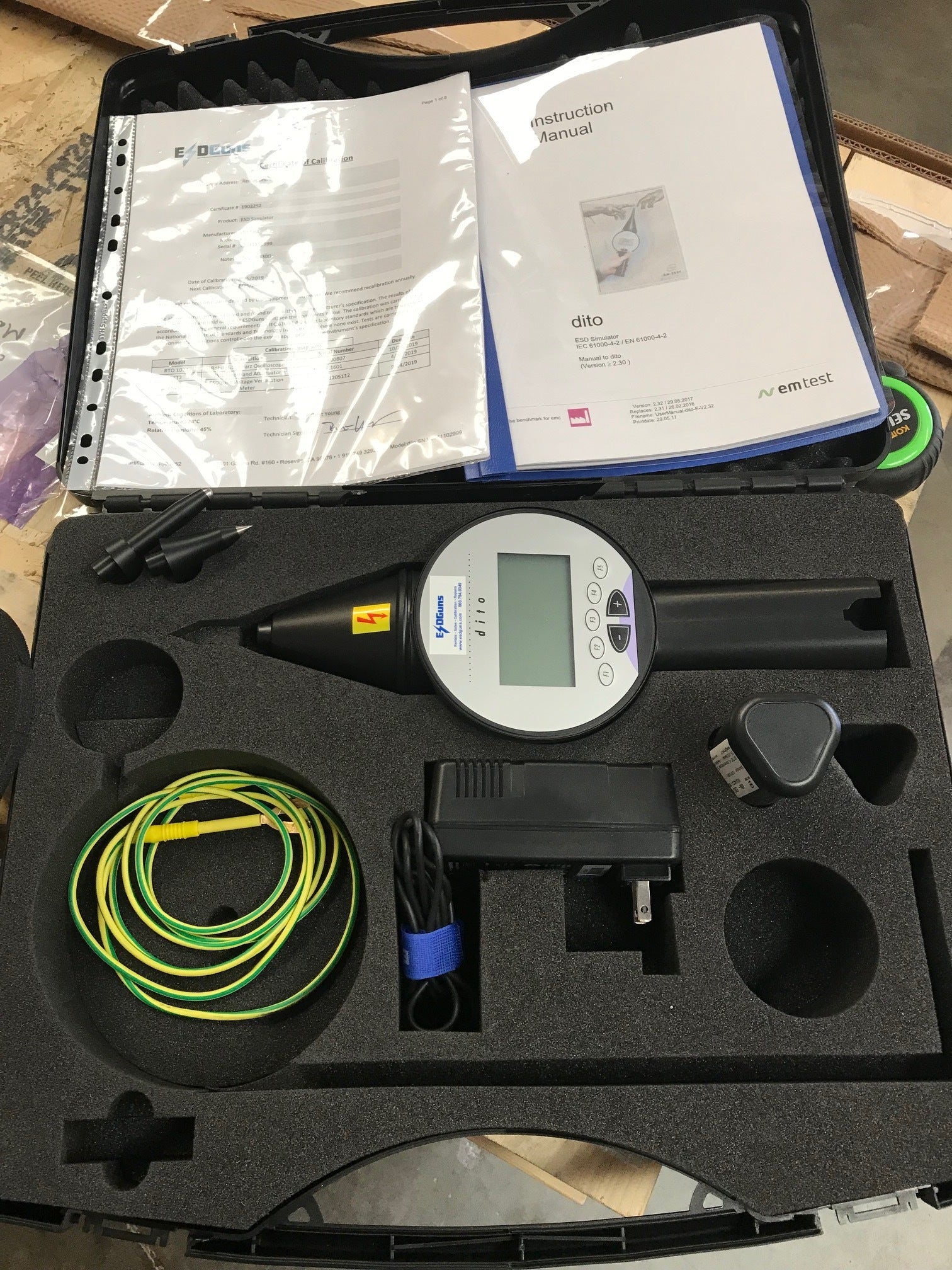

    EM Test Dito Includes:

    • EM Test Dito 16kV ESD Gun
    • EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay
    • Discharge tips for Air Discharge and Contact Discharge
    • PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh
    • Built in safety module for low voltage protection
    • CU dito Battery charger charging unit for EM Test Dito
    • Transportation case
    • grounding lead 2m
    • test certificate
    • operation manual

    EM Test Dito 16kV ESD Gun

      Product form

      In Stock

      $250.00 + Shipping

      Order by 3 PM and Ship ESD Guns and Equipment Same Day
          Accessory Kit

        • EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay
        • Discharge tips for Air Discharge and Contact Discharge
        • PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh
        • Built in safety module for low voltage protection
        • CU dito Battery charger charging unit for EM Test Dito
        • Transportation case
        • grounding lead 2m
        • test certificate
        • operation manual

          Downloads
          Features

        • Most ergonomic design
        • Light weight (870g)
        • Interchangeable discharge tips
        • Interchangeable R/C networks
        • LiFePO4 power booster to perform long duration tests
        • Library of standard test routines
        • Test voltage measurement and control
        • Various test routines for testing and evaluation

        Ask & Learn

        Previous answers and questions posted below

        Ask Now
        • Dear Sir or Madam, We are considering the purchase of the EM Test Dito Handheld ESD Simulator from your company. In order to proceed with our internal approval process, we kindly ask you to officially confirm the following: That the equipment you supply is an original EM Test product manufactured by AMETEK CTS. That it is covered by the official AMETEK CTS warranty and support. That the device specifications are fully identical to those listed on the AMETEK CTS official website. Your written confirmation will help us finalize our procurement decision. We appreciate your prompt response.

          We do not offer the EM Test Dito's for sale, only rental. We just migrated the website and are cleaning up the issues, we will fix this page asap so it's clear the price is for rent. If the price looks to good to be true, especially in this industry, it is.

        Description

        The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing electronics for immunity to electrostatic discharges. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.

        The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.

        The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.

        Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network!

        EM Test Dito Features:

        • Most ergonomic design
        • Meets EN/IEC 61000-4-2 and more
        • Light weight (870g)
        • Interchangeable discharge tips
        • Interchangeable R/C networks
        • LiFePO4 power booster to perform long duration tests
        • Library of standard test routines
        • Test voltage measurement and control
        • Various test routines for testing and evaluation

        EM Test Dito Includes:

        • EM Test Dito 16kV ESD Gun
        • EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay
        • Discharge tips for Air Discharge and Contact Discharge
        • PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh
        • Built in safety module for low voltage protection
        • CU dito Battery charger charging unit for EM Test Dito
        • Transportation case
        • grounding lead 2m
        • test certificate
        • operation manual
