ESD/EMC ES105 High-impedance High-voltage Electrostatic Voltmeter for ESD Gun Charge Voltage Verification - ESDGuns.com

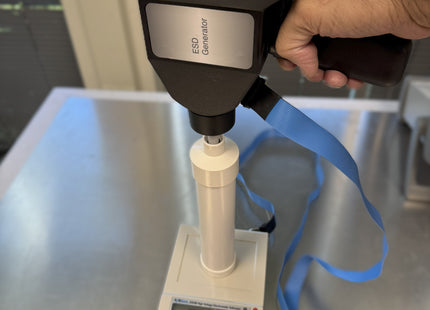

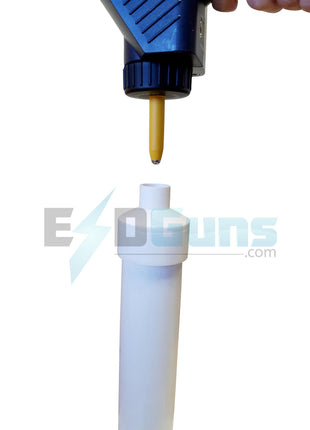

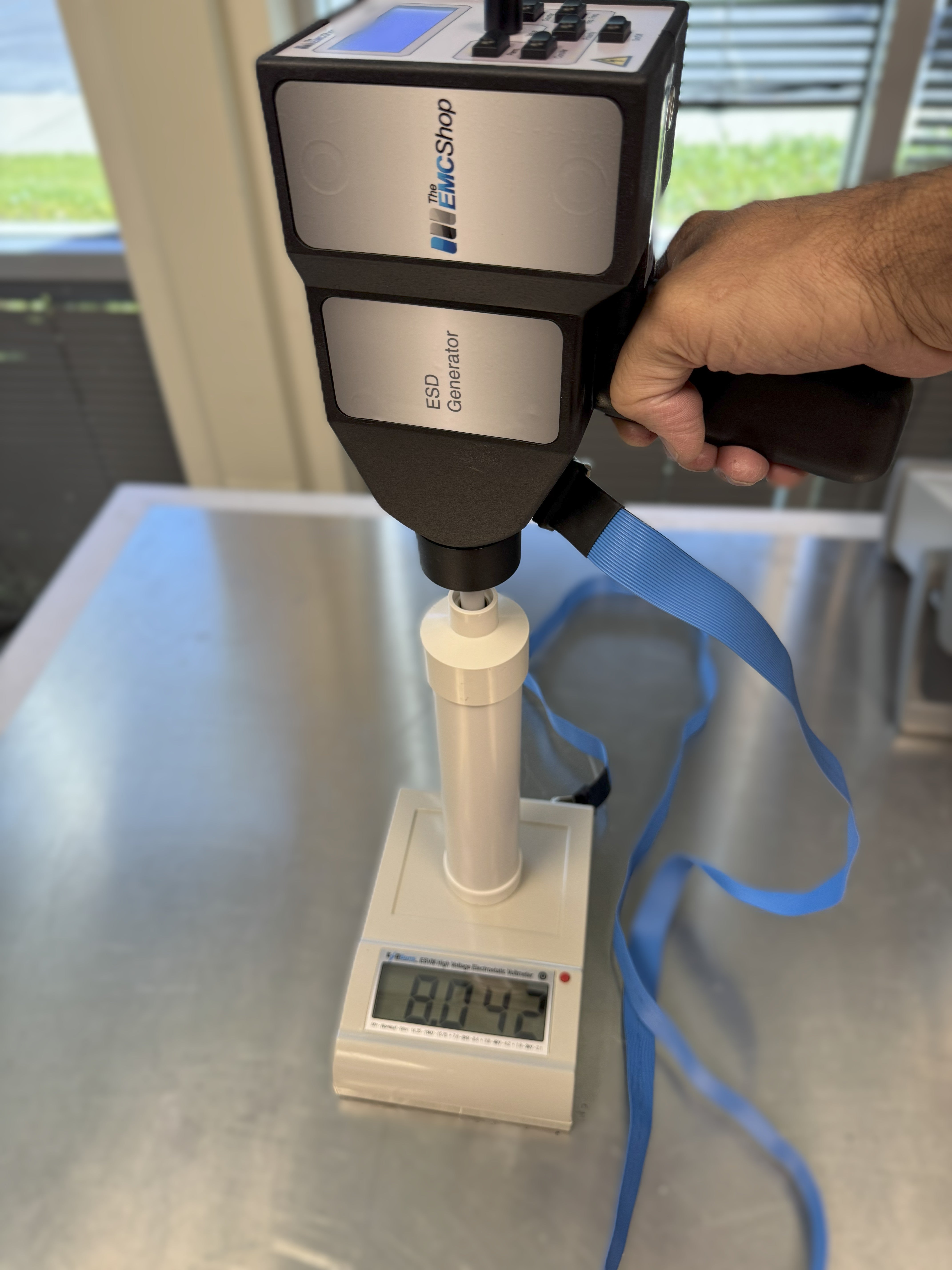

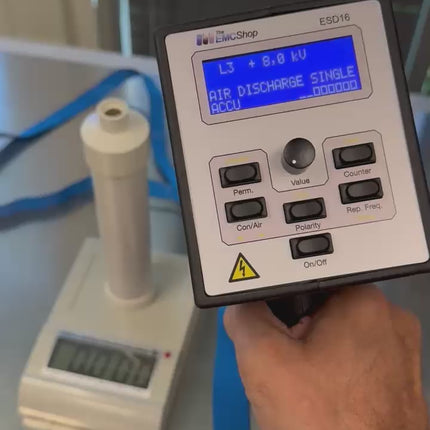

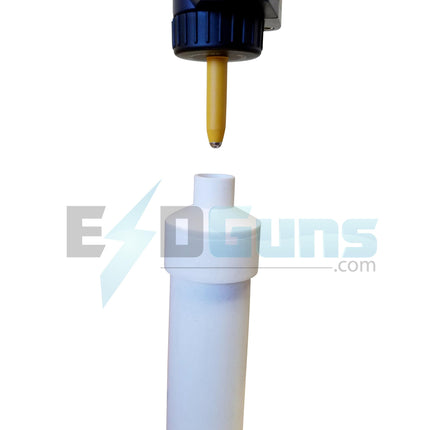

Safe and Easy Cradle Placement of Air Discharge Tip

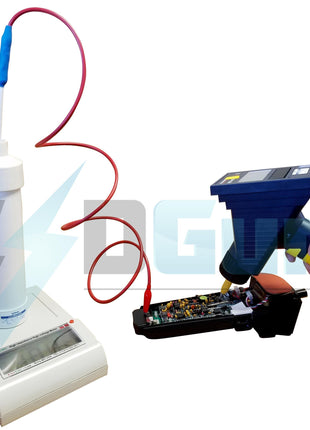

Adapter Allows Monitoring Voltage throughout the DUT at 1 Hz

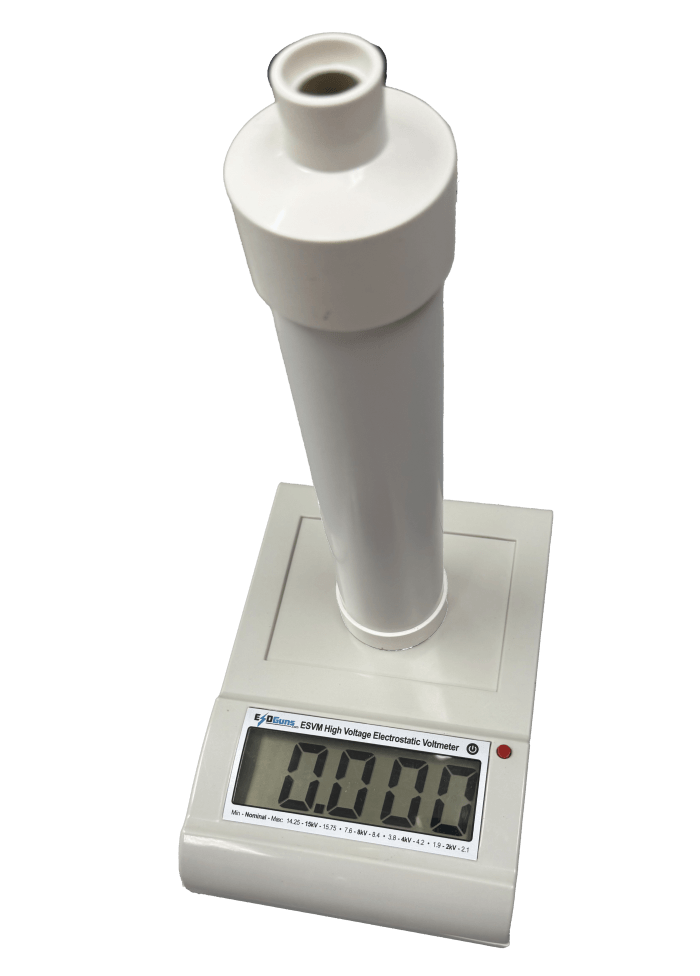

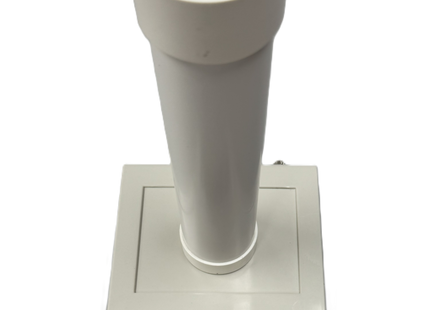

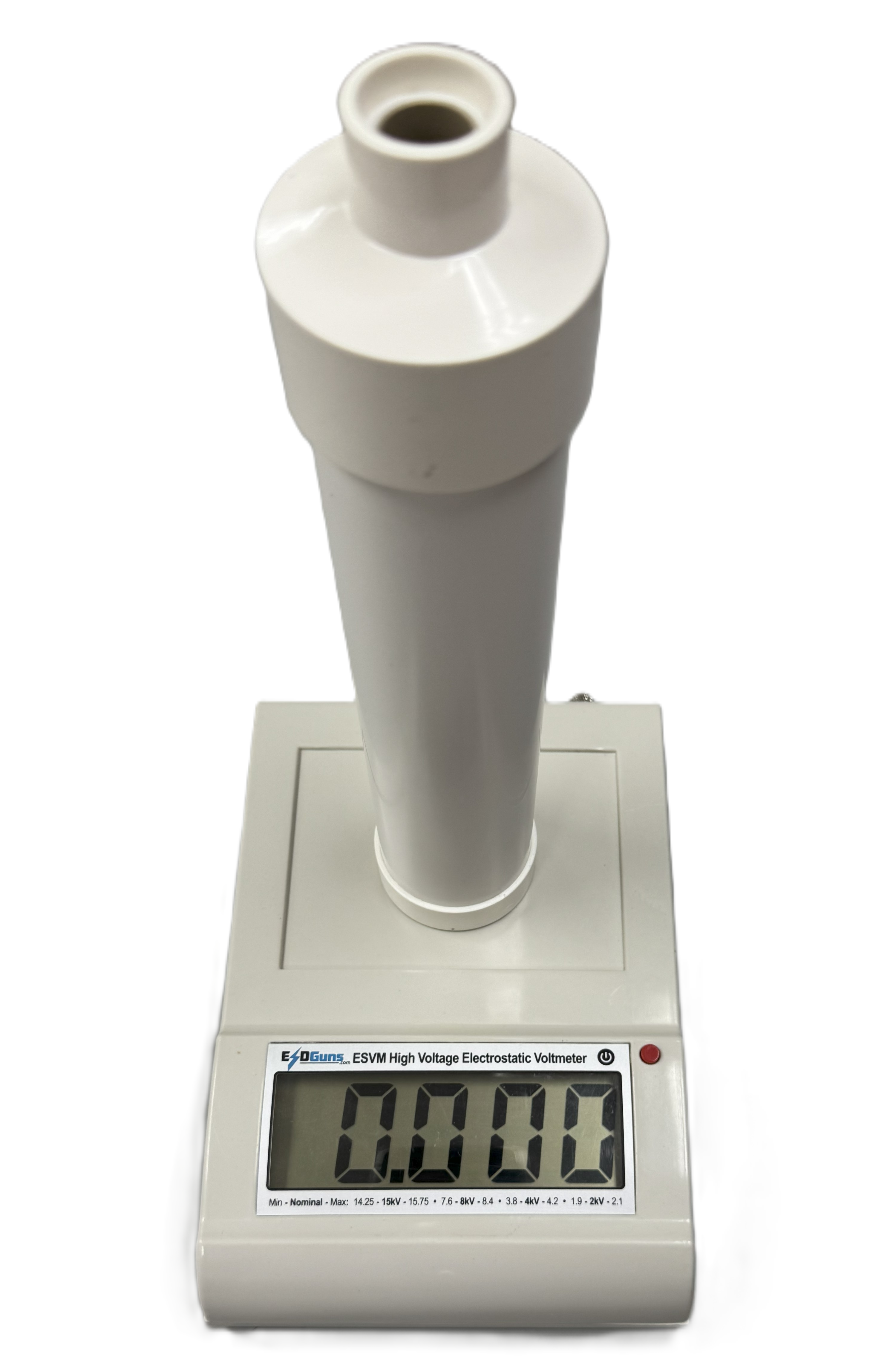

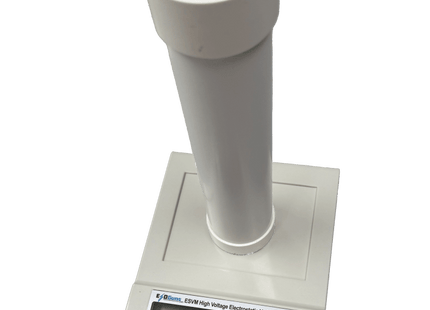

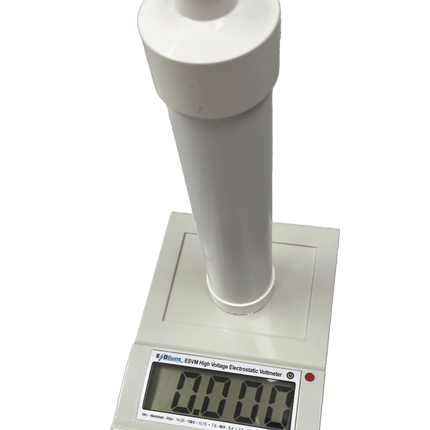

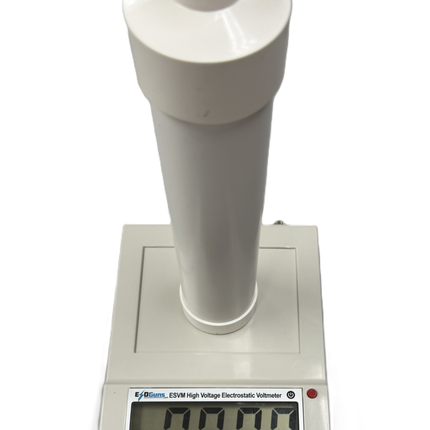

ESVM High Voltage Electrostatic Voltmeter for ESD Generator Voltage Verification

SKU:

Availability: In stock

Regular price $0.00

Accredited ISO 17025 Calibration Available
High input impedance - 100 GOhm
Wide measurement range
High accuracy and resolution
Stable reading
Portable with large LCD/LED
Battery or AC supply
Measure DC and AC voltage up to 200KHz
Suitable for use for IEC 61000-4-2, ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

The ESVM High-impedance High-voltage Meter for ESD Gun Charge Voltage Verification is a compact, cost effetive solution to verify the electrostratic discharge produced by simulators, guns pistols and generators. The ESVM High-impedance High-voltage Meter has a Measurement range: ± 1V ~ 100kV(customization), Accuracy: ± 1% ± 2 counts, Input impedance: ≥ 10 GΩ (customizable, like 30GΩ, 100GΩ), Display: 4 1/2 large LCD, Resolution: 1V.

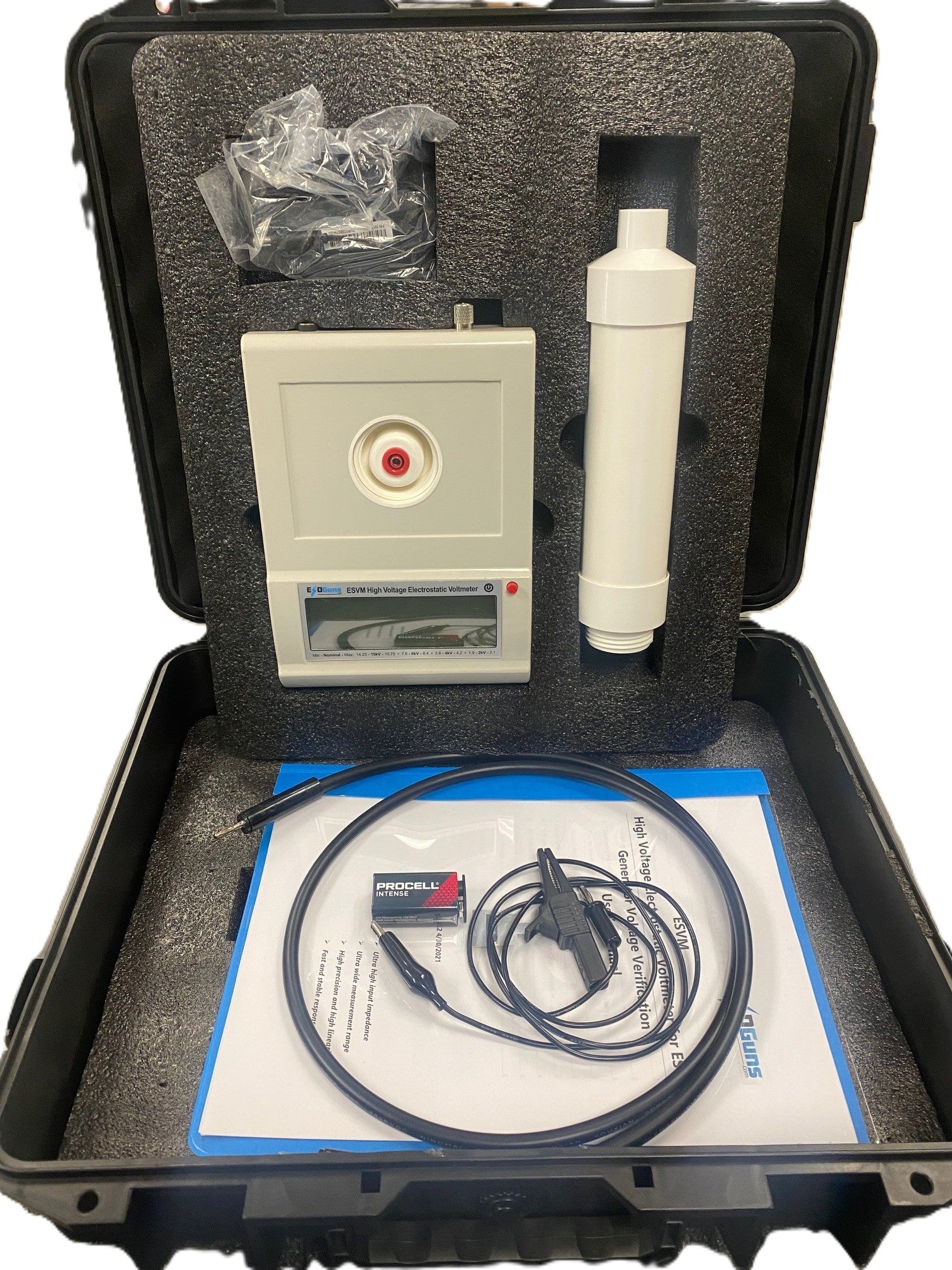

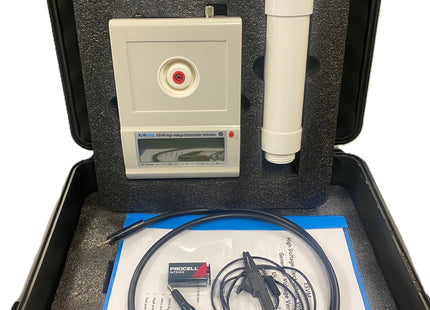

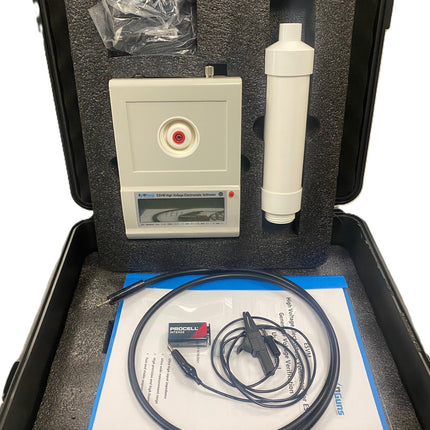

ESVM Includes:

High Voltage Meter
Input Tube
Monitoring Probe
AC Adapter
Grounding Cable
NIST Calibration Certificate
User Manual
Carrying Case
10% off Calibration Service for Life

ESVM Applications:

Electrostatic voltage measurement
ESD generator/simulator calibration
Electrostatic voltmeter calibration
High-impedance high-voltage measurement
Suitable for use for ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more...

ESVM Specifications:

Range: ± 1V ~ 100 kV (customizable)
Accuracy: ± 1% ± 2 counts
Input impedance: 100 G ohm
Display: 4 ½ large LCD/LED
Resolution: 1V
20×15×50 cm (7.85×5.91×19.68 inch)
2 kg (4.41 lb)

Pulse Amplitude
Polarity
Operating Modes
Max Output Voltage
Length	10
Width	22
Weight	2 kg (4.41 lb)
Height	18
Input/Shunt Resistance	100 GOhm
Holding Time
Display	4 ½ large LCD/LED
Discharge Repetition
Discharge Detection Air Discharge
Discharge Counter
Dimensions	20×15×50 cm (7.85×5.91×19.68 inch)
Contact Discharge Voltage
Charging Voltage Measurement
Battery Life
Bandwidth
Discharge Tips
Air Discharge Voltage	± 1V ~ 100 kV (± 1% ± 2 counts)
Voltage Resolution	1 Volt up to 20kV, 10 Volts Over 20kV
Variation of Insertion Loss
Standards Met	ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more...
