Coaxial calibration targets for measuring, testing and calibrating the ESD pulse from your electrostatic discharge gun. Target, 20 dB attenuator and RF coaxial cable offered seperately or as calibrated systems to ensure accurate test results. ESDGuns.com representatives will help set up your complete measuring path from the target to the attenuator up to the high quality coax cable.

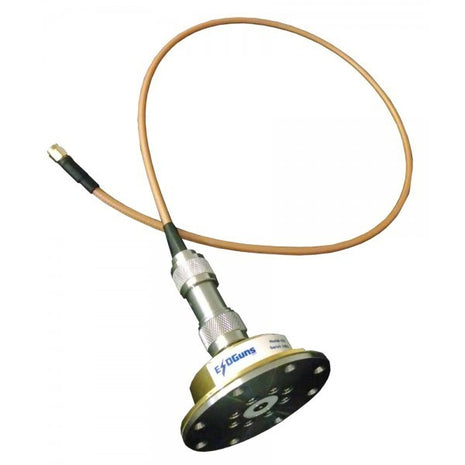

The ESD Guns CST2 ESD Target Current Sensing Transducer is a cost-effective solution that allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz. ESD Guns CST2 Features: Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and almost every other ESD test standard Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when matched with 50 Ohm load) Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESD Guns CST2 Includes: CST2 2 Ohm ESD Current Target 20dB or 30dB Precision Attenuator RG400 Coaxial Cable N to SMA SMA to BNC Adapter Traceable Calibration Certificate User Manual Hardware and Nut Driver
$295.00 - $3,450.00
The EM Test CTR2 is a coaxial current target to monitor Electro Static Discharges built as required by EN/IEC 61000-4-2 Ed.2 standard. The target can be purchased as an option to the ESD generators, model dito or ESD 30. It can be used for measurements up to 30kV. Additional attenuators are available to match the output signal with the input capability of the oscilloscope. EM Test CTR2 Features: Current target as per IEC/EN 61000-4-2 2Ohm impedance +/- 5% Test voltage up to 30kV Insertion loss +/- 0.5dB up to 1GHz Insertion loss +/- 1.2dB up to 4GHz Includes 20dB attenuator and 1m cable RG400 Additional attenuators available (optional) 50ohm Adapter line CTR 2-AD available (option) EM Test CTR2 Includes: CTR2 Calibration target 2ohm for ESD verification 20dB attenuator Coax cable 1m ESD Current Target Traceable Calibration Certificate
$0.00

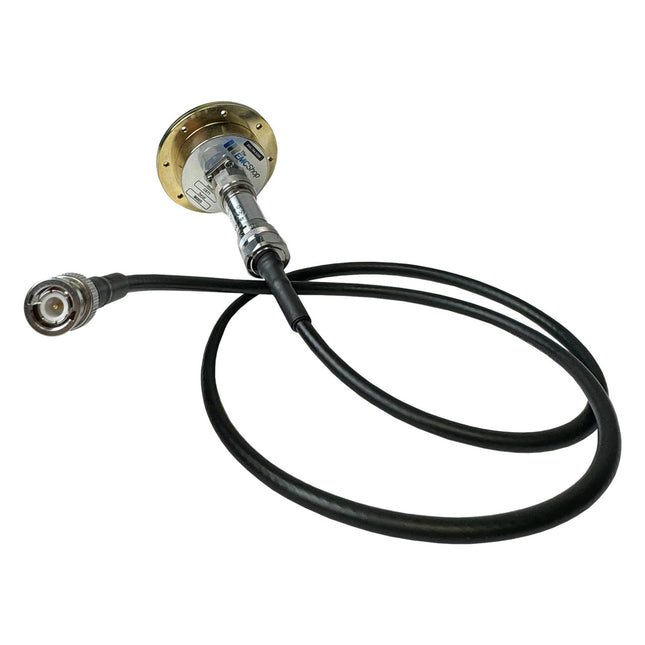

ESDGuns.com CST Current Sensing Transducer for ESD Generator Tip Verification allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz. ESDGuns.com CST Features: Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Gold plating surface Excellent voltage linearity up to 30kV Meets EN/IEC61000-4-2 V2009, ISO 10605 V2008, GB/T17626.2 Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESDGuns.com CST Includes: CST ESD Current Target 30dB Precision Attenuator RG400 Coaxial Cable N to SMA PRP Portable Reference Plane 17" by 13" Traceable Calibration Certificate
$495.00 - $4,225.00

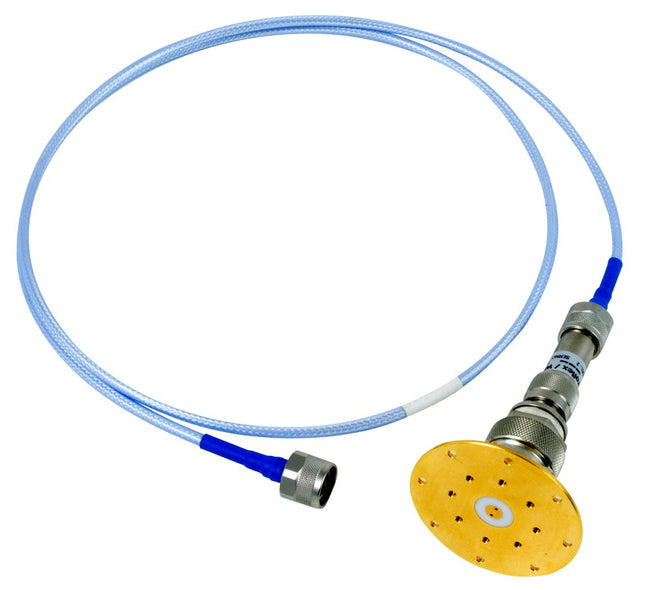

Calibration procedures on ESD generators call for high class test equipment and a carefully configured test rig. All the elements incorporated within the measurement chain must be matched to one another before highly accurate measurements with minimal uncertainties can be contemplated. Faster oscilloscopes enable more complete measurements and analyses of the fast ESD pulses but, of course, the rest of the components in the measurement chain must be up to the necessary standard and exhibit the appropriate frequency response. Therefore the Teseq MD 103 ESD Pulse Calibration set offers a complete measuring path from the target to the attenuator up to the high quality coax cable. The whole path has to be left together and should not be disassembled into parts, as the whole coupling path is calibrated in one piece. An important component in this chain is the measurement target. Through a collaborative effort with the Swiss Federal Institute of Technology, a new type of construction has been developed featuring a distortion-free, f at frequency characteristic up to at least 6 GHz. Standardization committees work on the pulse definitions of ESD generators to be specified more accurately and hence to ensure greater reproducibility during test trials. Simultaneously the description of the calibration test rig configuration and the measurement conditions have been newly and more precisely specified. The newest recommendations are written in the form of a draft standard that has been submitted to the ANSI as well as the IEC. Results from extensive round robin investigations confirm the feasibility and usefulness of tougher calibration requirements. The draft standard specifies the overall variation of the insertion loss of the whole measurement chain including cabling and any additional attenuators as follows: ±0.3 dB up to 1 GHz ±1 dB between 1 and 4 GHz As a result, the S21 parameter (insertion loss) of a target becomes a decisive factor. The classical measurement shunt can no longer satisfy these increased demands. The MD 103 target fulfils these specifications comfortably. The Teseq MD 103 is manufactured with the highest mechanical and electrical precision and therefore very narrow tolerances are assured. All the important elements are gold plated. The target is supplied ready for mounting in a screening wall. The Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification is a measurement device for calibration laboratories and specialists, who work right at the cutting edge of the latest technological know-how. The set will be delivered as a complete chain, consisting of target, attenuator, cable and a ISO 17025 calibration certificate including all relevant calibration data and graphs. A calibration adapter is also supplied with each target as standard. Thanks to the excellent frequency characteristic and the accurately determined parameters this target cannot negatively influence the uncertainty budget of the measurement chain as a whole. Teseq MD 103 Includes: ESD target 20 dB attenuator High precision coax cable Solid case with spare place for INA 103 Special screw tool Manual Calibration certificate conform to ISO 17025 OPTIONAL: Teseq INA 103 calibration measuring adapter with N-connector
$940.00
ESD generators are calibrated according to the standard IEC/EN 61000-4-2 Ed 2.0. The Haefely PET 4000 ESD Current Target Calibration Set allows the user to take measurements conforming to the new 4GHz requirement in accordance with IEC 61000-4-2 Ed. 2.0. Measurement of individual impulse parameters is performed using a special coaxial current shunt. This has a nominal impedance of 2 Ohms. Because ESD events can be generated as high as 120A, attenuators are required to reduce the impulse-voltage level so it can be displayed on commercial oscilloscopes. An oscilloscope with minimum 2GHz bandwidth is required to properly display the ESD impulse. Haefely PET 4000 (249997) Includes: ESD target 2 Ohm / 4GHz One 20dB / 18GHz attenuator (additional 20dB attenuator optionally, ordering number 0780841) Coaxial cable 1 meter User manual & test certificate
$3,750.00
The ESDGunscom CST2 ESD Current Target is a discounted, cost effective solution with ISO 17025 calibration valid until August 2018. The CST2 ESD target allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2, MIL-STD-461G CS118 compliance standard up to 4GHz. ESD Guns CST2 Features: Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and most every other ESD test standard Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load) Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESD Guns CST2 Includes: CST2 2 Ohm ESD Current Target 20dB or 30dB Precision Attenuator RG400 Coaxial Cable N to SMA SMA to BNC Adapter ISO 17025 Calibration Certificate User Manual Hardware and Nut Driver
$4,375.00 $3,937.50
