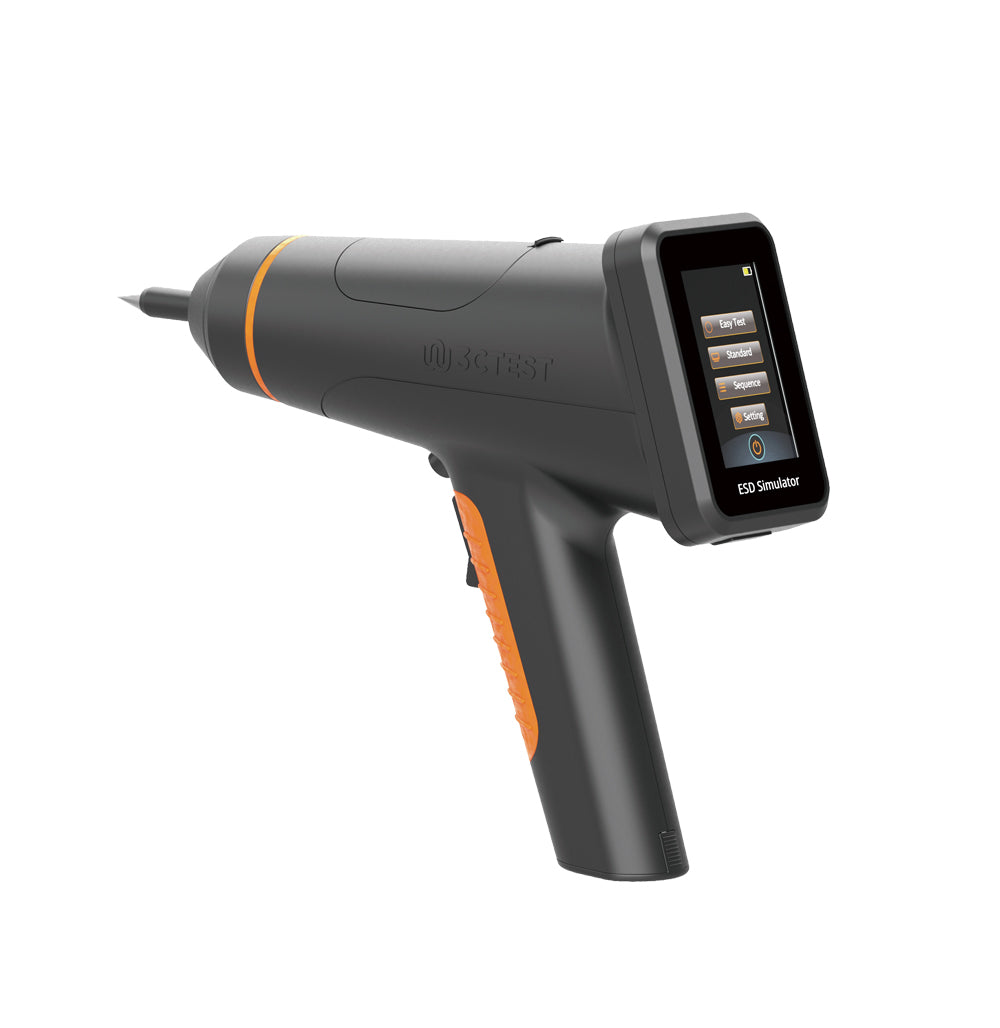

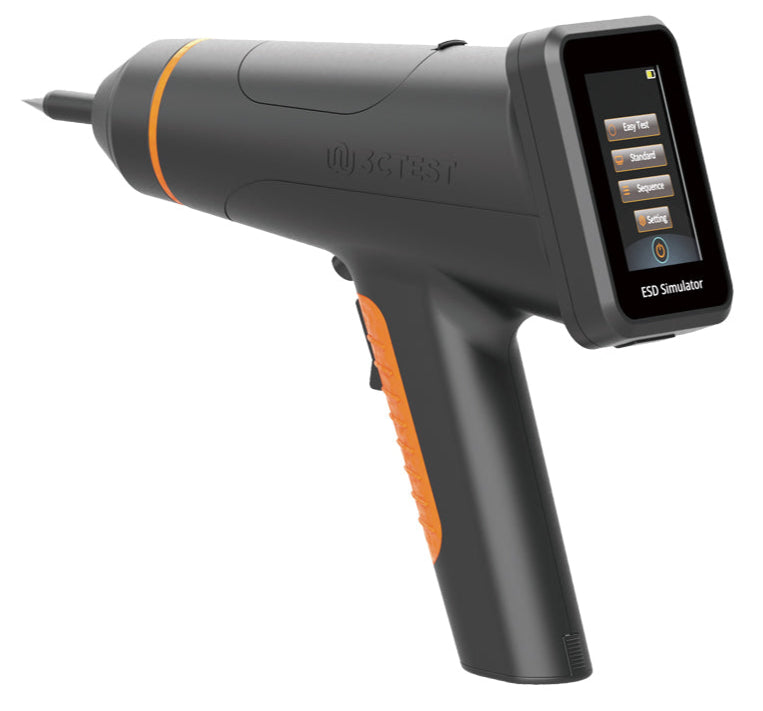

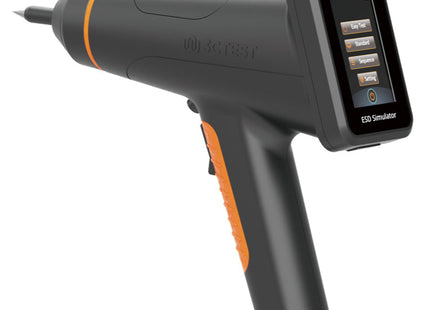

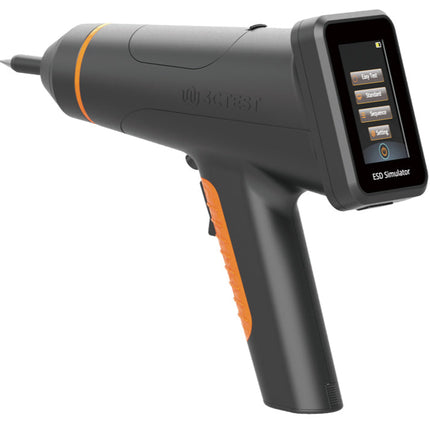

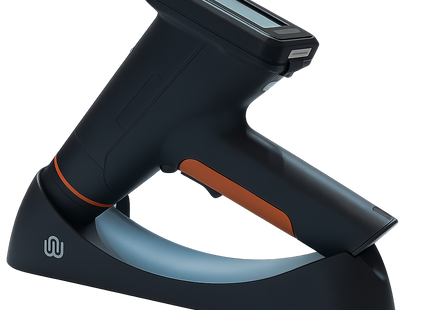

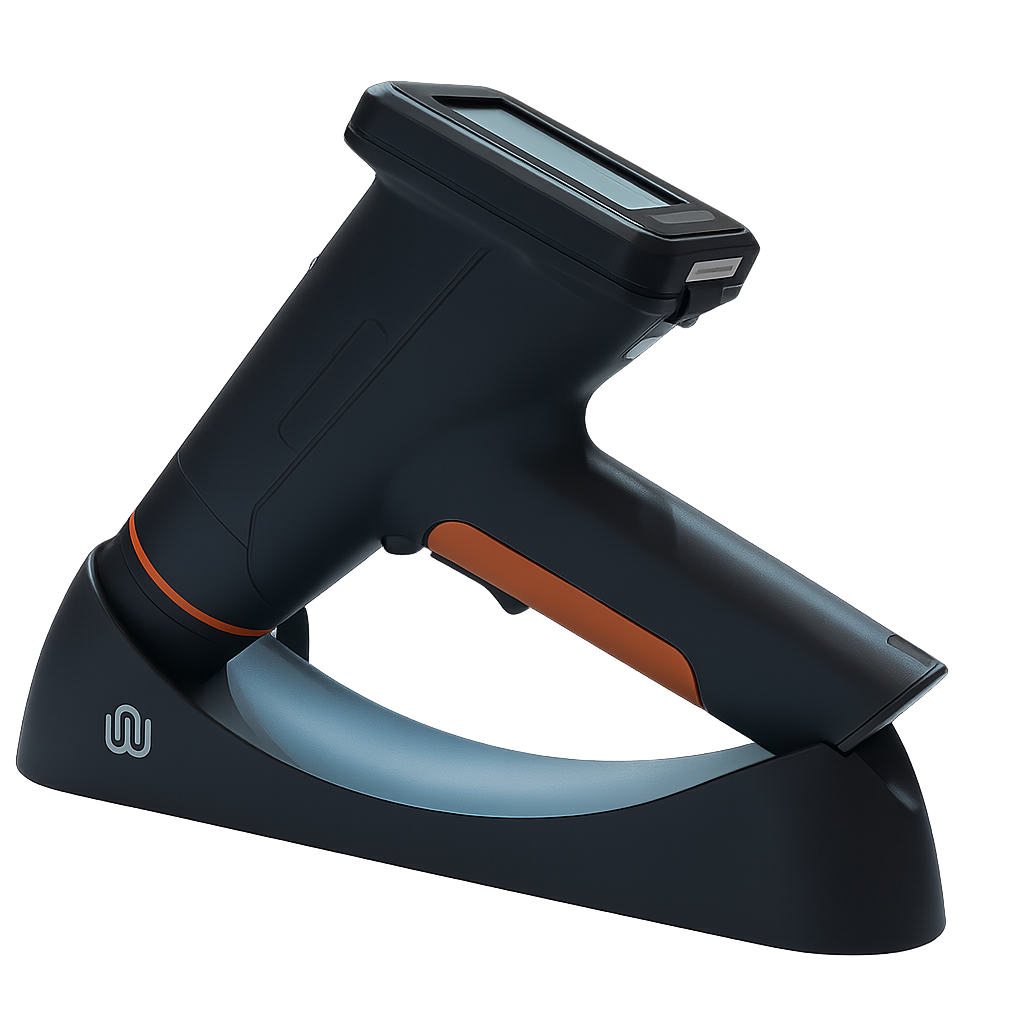

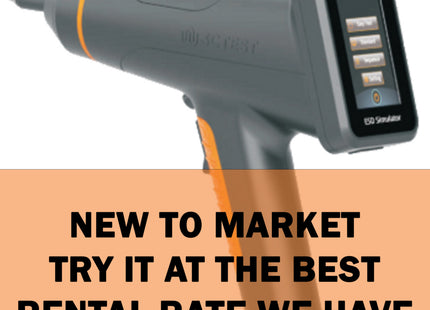

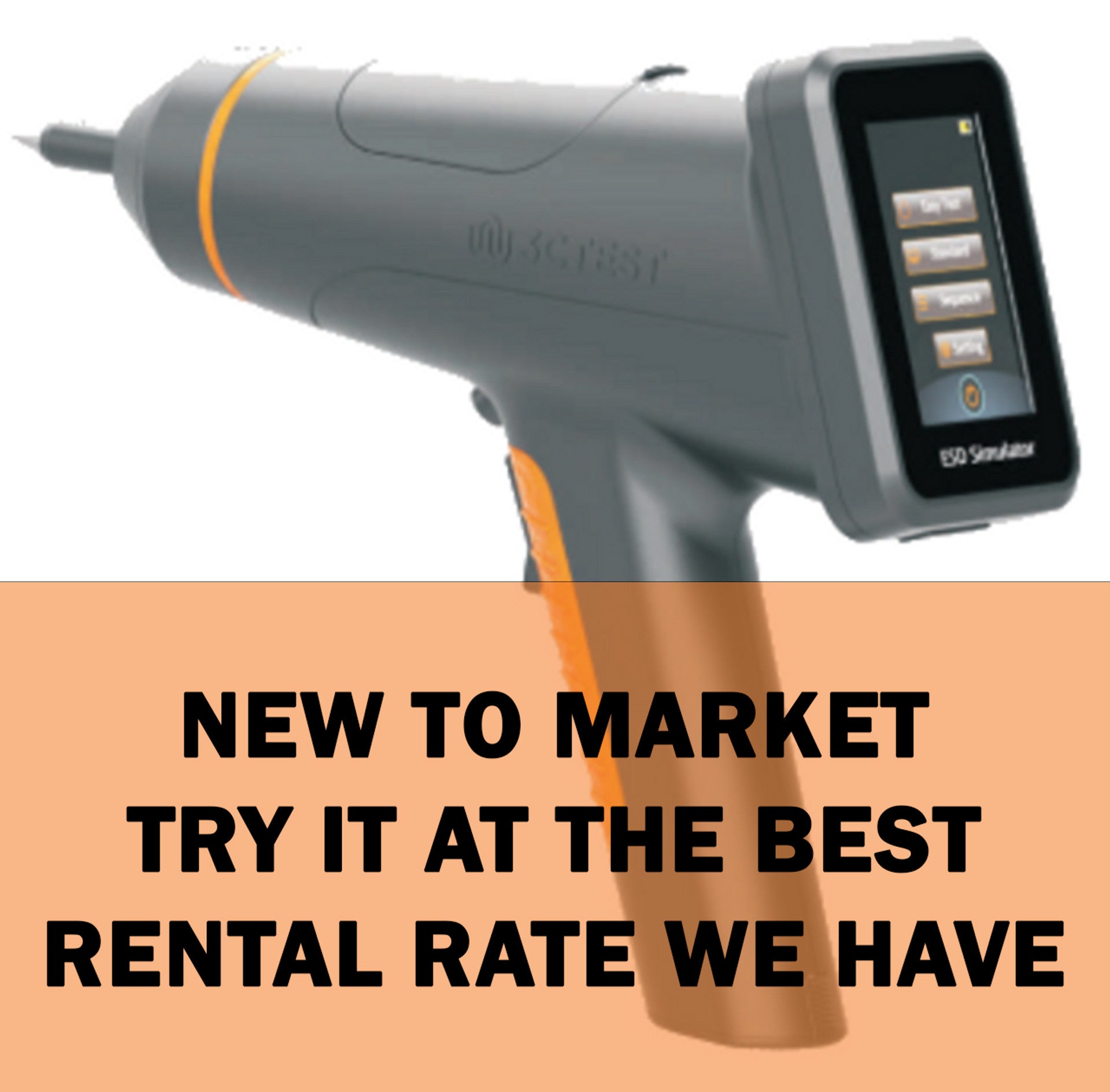

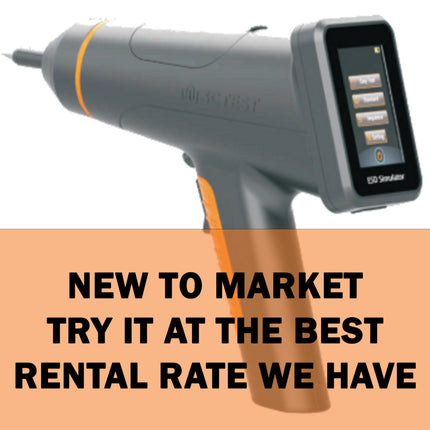

    EDS MAX Series 17 and 20kV ESD Guns

      Description

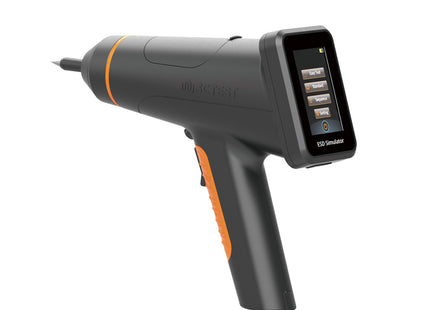

      The EDS MAX is 3CTEST’s fourth generation ESD simulator in compliance with IEC 61000-4-2:2025 and other standards. This new product has a high - definition color touch screen, along with compact mechanical design, intuitive UI, lightweight, and impeccable waveforms.

      With three test modes, the EDS MAX offers customers convenient operation tailored to their testing needs and requirements, ideal from the research and development stage allthe way through to the verification and certification for ESD immunity.

      Test Standards:

      Models:

      • EDS MAX16 - max discharge voltage to 17kV
      • EDS MAX20 - max discharge voltage to 20kV
      • All include the 150pF/330Ohm R/C module required in the above standards. Additionaly modules available.
      • Air and contact discharge tips:

      Test Voltage

      0.5 kV ~ 20 kV( ± 5% )

      Voltage Step

      100 V

      Polarity

      +, -, + / -

      Holding Time

      5 s ~ 10 s

      Discharge Tip

      Air discharge tip and Contact discharge tip

      RC module

      150 pF / 330 ohm

      RC Module Identification

      Automatic Identification and display

      Control Mode

      Touch screen, trigger button, optical fiber remote control

      Frequency

      Single, 0.1 Hz,0.2 Hz,0.5 Hz,1 Hz,2 Hz ,5 Hz,10 Hz and 20 Hz

      Trigger Mode

      Automatic, manual, remote

      Counter

      1 ~ 9999

      Sequence Test

      Up to 4 sequence levels

      Counter

      Countering happens upon tips voltage lowered than setting voltage thresholds

      Voltage Thresholds

      50%, 60%, 70%, 80%, 90%

      Temperature and Humidity

      Built-in temperature and humidity meter, serving as

      real-time test environment record and protection function.

      Battery Type

      Lithium battery

      Battery Group Voltage

      3 * 3.7 V

      Battery Capacity

      27 Wh

      Battery Life

      12h @ contact discharge 20 kV, 1 Hz, first positive and then negative

      18h@ contact discharge 8 kV, 1Hz, first positive and then negative

      Power Supply for Battery Charger

      100 V ~ 240 V，50 ~ 60 Hz

      Battery Charge Time

      Approx. 5 h

      Service Life

      300 times ＞ 80%



      Display  Screen

      3.5  inches  color  screen

      Language

      English, Chinese

      Auto Power OFF Function

      Power off automatically upon no operations: 5 min / 10 min / 15 min / 30 min / never

      Screen Brightness

      0 ~ 100%

      Lock Screen

      Lock screen upon no operation:

      5 min / 10 min / 15 min / 30 min / never

      Memory

      latest 4 groups testing parameters

      Communication mode

      Optical fiber

      Grounded Port

      4mm banana plug

      Dimension

      285 mm × 85 mm × 245 mm

      Weight

      Approx.1.25kg(Incl. battery)

      Ambient Temperature

      5 ℃ ~ 40℃

      Relative Humidity

      20% ~ 80% (no condensation)

      Atmospheric Pressure

      86 kPa ~ 106 kPa



      Standard Accessory Kit:

      • Air Tip
      • Contact Tip
      • RC Module
      • AC Adapter
      • Ground Cable
      • Alligator Clip
      • Battery x2
      • Carrying Case
      • Manual
      • Stand

      Additional Accessories:

      • EDS MAX-REMOTE (for PC interface)
      • Corelab Software
      • EDS MAX-DCPower - AC 110/220V input, can replace battery pack

      Product form
      Order Type

      We are unable to show availability for this product.

      Delivery Method

      EXAMPLE: Select a delivery date 1-2 days prior to your event date. It will be sent so it arrives to you on or before your selected date.

      EXAMPLE: Select the date you would like to collect from our [Your Location] store.

      EXAMPLE: Select a delivery date 1-2 days prior to your event date.

      Now select an end date Clear
      Loading...
      Updating...
      Powered By

      EXAMPLE: Nationwide postage is $[Postage Price] and will be added at checkout. Please ensure you select Post as your delivery method when you get to checkout, or your order may be cancelled.

      EXAMPLE: Pickups are between 3pm and 5pm at [Your Address}.

      EXAMPLE: Local deliveries are made to your address between 10am and 12pm on your selected delivery date.

      Delivery Date ...

      ...

      Return Date ...

      ...

      Rental Fee ...
      Price $475.00
      There was a problem adding the item to the cart.

      $590.00 $475.00 + Shipping

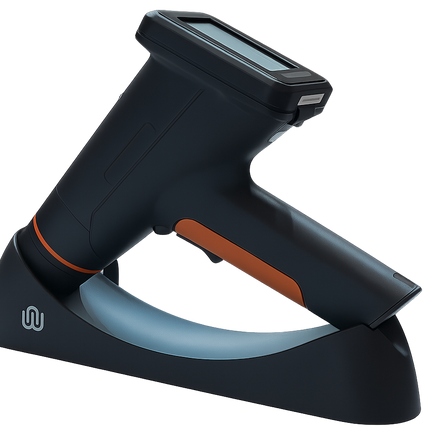

        Description of image

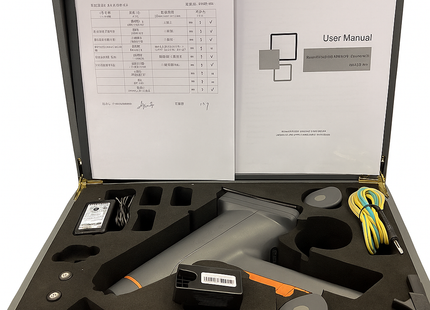

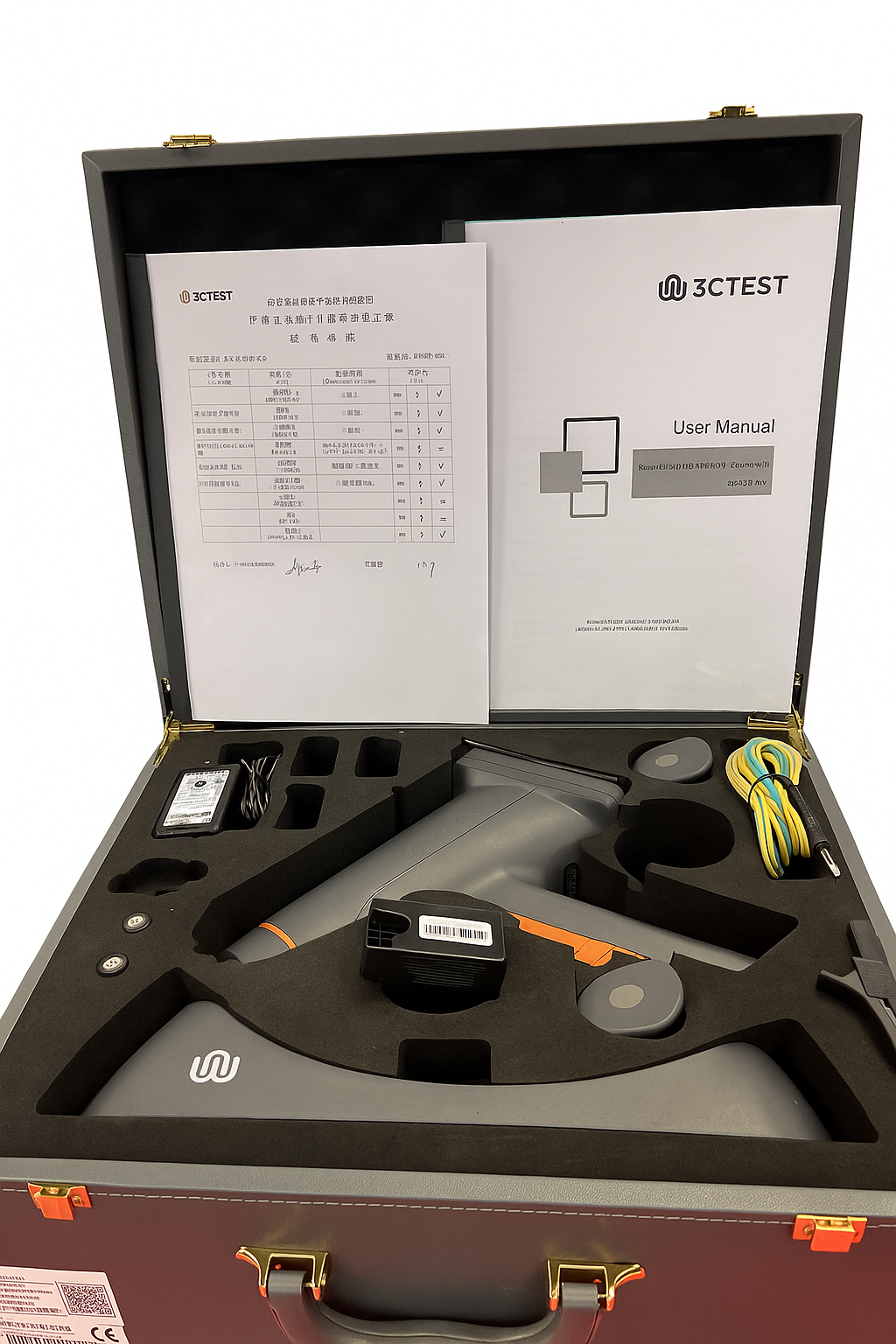

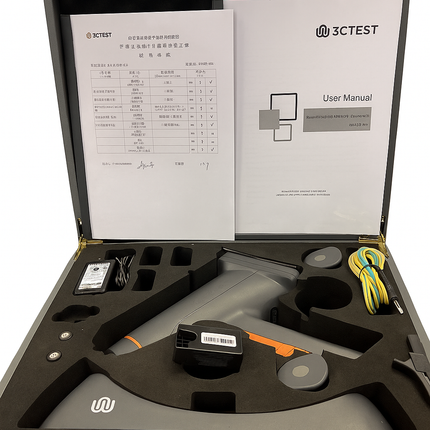

          Accessory Kit

        • 2.5 lb ESD generator
        • Contact Tip
        • Air Discharge Tip
        • 150pF/330Ohm RC Module
        • Two Battery Packs
        • AC Adapter and Charger

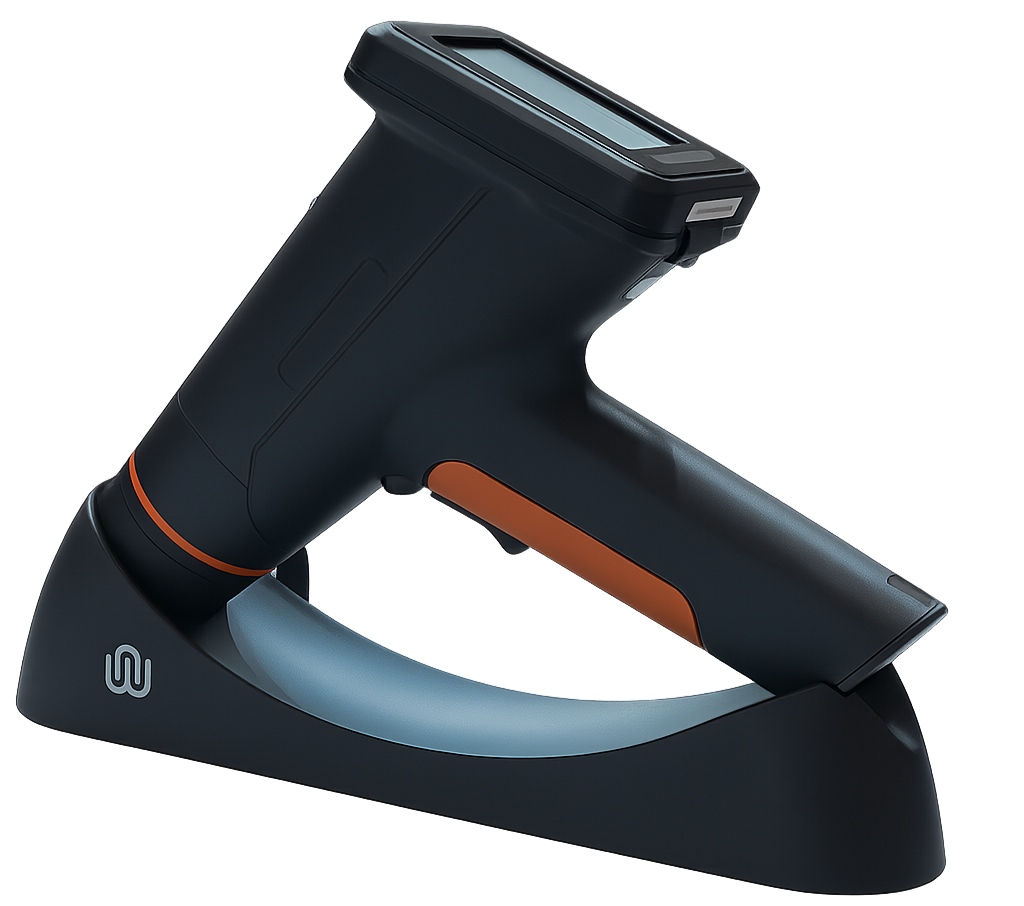

        • Pistol Stand
        • Ground Cable
        • Carrying Case
        • Manual
        • Calibration Certificate with data

          Downloads
          Features

        • Discharge voltage from 500 V to 20 kV (100V steps)

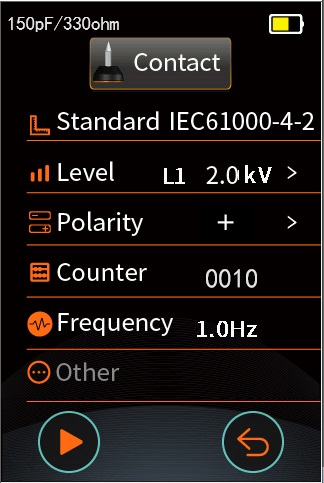

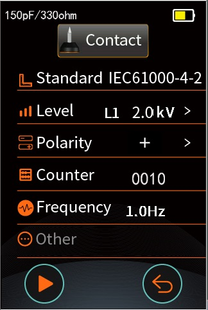

        • Pre-programmed IEC/EN 61000-4-2 test sequences
        • HD color touch screen
        • Temperature & Humidity Monitoring
        • Easily interchangeable R/C modules
        • Specialized tips available
        • Remote control and software for automation
        • Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards
