New Units (16kV)

The EDS MAX is 3CTEST’s fourth generation ESD simulator in compliance with IEC 61000-4-2:2025 and other standards. This new product has a high - definition color touch screen, along with compact mechanical design, intuitive UI, lightweight, and impeccable waveforms. With three test modes, the EDS MAX offers customers convenient operation tailored to their testing needs and requirements, ideal from the research and development stage allthe way through to the verification and certification for ESD immunity. Test Standards: EN/IEC 61000-4-2 MIL-STD-461 CS118 DO-160 Section 25 Bellcore GR-1089-Core ISO 14304 IEC 61000-6-2 IEC 61000-6-1 IEC 61326 IEC 61340-3-1 ITU-T K.20 Models: EDS MAX16 - max discharge voltage to 17kV EDS MAX20 - max discharge voltage to 20kV All include the 150pF/330Ohm R/C module required in the above standards. Additionaly modules available. Air and contact discharge tips: Test Voltage 0.5 kV ~ 20 kV( ± 5% ) Voltage Step 100 V Polarity +, -, + / - Holding Time 5 s ~ 10 s Discharge Tip Air discharge tip and Contact discharge tip RC module 150 pF / 330 ohm RC Module Identification Automatic Identification and display Control Mode Touch screen, trigger button, optical fiber remote control Frequency Single, 0.1 Hz,0.2 Hz,0.5 Hz,1 Hz,2 Hz ,5 Hz,10 Hz and 20 Hz Trigger Mode Automatic, manual, remote Counter 1 ~ 9999 Sequence Test Up to 4 sequence levels Counter Countering happens upon tips voltage lowered than setting voltage thresholds Voltage Thresholds 50%, 60%, 70%, 80%, 90% Temperature and Humidity Built-in temperature and humidity meter, serving as real-time test environment record and protection function. Battery Type Lithium battery Battery Group Voltage 3 * 3.7 V Battery Capacity 27 Wh Battery Life 12h @ contact discharge 20 kV, 1 Hz, first positive and then negative 18h@ contact discharge 8 kV, 1Hz, first positive and then negative Power Supply for Battery Charger 100 V ~ 240 V，50 ~ 60 Hz Battery Charge Time Approx. 5 h Service Life 300 times ＞ 80%   Display  Screen 3.5  inches  color  screen Language English, Chinese Auto Power OFF Function Power off automatically upon no operations: 5 min / 10 min / 15 min / 30 min / never Screen Brightness 0 ~ 100% Lock Screen Lock screen upon no operation: 5 min / 10 min / 15 min / 30 min / never Memory latest 4 groups testing parameters Communication mode Optical fiber Grounded Port 4mm banana plug Dimension 285 mm × 85 mm × 245 mm Weight Approx.1.25kg(Incl. battery) Ambient Temperature 5 ℃ ~ 40℃ Relative Humidity 20% ~ 80% (no condensation) Atmospheric Pressure 86 kPa ~ 106 kPa   Standard Accessory Kit: Air Tip Contact Tip RC Module AC Adapter Ground Cable Alligator Clip Battery x2 Carrying Case Manual Stand Additional Accessories: EDS MAX-REMOTE (for PC interface) Corelab Software EDS MAX-DCPower - AC 110/220V input, can replace battery pack

Read more less

ESD16 16.5kV ESD Simulator for IEC/EN 61000-4-2 The ESD16 16.5kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard EN/IEC 61000-4-2, ANSI C63.16, MIL-STD-461G CS118, DO-160 Section 25, and many other test standards/normative referencess with the 150pF/330Ohm requirement. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below:

Read more less

Contact us for a quote on a new Minizap, built in the USA. The Thermo Scientific Keytek Minizap MZ-15/EC 16kV ESD simulator gun is a totally integrated lightweight hand-held tester featuring ease of use, and the ability to withstand long-term operation in rugged environments. By simply interchanging plug-in tips, you can test to risetime standards, as well as do ‘reality checks’ that indicate product performance in intended environments. Multiple ESD events can be generated by a human discharge, and also by other ESD simulators that introduce additional artificial and energetic multiple discharges. The MiniZap does not use a voltage multiplier, and won’t introduce testing errors and uncertainties due to streams of artificial, high-level ESD multiples. With its constant-voltage ESD simulator design feeding back and monitoring right from the tip, you know the EXACT voltage at which you’ve tested. The correct tip voltage is maintained to the instant of discharge; it then drops to prevent simulator-induced multiple The Keytek MiniZap MZ-15/EC test system is a self-contained ESD simulator gun that enables users to perform direct, indirect & diagnostic ESD testing via interchangeable plug-in tips.  ESD is the most common cause of failure in computer-based equipment, and susceptibilities often occur during installation and networking. The diagnosis and remedy for ESD failures typically require test procedures developed in R&D, but implemented by QC, manufacturing, and field service. Practical and reliable, the KeyTek MiniZap MZ-15/EC ESD simulator gun and options are designed specifically for demanding applications such as these. It generates ESD simulation pulses that are real world, repeatable and correlatable – mandatory performance criteria for a company-wide ESD test program. Keytek Minizap MZ-15/EC Features: Intuitive operation Portable & self-contained Meets exact requirements of IEC 61000-4-2 Contact mode & air discharge ESD testing Generates real world, repeatable & correlatable ESD pulses E & H Field diagnostics Built-in safety features Field-configurable Rechargeable battery or AC powered

Read more less

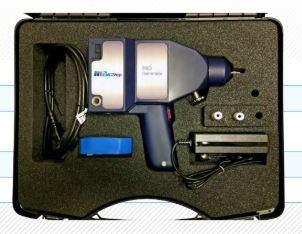

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites.3ctest EDS20H Includes: 20kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS20H Features: Air- and Contact- Discharge: 1000-20,000V±5% Rise time: 0.6-1ns RC module: 150pF/330Ω Automatic identification of discharge module Voltage hold time: >5s As per: IEC61000-4-2, GB/T17626.2 LCD Touchscreen Automatic Polarity Switching Temperature & Humidity Monitoring Battery or mains operation with long battery life
