Insulating Support for Wall Mounted Equipment

    Description

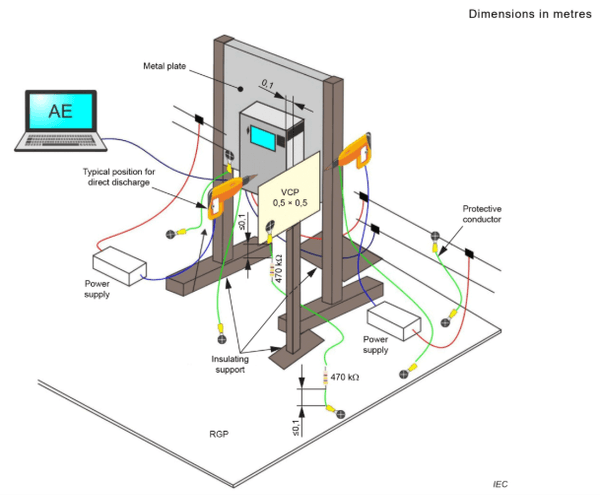

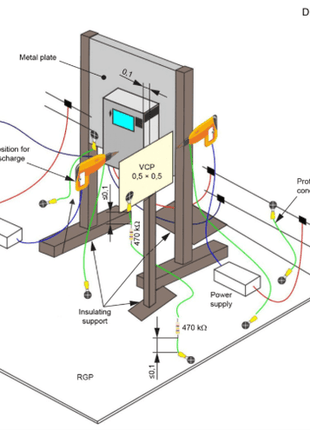

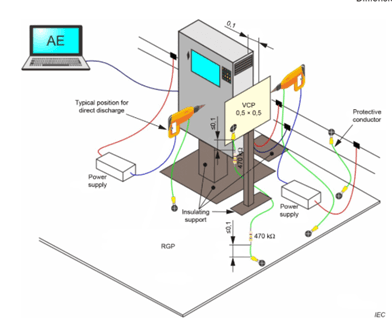

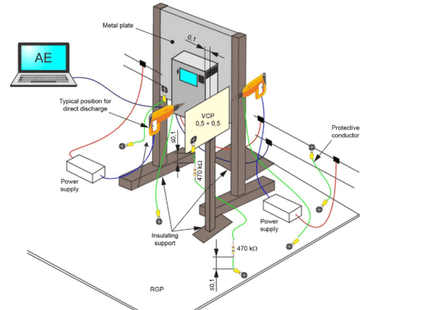

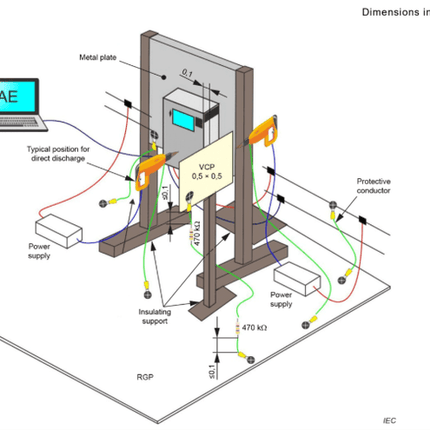

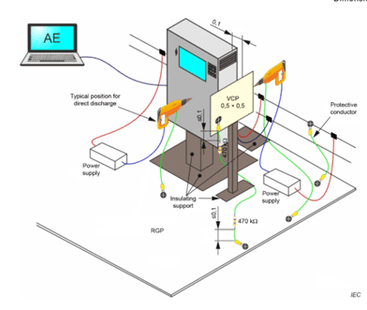

    Non conductive support (wood typically) for testing wall mounted electronics according to IEC 61000-4-2 edition 3. Mounting area is 1.5m by 1.5m to comply for small electronics (under .5m in length and width) and custom sizes are available as well. False walls to reproduce real world scenarios are available to be mounted on the insulating support for the non-conducted surface test.

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $0.00 + Shipping

        Features

      • Suitable for ISO 10605 automotive ESD immunity compliance testing
      • 50mm in height ± 5mm
      • Relative permittivity: 2.1 - 3.9
      • Set Includes Block Dimensions:
        • 6" x 4"
        • 8" x 4"
        • 36" x 4"
      • Custom sizes available upon request

      Features

      Ask & Learn

      Previous answers and questions posted below

      Learn by asking questions, practicing, and getting guidance

      Ask Now

      Description

      Non conductive support (wood typically) for testing wall mounted electronics according to IEC 61000-4-2 edition 3. Mounting area is 1.5m by 1.5m to comply for small electronics (under .5m in length and width) and custom sizes are available as well. False walls to reproduce real world scenarios are available to be mounted on the insulating support for the non-conducted surface test.
