Human Body Model (HBM) and Machine Model (MM) ESD simulators for semiconductor and microprocessor testing to electrostatic immunity. Compliance standards include IEC 60749-26, Mil-STD-883, ANSI/ESD STM5.1-2001, ANSI/ESD STM5.2-1999, JEDEC EIA/JESD22, GB/T17626 IEC61000-4-2 and IEC 61000-4-2 (HMM - Human Metal Model).

  • Electro-Tech Systems 930D Electrostatic Discharge Simulator / ESD Generator Electro-Tech Systems 930D Electrostatic Discharge Simulator / ESD Generator

    Electro Tech Systems Electro-Tech Systems 930D Electrostatic Discharge Simulator - ESD Generator

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The Electro-Tech Systems 930D Electrostatic Discharge Simulator generates ESD discharge pulses from ±100 to ±30kV. Available RC Networks include a 1.5k ohm/100pf Human Body Model (HBM) Network, 330 ohm/150 pf IEC Network or choose from a variety of automotive, electronic, medical or military networks.The ETS 930D consists of a control unit and a discharge (gun) unit connected by a detachable 12-ft cable. The control unit houses the low voltage power supply with LED status indicators, system timing electronics, .5" LED voltage display and controls for the AUTO MODE event counter and high voltage power supply. In addition, a duplicate set of Charge/Discharge controls are provided for remote operation.The discharge unit (gun) contains the high voltage power supply and high voltage relay plus plug-in resistor and capacitor networks. It incorporates high voltage ON/OFF, MANUAL/ AUTO and RELAY/AIR discharge controls along with LED status indicators. A ¼-20 threaded hole enables the gun to be mounted to a tripod.The system has four modes of operation: AUTO COUNT, FREE RUN, MANUAL and AIR DISCHARGE. Air Discharge and Manual operations are controlled by the switches on the gun. The complete system is housed in an ABS carrying case. Electro-Tech Systems 930D: Voltage range: ±100 to ±30kV Plug-in R/C networks HBM 1500 ohm/100 pf for Mil Std. 883E testing 330 ohm/150 pf (IEC) Custom networks available Contact & air discharge Remote discharge capability Optional E & H-Field Probes Optional IEC Test Target Test in accordance with North American and European ESD simulation standards.

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $1,195.00

  • Rent EMC Partner ESD3000 Handheld, 30kV Electrostatic Discharge (ESD) Tester - ESDGuns.com Rent 16kV of 30kV EMC Partner ESD3000 ESD Simulator System

    View options

    EMC Partner (HV Technologies) EMC Partner ESD3000 Handheld, Electrostatic Discharge (ESD) Tester

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The EMC Partner ESD 3000 is a fully automated and programmable ESD simulator. It identifies which discharge module is installed and has a level selector button enabling the user to quickly scroll through and select the voltage from the levels appropriate to the standard and discharge mode. The set pulse count is executed with a single pull of the trigger in either air or direct contact mode. Polarity can be programmed to alternate or can be changed with the push of the +/- button at any time. Voltage can be programmed to ramp up or down or quickly changed at any time by using the up and down arrow buttons. Discharge Modules for EMC Partner ESD3000: DM1 for IEC 61000-4-2,ITU-T K20: 150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM2 for ISO TR10605, PSA Peugeot-Citroën B21 7110: 330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM4 MIL-STD-883, GR78-CORE: 100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM5 for RTCA/DO-160: 150pF / 330ohm no CD +/-1kV up to 30kV DM6 for IEC 61340-3-1, JEDEC 22-A114, MIL-STD-750D: 100pF / 1500ohm +/- 0.2kV up to 8kV no AD DM7 for IEC 61340-3-2, JEDEC 22-A115: 200pF / 0ohm +/- 0.1kV up to 2kV no ADDM8 for IEC 60571, EN 50155: rise time < 0.05µs duration 0.1µs +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV RM32 0.7ns up to 1ns and < 400ps: +/- 1kV up to 30kV +/- 1kV up to 30kV DN1 for IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100: 150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN2 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN3 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN4 for STANAG 4239, ISO 14304, MIL-STD-1512: 500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN5 for MIL-STD-331C, MIL-DTL-23659D, STANAG 4239: 500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV DN6 for ISO TR10605: 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV Accessory Kit: PistolGround CableAC adapter w/Charging CableAir tipContact tipCalibration CertificateAlligator ClipHardcaseUser ManualUSBRemote Cable

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $895.00 - $1,495.00

    View options

  • ESD30-HBM Human Body Model ESD Simulator per MIL-STD-883 and More Human Body Model ESD HBM Current Waveform from ESD30-HBM

    View options

    The EMC Shop ESD30-HBM Human Body Model ESD Simulator per MIL-STD-883 and More

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The ESD30-HBM is an easy-to-use electrostatic discharge generator tailored for human body model ESD standards MIL-STD-750D, JS-001-2017, IEC 61340-3-1, JEDEC 22-A114, and more. With a straightforward interface, compact package, and low cost, the ESD30-HBM has been accepted by compliance laboratories and component-level test engineers. By disconnecting the HBM module from the tip of the ESD generator, standard system level testing can be accomplished to IEC 61000-4-2, MIL-STD 461G CS118, DO-160 Section 25, and many more. With a level of configurations, the ESD30-HBM can be built for all-day, everyday use to occasional use, while being budget-friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase. ESD30-HBM Human Body Model ESD Package Includes: ESD Generator with connection cable  Desktop control unit with mains cable Capacitor module 100 pF Resistor module 1500 Ohm   HBM Module Contact discharge test tip Air discharge test tip Discharge return cable, 2 m Manual   Carrying Case Traceable Calibration Certificate (Accredited Available) 10% off Calibration Service for Life

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $1,475.00 - $22,500.00

    View options

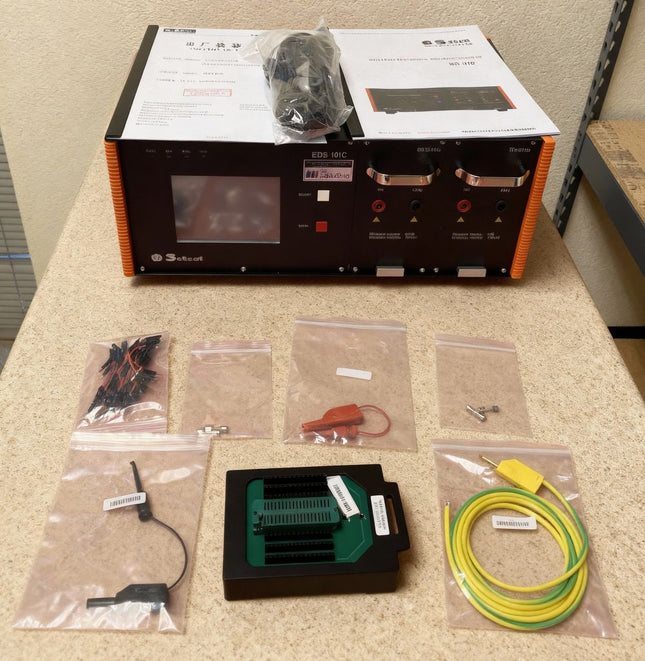

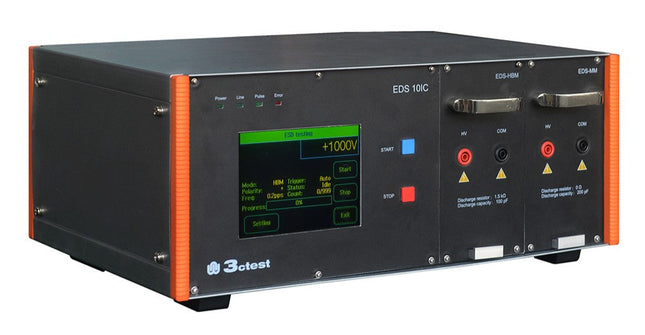

  • 3ctest EDS 10IC HBM and MM ESD Immunity Tester IC Test Socket - ESD Human Body Model and Machine Model ESD Test System

    View options

    3ctest 3ctest EDS 10IC HBM and MM ESD Immunity Tester

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The 3ctest EDS 10IC is specially designed for HBM and MM ESD immunity test requirements, applicable to semiconductor devices like LED, transistors, IC, etc, as per IEC, ESDA, JEDEC, MIL, etc. At the same time, fully comply with the severest ESD voltage levels in the standards above. Rent, buy or lease the 3ctest EDS 10IC HBM and MM ESD Immunity Tester.  3ctest EDS 10IC Features: Touch screen intelligent operation Automatic identify RC modules and adjust the maximum voltage The lowest voltage 5V and 1V step for precise adjusting voltage Available for single or automatic discharge tests and setting times, frequency, etc Meets: ESDA ANSI/ ESD STM5.2-2009 JEDEC JESD22- A114E Jan.2007 ANSI /ESD-STM5.1 2007 MIL-STD-883G 28 Feb.2006 ANSI/JEDEC JS-001-2010 JEDEC JESD22- A115C Nov.2010

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $165.00 - $1,795.00

    View options

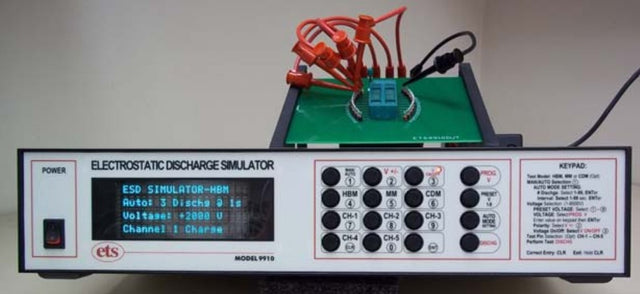

  • Elecro Tech Systems (ETS) 9910 Multi-Pin ESD Simulator for Microelectronic Devices - ESDGuns.com

    Electro Tech Systems Elecro Tech Systems (ETS) 9910 Multi-Pin ESD Simulator for Microelectronic Devices

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    Electrostatic discharge (ESD) has become a significant factor contributing to the disruption of electronic equipment or the premature failure of microelectronic devices in both the field and during the manufacturing process. Sensitivities below 30V are now common. Since it is not always possible to control the environment where electronic devices are used or handled, the burden of product reliability falls upon the manufacturer to design and build equipment with reduced susceptibility to ESD. The Model 9910 ESD Simulator is an invaluable tool in developing components for use in today’s military, industrial and consumer applications. The Elecro Tech Systems (ETS) 9910 Multi-Pin ESD Simulator for Microelectronic Devices is a bench top ESD Simulator designed for laboratory or low pin count testing. The Model 9910 is a microprocessor-based instrument that can be operated manually via the front panel keyboard or by computer control. Voltage is adjustable in 1 Volt increments. In addition, the user can program up to 9 preset voltages from ±5 to 8250V. Two modes of operation are available: In MANUAL mode, a Discharge is initiated each time the DISCHARGE button is depressed. In the AUTO mode, the number of discharges (0-99) and the interval (1-99 sec.), selected by the user, are activated when the DISCHARGE button is depressed. Typically, each device pin combination is tested at both polarities using 3 discharges at 1 second intervals. The discharge circuit consists of mercury high voltage relays for bounce-free operation, programmable selection of HBM, MM or CDM (optional) testing plus a switched output for connecting the Device Under Test (DUT) pin to a curve tracer or similar instrument. The Model 9910 also offers the optional capability to connect 2-5 additional discharge channels to the DUT (ground remains common). Each channel is selected by the user in the keyboard mode by pressing the appropriate key or by the computer in the Computer Control mode.

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $0.00

  • EMC Partner DM6 100pF / 1500ohm RC Module for IEC 61340-3-1 and Mil-STD-750D

    EMC Partner EMC Partner DM6 100pF - 1500ohm RC Module for IEC 61340-3-1 and Mil-STD-750D

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The EMC Partner DM6 150pF / 330ohm RC module is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards IEC 61340-3-1, JEDEC 22-A114 and Mil-STD-750D. The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged. EMC Partner ESD3000DM6 Features: Standards Met: IEC 61340-3-1 JEDEC 22-A114 Mil-STD-750D Capacitance/Resistance: 100pF / 1500ohm Voltage range (CD) Contact Discharge: +/- 0.2kV up to 8kV Voltage range (AD) Air Discharge: None

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $395.00

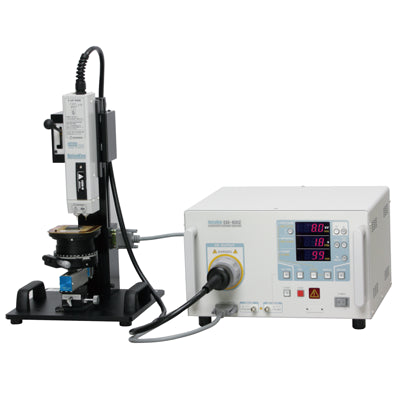

  • NoiseKen ESS-6002 Component Level Electrostatic Discharge Simulator

    Noiseken ESD Simulators NoiseKen ESS-6002 Component Level Electrostatic Discharge Simulator

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The NoiseKen ESS-6002 Component Level Electrostatic Discharge Simulator is a tester specifically designed to carry out ESD sensitivity testing of semiconductor devices to standards such as MIL-STD-883, EIAJ ED-4701 and others. Included are the Human Body Model (HBM) and Machine Model (MM) probes.  As a DUT interface, select either Free Type Probe Stand where virtually any package type can be connected by means of a pair of miniature test leads or Semi-automatic Precision Type Probe Stand providing automatic and precise pin-to-pin feeding with a minimum 0.01mm resolution. Meets Human Body Model (HBM) Compliance Standards: AEC-Q100-002-Rev.D Jul.2003 ESDA ANSI/EOS/ESD-STM5.1-2001 IEC 61340-3-1Ed.1.0 2002 IEC 60749-26 Ed.1.0 2003 JEDEC JESD22-A114E Jan 2007 JEITA EIAJ ED-4701/300 Aug.2001 Test Method304 MIL-STD-883G Method 3015.7 Mar.1989 Meets Machine Model (MM) Compliance Standards: AEC-Q100-003-REV-E  Jul.2003 ESDA ANSI/ESD STM5.2-1999 IEC 61340-3-2 Ed.1.0-2002 IEC 60749-27 Ed.1.0 2003 JEDEC JESD22-A115A Oct.1997 JEITA EIAJ ED-4701/300 Aug.2001 NoiseKen ESS-6002 Features: 10V minimum output (1V step) A simple probe stand and test fixture plus a pair of miniature test leads meeting many different kinds of device packages <Free Board Type> Narrow pitch DUT can be tested in semi-automatic manner <Semi-automatic Precision Type> Each probe has a coaxial interface with an external measuring instrument. External trigger input and output terminals are provided.

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $19,750.00

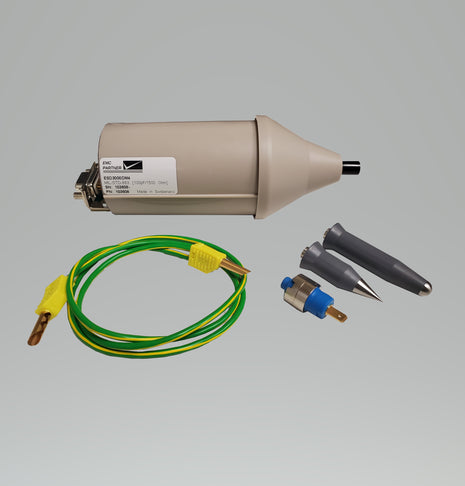

  • EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance

    View options

    EMC Partner EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards Mil-STD-464, Mil-STD-883, and GR78-CORE. The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged. EMC Partner ESD3000DM4 Features: Standards Met: Mil-STD-464 MIL-STD-883 GR78-CORE Capacitance/Resistance: 100pF / 1500ohm Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $295.00 - $395.00

    View options

  • HBM/MM RC Network Package for Teseq NSG 438 ESD Simulator

    Teseq ESD Guns HBM-MM RC Network Package for Teseq NSG 438 ESD Simulator

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    Looking to test and debug your product to human body and machine model tests? Rent or buy the HBM/MM RC Network Package for the Teseq NSG 438 ESD Simulator Gun. Package Includes: INA 4561 per Mil-STD 883: 100pF/1500Ohms INA 4569 200pF/0Ohms

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $450.00

  • 3M 753 Electrostatic Discharge Simulator - Buy Used or Rent

    View options

    3M 3M 753 Electrostatic Discharge Simulator for Human Body Model (HBM) & Machine Model (MM)

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The 3M 753 HBM/MM ESD Simulator allows you to simulate electrostatic discharge events at precisely controlled output voltages. It was primarily designed as a tool for determining application trigger voltages of 3M 751 Static Event Detectors. However, it is a suitable tool for any Human Body Model and Machine Model ESD testing and debugging before going for compliance to MIL-STD-883 or JEDEC 22 A115, A115 or other HBM/MM ESD immunity standards. The ESD simulators is supplied with two color-coded snap-in discharge network assemblies, allowing users to quickly select the discharge model and polarity. The battery operated unit is light and portable, with several additional accessories provided allowing users to setup and test easily. 3M 754 HBM/MM ESD Simulator Features: Discharge Models: Human Body Model (HBM): Capacitance: 100 pF ±10% Resistance: 1500 Ohms ±1% Machine Model (MM): Capacitance = 200 pF ±10% No Resistor Output Voltage: 15 to 5,000 V Display Resolution: 1 V at or under 800 V 10 V at or above 1000 V Display Accuracy: 3% of total reading Stability: 1% after 10 minutes of settling

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $595.00 - $4,750.00

    View options

  • Rent EMC Partner ESD3000 Handheld, 30kV Electrostatic Discharge (ESD) Tester - ESDGuns.com

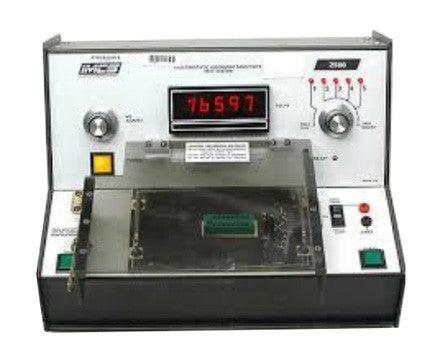

    IMCS IMCS 2500 Electrostatic Discharge (ESD) IC Tester per Mil-Std-883 up to 10kV

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The IMCS 2500 is an Electrostatic Discharge (ESD) IC Tester as per Mil-Std-883 up to 10kV. Designed for use in human body model current waveforms.

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $6,500.00

  • Haefely 4700622 RC Network 100pF/1500 Ohm for MIL-STD-883 / GR78-CORE for ONYX ESD Generator Gun

    View options

    Haefely ESD Generators Haefely 4700622 RC Network 100pF-1500 Ohm for MIL-STD-883 - GR78-CORE

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    The Haefely 4700622 RC Network 100pF/1500 Ohm for MIL-STD-883 / GR78-CORE Human Body Model (HBM) is for use only with the Haefely ONYX 16 kV or Haefely ONYX 30 kV Specifications: Capacitance: 100 pF Resistance: 1500 Ohms Test Standards Met: MIL-STD-883 GR78-CORE

    Read more

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $99.00 - $499.00

    View options
