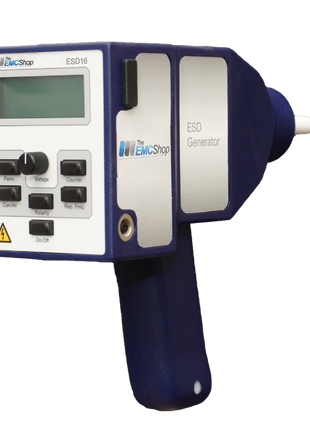

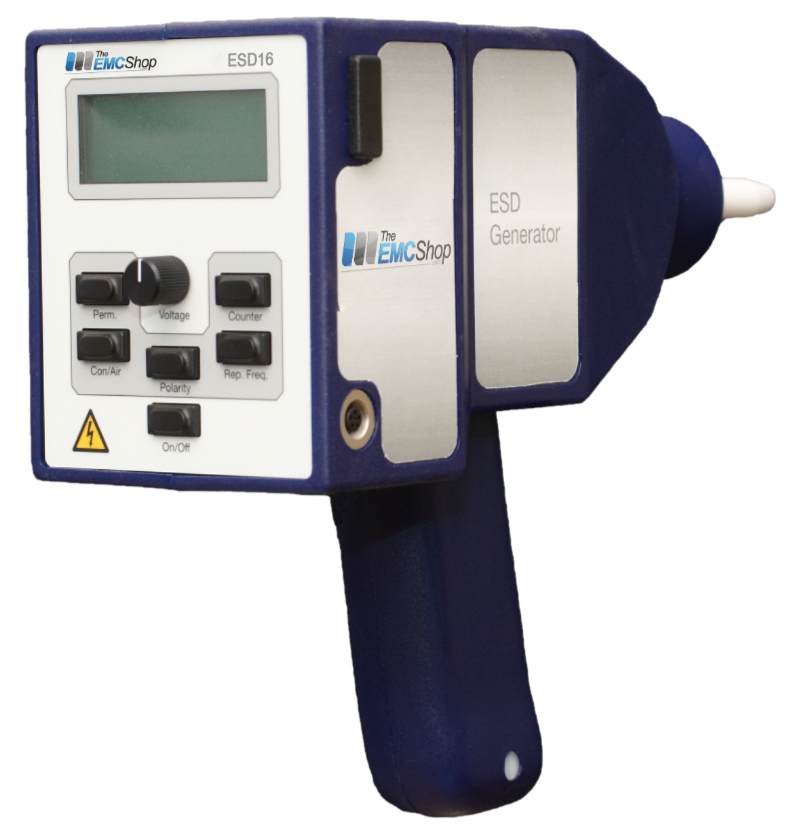

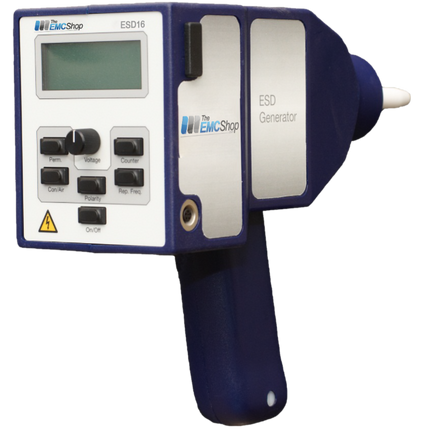

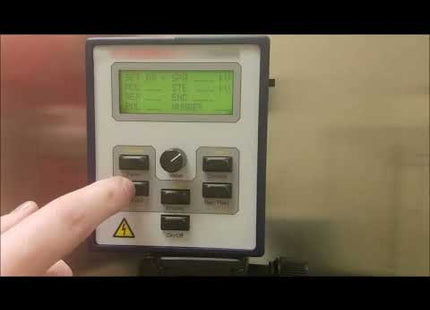

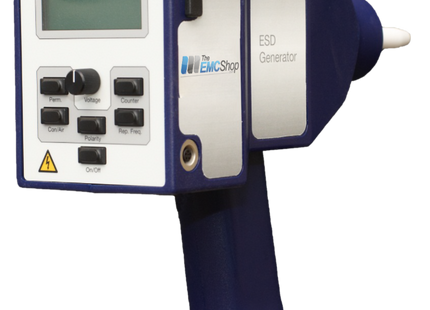

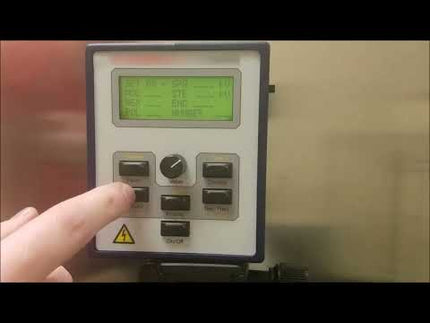

ESD16 16.5kV ESD Simulator for IEC-EN 61000-4-2

    Description

    ESD16 16.5kV ESD Simulator for IEC/EN 61000-4-2

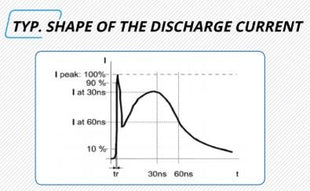

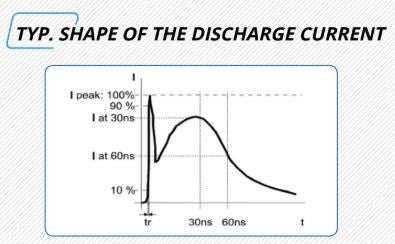

    The ESD16 16.5kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard EN/IEC 61000-4-2, ANSI C63.16, MIL-STD-461G CS118, DO-160 Section 25, and many other test standards/normative referencess with the 150pF/330Ohm requirement. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used:

    1. Air Discharge
      In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens.

    2. Contact Discharge
      With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.
      Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place.

    The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below:

    ESD16 16.5kV ESD Simulator for IEC-EN 61000-4-2

      Product form

      In Stock

      $495.00 + Shipping

      Order by 3 PM and Ship ESD Guns and Equipment Same Day

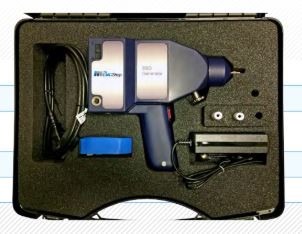

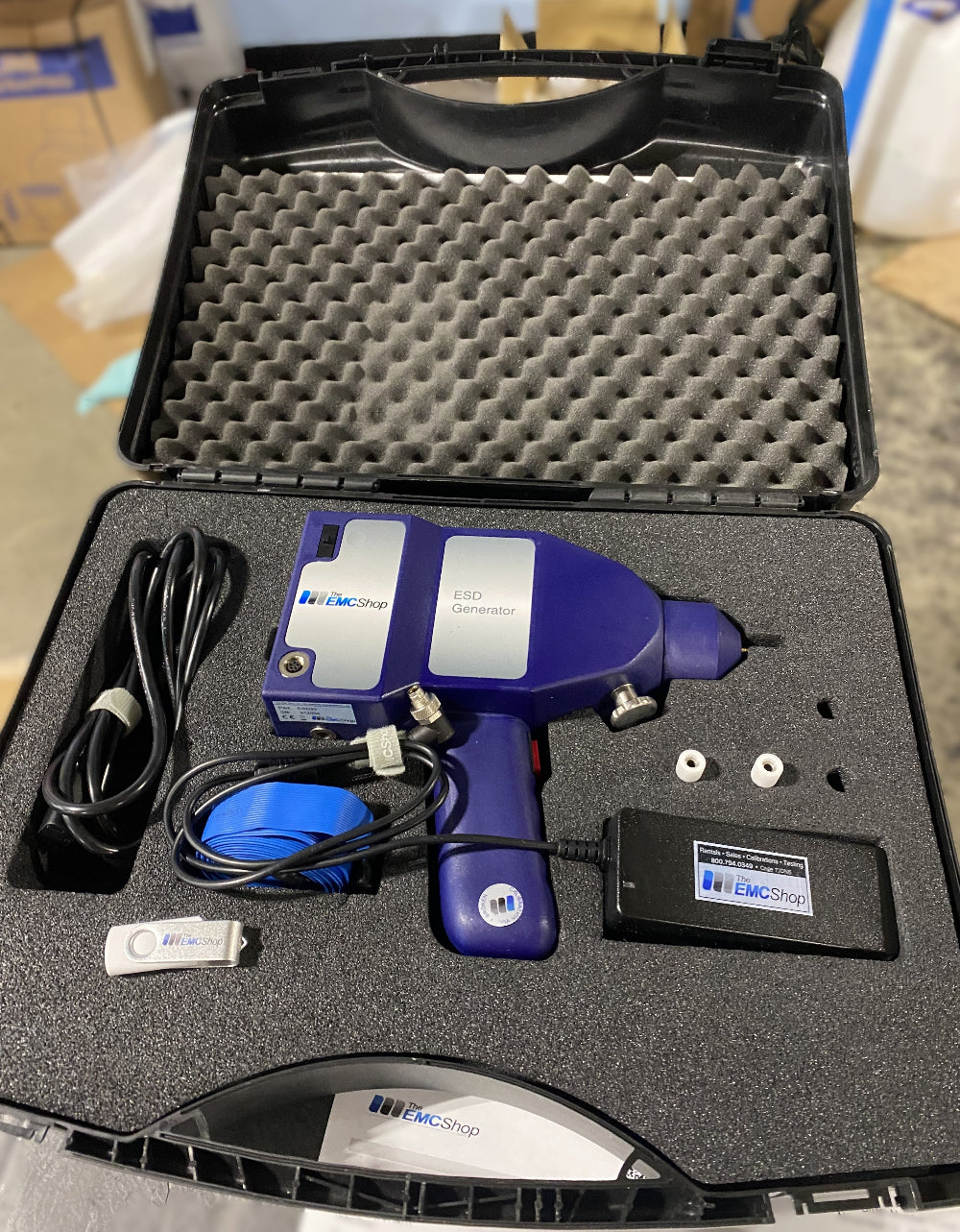

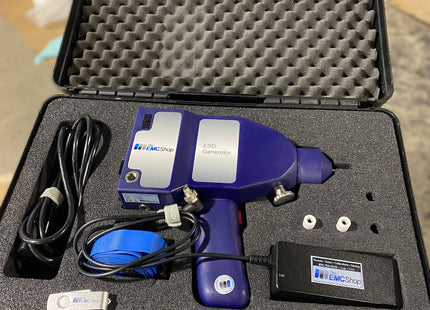

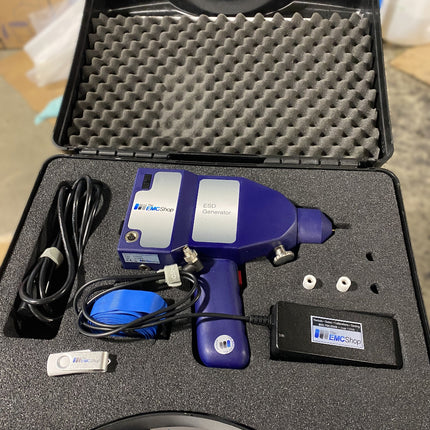

          Accessory Kit

        • Carrying Case Includes (7 Lb's):
        • ESD16 Handheld, battery operated ESD simulator
        • Battery charger/AC Adapter
        • Air discharge tip
        • Contact discharge
        • Ground cable 1 meter
        • Manual
        • Calibration Certificate
        • 10% off Calibration Service for Life of the Unit

          Downloads
          Features

        • Programmable discharge voltage 200V to 16.5kV
        • Stabilized charging voltage
        • Pre-programmed IEC/EN 61000-4-2 test settings
        • True air-discharge breakdown voltage
        • Compact and lightweight design
