Test Setup for ESD Pre-certification & Compliance Testing

Notice: This information is a brief, elementary version of the test setup for ESD testing. For step by step test procedures you will need to purchase the IEC 61000-4-2 test standard for detail instruction. For compliance testing please consult an EMC test lab

Setting up for ESD Testing

A ground reference plane shall be provided on the floor of the laboratory. The EUT shall be connected to the grounding system and arranged and connected according to its installation specific cations. A distance of 1 m minimum shall be provided between the EUT and any metallic structure. The discharge return cable of the test generator shall be connected to the ground reference plane, and this connection shall be of low impedance.

In cases where the length of the cable exceeds the length necessary to apply the discharges to the selected points, the excess length shall be placed non-inductively off the ground reference plane and shall not come closer than 0.2 m to other conductive parts in the test set-up.

Edition 3 Updates Coming Soon. In the meantime feel free to contact us.

Test Setup Diagram

ESD Test Setup

Materials & Test Equipment

  • ESD Simulator Gun
  • GP: Ground Reference Plane (Aluminum or Sheet Metal)
  • HCP: Horizontal Plane (Aluminum or Sheet Metal)
  • VCP: Vertical Coupling Plane (Aluminum or Sheet Metal)
  • 470 kOhm Resistor Cables to mount from HCP/VCP to GP
  • Insulation Material (Polyvinyl Chloride preferred material)
  • LISN or other Isolation Transformer (Optional)

App Notes & Examples

Multiple Turn and Single Turn Ferrite Chokes Compared
Measurement and Evaluation of SATA Cables

More Details

Ground reference plane: A copper or aluminum sheet of 0.25 mm minimum thickness: other materials may be used but they shall have at least 0.65 mm minimum thickness. The minimum size is 1 m2. The exact size depends on the EUT. It shall project beyond the EUT or coupling plane by at least 0.5 m on all sides. It shall be connected to the protective earth.

Coupling planes: These planes shall be constructed from the same material and thickness as that of the ground reference plane and shall be connected to the ground reference plane via a cable with a 470kΩ resistor located at each end.

Setting up the ESD test environment

Updated Design - Ground Reference Plane

ESD Test Setup Products

Button

  • ESD Test Table/Bench with Coupling Planes and Grounding Cables - ESD Immunity Test Setup Diagram from IEC 61000-4-2 for ESD immunity Test Environment with Table/Bench, Coupling Planes and Grounding Cables

    ESDGuns.com ESD Test Table-Bench with Coupling Planes and Grounding Cables

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $4,750.00

  • ESD Guns GRC-40KV-CC Ground Cable with Resistors for ESD Voltage Bleeding ESD Test Bench Setup with Ground Planes and Grounding Cables

    View options

    ESDGuns.com ESDGuns.com GRC Series Ground Cable w- 470k Ohm Resistors for ESD Voltage Bleeding

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $297.00 - $499.00

    View options

  • .8 meter Wood Only Test Table/Bench Wood Table in Accordance to IEC 61000-4-2

    View options

    ESDGuns.com Wood Table in Accordance to IEC 61000-4-2

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $1,775.00 - $2,375.00

    View options

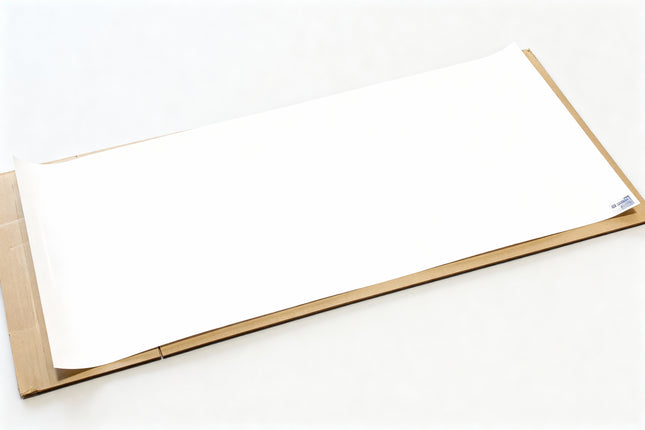

  • Insulating Foil, 0.5 mm thick per IEC 61000-4-2

    ESDGuns.com ESD Guns IF Insulating Foil for ESD Compliance Testing

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $197.00

  • Rent VCP Vertical Coupling Plane for Indirect ESD Testing VCP Vertical Coupling Plane for Indirect ESD Testing

    ESDGuns.com VCP Vertical Coupling Plane for Indirect ESD Testing

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $675.00

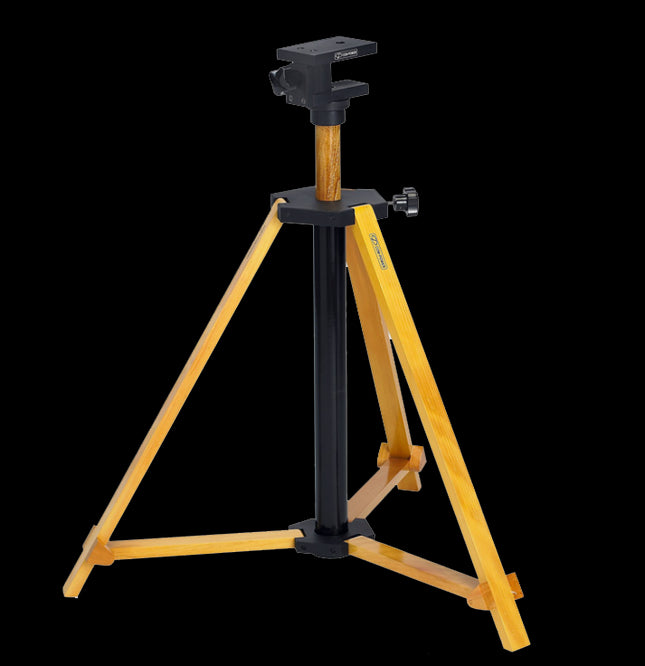

  • Industrial Wood Tripod to mount ESD Simulators
