Categories
Best sellers
-
Schaffner / Teseq NSG 435 ESD Simulator for IEC 61000-4-2
Programmable discharge voltage 200 V to 16.5 kV Stabilized charging...
$590.00 -
ESDGuns.com GRC Series Ground Cable w/ 470k Ohm Resistors for ESD Voltage Bleeding
Ideal for voltage bleeding to Ground Plane during Indirect ESD Immunity...
$199.00 -
ESD Guns IF Insulating Foil for ESD Compliance Testing
Suitable for EN/IEC 61000-4-2 ESD immunity compliance testing...
$197.00 -
Rent Keytek Minizap MZ-15/EC 15kV ESD Simulator Gun
Rentals Ship Immediately Purchase Options See: Used Keytek Minizap ESD...
$495.00 -
Teseq / Schaffner INA 405 Ni-Mh Battery Pack Refurbishment for NSG 435 ESD Gun
ESD Guns can refurbish your existing INA 405 battery pack. Expected...
$275.00 -
Haefely ONYX 16 kV ESD Generator Gun
Rental Package IncludesAir and Contact Discharge Tips Output...
$595.00 -
Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2
Air- and contact-discharge to 30 kV Color touch panel control Advanced...
$895.00 -
3ctest EDS 20H Hand-held 20kV Electrostatic Discharge ESD Simulator
Air- and Contact- Discharge: 1000 Volts - 20kV ±5% Rise time: 0.6-1ns RC...
$476.00
Haefely ONYX 30 kV ESD Test Gun
- Flexibility – enables users to meet many different test specifications with maximum cost effectiveness.
- Quick and simple – one touch operation and simple on screen menu structure.
- Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit.
- Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package.
$990.00Typically In Stock3ctest EDS 10IC HBM and MM ESD Immunity Tester
- Touch screen intelligent operation
- The lowest voltage 5V and 1V step for precise adjusting voltage
- Available for single or automatic discharge tests and setting times, frequency, etc
- Meets:
- ESDA ANSI/ ESD STM5.2-2009
- JEDEC JESD22- A114E Jan.2007
- ANSI /ESD-STM5.1 2007
- MIL-STD-883G 28 Feb.2006
- ANSI/JEDEC JS-001-2010
- JEDEC JESD22- A115C Nov.2010
Request QuoteIn StockEMC Partner ESD3000DN32-MIL2 450 pF / 150 Ohm Network for Military ESD Testing
- Capacitance/Resistance: 450pF / 150ohm ±10%
- Voltage range (CD) Contact Discharge: 2 - 30kV
- Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun
Request QuoteTypically In StockAprel EM-ISight-ESD Robotic Electro Static Discharge Measurement System
- Most sophisticated and faster manner to troubleshoot ESD
- Test system level IEC 61000-4-2
- Test human body model (Manufacturing Environment)
Request QuoteTypically In StockRent Schloder SESD 230 30kV Handheld Battery Operated ESD Simulator
- Lightweight and ergonomical
- Pre-programmed Test Levels per IEC 61000-4-2 and more
- Create custom test sequences
- Built-in 150pF/330 Ohm R/C network
- 0.5 kV to 30.0 kV, 100 Volt Steps
$695.00In StockECO2G 2 GHz EMC Calibration Oscilloscope ESD Gun Verification
- Analog Channels: 4 + EXT
- Bandwidth (-3dB) @ 50 Ω: 2GHz *1
- Rise time@ 50Ω: 230 ps
- Sample Rates: 5 GSa/s (10 GSa/s ESR) @ each channel
- 10 Megasample Record Length on All Channels
- Waveform Capture Rate: Normal mode: 170,000 wfm/s; Sequence mode: 750,000 wfm/s
Request QuoteTypically In StockSchloder SESD 230 30kV Handheld Battery Operated ESD Simulator
- Lightweight and ergonomical
- Pre-programmed Test Levels per IEC 61000-4-2 and more
- Create custom test sequences
- Built-in 150pF/330 Ohm R/C network
- 0.5 kV to 30.0 kV, 100 Volt Steps

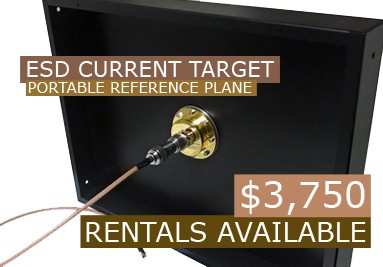

Request Quote4-6 WeeksVGP Mobile Vertical Ground Plane Setup for ESD Current Target
- Industrial strength wheels and mounted handles allow for easy placement
- Pre drilled holes for easy installation of any ESD target
$1,975.00In StockTeseq INA4553 330 pF/330 Ohm Discharge Module for NSG 438 Automotive ESD Simulator
- Capacitance: 330 pF
- Resistance:330 Ohm
- ISO 10605 (2001), (2008)
- For use with the Teseq NSG 437 or Teseq NSG 438 ESD Simulator Gun
Request QuoteIn StockRent Keytek Minizap MZ-15/EC 15kV ESD Simulator Gun
- Rentals Ship Immediately
- Purchase Options See: Used Keytek Minizap ESD Simulator
- Intuitive operation
- Portable & self-contained
- Meets requirements of IEC 61000-4-2
- Contact mode & air discharge ESD testing
- Generates real world, repeatable & correlatable ESD pulses
- Built-in safety features
- Rechargeable battery or AC powered
$495.00Typically In Stock

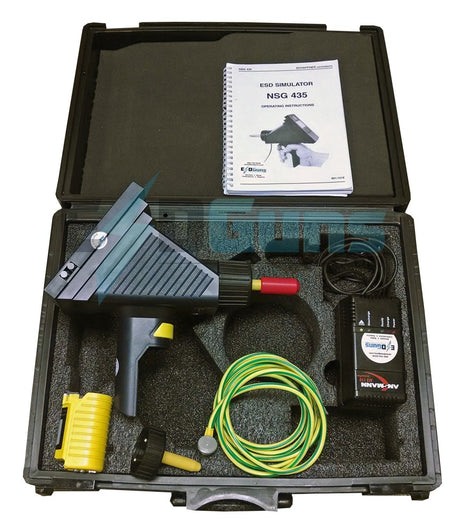

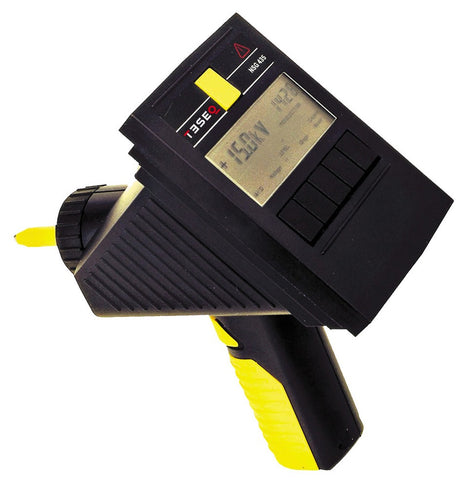

Schaffner / Teseq NSG 435 ESD Simulator for IEC 61000-4-2
- Programmable discharge voltage 200 V to 16.5 kV
- Stabilized charging voltage
- Pre-programmed IEC/EN 61000-4-2 test settings
- True air-discharge breakdown voltage
- Compact and lightweight design
- Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards

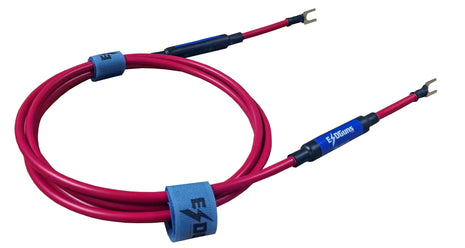

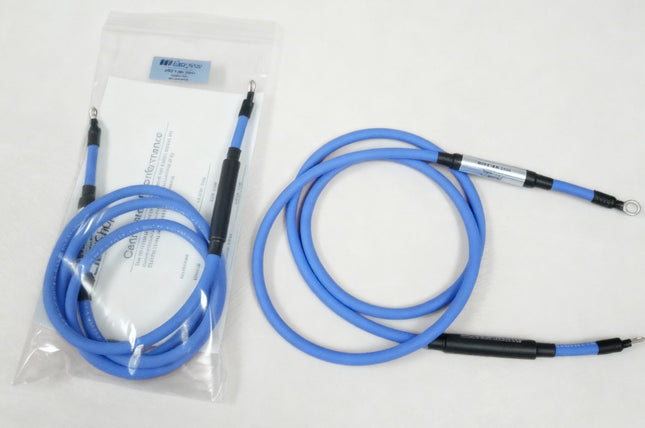

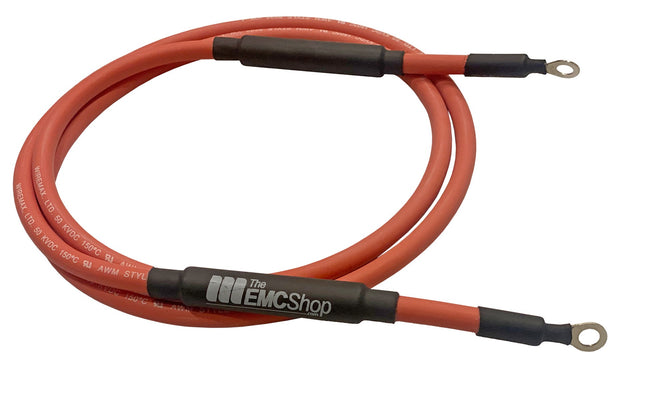

Request QuoteTypically In StockESDGuns.com GRC Series Ground Cable w/ 470k Ohm Resistors for ESD Voltage Bleeding
- Ideal for voltage bleeding to Ground Plane during Indirect ESD Immunity Testing
- Compliant to IEC 61000-4-2, ISO 10605, DO-160 Section 25, Mil-STD CS118 and more.
- 40kV High Voltage Cable (rated to 150 degrees C)
- Precision High Voltage Resistors (1% tolerance)
- 1.5 Meters (5 Feet) in Length
- Made in USA

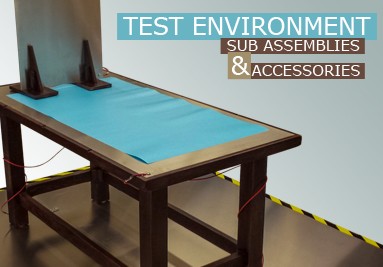

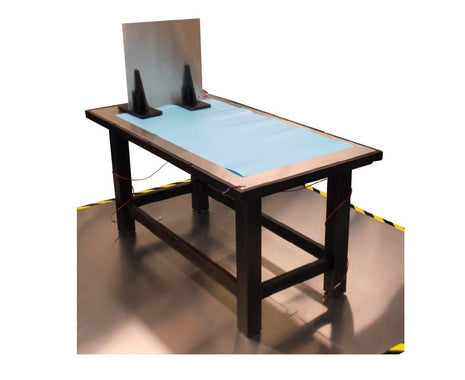

- Order Complete IEC 61000-4-2 ESD Test Environment

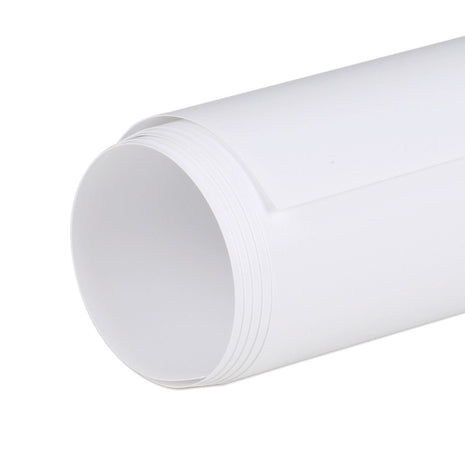

Request QuoteTypically In StockESD Guns IF Insulating Foil for ESD Compliance Testing
- Suitable for EN/IEC 61000-4-2 ESD immunity compliance testing
- Approximately .5 mm thickness
- Standard Sizes or Custom
- Material: High density PVC plastic
- Non reflective for bright laboratories
- Non texturized and easy to clean
- Weight: 340 Grams (12 ounces)
Request QuoteTypically In StockRent Keytek Minizap MZ-15/EC 15kV ESD Simulator Gun
- Rentals Ship Immediately
- Purchase Options See: Used Keytek Minizap ESD Simulator
- Intuitive operation
- Portable & self-contained
- Meets requirements of IEC 61000-4-2
- Contact mode & air discharge ESD testing
- Generates real world, repeatable & correlatable ESD pulses
- Built-in safety features
- Rechargeable battery or AC powered
Request QuoteTypically In StockTeseq / Schaffner INA 405 Ni-Mh Battery Pack Refurbishment for NSG 435 ESD Gun
- ESD Guns can refurbish your existing INA 405 battery pack.
- Expected Lifecycle: 1-2 million discharges
Request QuoteTypically In StockHaefely ONYX 16 kV ESD Generator Gun
- Rental Package Includes
- Air and Contact Discharge Tips
- Output Capability to 16kV
- QTY 2 Batteries
- User friendly touchscreen
- IEC levels pre-programmed
- 150pF/330Ohm Discharge Network per IEC 61000-4-2
- Easily interchangeable R/C networks available
Request QuoteTypically In Stock- Rental Package Includes
Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2
- Air- and contact-discharge to 30 kV
- Color touch panel control
- Advanced voltage-hold feature
- Activity log
- Light version with uncompromising test performance
- Compliant with a huge range of OEM and international standards
- Easily and quickly interchangeable discharge networks
- Discharge detector
Request QuoteTypically In Stock3ctest EDS 20H Hand-held 20kV Electrostatic Discharge ESD Simulator
- Air- and Contact- Discharge: 1000 Volts - 20kV ±5%
- Rise time: 0.6-1ns
- RC module: 150pF/330Ω
- Automatic identification of discharge module
- Voltage hold time: >5s
- As per: IEC61000-4-2, GB/T17626.2
- LCD Touchscreen
- Automatic Polarity Switching
- Temperature & Humidity Monitoring
- Battery or mains operation with long battery life
Request QuoteTypically In Stock
Immediate Shipment
Most ESD test equipment is in stock and available for immediate shipping.
More Information
Capital B2B acquisitions aren't like online shopping. Call 800.794.0349 now for account setup, formal quotes, or technical information.
Online Ordering
Most ESD test equipment and accessories are available to order today with any major credit card.
ESDGuns.com
ESD Test Equipment & Accessories
Bringing progressive methods to the industry. The EMC shop saves custoemrs times with online ordering, stock updates and detailed specifications including the all new Compare tool.
New ESD Simulator Guns
ESDGuns.com is a stocking distributor for most major manufacturers of ESD testing equipment and accessories. Most product statuses are current and up-to-date.
Rentals & Leases
Customers save money for short term projects by renting ESD simulation guns. *Online orders are subject to credit approval.
