ESD Generator Comparison: Output Capabilities and Waveform Characteristics
Part 2 ESD Generator Comparison: Output Capabilities and Waveform Characteristics
Review the output capabilities including max voltage and frequency and see the waveform characteristics on a high speed oscilloscope. Additional unique considerations are presented, EM Test Dito is reviewed as well as models from Part 1: NSG 435, Minizap, ESD3000, ONYX, EDS 20H.
ORDER ESD GENERATORS FROM THE VIDEO
TESEQ NSG 435
FEATURES:
- 9 kV Contact / 16.5 kV Air
- Ideal for CE Marking
- Meets IEC 61000-4-2
- Meets ANSI C63.16
- Actual Voltage Monitor
KEYTEK MINIZAP MZ-15/EC
$495/month
FEATURES:
- Intuitive operation
- Meets exact requirements of IEC 61000-4-2
- E & H Field diagnostics
- Built-in safety features
- Field-configurable
- Rechargeable battery or AC powered
EMC PARTNER ESD3000
$695/month
FEATURES:
- Discharge modules available for virtually any standard
- Very high accuracy and pulse repetition
- High Quality / Rugged Design
- Most Modular System Available
- Upgrade over time from 16kV to 30kV
3CTEST EDS MAX
$475/month
FEATURES:
- Discharge voltage from 500 V to 20 kV (100V steps)
- Pre-programmed IEC/EN 61000-4-2 test sequences
- HD color touch screen
- Temperature & Humidity Monitoring
- Easily interchangeable R/C modules
- Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards

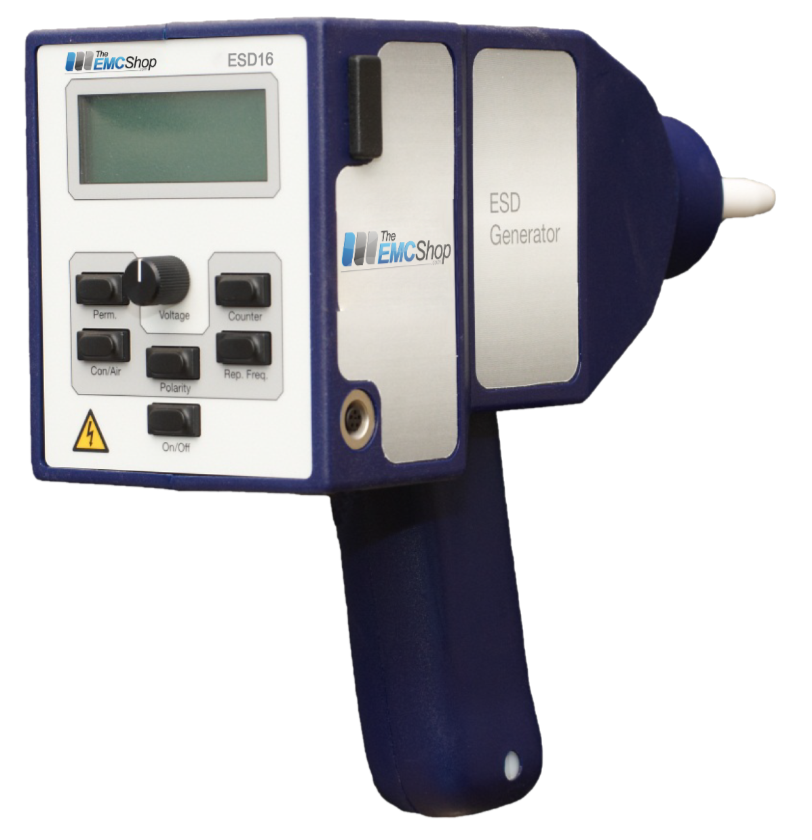

EMC SHOP ESD16
$495/month
FEATURES:
- Programmable discharge voltage 200V to 16.5kV
- Stabilized charging voltage
- Pre-programmed IEC/EN 61000-4-2 test settings
- True air-discharge breakdown voltage
- Compact and lightweight design

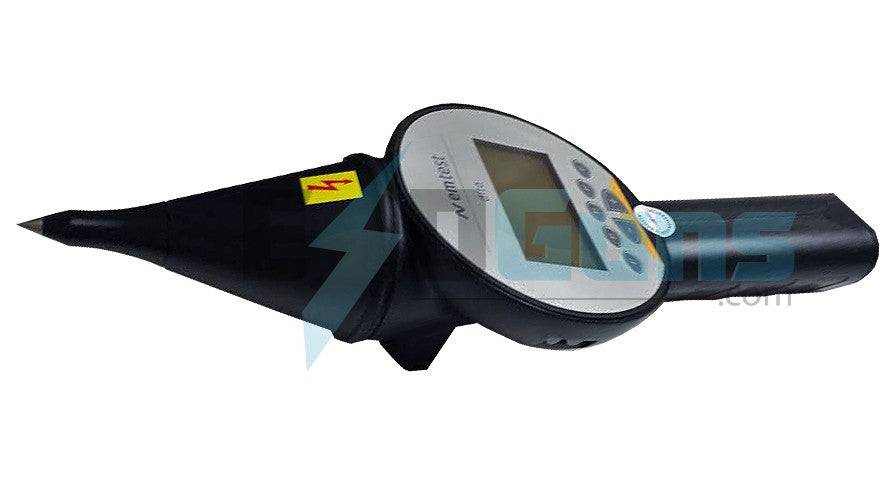

EM TEST DITO
$695/month
FEATURES:
- Most ergonomic design
- Light weight (870g)
- Interchangeable discharge tips
- Interchangeable R/C networks
- LiFePO4 power booster to perform long duration tests
- Library of standard test routines
- Test voltage measurement and control
- Various test routines for testing and evaluation
NEED A 30kV ESD GENERATOR?

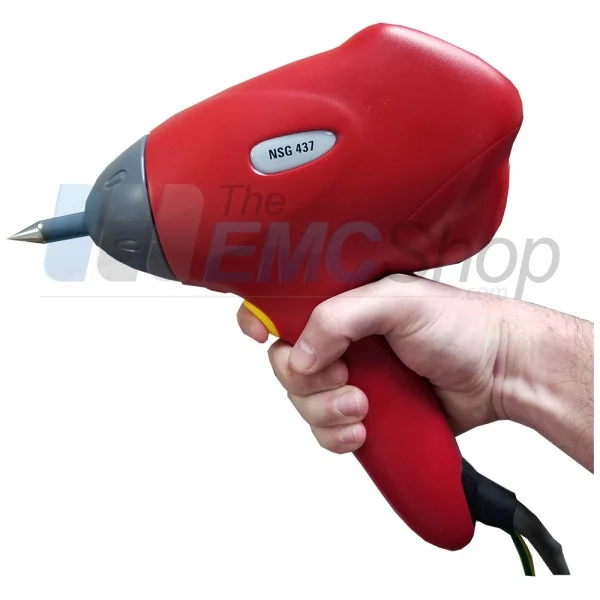

TESEQ NSG 437
$590/month
FEATURES:
- Air- and contact-discharge to 30 kV
- Color touch panel control
- Advanced voltage-hold feature
- Activity log
- Light version with uncompromising test performance
- Compliant with a huge range of OEM and international standards
- Easily and quickly interchangeable discharge networks
- Discharge detector

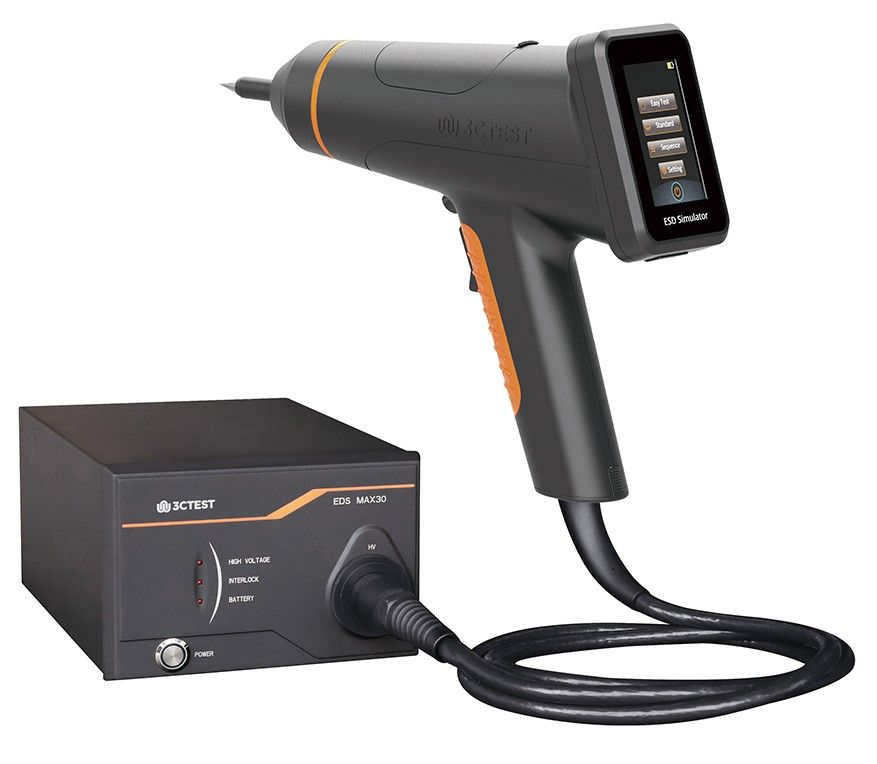

EDS MAX 30 AUTOMOTIVE PACKAGE
$975/month
FEATURES:
- Pre-programmed ISO 10605 and IEC/EN 61000-4-2 test sequences
- HD color touch screen
- Temperature & Humidity Monitoring
- Includes R/C modules for ISO 10605
- Remote control and software for automation

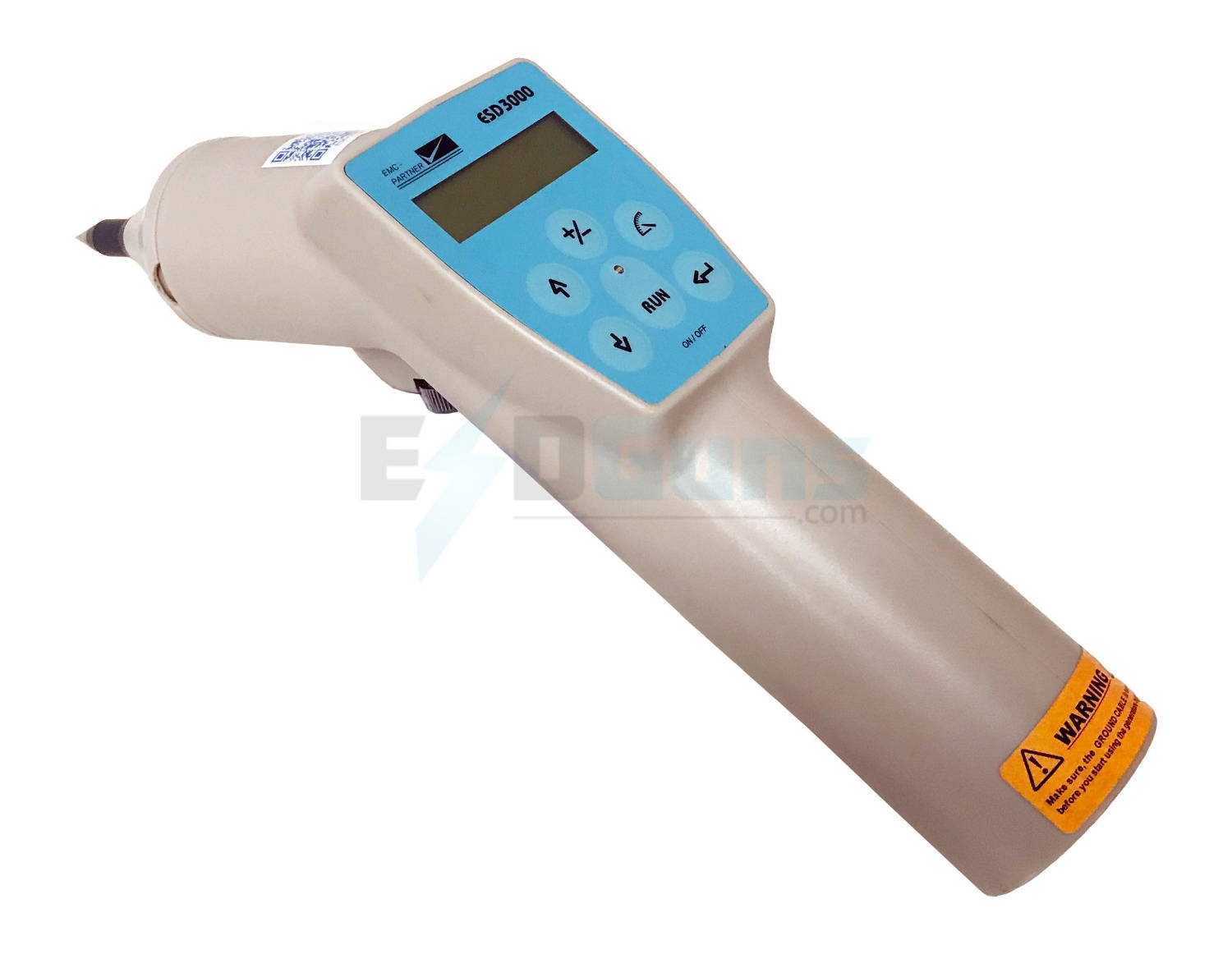

EMC PARTNER ESD3000
$990/month
FEATURES:
- Flexibility – enables users to meet many different test specifications with maximum cost effectiveness.
- Quick and simple – one touch operation and simple on screen menu structure.
- Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit.
- Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package
