Teseq NSG 435 Overview Ergonomic design and advanced functionality. The pistol-shaped Teseq (formerly Schaffner) NSG 435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible. The Teseq / Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.The Teseq NSG 435 ESD simulator has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged. Teseq NSG 435 Features Programmable discharge voltage 200V to 16.5kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards Teseq NSG 435 Includes Air Discharge Tip Contact Discharge Tip Grounding cable Rechargeable Battery Battery Charger Tripod Mount User Manual Calibration Certificate Durable Carrying Case ESDguns.com is now a division of The EMC Shop Ordering Options New - 2-Year Manufacturer's Warranty Used - 100 Day Warranty, fresh Calibration Certificate Rental - Calibrated, Options to buy (20% of rental applied)

Read more less

The EDS MAX20 is 3CTEST’s fourth generation electrostatic discharge simulator in compliance with IEC 61000-4-2:2025 and other standards. This new product has a test voltage up to 20 kV and features 3.5 - inch high - definition color screen, along with compact mechanical design, intuitive UI design, lightweight, and impeccable waveforms . With three test modes designed in this eqent, the EDS MAX20 offers customers convenient operation tailored to their specific testing requirement, catering not only to research and development stage but also to quality check stage. Test Standards: MIL-STD-461 CS118 DO-160 SECTION 25 Bellcore GR-1089-Core ISO 14304 IEC 61000-6-2 IEC 61000-6-1 IEC 61326 IEC 61340-3-1 IEC 61000-4-2 ITU-T K.20 Features   >  3.5” HD color screen; >  Test voltage 20 kV; > 1.25 kg weight ( incl. battery ); >  Exquisite ergonomic design and UI design; > Built - in 3 test modes: standard test, sequence test and easy test; >  Changeable discharge tip; > Support remote control via optical fiber communication; >  Up to 18 working hours for rechargeable battery.   Standard Accessory Kit: Air Tip Contact Tip RC Module AC Adapter Ground Cable Alligator Clip Battery x2 Carrying Case Manual Stand

Read more less

The Thermo Scientific Keytek Minizap MZ-15/EC 16kV ESD simulator gun is a totally integrated lightweight hand-held tester featuring ease of use, and the ability to withstand long-term operation in rugged environments. By simply interchanging plug-in tips, you can test to risetime standards, as well as do ‘reality checks’ that indicate product performance in intended environments. Multiple ESD events can be generated by a human discharge, and also by other ESD simulators that introduce additional artificial and energetic multiple discharges. The MiniZap does not use a voltage multiplier, and won’t introduce testing errors and uncertainties due to streams of artificial, high-level ESD multiples. With its constant-voltage ESD simulator design feeding back and monitoring right from the tip, you know the EXACT voltage at which you’ve tested. The correct tip voltage is maintained to the instant of discharge; it then drops to prevent simulator-induced multiple The Keytek MiniZap MZ-15/EC test system is a self-contained ESD simulator gun that enables users to perform direct, indirect & diagnostic ESD testing via interchangeable plug-in tips.  ESD is the most common cause of failure in computer-based equipment, and susceptibilities often occur during installation and networking. The diagnosis and remedy for ESD failures typically require test procedures developed in R&D, but implemented by QC, manufacturing, and field service. Practical and reliable, the KeyTek MiniZap MZ-15/EC ESD simulator gun and options are designed specifically for demanding applications such as these. It generates ESD simulation pulses that are real world, repeatable and correlatable – mandatory performance criteria for a company-wide ESD test program. Keytek Minizap MZ-15/EC Features: Intuitive operation Portable & self-contained Meets exact requirements of IEC 61000-4-2 Contact mode & air discharge ESD testing Generates real world, repeatable & correlatable ESD pulses E & H Field diagnostics Built-in safety features Field-configurable Rechargeable battery or AC powered

Read more less

The EMC Partner ESD 3000 is a fully automated and programmable ESD simulator. It identifies which discharge module is installed and has a level selector button enabling the user to quickly scroll through and select the voltage from the levels appropriate to the standard and discharge mode. The set pulse count is executed with a single pull of the trigger in either air or direct contact mode. Polarity can be programmed to alternate or can be changed with the push of the +/- button at any time. Voltage can be programmed to ramp up or down or quickly changed at any time by using the up and down arrow buttons. Discharge Modules for EMC Partner ESD3000: DM1 for IEC 61000-4-2,ITU-T K20: 150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM2 for ISO TR10605, PSA Peugeot-Citroën B21 7110: 330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM4 MIL-STD-883, GR78-CORE: 100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM5 for RTCA/DO-160: 150pF / 330ohm no CD +/-1kV up to 30kV DM6 for IEC 61340-3-1, JEDEC 22-A114, MIL-STD-750D: 100pF / 1500ohm +/- 0.2kV up to 8kV no AD DM7 for IEC 61340-3-2, JEDEC 22-A115: 200pF / 0ohm +/- 0.1kV up to 2kV no ADDM8 for IEC 60571, EN 50155: rise time < 0.05µs duration 0.1µs +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV RM32 0.7ns up to 1ns and < 400ps: +/- 1kV up to 30kV +/- 1kV up to 30kV DN1 for IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100: 150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN2 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN3 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN4 for STANAG 4239, ISO 14304, MIL-STD-1512: 500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN5 for MIL-STD-331C, MIL-DTL-23659D, STANAG 4239: 500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV DN6 for ISO TR10605: 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV

Read more less

Teseq NSG 437 Features: Air- and contact-discharge to 30 kV Color touch panel control Advanced voltage-hold feature Activity log Light version with uncompromising test performance Compliant with a huge range of OEM and international standards Easily and quickly interchangeable discharge networks Discharge detector Ergonomic design and advanced functionality. The Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display.Teseq NSG 437 comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 437 can meet any of today’s automotive manufacturers’ standards.The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The color touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Teseq NSG 437 Ordering Options: Teseq NSG 437: COMPREHENSIVE ESD SIMULATION SYSTEM (30kV air and contact) Includes: Discharge Pistol, IEC 61000-4-2 330 Ohm/150pF High Voltage Network, charging unit 80 – 240VAC, Ground cable, User manual Teseq NSG 437 Automotive: COMPREHENSIVE AUTOMOTIVE ESD SIMULATION SYSTEM (30kV air and contact) with the following four RC networks: INA 4380 IEC 61000-4-2 Discharge Network 330 Ohm/150pF INA 4381 ISO 10605 Discharge Network, 150pF/2kOhm INA 4382 ISO 10605 Discharge Network, 330pF/2kOhm INA 4553 Discharge Network 330pF/330Ohm Also includes: Discharge Pistol, High Voltage Network, Mains adapter / charging unit 80 –240VAC, Ground cable, User manual Rentals of the Teseq NSG 437 available on a month to month basis.

Read more less

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites. 3ctest EDS20H Includes: 20kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS20H Features: Air- and Contact- Discharge: 1000-20,000V±5% Rise time: 0.6-1ns RC module: 150pF/330Ω Automatic identification of discharge module Voltage hold time: >5s As per: IEC61000-4-2, GB/T17626.2 LCD Touchscreen Automatic Polarity Switching Temperature & Humidity Monitoring Battery or mains operation with long battery life

Read more less

The Haefely ONYX 16 kV electrostatic discharge simulator is the most ergonomic ESD generator gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 16 kV in all types of test sites. The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX 16 kV ESD generator gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used.

Read more less

Electrostatic discharges either from a human body to any other part or between two different objects can cause persistent disturbances or even destruction to sensitive electronics or controls.ESD 30N is an ESD tester to simulate ESD pulses at higher voltages up to 30kV in both air and contact discharge mode. It therefore satisifies requirements exceeding the EN/IEC 61000-4-2 test levels and complies to automotive test applications. The EM Test ESD 30N electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognised by the controls and indicated in the display.The EM Test Dito ESD 30N ESD Simulator/Generator is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the ESD 30N separating the sensitive computer from the test set-up and to avoid ground loops. EM Test ESD 30N Features:

Read more less

The Noiseken ESS-2000 simulator is a popular among car manufacturers such as Honda and Toyota for ISO 10605 ESD Testing. The ESS-2000 provides four operation modes, allowing the operator to conduct a single step testing for the IEC specified test voltages and for a series of stored test settings. Noiseken ESS-2000 Features: Meets and far exceeds the requirements in EN/IEC61000-4-2 Up to 30kV output in both contact and air discharges A light weight discharge gun Easily changeable capacitor and resistor units A wide range of options CE marked Controllable from an external computer using various communication interfaces.

Read more less

The Noiseken ESS-B3011 & GT-30R ESD test equipment is a cost-oriented basic model ESD Simulator with a light weight discharge gun pistol attachable. The 30 kV output voltage makes this unit suitable for EN/IEC61000-4-2 and the ISO 10605 standard. The Noiseken GT-30R discharge gun has been renewed completely to materialize much more lightning and best gravity balance. Human load in the operation can be remarkably reduced comparing to the previous model. Electrostatic discharge can be confirmed with LED light on the body in this new discharge gun. Noiseken ESS-B3011 & GT-30R Features: “Pre-checking function” taking the confirmable test into the account “Discharge Detecting Function” to realize the air-discharge confirmation. “Lightest Discharge Gun in the market” to lighten the continual operation White LED Irradiator to facilitate the visualization of the discharging area. One-touch exchange of gun head and CR unit realized

Read more less

The Noiseken ESS-L1611 16 kV Electrostatic Discharge Simulator for IEC 61000-4-2 is a cost-oriented basic model ESD Simulator with a light weight discharge gun pistol attachable.  The Noiseken GT-30R discharge gun has been renewed completely to materialize much more lightning and best gravity balance. Human load in the operation can be remarkably reduced comparing to the previous model. Electrostatic discharge can be confirmed with LED light on the body in this new discharge gun.

Read more less

The Haefely ONYX 30 kV electrostatic discharge simulator is It is the most ergonomic ESD test gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 30 kV ESD test gun in all types of test sites. The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX 30 kV ESD test gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used. Haefely ONYX 30 kV Features: Flexibility – enables users to meet many different test specifications with maximum cost effectiveness. Quick and simple – one touch operation and simple on screen menu structure. Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit. Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package. Accessory Kit for Haefely ONYX 30 kV: Test tip air discharge Test tip contact discharge 2 rechargeable battery packs Ground cable Battery charger unit includes mains adaptor set R/C module 150 pF/330 Ω according to IEC 61000-4-2 Quick start guide Manual on CD Calibration certificate Rugged Carrying Case

Read more less

The Electro-Tech Systems 930D Electrostatic Discharge Simulator generates ESD discharge pulses from ±100 to ±30kV. Available RC Networks include a 1.5k ohm/100pf Human Body Model (HBM) Network, 330 ohm/150 pf IEC Network or choose from a variety of automotive, electronic, medical or military networks.The ETS 930D consists of a control unit and a discharge (gun) unit connected by a detachable 12-ft cable. The control unit houses the low voltage power supply with LED status indicators, system timing electronics, .5" LED voltage display and controls for the AUTO MODE event counter and high voltage power supply. In addition, a duplicate set of Charge/Discharge controls are provided for remote operation.The discharge unit (gun) contains the high voltage power supply and high voltage relay plus plug-in resistor and capacitor networks. It incorporates high voltage ON/OFF, MANUAL/ AUTO and RELAY/AIR discharge controls along with LED status indicators. A ¼-20 threaded hole enables the gun to be mounted to a tripod.The system has four modes of operation: AUTO COUNT, FREE RUN, MANUAL and AIR DISCHARGE. Air Discharge and Manual operations are controlled by the switches on the gun. The complete system is housed in an ABS carrying case. Electro-Tech Systems 930D: Voltage range: ±100 to ±30kV Plug-in R/C networks HBM 1500 ohm/100 pf for Mil Std. 883E testing 330 ohm/150 pf (IEC) Custom networks available Contact & air discharge Remote discharge capability Optional E & H-Field Probes Optional IEC Test Target Test in accordance with North American and European ESD simulation standards.

Read more less

The 3ctest EDS 30T Electrostatic Discharge ESD Generator is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 30 kV. The unit has the best price point of its 30 kV simulator comparables and is growing in popularity among engineering firms and manufacturers performing debugging and precompliance test evaluations.

Read more less

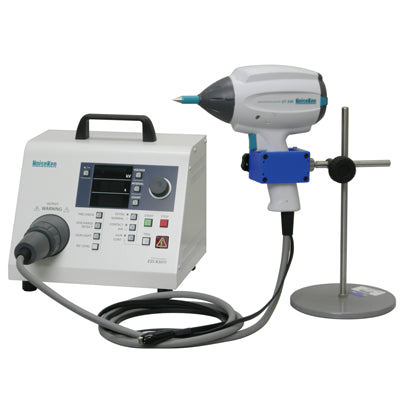

The Noiseken ESS-S3011 30kV ESD simulator system is the most advanced ESD immunity test solution on the market. Noiseken ESS-S3011 Features: “Pre-checking function” taking the confirmable test into the account “Discharge Detecting Function” to realize the air-discharge confirmation. “Lightest Discharge Gun in the market” to lighten the continual operation White LED Irradiator to facilitate the visualization of the discharging area. One-touch exchange of gun head and CR unit realized

Read more less

The EM Test ESD NX30 is the first Electrostatic Discharge Simulator released by Ametek's Compliance Test Solutions (CTS) division. With the collaboration of EM Test and Teseq (formerly Schaffner) engineers, the ESD NX30 is the most advanced ESD generator available. The ESD NX30 electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30 kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognized by the controls and indicated in the display. Video Overview: EM Test ESD NX30 Electrostatic Discharge Simulator The ESD NX30 is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the esd NX30 separating the sensitive computer from the test set-up and to avoid ground loops. ESDguns.com - Division of The EMC Shop

Read more less

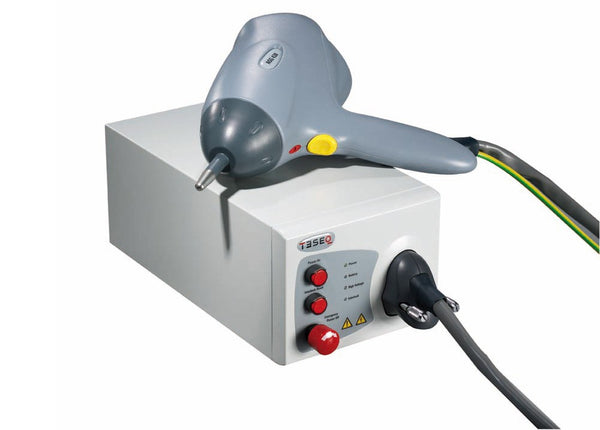

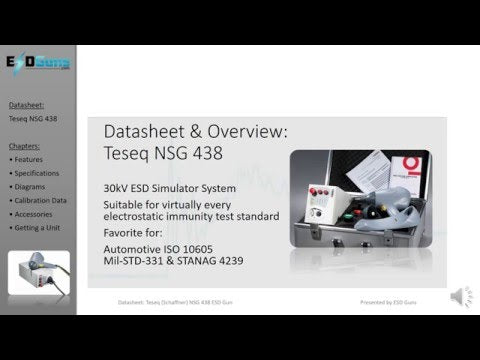

The Teseq NSG 438 ESD Simulator System (formerly by Schaffner) is one of the most commonly requested 30 kV ESD guns in the commercial electronic, automotive and military industries. ESD Guns stocks calibrated NSG 438's as well as an assortment of discharge networks and accessories (found below) for unique test applications. Process an online order now by adding this item to your cart and checking out, select your preferred shipping method or input your shipping account and tell us what method you want shipped. Two days are credited to allow for transit of the equipment, after 32 days your rental is prorated daily and invoiced/billed accordingly. Continue renting the Teseq NSG 438 as long as needed and return to our HQ in California, no RMA is required. If you require a formal quote to initiate the rental in your organization, contact us now. Teseq NSG 438 Rental Package Includes: HV Base Station w/ Internal Battery and Mount for Grounding Cable Interlock Connectors (QTY 2 Installed on Base Station) Discharge Pistol (Grounding Cable Installed) INA 4380 R/C Module (150pF/330Ohm) Contact Discharge Tip Air Contact Tip Pistol Cradle AC Power Adapter NIST Calibration Certificate with Data User Manual (PDF version below)

Read more less

For descriptions, videos and more visit the Rent Thermo Keytek Minizap MZ-15/EC web page. Right now, ESDguns.com has an excess inventory of rental units and has allocated this unit for sale. Used Keytek Minizap MZ-15/EC Features: Recently rebuilt internal battery Fresh NIST Calibration Certificate Industry best 100 Day warranty Ships Immediately Rent Keytek Minizap ESD Simulators here. TPC-2A and TPA-2 Included Standard - additional tip and accessories available Thermo Keytek Minizap Video Overview

Read more less

ESDGuns.com is upgrading it's rental fleet to the EM Test ESD NX30 30kV ESD simulator system with a discharge removal feature for ungrounded DUT. Purchase a used Schaffner NSG 438 ESD gun at a great price while they last. Schaffner NSG 438 Overview: The Schaffner NSG 438 ESD gun comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 438 can meet any of today’s automotive manufacturers’ standards in addition to these common compliance standards: IEC/EN 61000-4-2 ISO 10605 EN 61000-6-1 EN 61000-6-2 RTCA/DO-160 Section 25 Mil-STD-461G CS118 (March 2015 Draft) ITU-T K2 The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Included with a Schaffner NSG 438 ESD Gun: Carrying case with: Discharge pistol Cradle for discharge pistol High voltage base unit with built-in battery pack, mains adapter and battery charging unit (100 to 250 VAC) INA4380 Discharge network 150 pF/330 Ω for IEC 61000-4-2 Air discharge tip Contact discharge tip Grounding cable User manual (CD or Hardcopy) Teseq NSG 438 ESD Simulator Rentals

Read more less

The Noiseken ESS-200AX 30kV ESD electrostatic simulator was a very popular unit but has been discontinued by the manufacturer.  Current models are the ESS-B3011 and ESS-S3011. The ESS-200AX is still suitable for precompliance testing to IEC/EN 61000-4-2 or general test and debugging for ESD immunity. Noiseken ESS-200AX Features: 0.20 - 30kV Output Voltage Discharge Interval Programmable from 0.05 to 600 seconds Pre programmed IEC Severity Levels Storage functionality in Manual, Sweep and Program Mode

Read more less

The 3ctest EDS 16H is an ergonomic ESD gun without an additional base control unit. It can be operated via battery or mains. Easy to use by touch screen, ergonomic design, R/C modules changeable, remote control software, built-in temperature and humidity meter, allows a trouble-free use in all types of test sites. 3ctest EDS 16H Includes: 16kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS 16H Features Changeable R/C networks Automatic polarity switching Temperature and humidity monitoring Built-in standard test library Intelligent detection the failure of air discharge   3ctest EDS 16H Discharge Networks: DM1-RFCI - 150pF/330 ohm - Rise time 200ps-300ps DM2 - 150pF/2000 ohm (ISO 10605)  DM5 - 330pF/2000 ohm (ISO 10605) DM6 - 330pF/330 ohm (ISO 10605) DM7 - 100pF/1500 ohm DM8 - 150pF/150 ohm DM9 - 500pF/500 ohm DM10 - 500pF/5000 ohm Custom discharge networks available upon request

Read more less

The Schloder test generator SESD 216 simulates electrostatic discharge as defined in the standard IEC / EN 61000-4-2. It is the most ergonomical and lightweight of all handheld, battery operated 30kV ESD simulators on the market. It's compact design and lightweight chassis makes it easy for users to handle during long sessions of testing, evaluation or debugging. Schloder SESD 216 Rentals Includes: 30kV ESD Simulator Battery Charger (Also runs on AC during charge) Air Discharge Test Tip Contact Discharge Test Tip Ground Cable Carrying Case User Manual Calibration Certificate with Data and Waveforms 10% off Calibration Service for Life

Read more less

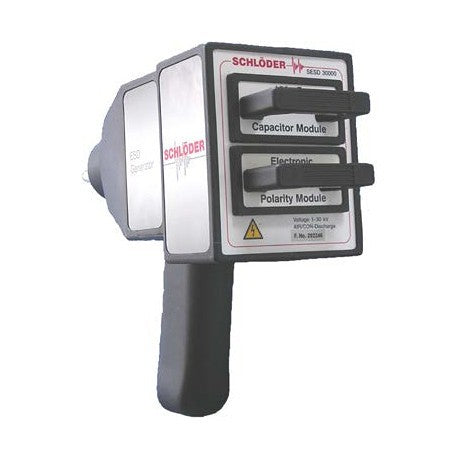

The Schloder SESD 30000 Electrostatic Discharge Generator is suitable for EMC testing of systems and equipment in accordance with standard IEC / EN 61000-4-2, ISO 10605 (Automotive), MIL-STD, and others. The modular structure of the simulator allows further testing according to different standards and customer definitions. Schloder SESD 30000 Includes: Electrostatic Discharge Generator with connection cable Desktop control unit with mains cable Mechanical polarity switch module 150pF Capacitor module 330 Ohm Resistor module Air Discharge Test Tip Contact Discharge Test Tip Discharge return cable Carrying Case User Manual Calibration Certificate with Data and Waveforms 10% off Calibration Service for Life

Read more less

ESD16 16.5kV ESD Simulator for IEC/EN 61000-4-2 The ESD16 16.5kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below:

Read more less

ESD30 ESD Simulator Includes Everything for Testing: ESD30 Handheld, battery operated ESD simulator Battery charger/AC Adapter Air discharge tip Contact discharge Ground cable 1 meter Manual Calibration Certificate 10% off Calibration Service for Life of the Unit ESD30 30kV ESD Simulator for IEC/EN 61000-4-2 The ESD30 30kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below: ESD30 Features Programmable discharge voltage 200V to 30kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design ESDguns.com is now a division of The EMC Shop

Read more less

The ESD30-HBM is an easy-to-use electrostatic discharge generator tailored for human body model ESD standards MIL-STD-750D, JS-001-2017, IEC 61340-3-1, JEDEC 22-A114, and more. With a straightforward interface, compact package, and low cost, the ESD30-HBM has been accepted by compliance laboratories and component-level test engineers. By disconnecting the HBM module from the tip of the ESD generator, standard system level testing can be accomplished to IEC 61000-4-2, MIL-STD 461G CS118, DO-160 Section 25, and many more. With a level of configurations, the ESD30-HBM can be built for all-day, everyday use to occasional use, while being budget-friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase. ESD30-HBM Human Body Model ESD Package Includes: ESD Generator with connection cable  Desktop control unit with mains cable Capacitor module 100 pF Resistor module 1500 Ohm   HBM Module Contact discharge test tip Air discharge test tip Discharge return cable, 2 m Manual   Carrying Case Traceable Calibration Certificate (Accredited Available) 10% off Calibration Service for Life
