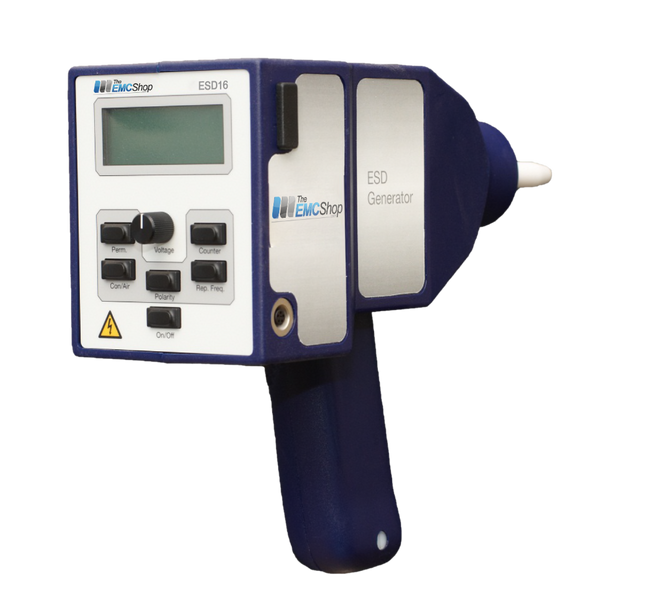

ESD16 16.5kV ESD Simulator for IEC/EN 61000-4-2 The ESD16 16.5kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below:

Read more less

ESD30 ESD Simulator Includes Everything for Testing: ESD30 Handheld, battery operated ESD simulator Battery charger/AC Adapter Air discharge tip Contact discharge Ground cable 1 meter Manual Calibration Certificate 10% off Calibration Service for Life of the Unit ESD30 30kV ESD Simulator for IEC/EN 61000-4-2 The ESD30 30kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below: ESD30 Features Programmable discharge voltage 200V to 30kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design ESDguns.com is now a division of The EMC Shop

Read more less

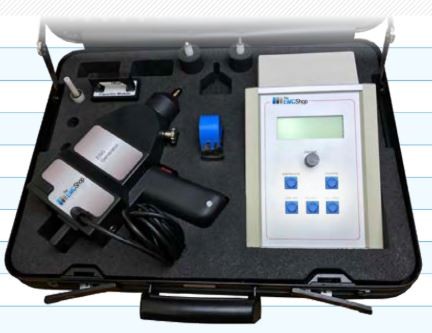

The EMC Shops’ ESD30-Auto is an easy to use electrostatic discharge generator tailored for automotive ESD standards ISO 10605, SAE J113/13, GMW 3097 and more. With a straightforward interface, compact package and low cost, the ESD30-Auto has been accepted by compliance laboratories and automotive electronics manufacturers alike. Configured with the standard package includes resistance 150pF and capacitance 330Ohm modules, suitable for basic ESD testing on commercial and military electronics (IEC 61000-4-2, MIL-STD 461, and more). With a level of configurations, the ESD30-Auto can be built for all-day, everyday use to occasional use, while being budget friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase. ESD30-Auto ESD Generator Features Meets ISO 10605 and manufacturer standards Built-in self test feature Integrated automatic charge absorber Ergonomic & Lightweight Straight forward and easy to use interface ≥ 5 second holding time Remote control software available Optional built in battery ESD30-Auto ESD Generator Includes ESD Generator with connection cable Desktop control unit with mains cable Capacitor module 150 pF Capacitor module 330 pF Resistor module 330 Ohm Resistor module 2000 Ohm Contact discharge test tip Air discharge test tip Discharge return cable, 2 m Manual Carrying Case Traceable Calibration Certificate (Accredited Available) Additional Options for ESD30-Auto ESD30-FRT Fast Rise Time Tip (.45 ns) ESD30-Arm Support arm with balancer ESD30B-HBM System with built in battery (same as ESD16/30) ESD-SPHERE-TIP Test tip, 30 mm diameter, for Air discharge > 15 kV ESD-TIP-EXT Test tip, 50 mm long with spring contact, for Contact discharge ESD 271 VCP – vertical coupling plate incl. Earth cable (2 x 470 kOhm) GRC-2M Earth cable set incl. 2 x 470 kOhm resistor, 2m long CST2 ESD Verification Set 2 Ohm (4 GHz) for verification the ESD pulse VGP Vertical Ground Plane for ESD Current Target Approx 4’ by 4’ ESD CONTROL Optical set and remote software ESD TEST ENVIRONMENT Turnkey setups for commercial or automotive ESD testing

Read more less

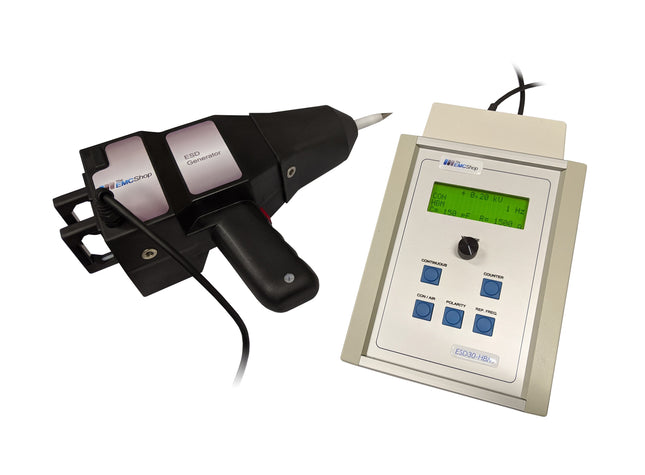

The ESD30-HBM is an easy-to-use electrostatic discharge generator tailored for human body model ESD standards MIL-STD-750D, JS-001-2017, IEC 61340-3-1, JEDEC 22-A114, and more. With a straightforward interface, compact package, and low cost, the ESD30-HBM has been accepted by compliance laboratories and component-level test engineers. By disconnecting the HBM module from the tip of the ESD generator, standard system level testing can be accomplished to IEC 61000-4-2, MIL-STD 461G CS118, DO-160 Section 25, and many more. With a level of configurations, the ESD30-HBM can be built for all-day, everyday use to occasional use, while being budget-friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase. ESD30-HBM Human Body Model ESD Package Includes: ESD Generator with connection cable  Desktop control unit with mains cable Capacitor module 100 pF Resistor module 1500 Ohm   HBM Module Contact discharge test tip Air discharge test tip Discharge return cable, 2 m Manual   Carrying Case Traceable Calibration Certificate (Accredited Available) 10% off Calibration Service for Life

Read more less

The 30mm sphereical tip is referenced in ISO 10605 for testing above 15kV in air discharge mode. Suitable for use for any test fun with a 4mm banana jack connector, built for use with the ESD30.
