Refurbished Haefely PESD 1610 ESD Simulator Gun for IEC 61000-4-2

Haefely PESD 1610 ESD Simulator Gun for IEC 61000-4-2

Haefely PESD 1610 ESD Simulator Gun for IEC 61000-4-2

SKU:

Availability: In stock

Regular price $0.00

Used Unit includes:
- 100 Day Warranty
- NIST Traceable Calibration w/ Data
- Battery Powered ESD Simulator built in 150pF/330Ohm Network
- Base Station for Charging or AC Operation
- Air Discharge Tip
- Contact Discharge Tip
- Grounding Cable
- User Manual
Try before you buy, Rent-to-Own and Leasing options available

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

The Haefely PESD 1610 Electrostatic Discharge (ESD) Simulator / Generator Gun has been replaced by the Haefely ONYX 16 kV ESD Test Generator. The Haefely PESD 1610 is still suitable for most ESD immunity test applications and can be rented or purchased at an economical price compared to current model 16 kV ESD simulators. Please note quantities are limited as parts are no longer available and units must be scrapped once functionality fails.

Haefely PESD 1610 Description:

Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible.

The Haefely PESD 1610 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 1610 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results.

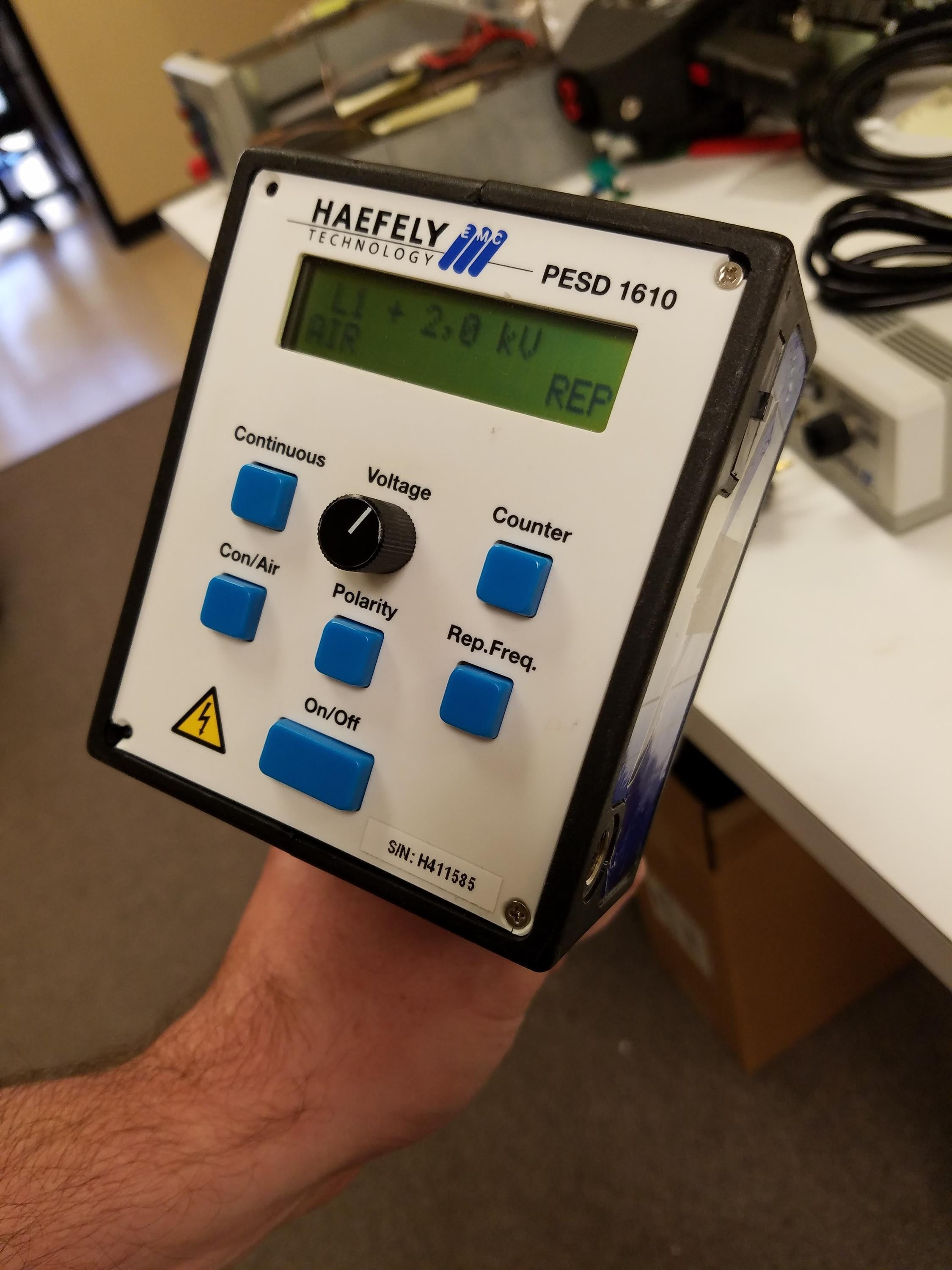

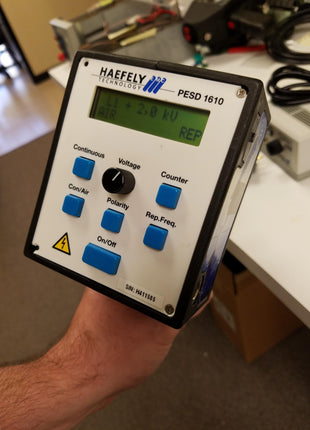

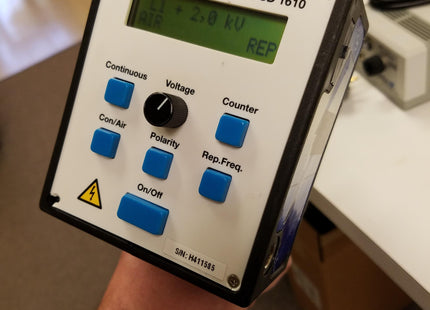

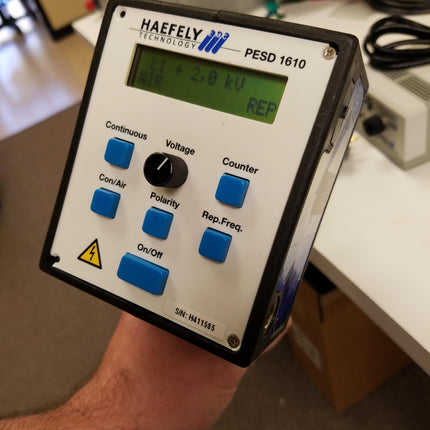

The PESD 1610 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional push buttons for easy and convenient setting of all test parameters. For long running tests, a screw socket on the bottom enables the user to mount the gun on a standard tripod.

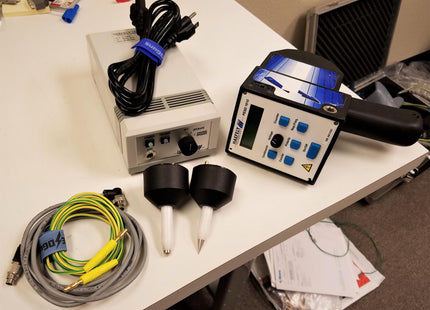

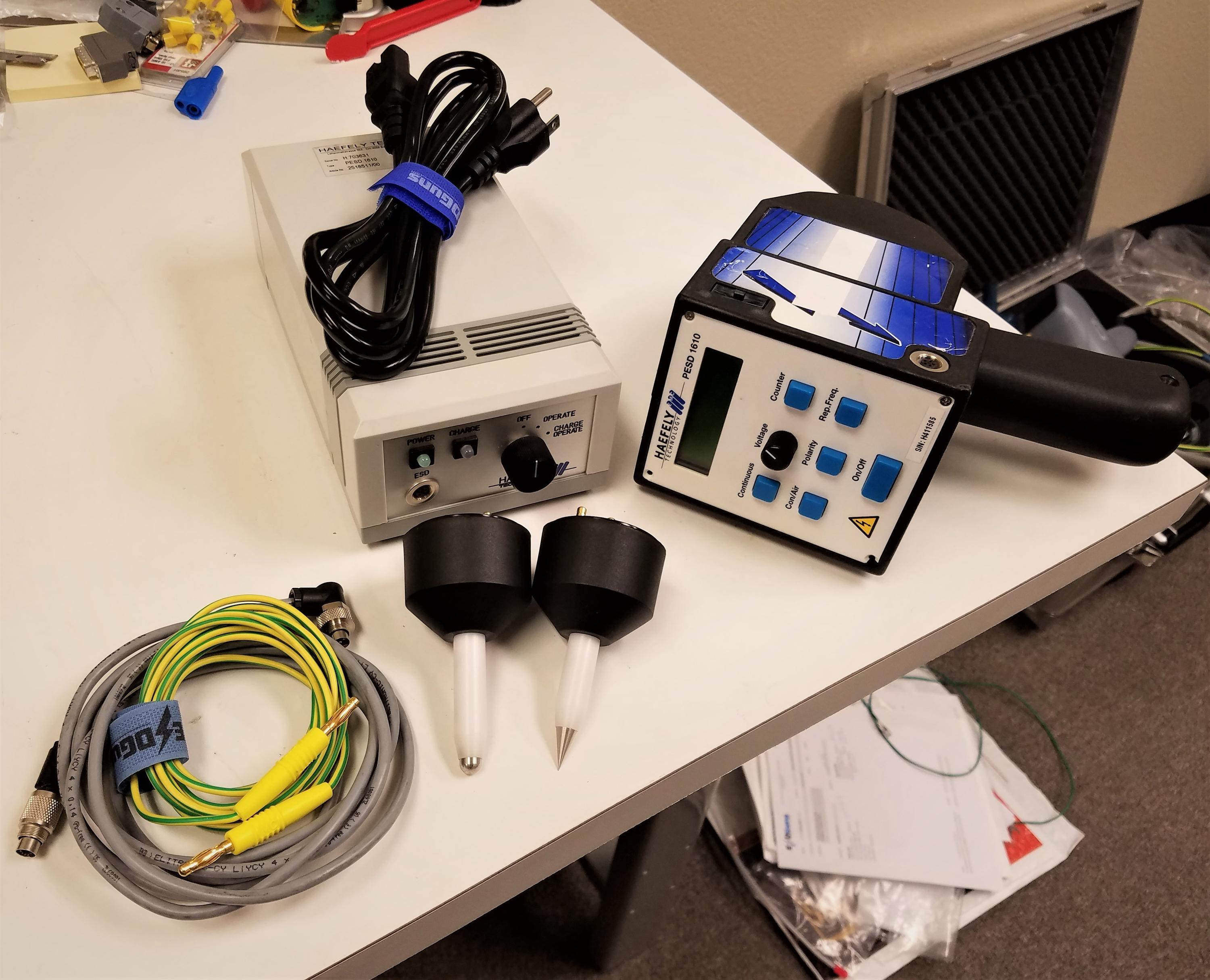

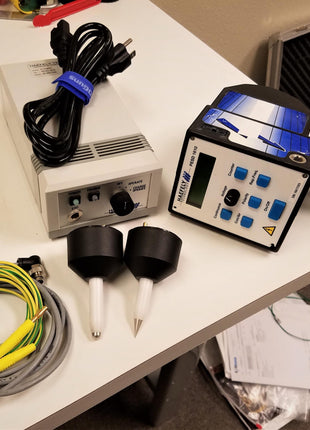

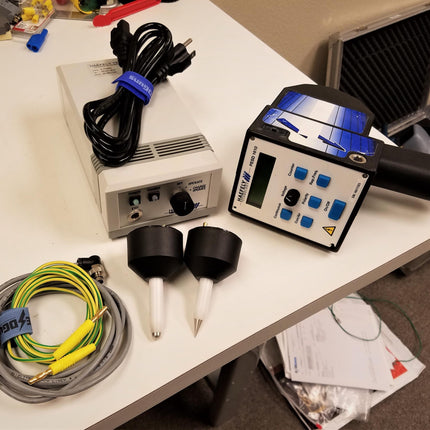

Overview of Refurbished Haefely PESD 1610:

PESD 1610 ESD Generator - New High Voltage Module
Test Finger Contact discharge (New)
Air Discharge Tip (New)
Ground cable (Non-standard)
Charger / Power Supply Unit
User Manual
Calibration certificate
(No Carrying Case) - Contact us for a pelican case

Pulse Amplitude
Polarity	Positive & Negative
Operating Modes	Single & Continuous
Max Output Voltage	Positive & Negative
Length	10
Width	20
Weight	1.2 kg (Gun); 0.6 kg (Charger)
Height	20
Input/Shunt Resistance
Holding Time
Display	Interface on Pistol and Base Station
Discharge Repetition	Single, 1, 2, 5, 10 & 20 Hz
Discharge Detection Air Discharge
Discharge Counter	1 to 9,999
Dimensions	10 x 21 x 20 cm (Gun); 11 x 7 x 20 cm (Charger)
Contact Discharge Voltage	0.2 – 9kV
Charging Voltage Measurement
Battery Life
Bandwidth
Discharge Tips	Test tip air discharge & test tip contact discharge
Air Discharge Voltage	0.2 – 16.5kV
Voltage Resolution	100 Volts
Variation of Insertion Loss
Standards Met	IEC 61000-4-2 (Additional R/C networks for more standards)
Radiation Rating
Pulse Networks	150 pF / 330 Ohm
