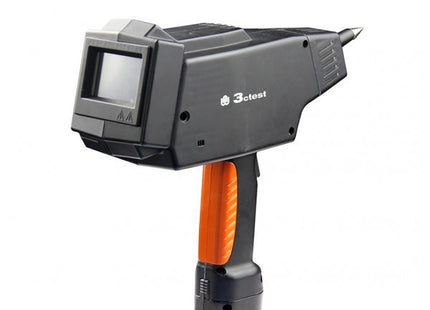

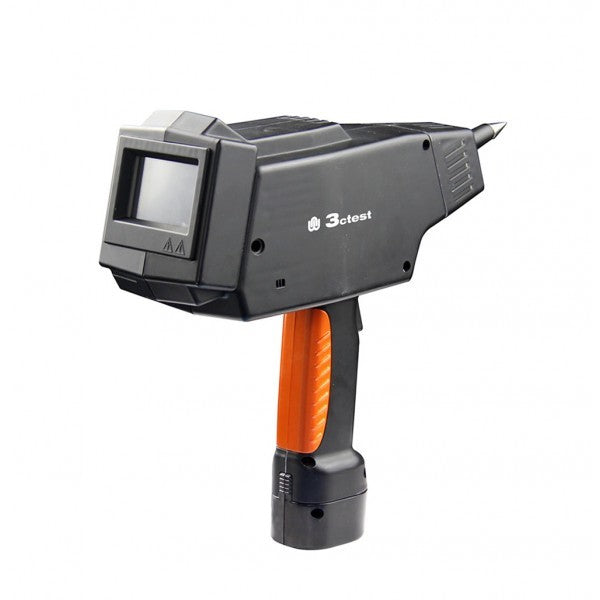

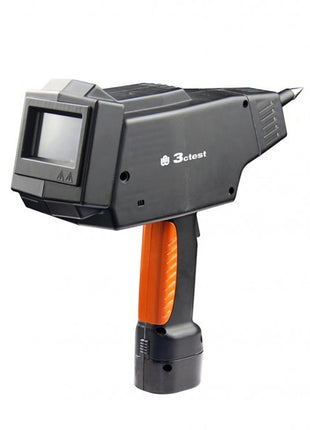

3ctest EDS 16H Electrostatic Discharge Simulator up to 16 kV for IEC-EN 61000-4-2

    Description

    The 3ctest EDS 16H is an ergonomic ESD gun without an additional base control unit. It can be operated via battery or mains. Easy to use by touch screen, ergonomic design, R/C modules changeable, remote control software, built-in temperature and humidity meter, allows a trouble-free use in all types of test sites.

    3ctest EDS 16H Includes:

    • 16kV ESD Generator
    • AC Power Adapter for continuous testing
    • QTY 2 Batteries
    • Battery Charger
    • Air Discharge Tip
    • Contact Discharge Tip
    • 150pF/330 Ohm R/C Network
    • Grounding Cable
    • HV Alligator Clip
    • Ruggedized Carrying Case with Shoulder Strap
    • Traceable Calibration Certificate
    • User Manual
    • 10% off Calibration Service for Life

    3ctest EDS 16H Features

    • Changeable R/C networks
    • Automatic polarity switching
    • Temperature and humidity monitoring
    • Built-in standard test library
    • Intelligent detection the failure of air discharge



    3ctest EDS 16H Discharge Networks:

    DM1-RFCI - 150pF/330 ohm - Rise time 200ps-300ps

    DM2 - 150pF/2000 ohm (ISO 10605)

    DM5 - 330pF/2000 ohm (ISO 10605)

    DM6 - 330pF/330 ohm (ISO 10605)

    DM7 - 100pF/1500 ohm

    DM8 - 150pF/150 ohm

    DM9 - 500pF/500 ohm

    DM10 - 500pF/5000 ohm

    Custom discharge networks available upon request

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $550.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Accessory Kit

      • 16kV ESD Generator
      • AC Power Adapter for continuous testing
      • QTY 2 Batteries
      • Battery Charger
      • Air Discharge Tip
      • Contact Discharge Tip
      • 150pF/330 Ohm R/C Network
      • Grounding Cable
      • HV Alligator Clip
      • Ruggedized Carrying Case with Shoulder Strap
      • Traceable Calibration Certificate
      • User Manual
      • 10% off Calibration Service for Life

        Features

      • Air- and Contact- Discharge: 1000-20,000V±5%
      • Rise time: 0.6-1ns
      • RC module: 150pF/330Ω
      • Automatic identification of discharge module
      • Voltage hold time: >5s
      • As per: IEC61000-4-2, GB/T17626.2
      • LCD Touchscreen
      • Automatic Polarity Switching
      • Temperature & Humidity Monitoring
      • Battery or mains operation with long battery life
