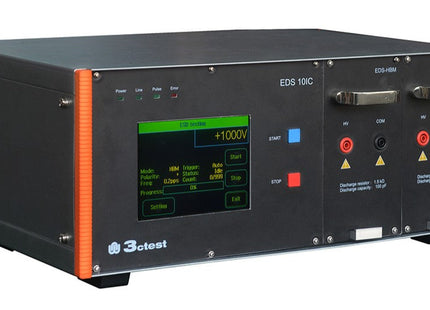

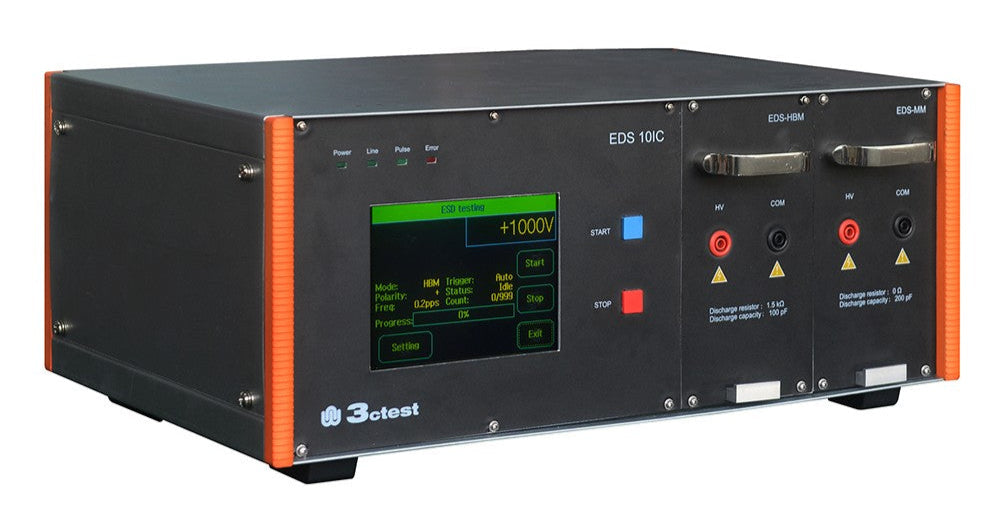

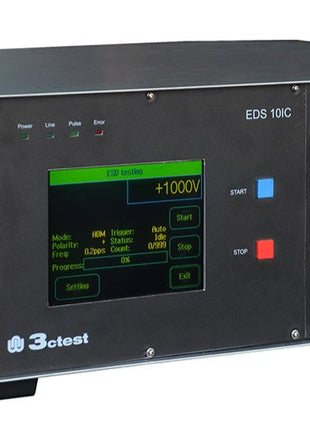

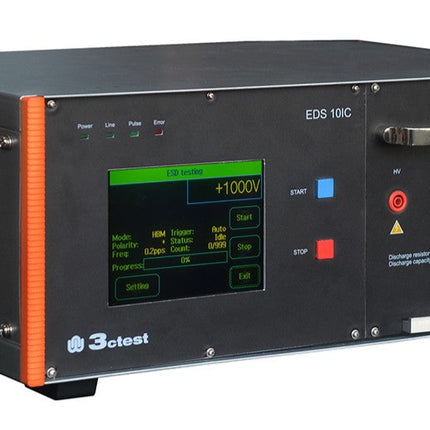

3ctest EDS 10IC HBM and MM ESD Immunity Tester

SKU:

: In stock

Regular price $0.00

Condition New
  • Touch screen intelligent operation
  • The lowest voltage 5V and 1V step for precise adjusting voltage
  • Available for single or automatic discharge tests and setting times, frequency, etc
  • Meets:
    • ESDA ANSI/ ESD STM5.2-2009
    • JEDEC JESD22- A114E Jan.2007
    • ANSI /ESD-STM5.1 2007
    • MIL-STD-883G 28 Feb.2006
    • ANSI/JEDEC JS-001-2010
    • JEDEC JESD22- A115C Nov.2010

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

The 3ctest EDS 10IC is specially designed for HBM and MM ESD immunity test requirements, applicable to semiconductor devices like LED, transistors, IC, etc, as per IEC, ESDA, JEDEC, MIL, etc. At the same time, fully comply with the severest ESD voltage levels in the standards above. Rent, buy or lease the 3ctest EDS 10IC HBM and MM ESD Immunity Tester.

3ctest EDS 10IC Features:

  • Touch screen intelligent operation
  • Automatic identify RC modules and adjust the maximum voltage
  • The lowest voltage 5V and 1V step for precise adjusting voltage
  • Available for single or automatic discharge tests and setting times, frequency, etc
  • Meets:
    • ESDA ANSI/ ESD STM5.2-2009
    • JEDEC JESD22- A114E Jan.2007
    • ANSI /ESD-STM5.1 2007
    • MIL-STD-883G 28 Feb.2006
    • ANSI/JEDEC JS-001-2010
    • JEDEC JESD22- A115C Nov.2010

DOWNLOAD

Pulse Amplitude
Polarity
Operating Modes Automatic, single orexternal trigger
Max Output Voltage
Length
Width
Weight 22 Lbs
Height
Input/Shunt Resistance
Holding Time
Display Touchscreen
Discharge Repetition 0.1-10s adjustable
Discharge Detection Air Discharge
Discharge Counter 1-999
Dimensions 45x19x32cm)
Contact Discharge Voltage 5 to 8250V
Charging Voltage Measurement
Battery Life N/A
Bandwidth
Discharge Tips Standard Banana jack
Air Discharge Voltage
Voltage Resolution
Variation of Insertion Loss
Standards Met MIL STD 883E, ANSI/ESDA/JEDEC JS-001-2010, ANSI/ESDA STM 5.2, JEDEC 22-A11C
Radiation Rating
Pulse Networks 100 pF, 1500 Ohm HBM; 200 pF, 0 Ohm MM
