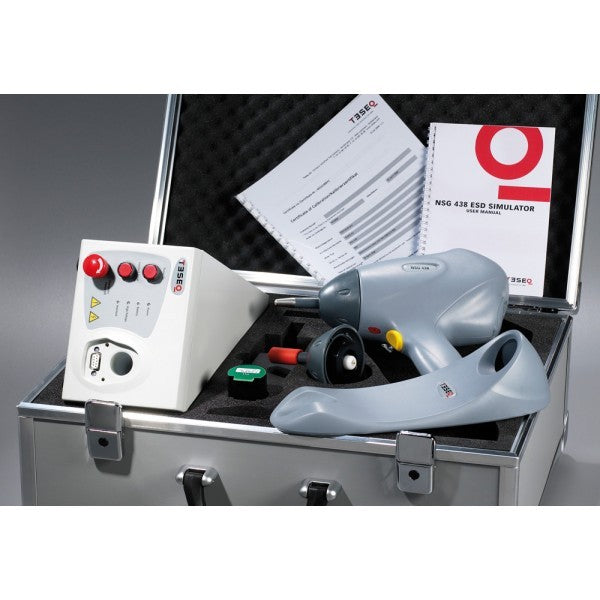

ESDguns.com, a division of The EMC Shop, stocks new 30kV ESD simulators from Teseq, EM Test, Haefely, Schloder and other manufacturers. New units include a fresh traceable calibration certificate with data and waveforms and typically have 1-2 year warranty depending on the manufacturer. Receive 10% off Calibration Service for Life of any ESD simulator purchased through ESDguns.com
ESD30 ESD Simulator Includes Everything for Testing: ESD30 Handheld, battery operated ESD simulator Battery charger/AC Adapter Air discharge tip Contact discharge Ground cable 1 meter Manual Calibration Certificate 10% off Calibration Service for Life of the Unit ESD30 30kV ESD Simulator for IEC/EN 61000-4-2 The ESD30 30kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below: ESD30 Features Programmable discharge voltage 200V to 30kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design ESDguns.com is now a division of The EMC Shop
$795.00 - $12,275.00
The 3ctest EDS 30T Electrostatic Discharge ESD Generator is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 30 kV. The unit has the best price point of its 30 kV simulator comparables and is growing in popularity among engineering firms and manufacturers performing debugging and precompliance test evaluations.
$990.00 - $13,950.00
The Schloder SESD 30000 Electrostatic Discharge Generator is suitable for EMC testing of systems and equipment in accordance with standard IEC / EN 61000-4-2, ISO 10605 (Automotive), MIL-STD, and others. The modular structure of the simulator allows further testing according to different standards and customer definitions. Schloder SESD 30000 Includes: Electrostatic Discharge Generator with connection cable Desktop control unit with mains cable Mechanical polarity switch module 150pF Capacitor module 330 Ohm Resistor module Air Discharge Test Tip Contact Discharge Test Tip Discharge return cable Carrying Case User Manual Calibration Certificate with Data and Waveforms 10% off Calibration Service for Life
$0.00
The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests. Applications: Communication Information technology Telecom Automotive Military Medical Aviation Broadcast and TV New energy and power Railway 3ctest EDS 30V Features: Air- and Contact- Discharge: 1000-30,000 Volts ±5% Resolution: 100 Volts Hold Time: >5 seconds Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more... Integrated sensor to monitor temperature and humidity Rise Time: 0.8 ns ±25% (0.6 to 1 ns) Current Peak Value Accuracy: ±10%
$1,195.00 - $14,195.00
