Noiseken ESS-L1611 16 kV Electrostatic Discharge Simulator for IEC 61000-4-2 - ESDGuns.com

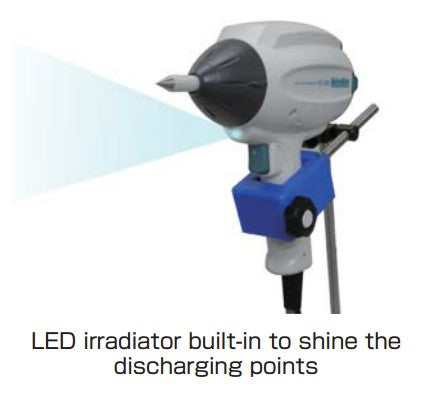

Visually Monitor and Target Electrostatic Discharge Points with LED Light on GT-30R Pistol

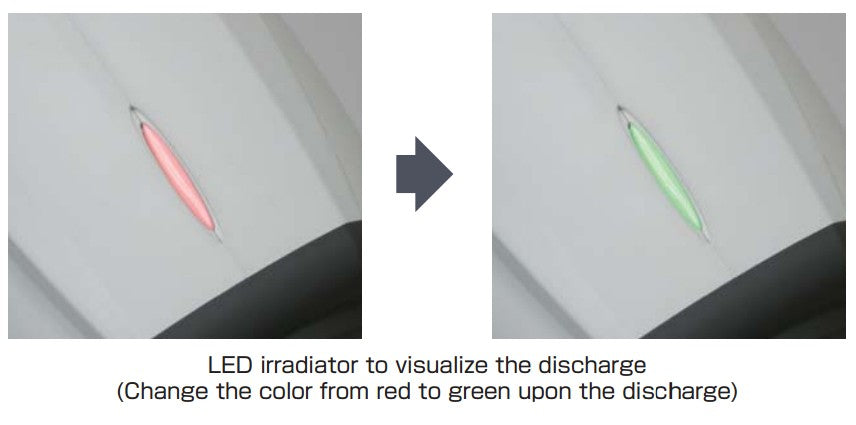

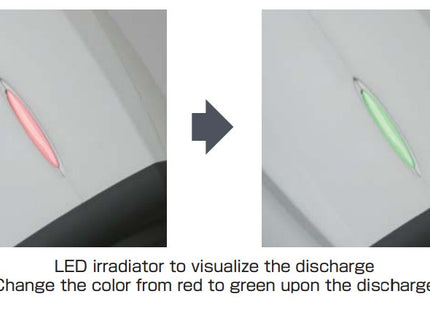

Verify Static Discharge is Active with LED light on GT-30R Pistol

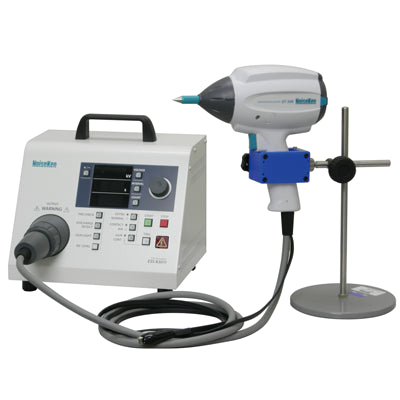

Noiseken ESS-L1611 16 kV Electrostatic Discharge Simulator for IEC 61000-4-2

SKU:

: In stock

$0.00

  • 10 Volt Steps up to 10 kV
  • LED Spotlight for Electrostatic Discharge Targeting
  • GT-30R Lightweight Discharge Pistol Included
  • Pre-check of high voltage output, withstanding voltage and discharge relay operation
  • IEC 61000-4-2 Standard Test Mode (2 kV, 4 kV, 6 kV, 8 kV Contact; 2 kV, 4 kV, 8 kV, 15 kV Air)

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

The Noiseken ESS-L1611 16 kV Electrostatic Discharge Simulator for IEC 61000-4-2 is a cost-oriented basic model ESD Simulator with a light weight discharge gun pistol attachable.

The Noiseken GT-30R discharge gun has been renewed completely to materialize much more lightning and best gravity balance. Human load in the operation can be remarkably reduced comparing to the previous model. Electrostatic discharge can be confirmed with LED light on the body in this new discharge gun.

Noiseken ESS-L1611 Features:

  • 10 Volt Steps up to 10 kV
  • LED Spotlight for Electrostatic Discharge Targeting
  • GT-30R Lightweight Discharge Pistol Included
  • Pre-check of high voltage output, withstanding voltage and discharge relay operation
  • IEC 61000-4-2 Standard Test Mode (2 kV, 4 kV, 6 kV, 8 kV Contact; 2 kV, 4 kV, 8 kV, 15 kV Air)
    Pulse Amplitude
    Polarity Positive or negative
    Operating Modes Discharge Mode, Trigger Mode, High Voltage Precheck, CR & Gun precheck, IEC level switching (2, 4, 6, 8, 15 kV steps)
    Max Output Voltage Positive or negative
    Length
    Width
    Weight Generator Approx. 4.8kg Discharge gun : Approx. 800g
    Height
    Input/Shunt Resistance
    Holding Time
    Display Indicator : 5X7 Dot matrix LED / Operation : Push buttons (Partially lighting)
    Discharge Repetition 0.05s-9.99s±10%, 0.01s step / Manual
    Discharge Detection Air Discharge
    Discharge Counter 1-999 times, Preset 1 time step or continuous preset
    Dimensions Generator: (W)270 × (H)263 × (D)200 mm; Discharge Gun: (W)83.3 × (H)217.2 × (D)229.3 mm
    Contact Discharge Voltage 0.20 - 16.0kV ±5%
    Charging Voltage Measurement kV, ±5%
    Battery Life N/A
    Bandwidth
    Discharge Tips air and contact (Optional fast rise time, 30mm Spherical Ball, and more)
    Air Discharge Voltage 0.20 - 16.0kV ±5%
    Voltage Resolution 10 Volt steps up to 10 kV; 100 Volt steps to 16 kV
    Variation of Insertion Loss
    Standards Met EN/IEC61000-4-2, ISO 10605
    Radiation Rating I
    Pulse Networks 150pF±10%、330Ω±10％ (Built-in CR unit for discharge gun GT-30R）
