Noiseken ESS-2000 30kV Electrostatic Discharge (ESD) Gun

Noiseken ESS-200AX 30kV Electrostatic Discharge ESD Simulator

SKU:

Availability: In stock

Regular price $6,950.00

0.20 - 30kV Output Voltage
Discharge Interval Programmable from 0.05 to 600 seconds
Pre programmed IEC Severity Levels
Storage functionality in Manual, Sweep and Program Mode

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

ESD Simulator Guns

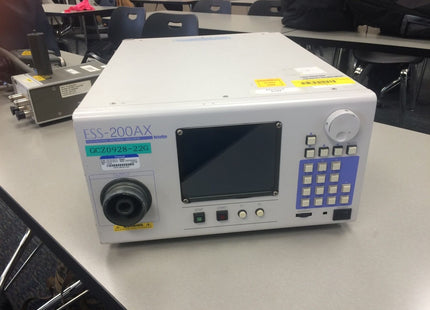

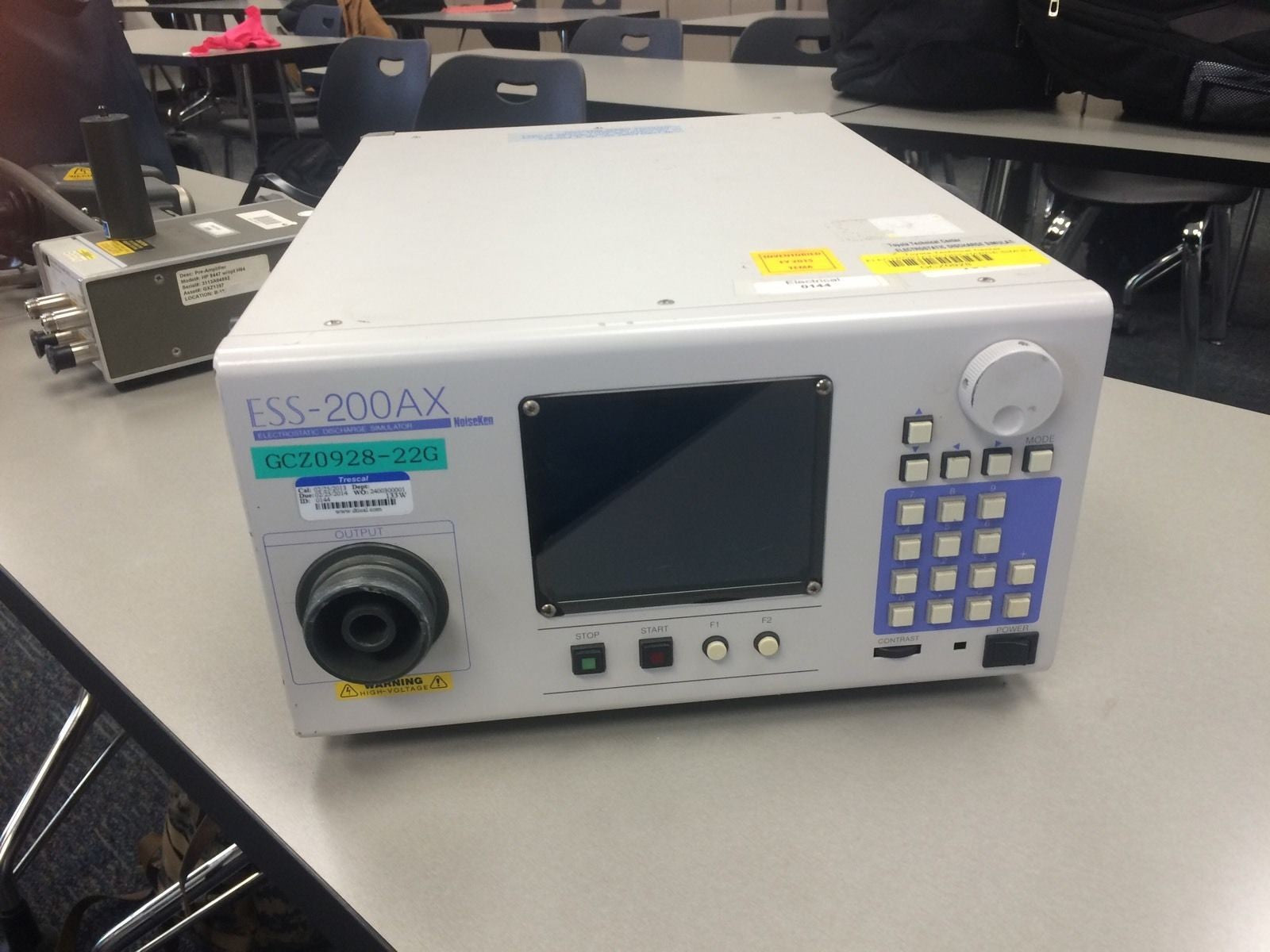

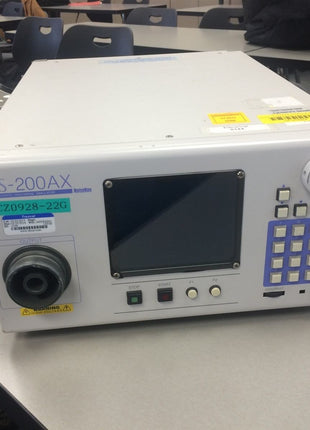

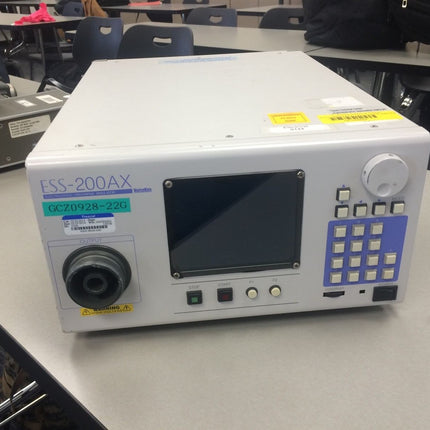

The Noiseken ESS-200AX 30kV ESD electrostatic simulator was a very popular unit but has been discontinued by the manufacturer. Current models are the ESS-B3011 and ESS-S3011. The ESS-200AX is still suitable for precompliance testing to IEC/EN 61000-4-2 or general test and debugging for ESD immunity.

Noiseken ESS-200AX Features:

0.20 - 30kV Output Voltage
Discharge Interval Programmable from 0.05 to 600 seconds
Pre programmed IEC Severity Levels
Storage functionality in Manual, Sweep and Program Mode

Pulse Amplitude
Polarity	Positive or negative
Operating Modes	IEC Severity Level, Manual, Sweep, Program
Max Output Voltage	Positive or negative
Length
Width
Weight	9.5 kg's (21 Lb's)
Height
Input/Shunt Resistance
Holding Time	more than 2 seconds
Display	LCD with back light
Discharge Repetition	0.05 - 600.0 seconds
Discharge Detection Air Discharge
Discharge Counter	1 - 60000 times
Dimensions	(W)300 × (H)160 × (D)430 mm
Contact Discharge Voltage	0.20 - 30.0kV
Charging Voltage Measurement
Battery Life	N/A
Bandwidth
Discharge Tips	air and contact
Air Discharge Voltage	0.20 - 30.0kV
Voltage Resolution
Variation of Insertion Loss
Standards Met	EN/IEC61000-4-2
Radiation Rating
Pulse Networks
