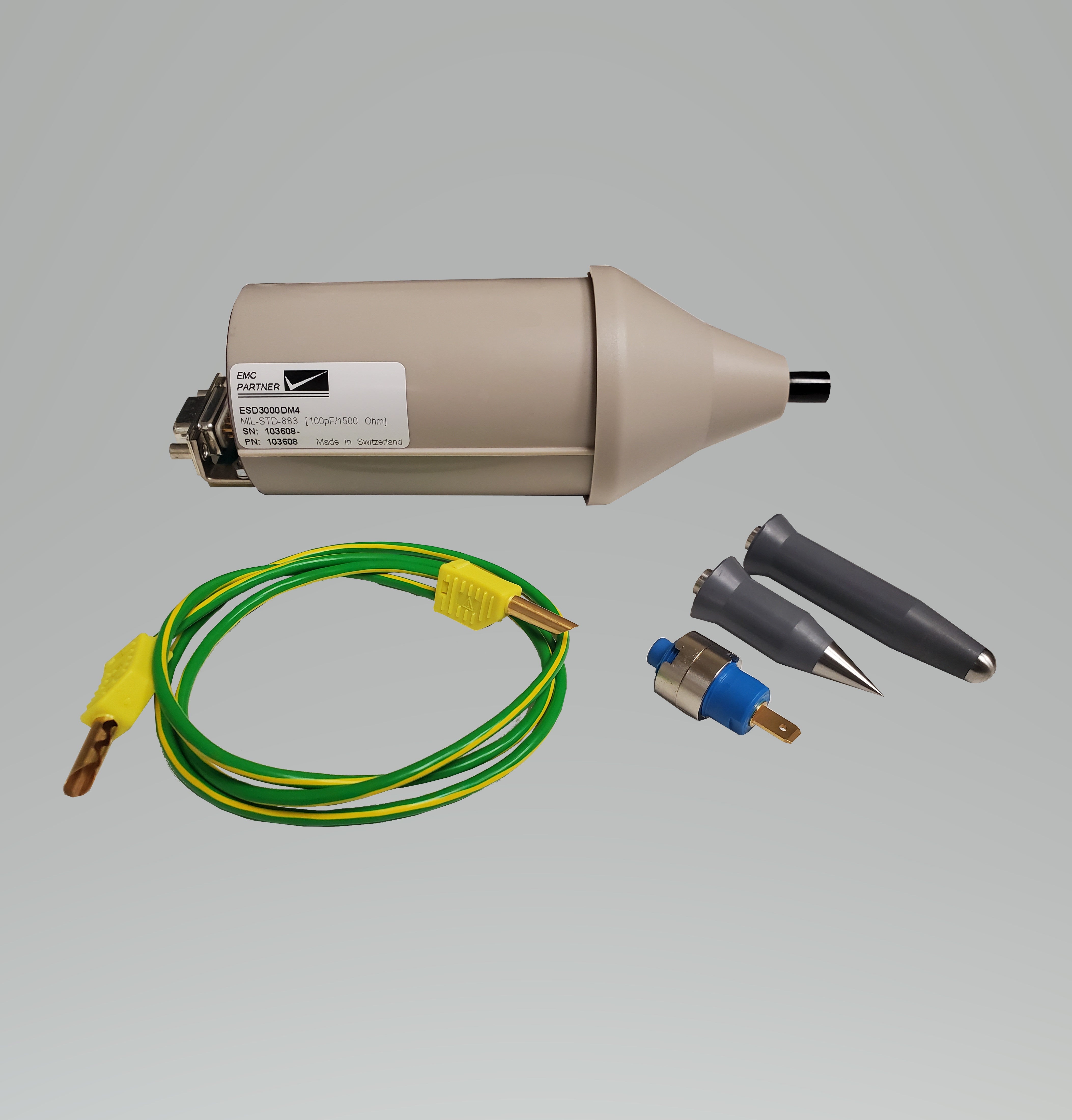

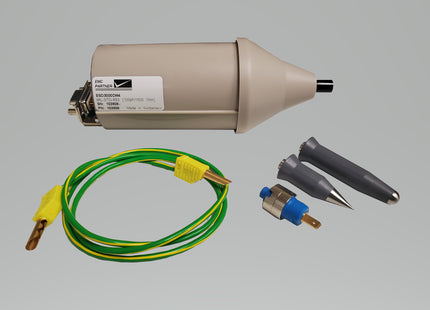

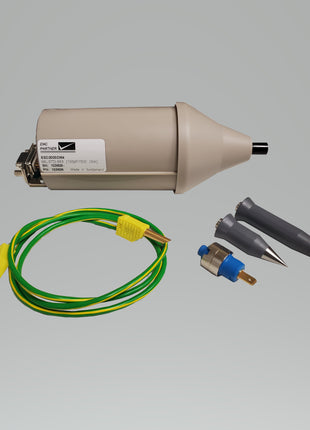

EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance

Description

The EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards Mil-STD-464, Mil-STD-883, and GR78-CORE.

The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged.

EMC Partner ESD3000DM4 Features:

  • Standards Met:
  • Capacitance/Resistance: 100pF / 1500ohm
  • Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV
  • Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV

    Read more

    EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $395.00
