Description

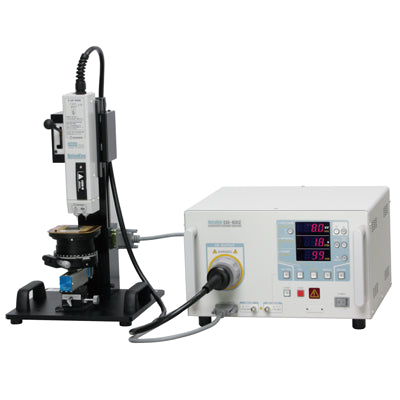

The NoiseKen ESS-6002 Component Level Electrostatic Discharge Simulator is a tester specifically designed to carry out ESD sensitivity testing of semiconductor devices to standards such as MIL-STD-883, EIAJ ED-4701 and others. Included are the Human Body Model (HBM) and Machine Model (MM) probes.
As a DUT interface, select either Free Type Probe Stand where virtually any package type can be connected by means of a pair of miniature test leads or Semi-automatic Precision Type Probe Stand providing automatic and precise pin-to-pin feeding with a minimum 0.01mm resolution.
Meets Human Body Model (HBM) Compliance Standards:
- AEC-Q100-002-Rev.D Jul.2003
- ESDA ANSI/EOS/ESD-STM5.1-2001
- IEC 61340-3-1Ed.1.0 2002
- IEC 60749-26 Ed.1.0 2003
- JEDEC JESD22-A114E Jan 2007
- JEITA EIAJ ED-4701/300 Aug.2001 Test Method304
- MIL-STD-883G Method 3015.7 Mar.1989
Meets Machine Model (MM) Compliance Standards:
- AEC-Q100-003-REV-E Jul.2003
- ESDA ANSI/ESD STM5.2-1999
- IEC 61340-3-2 Ed.1.0-2002
- IEC 60749-27 Ed.1.0 2003
- JEDEC JESD22-A115A Oct.1997
- JEITA EIAJ ED-4701/300 Aug.2001
NoiseKen ESS-6002 Features:
- 10V minimum output (1V step)
- A simple probe stand and test fixture plus a pair of miniature test leads meeting many different kinds of device packages <Free Board Type>
- Narrow pitch DUT can be tested in semi-automatic manner <Semi-automatic Precision Type>
- Each probe has a coaxial interface with an external measuring instrument.
- External trigger input and output terminals are provided.
