3M 753 Electrostatic Discharge Simulator for Human Body Model (HBM) & Machine Model (MM)

    Description

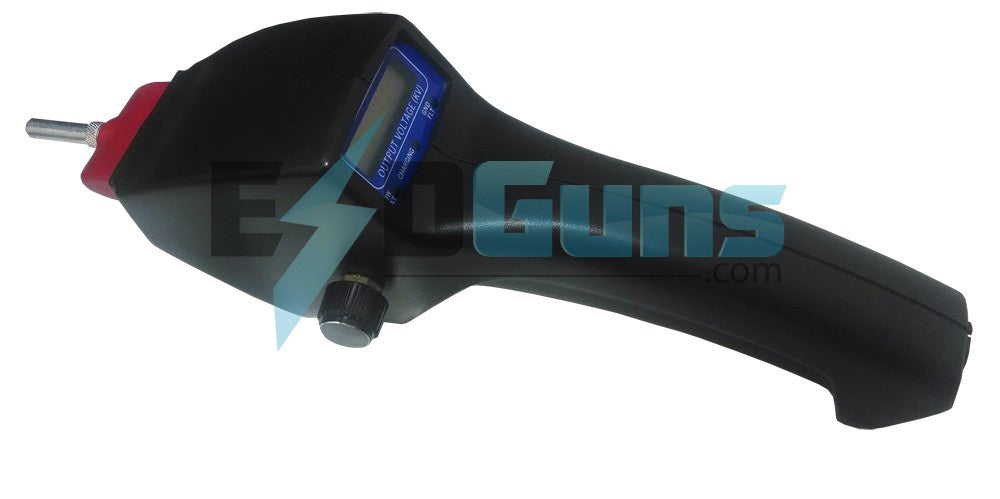

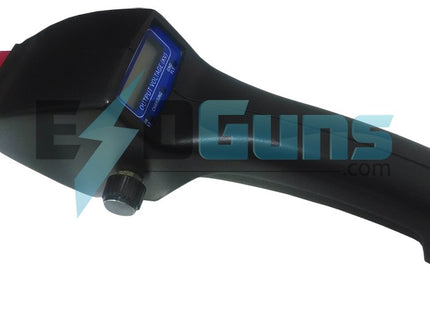

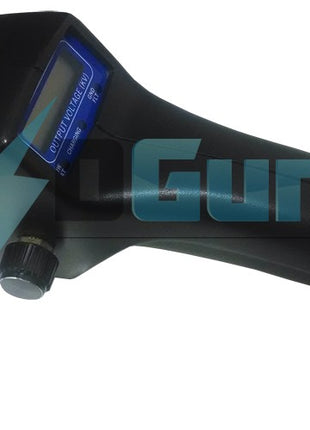

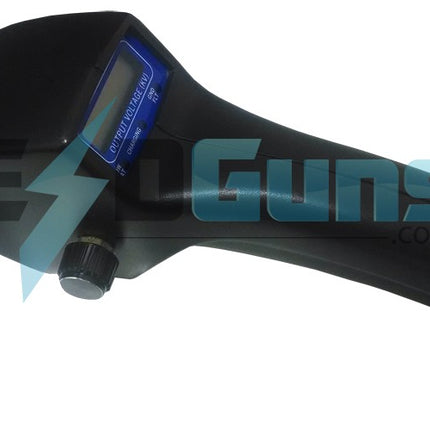

    The 3M 753 HBM/MM ESD Simulator allows you to simulate electrostatic discharge events at precisely controlled output voltages. It was primarily designed as a tool for determining application trigger voltages of 3M 751 Static Event Detectors. However, it is a suitable tool for any Human Body Model and Machine Model ESD testing and debugging before going for compliance to MIL-STD-883 or JEDEC 22 A115, A115 or other HBM/MM ESD immunity standards.

    The ESD simulators is supplied with two color-coded snap-in discharge network assemblies, allowing users to quickly select the discharge model and polarity. The battery operated unit is light and portable, with several additional accessories provided allowing users to setup and test easily.

    3M 754 HBM/MM ESD Simulator Features:

    • Discharge Models:
      • Human Body Model (HBM):
        • Capacitance: 100 pF ±10%
        • Resistance: 1500 Ohms ±1%
      • Machine Model (MM):
        • Capacitance = 200 pF ±10%
        • No Resistor
    • Output Voltage: 15 to 5,000 V
    • Display Resolution:
      • 1 V at or under 800 V
      • 10 V at or above 1000 V
    • Display Accuracy: 3% of total reading
    • Stability: 1% after 10 minutes of settling

      Product form

      In Stock  In Stock
      Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

      Request Lead Time
      Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

      International
      Depending on where you’re located, we offer next day delivery. Check your status on this link

      $4,750.00 + Shipping

      Order by 3 PM and Ship ESD Guns and Equipment Same Day
          Features

        • Discharge Models:
          • Human Body Model (HBM):
            • Capacitance: 100 pF ±10%
            • Resistance: 1500 Ohms ±1%
          • Machine Model (MM):
            • Capacitance = 200 pF ±10%
            • No Resistor
        • Output Voltage: 15 to 5,000 V
        • Display Resolution:
          • 1 V at or under 800 V
          • 10 V at or above 1000 V
        • Display Accuracy: 3% of total reading
        • Stability: 1% after 10 minutes of settling

        Ask & Learn

        Previous answers and questions posted below

        Learn by asking questions, practicing, and getting guidance

        Ask Now

        Description

        The 3M 753 HBM/MM ESD Simulator allows you to simulate electrostatic discharge events at precisely controlled output voltages. It was primarily designed as a tool for determining application trigger voltages of 3M 751 Static Event Detectors. However, it is a suitable tool for any Human Body Model and Machine Model ESD testing and debugging before going for compliance to MIL-STD-883 or JEDEC 22 A115, A115 or other HBM/MM ESD immunity standards.

        The ESD simulators is supplied with two color-coded snap-in discharge network assemblies, allowing users to quickly select the discharge model and polarity. The battery operated unit is light and portable, with several additional accessories provided allowing users to setup and test easily.

        3M 754 HBM/MM ESD Simulator Features:

        • Discharge Models:
          • Human Body Model (HBM):
            • Capacitance: 100 pF ±10%
            • Resistance: 1500 Ohms ±1%
          • Machine Model (MM):
            • Capacitance = 200 pF ±10%
            • No Resistor
        • Output Voltage: 15 to 5,000 V
        • Display Resolution:
          • 1 V at or under 800 V
          • 10 V at or above 1000 V
        • Display Accuracy: 3% of total reading
        • Stability: 1% after 10 minutes of settling
