Refurbished Haefely PESD 1610 ESD Simulator Gun for IEC 61000-4-2

Haefely ESD Generators Haefely PESD 1610 ESD Simulator Gun for IEC 61000-4-2

Request Lead Time

The Haefely PESD 1610 Electrostatic Discharge (ESD) Simulator / Generator Gun has been replaced by the Haefely ONYX 16 kV ESD Test Generator. The Haefely PESD 1610 is still suitable for most ESD immunity test applications and can be rented or purchased at an economical price compared to current model 16 kV ESD simulators. Please note quantities are limited as parts are no longer available and units must be scrapped once functionality fails. Haefely PESD 1610 Description: Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible. The Haefely PESD 1610 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 1610 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results. The PESD 1610 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional push buttons for easy and convenient setting of all test parameters. For long running tests, a screw socket on the bottom enables the user to mount the gun on a standard tripod. Overview of Refurbished Haefely PESD 1610: PESD 1610 ESD Generator - New High Voltage Module Test Finger Contact discharge (New) Air Discharge Tip (New) Ground cable (Non-standard) Charger / Power Supply Unit User Manual Calibration certificate (No Carrying Case) - Contact us for a pelican case

Read more less

Request Lead Time

$4,500.00

View options

Haefely ESD Generators Haefely PESD 3010 Electrostatic Discharge (ESD) Simulator - Generator Gun

Request Lead Time

The Haefely PESD 3010 Electrostatic Discharge (ESD) Simulator / Generator Gun has been replaced by the Haefely ONYX 30 kV ESD Test Generator. The Haefely PESD 3010 is still suitable for most ESD immunity test applications and can be rented or purchased at an economical price compared to current model 30 kV ESD simulators. Please note quantities are limited as parts are no longer available and units must be scrapped once functionality fails. Haefely PESD 3010 Description: Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible. There are many standards which require discharge component (Resistor & Capacitor) values other than those described in the IEC/EN 61000-4-2 standard. With PESD 3010 it is possible to meet these requirements due to the changeable R&C modules. PESD 3010 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 3010 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results. PESD 3010 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional pushbuttons for easy and convenient setting of all test parameters.

Read more less

Request Lead Time

$9,950.00

View options

Haefely 249997 ESD Calibration Set for IEC/EN 61000-4-2 - ESDGuns.com

Haefely ESD Generators Haefely PET 4000 (249997) ESD Calibration Set for IEC-EN 61000-4-2

In Stock

ESD generators are calibrated according to the standard IEC/EN 61000-4-2 Ed 2.0. The Haefely PET 4000 ESD Current Target Calibration Set allows the user to take measurements conforming to the new 4GHz requirement in accordance with IEC 61000-4-2 Ed. 2.0. Measurement of individual impulse parameters is performed using a special coaxial current shunt. This has a nominal impedance of 2 Ohms. Because ESD events can be generated as high as 120A, attenuators are required to reduce the impulse-voltage level so it can be displayed on commercial oscilloscopes. An oscilloscope with minimum 2GHz bandwidth is required to properly display the ESD impulse. Haefely PET 4000 (249997) Includes: ESD target 2 Ohm / 4GHz One 20dB / 18GHz attenuator (additional 20dB attenuator optionally, ordering number 0780841) Coaxial cable 1 meter User manual & test certificate

Read more less

In Stock

$3,750.00

Teseq ESD Guns HBM-MM RC Network Package for Teseq NSG 438 ESD Simulator

In Stock

Looking to test and debug your product to human body and machine model tests? Rent or buy the HBM/MM RC Network Package for the Teseq NSG 438 ESD Simulator Gun. Package Includes: INA 4561 per Mil-STD 883: 100pF/1500Ohms INA 4569 200pF/0Ohms

Read more less

In Stock

$450.00

HCP Horizontal Coupling Plane Including Resistor Cable (2 x 470 kOhm resistors) - ESD Test Setup - ESDGuns.com

ESDGuns.com HCP Horizontal Coupling Plane Including Resistor Cable (2 x 470 kOhm resistors)

Request Lead Time

Order Horizontal Coupling Plane Including Resistor Cable (2 x 470 kOhm resistors) online today. ESDGuns.com is the ultimate online store for ESD testing.

Read more less

Request Lead Time

$695.00

EM Test CSL 200 Horizontal Coupling Plane for ISO 10605 Automotive ESD Test

Diagram - Direct ESD Discharge Test for Automotive ISO 10605 Compliance

ESDGuns.com Horizontal Coupling Plane for ISO 10605 Automotive ESD Test

Request Lead Time

Annex F of the actual ISO 10605, provides an additional approach for the ESD powered up test. This approach is intended to produce more repeatable test results and to better correlate with vehicle level ESD tests and the real world environment in comparison especially to the HCP test. This test is an optional test that can be selected by the users in additional to the present standard ESD powered up test as described in clause 5.3. The HCP-auto allows for direct and indirect application of ESD discharges to the DUT as per the automotive test standard ISO 10605 for electrostatic immunity, also reference by manufacturer specs by Ford, GM, Toyota and more. See Diagrams of Horizontal Coupling Plane (Pictures 2 and 3): Field Coupling Plane Field Coupling Strip Discharge islands DUT and wiring harness isolation block DUT DUT wiring harness Battery Peripheral or support equipment AN (if used) Ground reference point for battery and support equipment DUT local ground,(if required) Ground reference point for ESD Coupling Plane, ESD generator and safety ground connection 2 x 470 kΩ high voltage resistors to satety ground HCP ESD generator main uni

Read more less

Request Lead Time

$2,450.00

Rent EMC Partner ESD3000 Handheld, 30kV Electrostatic Discharge (ESD) Tester - ESDGuns.com

IMCS IMCS 2500 Electrostatic Discharge (ESD) IC Tester per Mil-Std-883 up to 10kV

In Stock

The IMCS 2500 is an Electrostatic Discharge (ESD) IC Tester as per Mil-Std-883 up to 10kV. Designed for use in human body model current waveforms.

Read more less

In Stock

$6,500.00

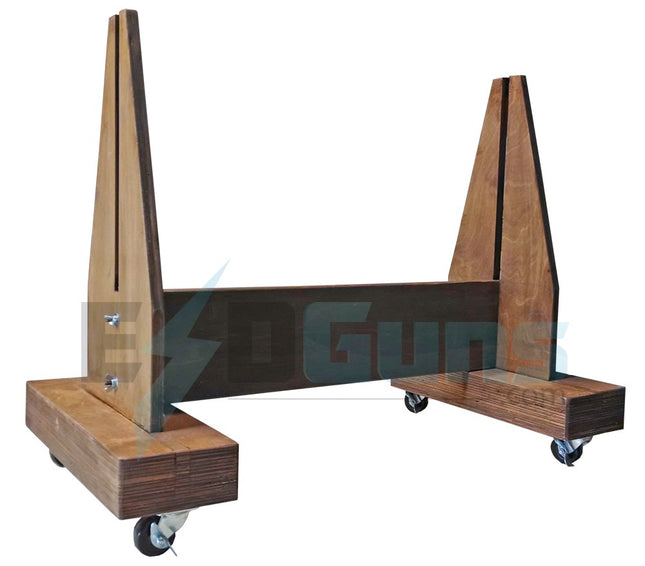

ESDGuns.com Industrial Wood Tripod to mount ESD Simulators

In Stock

Please note some ESD simulator guns have a screw terminal built into the bottom of the handle, other simulators require a cradle or additional supporting device.

Read more less

In Stock

$1,159.00

View options

Insulating Support for Wall Mounted Equipment - ESDguns.com setup with VCP, power supplies, and protective conductor per IEC 61000-4-2:2025.

Wall-mounted equipment on insulating support with ESD test setup including 470 kΩ resistor and VCP block, compliant with IEC 61000-4-2:2025.

ESDGuns.com Insulating Support for Wall Mounted Equipment

In Stock

Non conductive support (wood typically) for testing wall mounted electronics according to IEC 61000-4-2 edition 3. Mounting area is 1.5m by 1.5m to comply for small electronics (under .5m in length and width) and custom sizes are available as well. False walls to reproduce real world scenarios are available to be mounted on the insulating support for the non-conducted surface test.

Read more less

In Stock

$0.00

Keytek (Thermo Fisher) ZapMaster ESD Test System for HBM, MM ESD, Latch-Up, & CDM

Thermo Keytek Keytek (Thermo Fisher) RCDM3 Charged Device Model (CDM) PC Controlled ESD System

In Stock

Keytek (Thermo Fisher) RCDM3 Description: The KeyTek RCDM3 is a robotic style Charged Device Model (CDM) test system enabling the identification of CDM ESD threats to new devices prior to design release, or for postproduction failure analysis simulation. A turnkey PC-controlled system, RCDM3 features three independent video cameras and a built in vacuum ‘device retention’ system for rapid set-up. Devices of virtually any size or configuration can be stressed. The system provides efficient testing regimens and easily retrievable test data. Available with ESDA STM 5.3.1, JEDEC JESD22-C101 standards, or both. Test standards ESDA STM 5.3.1 or JEDEC, JESD22-C101 standards, or both 3 independent video cameras allow fast precision device alignment Built-in vacuum device hold-down system Accommodates testing of virtually any size device package Zap detection circuit for confirmed discharge event Safety interlocks guard operator safety

Read more less

In Stock

$5,000.00

Keytek Series 2000 ESD Simulation Test System to 25kV - ESDGuns.com

Thermo Keytek Keytek Series 2000 ESD Simulation Test System to 25kV

In Stock

The KeyTek Series 2000 hand-held or tripod-mounted ESD simulation test system provides a combination of performance characteristics that enable users to test to various ESD standards including IEC, ANSI, SAE and MIL-STD. Interchangeable discharge networks, current injection adapters, and tips (bundled or stand-alone) all plug directly into the discharger’s barrel, and facilitate testing to a broad range of ESD test methodologies to help users achieve market and company-driven quality objectives, and regulatory standards. The basic system is comprised of two interconnected units: the ESD-1 Discharger (or gun) that may be either hand-held or tripod mounted, and its associated Power Supply/Control Unit PSC-1. The ESD-1 Discharger contains a basic handle, polarity switch, high voltage set knob, a Digital Stored Voltage Monitor (DVM), and an audible discharge monitor that informs user when a discharge has occurred. The Power Supply/Control Unit includes selectors for repetition rates, charge rate and burst/normal modes. Keytek Series 2000 Features: Continuously selectable voltage from 0 to 25kV, positive and negative Interchangeable discharge networks, current injection adapters & tips for ESD testing to multiple standards Contact mode and air discharge testing including auxiliary adapters for air discharge generation & all five of its basic components Single-shot or programmable repetitive operating modes Hand-held or tripod-mounted Available Networks for Keytek Series 2000: DN-10 Discharge Network: IEC 61000-4-2 human-body-model Discharge Network (150 pF/330 Ω). DN-1 Discharge Network: IEC human-body-model Discharge Network (150 pF/150 Ω). ** DN-2 Discharge Network: NEMA Part DC33 and MIL STD 883E Discharge Network (100 pF/1500 Ω) DN-3 Discharge Network: Upper/lower-body-model Discharge Network (700 pF/100K/150 pF/150 Ω) DN-4 Discharge Network: Segmented-body-model Discharge Network (700 pF/100K/150 pF/150 Ω/20 pF-50 Ω) DN-6 Discharge Network: Optimum basic human-body-model network: EIA Std, PN-1361 (Draft 6, 1985) Discharge Network (100 pF/500 Ω) ** DN-10 may be substituted directly for DN-1; IEC Contact Mode module, CIA-V (for use with DN-10) may be directly substituted for DN-6 and HT-10/DT-4.

Read more less

In Stock

$2,950.00

Kikusui KES 2021 30kV ESD Simulator System

Kikusui Kikusui KES4021 Electrostatic Discharge Simulator up to 30kV for IEC 61000-4-2

In Stock

Kikusui KES4021 Description: The KES4021A ESD simulator allows you to perform immunity tests on an electrical or electronic device by simulating a direct or indirect electrostatic discharge from a charged human operator. ***Please make note the Kikusui KES4021 is a legacy model and no factory replacement or support will be available.*** Specifications: Discharge Method: Contact discharge and Air discharge Set Voltage: 0.00kV to 30.5KV (Guaranteed specifications: 0.50kV to 30.0kV) Polarity: Positive and Negative Charge Resistor: 50MΩ (combined with the discharge gun) Discharge Interval: 0.05 / 0.1s to 99.9s step operation: in step volage 0.01 to 30.0kV Memory operation: Stores 20 sets of testing conditions for each operation (a total of 80 sets) Power Supply: AC100V to 240V 50/60Hz Discharge Cycle: 1 to 999/ Continuous

Read more less

In Stock

$7,975.00
