Langer EMV Langer-EMV EFM 04 E-Field Meter

Request Lead Time

The Langer-EMV EFM 04 E-Field Meter is a precision instrument for measuring fast transient and RF electric fields in EMC and ESD testing environments. With a frequency range of 1 MHz to 3 GHz, it enables accurate evaluation of field strength and distribution during development, validation, and troubleshooting. In practice, ESD Guns customers use the EFM 04 to measure and verify electric fields generated by ESD simulators, particularly in setups based on IEC 61000-4-2. Engineers position the probe near the device under test or along the discharge path to evaluate field strength and distribution during ESD events, ensuring consistent and repeatable test conditions prior to compliance testing. The EFM 04 is also widely used for calibration and validation tasks, helping confirm that ESD generators are operating within expected parameters. It allows users to compare field levels across different setups, optimize test configurations, and troubleshoot unexpected test results. In R&D environments, the EFM 04 supports early-stage analysis of field behavior, enabling engineers to identify issues related to shielding, layout, and component sensitivity. Its compact design and reliable performance make it a practical tool for engineers working in EMC, compliance, and test laboratories. Technical Parameters Frequency range 1 MHz ... 3 GHz Measuring output 50 Ω, SMB Correction oscilloscope E [V/cm]: UAV · 20 · 103 Correction oscilloscope dE/dt [V/cm · s]: 20 · 103 · dUAV / dt Correction spectrum analyser E [V/cm]: UAV + 86 dB Correction spectrum analyser dE/dt [V/cm · s]: UAV + 86 dB + 20 · log ω Max. RF-field strength 1 kV / cm Max. pulse field strength 100 kV / cm Frequency response

Read more less

Request Lead Time

$0.00

View options

Langer-EMV P331-2 ESD Pulse Injection Generator probe for IEC 61000-4-2 compliance, used in IC and PCB immunity testing applications.

Complete Langer-EMV P331-2 ESD Pulse Injection Generator IC test system kit with probe, cables, and accessories in a carry case for lab use.

Langer EMV Langer-EMV P331-2 ESD Pulse Injection Generator

In Stock

The P331-2 set is used for injecting ESD pulses into ICs. The P331-2 ESD generator orientates itself by mechanisms of the ESD coupling into electronic assemblies (according to IEC 61000-4-2 / HMM). The BPS 203 burst power station supplys and controls the P331-2 pulse generator. The Langer P331-2 ESD pulse injection generator is used for conducted ESD coupling in accordance with standard IEC 61000-4-2 (system level) / HMM (Human Metal Model - component level, acc. to ANSI/ESD SP5.6-2009) directly into IC pins or in conjunction with couplers for coupling into special high-speed interface pins such as USB, LVDS, Ethernet etc.

Read more less

In Stock

$295.00

View options

Thermo Keytek MiniZap with Model MZT-12 H-Field Simulation Tip

In Stock

DIAGNOSTIC H-FIELD SIMULATION: to identify EUT locations sensitive to dynamic H-fields, using super-fast, real-world risetimes. The Model MZT-12 H-Field Simulation Tip provides: • Repeatable, local dynamic H-field simulation, while simultaneously minimizing the magnitude of local ESD-generated E-fields. Analogous with dynamic E-field simulation, the purpose of diagnostic H-field simulation is to isolate circuits sensitive to real-world ESD H-fields, which often have super-fast risetimes. For this reason, the Model MZT-12 H-field simulating tip is driven by the MiniZap’s contact mode simulation circuits, NOT by a slow, air-gap discharge as in some other ESD simulators.

Read more less

In Stock

$0.00

Mobile Base Stand with Locking Wheels for ESD Target Ground Reference Plane

ESDGuns.com Mobile Stand with Locking Wheels for ESD Target Ground Reference Plane

In Stock

Mobile Stand with Locking Wheels for ESD Target Ground Reference Plane manufactured by ESD Guns gives your ESD waveform verification/generator calibration setup a compact and clean look. Locking wheels make it easy to install or relocate your setup. Using the required 4' by 4' ground reference plane mentioned in ESD compliance standards IEC/EN 61000-4-2, ISO 10605 and many more, the connection of your ESD target will sit approximately 3 feet off the ground. Slightly higher than most standard test benches and allowing for close proximity connection to your oscilloscope. Features: Industrial strength capable of holding 5/8" thick ground reference plane Ideal height for clearance of ESD target on most work benches Locking wheels to move and mount in place Compact shipping and easy assembly

Read more less

In Stock

$795.00

ESDGuns.com Mounting Board for Load Resistor - Coaxial Measurement Target

In Stock

The board to fix the load resistor for measuring the discharge current waveform defined in IEC61000-4-2 Standard.

Read more less

In Stock

$0.00

MP ESD Generator Calibration Set

Request Lead Time

The MP ESD generator calibration set measuring station measures the curve shape of an ESD generator discharge current. Furthermore, transient processes in the discharge current curve shape can be measured and visualized in the frequency range up to 3 GHz. During testings, these transient processes have influence on the testing results. The scattering between different types of ESD generators can be traced back (among others) to this phenomenon.To achieve a reproducible testing result, the discharge current curve shape, which is generated by the ESD generator and defined by the IEC 61000-4-2, should be regularly checked.The mobile measuring station fits on the developer`s work place and can be easily installed and removed.On request, the MP ESD generator calibration set is available in a taller work space (900 x 500 x 650) mm. Technical parameters Frequency range 1 GHz

Read more less

Request Lead Time

$0.00

View options

Thermo Keytek MZT-11 E-Field (static and dynamic electric field) Simulator Tip Assembly

In Stock

DIAGNOSTIC E-FIELD SIMULATION: to identify EUT locations sensitive to both static and dynamic E-fields, using super-fast, real-world risetimes. The Model MZT-11 E-Field Simulation Tip provides: • Repeatable, local static E-field simulation. Used for interrogating high-impedance circuits for upsets due to various levels of fixed or slowly-changing electric fields. • Repeatable, fast-risetime, local dynamic E-field simulation, while simultaneously minimizing the effects of local ESD-generated H-fields. Used for repeatably simulating the steep change in E-field associated with an ESD. The purpose is to isolate circuits sensitive to the real-world ESD E-field, which can often have sub-nanosecond edges. To ensure a fast E-field risetime, the Model MZT-11 E-field simulating tip is driven by the MiniZap’s contact mode simulation circuits, NOT by a slow, air-gap discharge as in some other ESD simulators.

Read more less

In Stock

$0.00

NIST Calibration 15/16 kV ESD Simulator Guns per IEC 61000-4-2

ESDGuns.com NIST Calibration Service 15-16kV Class ESD Generator

In Stock

Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. Processing Calibrations Online: Add this calibration service to cart Checkout Accordingly (RMA form e-mailed) Send RMA form and ESD simulator to be calibrated to: ESD GunsATTN: SERV DEPT3830 Atherton Rd.Rocklin, CA 95765 Daily rentals of calibrated ESD simulators available to help minimize downtime. Sample Calibration Certificate Below.

Read more less

In Stock

$395.00

ESDGuns.com NIST Calibration Service 15kV RTCA-DO-160 Air Discharge Only

In Stock

Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. ESDGuns.com provides rental and calibration packages up to 50% off standard pricing. This keeps your test operation up and running at all times and maintaining a strong quality process. Processing Calibrations Online: Register or Login Process your order through this or another calibration product page An RMA form will be e-mailed after order submission Track progress in your online account Please submit a web request or call us now to inquiry about a rental-calibration package.

Read more less

In Stock

$249.00

View options

ESDGuns.com NIST Calibration Service 30kV Class ESD Generator-Simulator Gun

In Stock

Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. Processing Calibrations Online: Add this calibration service to cart Checkout Accordingly (RMA form e-mailed) Send RMA form and ESD simulator to be calibrated to: ESD GunsATTN: SERV DEPT7401 Galilee Rd #160Roseville, CA 95678 Daily rentals of calibrated ESD simulators available to help minimize downtime. Sample Calibration Certificate Below.

Read more less

In Stock

$495.00

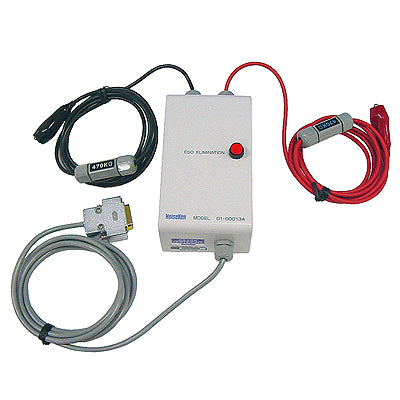

Noiseken ESD Simulators Noiseken 01-00013A ESD Elimination - Charge Remover for ESS Simulator Series

In Stock

Connected to the ESD simulator main unit, the Automatic ESD Eliminator automatically removes residual charges on the EUT. A control signal from the ESD simulator turns on the switch of the eliminator to drain away the residual charges on the EUT to the ground. Two operation modes are provided: turn-on after each discharge and turn-on after preset number of discharges (Not compliant with the standard). Available Models: ESS-2000, ESS-2000AX, ESS-S3011
