Keytek (Thermo Fisher) RCDM3 Charged Device Model (CDM) PC Controlled ESD System

    Description

    Keytek (Thermo Fisher) RCDM3 Description:

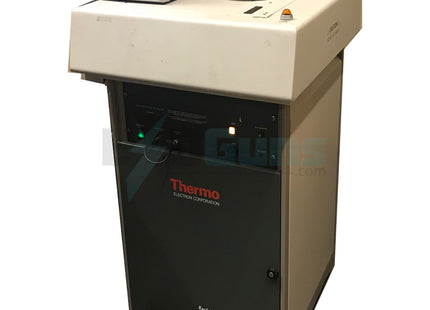

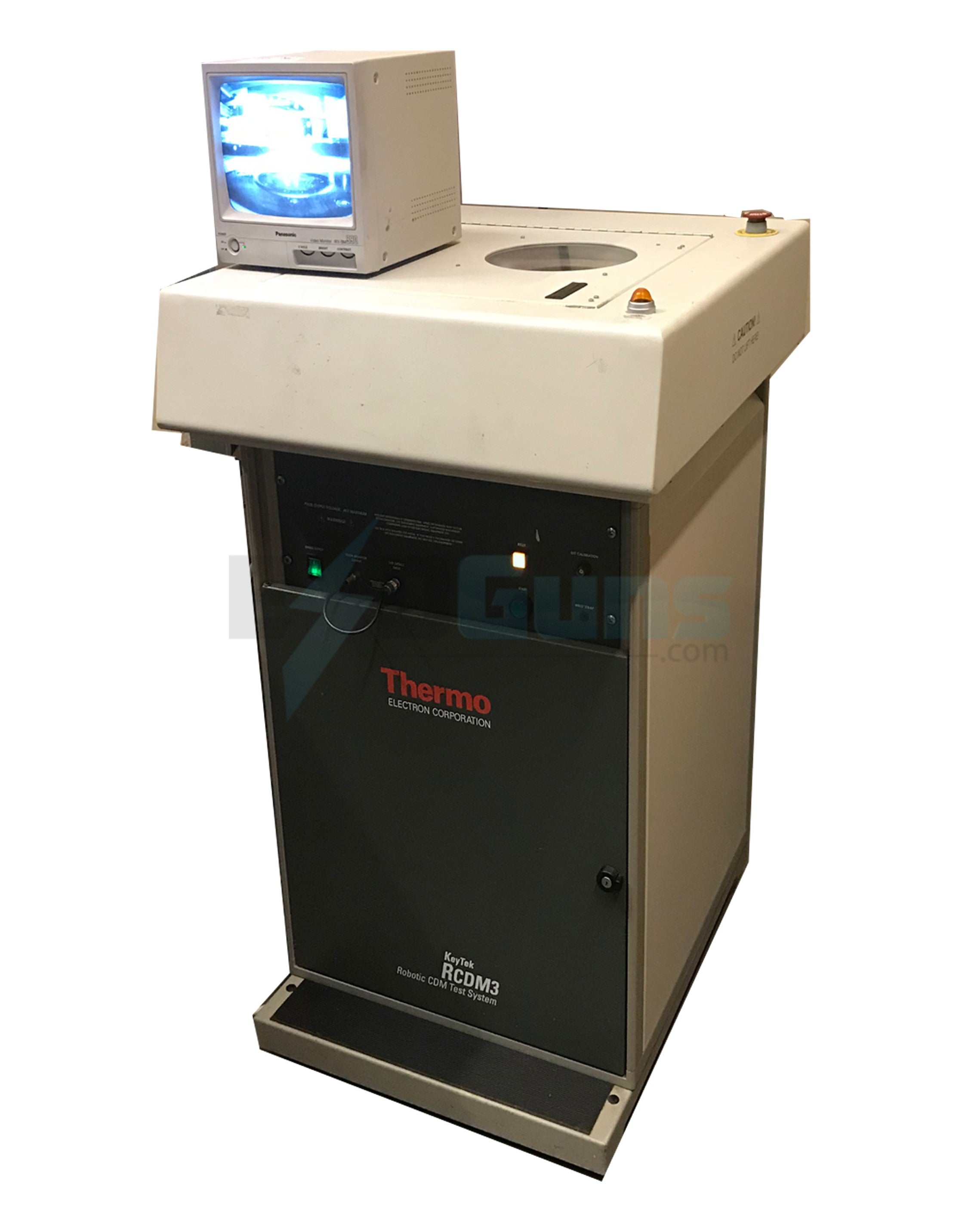

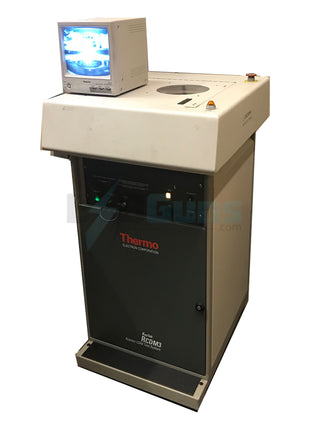

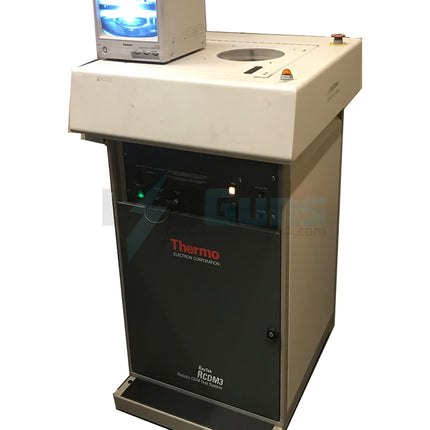

    The KeyTek RCDM3 is a robotic style Charged Device Model (CDM) test system enabling the identification of CDM ESD threats to new devices prior to design release, or for postproduction failure analysis simulation. A turnkey PC-controlled system, RCDM3 features three independent video cameras and a built in vacuum ‘device retention’ system for rapid set-up. Devices of virtually any size or configuration can be stressed. The system provides efficient testing regimens and easily retrievable test data. Available with ESDA STM 5.3.1, JEDEC JESD22-C101 standards, or both.

    • Test standards ESDA STM 5.3.1 or JEDEC, JESD22-C101 standards, or both 3 independent video cameras allow fast precision device alignment
    • Built-in vacuum device hold-down system Accommodates testing of virtually any size device package
    • Zap detection circuit for confirmed discharge event Safety interlocks guard operator safety
    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $5,000.00 + Shipping

        Features

      • Charged Device Model (CDM)
      • Meets dominant industry testing per ESDA STM 5.3.1 or CDM test methods JEDEC, JESD22-C101 and -C101A standards, or both
      • Independent 3 video cameras and Rapid, accurate device positioning vacuum hold-down device
      • Direct Charge method
      • Field-Induced Charge method
      • Windows®-Based application software

      Features

      Ask & Learn

      Previous answers and questions posted below

      Ask Now

      • Hello, Do you have a product datasheet available for the Keytek RCDM3 Charged Device Model test system?

        Looks like all the literature is physical. We probably wouldn't spend the time to scan. It was about 10 years ago we acquired a couple and played with them. Haven't moved since, want them?
