The test voltage levels of the MZ-30 are more than sufficient for compliance to required IEC standard level 4 (15 kV) levels. Essentially a design tool, it allows you to identify the conditions where your product begins to degrade or malfunction (limit value), prior to production, and thus is also ideal for testing to category- or companydriven quality standards. The operation panel has keys and a rotary knob, which allow you to directly set test levels specified by the IEC standard. These controls facilitate adjustment for standardcompliance tests and other various settings.
In addition to the standard 150 pF capacitor unit and 330O discharge resistor, a variety of optional components are available including a 330 pF capacitor unit and 2kO discharge resistor. The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality.
The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality.

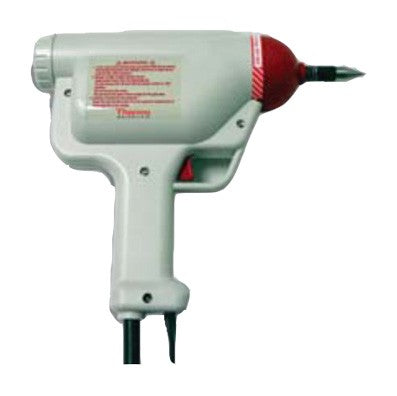

Keytek Minizap MZ-30 Features:
- Intuitive operation
- Portable & self-contained
- Meets exact requirements of IEC 61000-4-2
- Contact mode & air discharge ESD testing
- Generates real world, repeatable & correlatable ESD pulses
- E & H Field diagnostics
- Built-in safety features
- Field-configurable
- AC powered
