EM Test CTR2 Coaxial Current Calibration ESD Test Target, DC - 4 GHz

    Description

    The EM Test CTR2 is a coaxial current target to monitor Electro Static Discharges built as required by EN/IEC 61000-4-2 Ed.2 standard. The target can be purchased as an option to the ESD generators, model dito or ESD 30. It can be used for measurements up to 30kV. Additional attenuators are available to match the output signal with the input capability of the oscilloscope.

    EM Test CTR2 Features:

    • Current target as per IEC/EN 61000-4-2
    • 2Ohm impedance +/- 5%
    • Test voltage up to 30kV
    • Insertion loss +/- 0.5dB up to 1GHz
    • Insertion loss +/- 1.2dB up to 4GHz
    • Includes 20dB attenuator and 1m cable RG400
    • Additional attenuators available (optional)
    • 50ohm Adapter line CTR 2-AD available (option)



    EM Test CTR2 Includes:

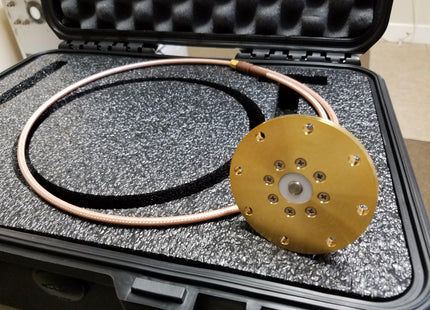

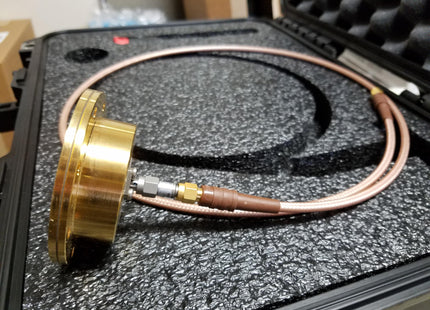

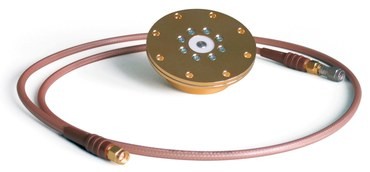

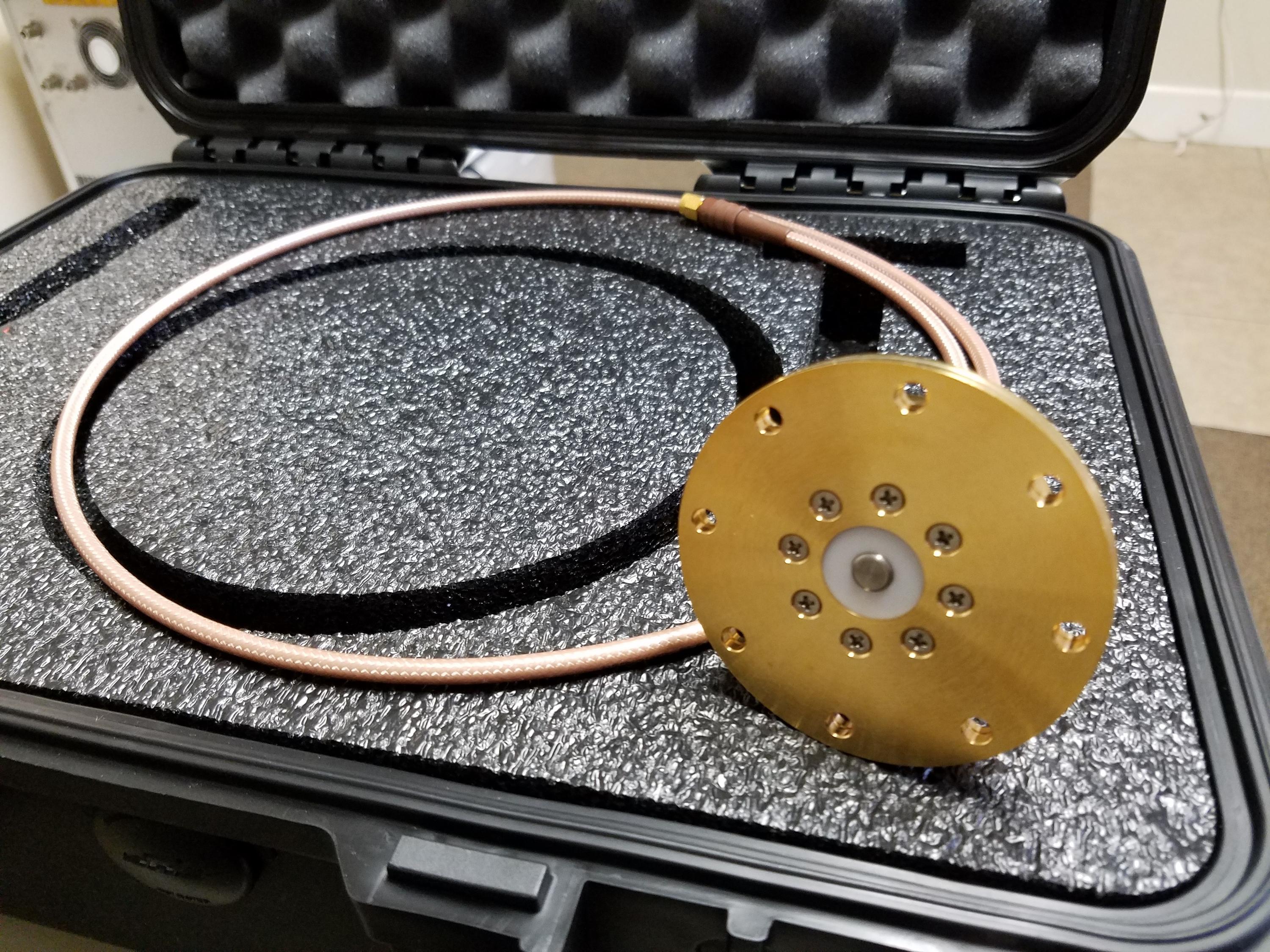

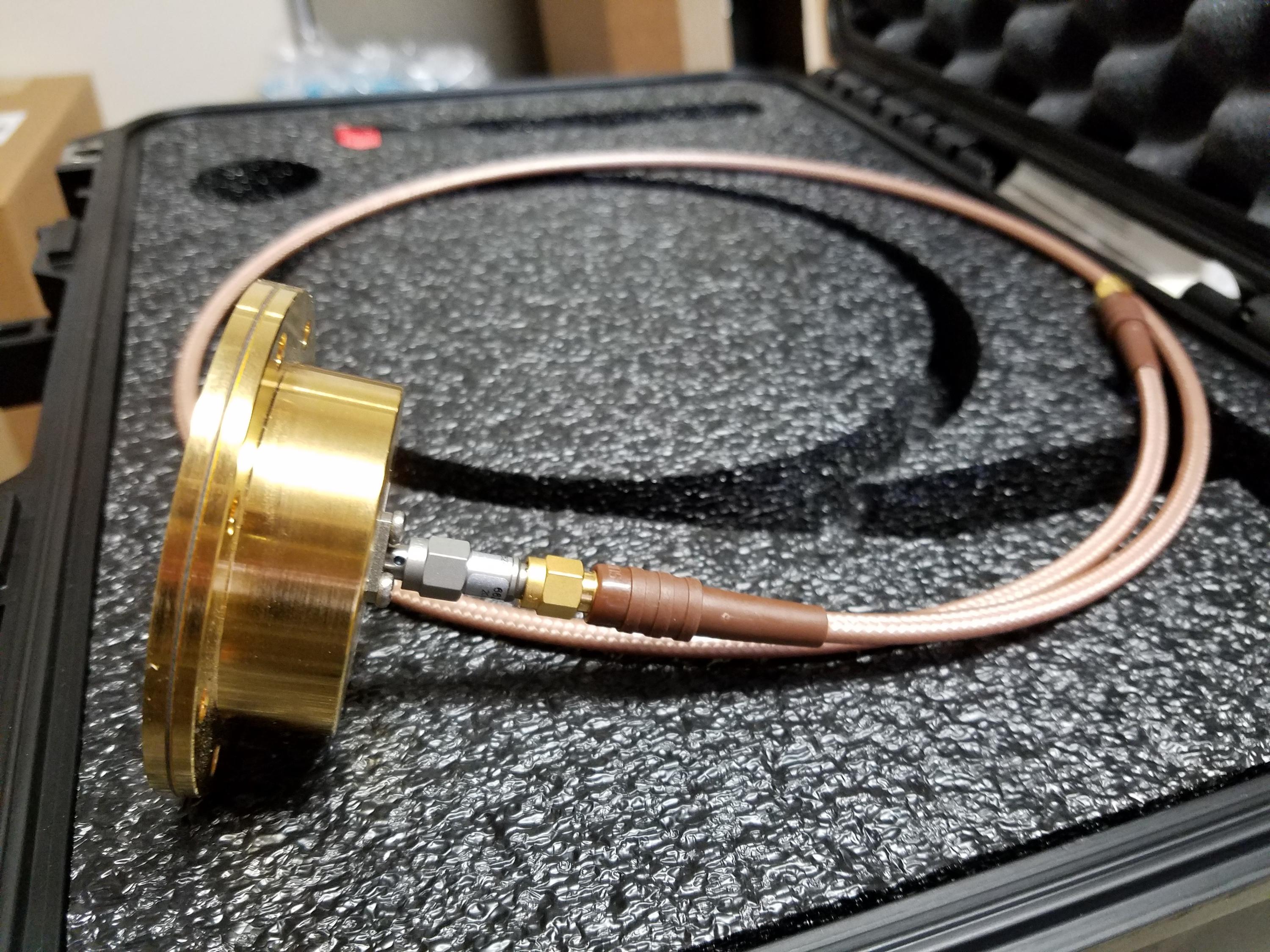

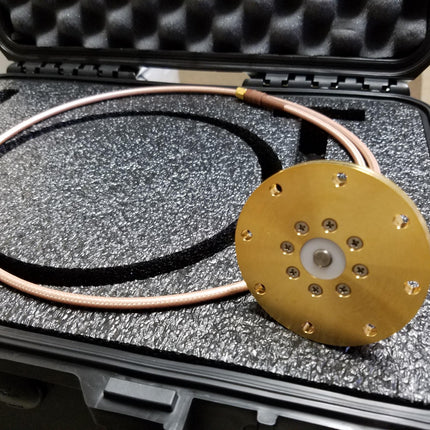

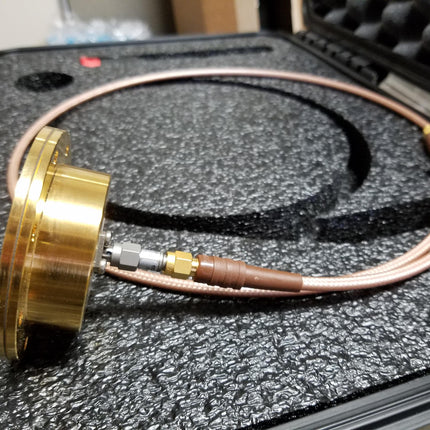

    • CTR2 Calibration target 2ohm for ESD verification
    • 20dB attenuator
    • Coax cable 1m ESD Current Target
    • Traceable Calibration Certificate
      Product form

      In Stock  In Stock
      Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

      Request Lead Time
      Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

      International
      Depending on where you’re located, we offer next day delivery. Check your status on this link

      $0.00 + Shipping

      Order by 3 PM and Ship ESD Guns and Equipment Same Day
          Features

        • Current target as per IEC/EN 61000-4-2
        • 2Ohm impedance +/- 5%
        • Test voltage up to 30kV
        • Insertion loss +/- 0.5dB up to 1GHz
        • Insertion loss +/- 1.2dB up to 4GHz
        • Includes 20dB attenuator and 1m cable RG400
        • Additional attenuators available (optional)
        • 50ohm Adapter line CTR 2-AD available (option)
