    MP ESD Generator Calibration Set

      Description

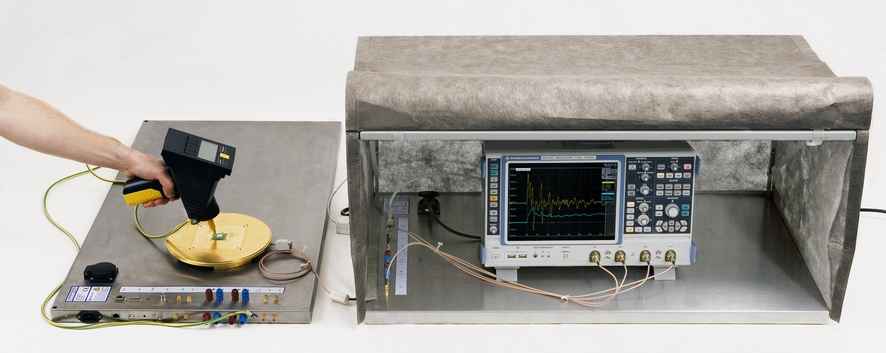

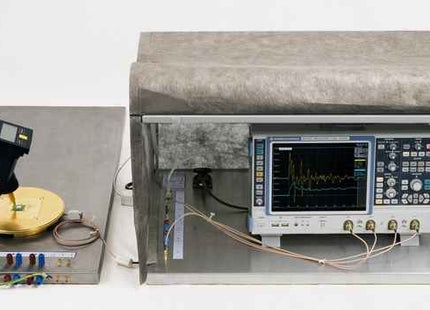

      The MP ESD generator calibration set measuring station measures the curve shape of an ESD generator discharge current. Furthermore, transient processes in the discharge current curve shape can be measured and visualized in the frequency range up to 3 GHz. During testings, these transient processes have influence on the testing results. The scattering between different types of ESD generators can be traced back (among others) to this phenomenon.
      To achieve a reproducible testing result, the discharge current curve shape, which is generated by the ESD generator and defined by the IEC 61000-4-2, should be regularly checked.

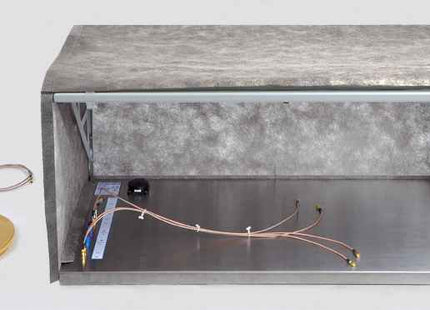

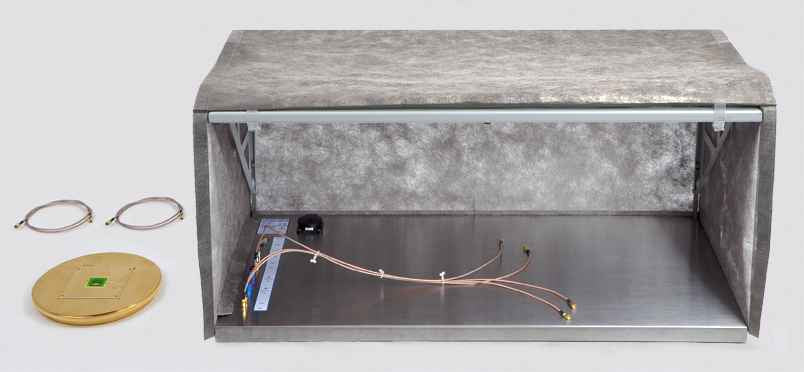

      The mobile measuring station fits on the developer`s work place and can be easily installed and removed.
      On request, the MP ESD generator calibration set is available in a taller work space (900 x 500 x 650) mm.

      Technical parameters
      Frequency range 1 GHz

      MP ESD Generator Calibration Set

        Product form

        Request Lead Time

        $0.00 + Shipping

          Description of image

          Ask & Learn

          Previous answers and questions posted below

          Learn by asking questions, practicing, and getting guidance

          Ask Now

          Description

          The MP ESD generator calibration set measuring station measures the curve shape of an ESD generator discharge current. Furthermore, transient processes in the discharge current curve shape can be measured and visualized in the frequency range up to 3 GHz. During testings, these transient processes have influence on the testing results. The scattering between different types of ESD generators can be traced back (among others) to this phenomenon.
          To achieve a reproducible testing result, the discharge current curve shape, which is generated by the ESD generator and defined by the IEC 61000-4-2, should be regularly checked.
          The mobile measuring station fits on the developer`s work place and can be easily installed and removed.
          On request, the MP ESD generator calibration set is available in a taller work space (900 x 500 x 650) mm.

          Technical parameters
          Frequency range 1 GHz
