Annex F of the actual ISO 10605, provides an additional approach for the ESD powered up test. This approach is intended to produce more repeatable test results and to better correlate with vehicle level ESD tests and the real world environment in comparison especially to the HCP test. This test is an optional test that can be selected by the users in additional to the present standard ESD powered up test as described in clause 5.3.
The EM Test CSL 200 allows for direct and indirect application of ESD discharges to the DUT as per the automotive test standard ISO 10605 for electrostatic immunity, also reference by manufacturer specs by Ford, GM, Toyota and more.

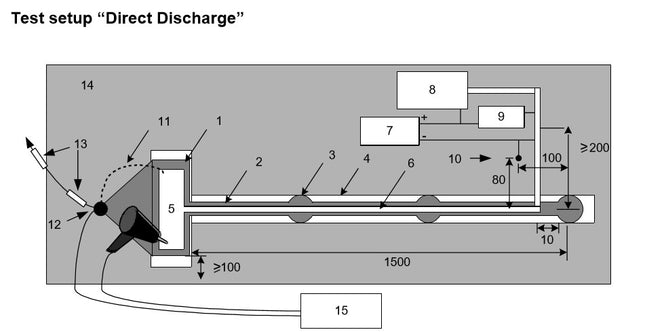

See Diagrams of Horizontal Coupling Plane (Pictures 2 and 3):
Field Coupling Plane
Field Coupling Strip
Discharge islands
DUT and wiring harness isolation block
DUT
DUT wiring harness
Battery
Peripheral or support equipment
AN (if used)
Ground reference point for battery and support equipment
DUT local ground,(if required)
Ground reference point for ESD Coupling Plane, ESD generator and safety ground connection
2 x 470 kΩ high voltage resistors to satety ground
HCP
ESD generator main uni
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

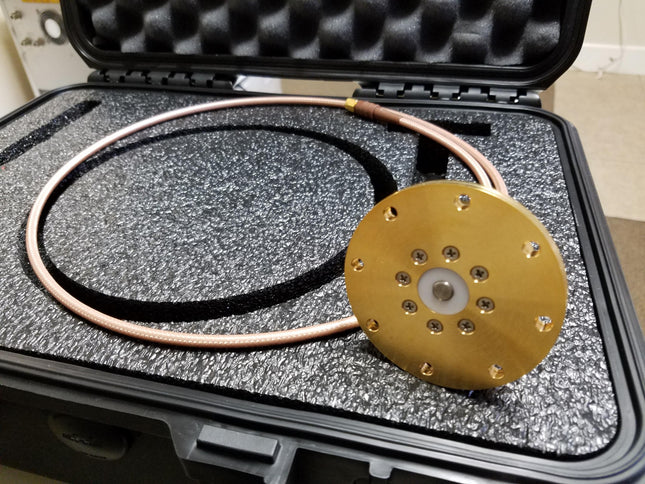

The EM Test CTR2 is a coaxial current target to monitor Electro Static Discharges built as required by EN/IEC 61000-4-2 Ed.2 standard. The target can be purchased as an option to the ESD generators, model dito or ESD 30. It can be used for measurements up to 30kV. Additional attenuators are available to match the output signal with the input capability of the oscilloscope.
EM Test CTR2 Features:
Current target as per IEC/EN 61000-4-2
2Ohm impedance +/- 5%
Test voltage up to 30kV
Insertion loss +/- 0.5dB up to 1GHz
Insertion loss +/- 1.2dB up to 4GHz
Includes 20dB attenuator and 1m cable RG400
Additional attenuators available (optional)
50ohm Adapter line CTR 2-AD available (option)
EM Test CTR2 Includes:
CTR2 Calibration target 2ohm for ESD verification
20dB attenuator
Coax cable 1m ESD Current Target
Traceable Calibration Certificate
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing ESD. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.
The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.
The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.
Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network!
EM Test Dito Features:
Most ergonomic design
Light weight (870g)
Interchangeable discharge tips
Interchangeable R/C networks
LiFePO4 power booster to perform long duration tests
Library of standard test routines
Test voltage measurement and control
Various test routines for testing and evaluation
EM Test Dito Includes:
EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay
Discharge tips for Air Discharge and Contact Discharge
PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh
Built in safety module for low voltage protection
CU dito Battery charger charging unit for EM Test Dito
Transportation case
grounding lead 2m
test certificate
operation manual
10% off Calibration Service for Life
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Electrostatic discharges either from a human body to any other part or between two different objects can cause persistent disturbances or even destruction to sensitive electronics or controls.ESD 30N is an ESD tester to simulate ESD pulses at higher voltages up to 30kV in both air and contact discharge mode. It therefore satisifies requirements exceeding the EN/IEC 61000-4-2 test levels and complies to automotive test applications.
The EM Test ESD 30N electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognised by the controls and indicated in the display.The EM Test Dito ESD 30N ESD Simulator/Generator is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the ESD 30N separating the sensitive computer from the test set-up and to avoid ground loops.
EM Test ESD 30N Features:
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The EM Test ESD NX30 is the first Electrostatic Discharge Simulator released by Ametek's Compliance Test Solutions (CTS) division. With the collaboration of EM Test and Teseq (formerly Schaffner) engineers, the ESD NX30 is the most advanced ESD generator available.
The ESD NX30 electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30 kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognized by the controls and indicated in the display.
Video Overview: EM Test ESD NX30 Electrostatic Discharge Simulator
The ESD NX30 is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the esd NX30 separating the sensitive computer from the test set-up and to avoid ground loops.
ESDguns.com - Division of The EMC Shop
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

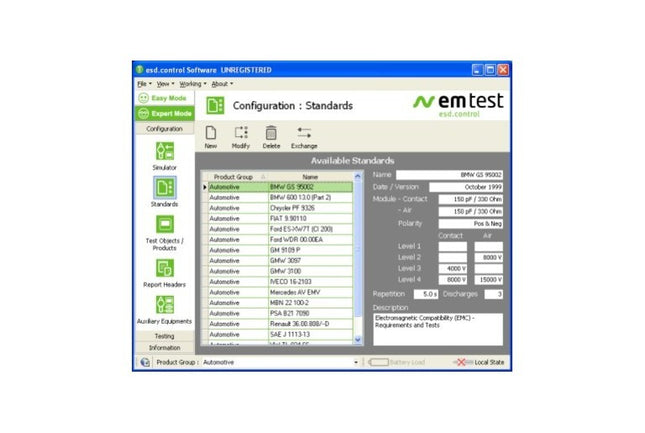

EM Test esd.control isn't just a remote control software. It helps you to set-up your test plan and test procedure, guides you through the test telling you which test point is now to be tested and creates a full and detailled report. Try what esd.control can do for you. You will like it.
EM Test esd.control Features:
Windows 7 and Windows 8 (64Bit) compatibility
Support of USB and optical USB interfaces
Library of actual basic and generic standards as well as product and product family standards
Supports the Bleed-Off function in the tripod test mode
Easy-to-use and intuitive creator for test plans and test procedures
Enhanced and highly flexible reporting capabilites
Up-to-date design and navigation
Intuitive operation
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The EMC Partner DM1 150pF / 330ohm Discharge Network for ESD 3000 meets IEC 61000-4-2 Ed.2: New test method and tolerances for impulse evaluation. The EMC Partner ESD3000 with DM1 fulfills BOTH Ed.1 and Ed.2
EMC Partner ESD3000DM1 Features:
Capacitance/Resistance: 150pF / 330ohm
Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV
Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV
Compliance Standards: IEC 61000-4-2, ITU-T K20
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards Mil-STD-464, Mil-STD-883, and GR78-CORE.
The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged.
EMC Partner ESD3000DM4 Features:
Standards Met:
Mil-STD-464
MIL-STD-883
GR78-CORE
Capacitance/Resistance: 100pF / 1500ohm
Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV
Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV
In Stock
In Stock Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.
Request Lead Time Equipment comes and goes everyday, we aren't automated for this website, contact us for status.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The EMC Partner DM6 150pF / 330ohm RC module is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards IEC 61340-3-1, JEDEC 22-A114 and Mil-STD-750D.
The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged.
EMC Partner ESD3000DM6 Features:
Standards Met:
IEC 61340-3-1
JEDEC 22-A114
Mil-STD-750D
Capacitance/Resistance: 100pF / 1500ohm
Voltage range (CD) Contact Discharge: +/- 0.2kV up to 8kV
Voltage range (AD) Air Discharge: None
