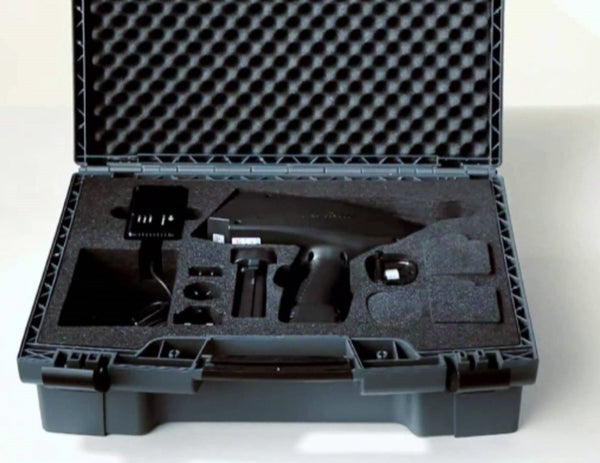

Teseq NSG 435 Overview Ergonomic design and advanced functionality. The pistol-shaped Teseq (formerly Schaffner) NSG 435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible. The Teseq / Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.The Teseq NSG 435 ESD simulator has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged. Teseq NSG 435 Features Programmable discharge voltage 200V to 16.5kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards Teseq NSG 435 Includes Air Discharge Tip Contact Discharge Tip Grounding cable Rechargeable Battery Battery Charger Tripod Mount User Manual Calibration Certificate Durable Carrying Case ESDguns.com is now a division of The EMC Shop Ordering Options New - 2-Year Manufacturer's Warranty Used - 100 Day Warranty, fresh Calibration Certificate Rental - Calibrated, Options to buy (20% of rental applied)

Read more less

The Thermo Scientific Keytek Minizap MZ-15/EC 16kV ESD simulator gun is a totally integrated lightweight hand-held tester featuring ease of use, and the ability to withstand long-term operation in rugged environments. By simply interchanging plug-in tips, you can test to risetime standards, as well as do ‘reality checks’ that indicate product performance in intended environments. Multiple ESD events can be generated by a human discharge, and also by other ESD simulators that introduce additional artificial and energetic multiple discharges. The MiniZap does not use a voltage multiplier, and won’t introduce testing errors and uncertainties due to streams of artificial, high-level ESD multiples. With its constant-voltage ESD simulator design feeding back and monitoring right from the tip, you know the EXACT voltage at which you’ve tested. The correct tip voltage is maintained to the instant of discharge; it then drops to prevent simulator-induced multiple The Keytek MiniZap MZ-15/EC test system is a self-contained ESD simulator gun that enables users to perform direct, indirect & diagnostic ESD testing via interchangeable plug-in tips.  ESD is the most common cause of failure in computer-based equipment, and susceptibilities often occur during installation and networking. The diagnosis and remedy for ESD failures typically require test procedures developed in R&D, but implemented by QC, manufacturing, and field service. Practical and reliable, the KeyTek MiniZap MZ-15/EC ESD simulator gun and options are designed specifically for demanding applications such as these. It generates ESD simulation pulses that are real world, repeatable and correlatable – mandatory performance criteria for a company-wide ESD test program. Keytek Minizap MZ-15/EC Features: Intuitive operation Portable & self-contained Meets exact requirements of IEC 61000-4-2 Contact mode & air discharge ESD testing Generates real world, repeatable & correlatable ESD pulses E & H Field diagnostics Built-in safety features Field-configurable Rechargeable battery or AC powered

Read more less

The Haefely ONYX 16 kV electrostatic discharge simulator is the most ergonomic ESD generator gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 16 kV in all types of test sites. The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX 16 kV ESD generator gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used.

Read more less

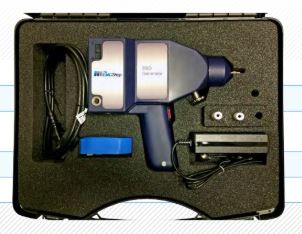

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites. 3ctest EDS20H Includes: 20kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS20H Features: Air- and Contact- Discharge: 1000-20,000V±5% Rise time: 0.6-1ns RC module: 150pF/330Ω Automatic identification of discharge module Voltage hold time: >5s As per: IEC61000-4-2, GB/T17626.2 LCD Touchscreen Automatic Polarity Switching Temperature & Humidity Monitoring Battery or mains operation with long battery life

Read more less

The EMC Partner ESD 3000 is a fully automated and programmable ESD simulator. It identifies which discharge module is installed and has a level selector button enabling the user to quickly scroll through and select the voltage from the levels appropriate to the standard and discharge mode. The set pulse count is executed with a single pull of the trigger in either air or direct contact mode. Polarity can be programmed to alternate or can be changed with the push of the +/- button at any time. Voltage can be programmed to ramp up or down or quickly changed at any time by using the up and down arrow buttons. Discharge Modules for EMC Partner ESD3000: DM1 for IEC 61000-4-2,ITU-T K20: 150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM2 for ISO TR10605, PSA Peugeot-Citroën B21 7110: 330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM4 MIL-STD-883, GR78-CORE: 100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM5 for RTCA/DO-160: 150pF / 330ohm no CD +/-1kV up to 30kV DM6 for IEC 61340-3-1, JEDEC 22-A114, MIL-STD-750D: 100pF / 1500ohm +/- 0.2kV up to 8kV no AD DM7 for IEC 61340-3-2, JEDEC 22-A115: 200pF / 0ohm +/- 0.1kV up to 2kV no ADDM8 for IEC 60571, EN 50155: rise time < 0.05µs duration 0.1µs +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV RM32 0.7ns up to 1ns and < 400ps: +/- 1kV up to 30kV +/- 1kV up to 30kV DN1 for IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100: 150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN2 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN3 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN4 for STANAG 4239, ISO 14304, MIL-STD-1512: 500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN5 for MIL-STD-331C, MIL-DTL-23659D, STANAG 4239: 500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV DN6 for ISO TR10605: 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV

Read more less

The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing ESD. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels. The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT. The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt. Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network! EM Test Dito Features: Most ergonomic design Light weight (870g) Interchangeable discharge tips Interchangeable R/C networks LiFePO4 power booster to perform long duration tests Library of standard test routines Test voltage measurement and control Various test routines for testing and evaluation EM Test Dito Includes: EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay Discharge tips for Air Discharge and Contact Discharge PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh Built in safety module for low voltage protection CU dito Battery charger charging unit for EM Test Dito Transportation case grounding lead 2m test certificate operation manual 10% off Calibration Service for Life

Read more less

ESD16 16.5kV ESD Simulator for IEC/EN 61000-4-2 The ESD16 16.5kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below:

Read more less

For descriptions, videos and more visit the Rent Thermo Keytek Minizap MZ-15/EC web page. Right now, ESDguns.com has an excess inventory of rental units and has allocated this unit for sale. Used Keytek Minizap MZ-15/EC Features: Recently rebuilt internal battery Fresh NIST Calibration Certificate Industry best 100 Day warranty Ships Immediately Rent Keytek Minizap ESD Simulators here. TPC-2A and TPA-2 Included Standard - additional tip and accessories available Thermo Keytek Minizap Video Overview

Read more less

The 3ctest EDS 16H is an ergonomic ESD gun without an additional base control unit. It can be operated via battery or mains. Easy to use by touch screen, ergonomic design, R/C modules changeable, remote control software, built-in temperature and humidity meter, allows a trouble-free use in all types of test sites. 3ctest EDS 16H Includes: 16kV ESD Generator AC Power Adapter for continuous testing QTY 2 Batteries Battery Charger Air Discharge Tip Contact Discharge Tip 150pF/330 Ohm R/C Network Grounding Cable HV Alligator Clip Ruggedized Carrying Case with Shoulder Strap Traceable Calibration Certificate User Manual 10% off Calibration Service for Life 3ctest EDS 16H Features Changeable R/C networks Automatic polarity switching Temperature and humidity monitoring Built-in standard test library Intelligent detection the failure of air discharge   3ctest EDS 16H Discharge Networks: DM1-RFCI - 150pF/330 ohm - Rise time 200ps-300ps DM2 - 150pF/2000 ohm (ISO 10605)  DM5 - 330pF/2000 ohm (ISO 10605) DM6 - 330pF/330 ohm (ISO 10605) DM7 - 100pF/1500 ohm DM8 - 150pF/150 ohm DM9 - 500pF/500 ohm DM10 - 500pF/5000 ohm Custom discharge networks available upon request

Read more less

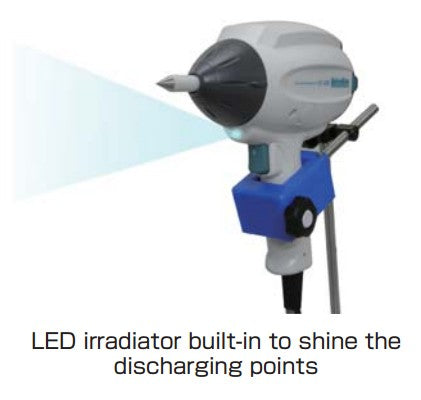

The Noiseken ESS-L1611 16 kV Electrostatic Discharge Simulator for IEC 61000-4-2 is a cost-oriented basic model ESD Simulator with a light weight discharge gun pistol attachable.  The Noiseken GT-30R discharge gun has been renewed completely to materialize much more lightning and best gravity balance. Human load in the operation can be remarkably reduced comparing to the previous model. Electrostatic discharge can be confirmed with LED light on the body in this new discharge gun.

Read more less

The EDS MAX20 is 3CTEST’s fourth generation electrostatic discharge simulator in compliance with IEC 61000-4-2:2025 and other standards. This new product has a test voltage up to 20 kV and features 3.5 - inch high - definition color screen, along with compact mechanical design, intuitive UI design, lightweight, and impeccable waveforms . With three test modes designed in this eqent, the EDS MAX20 offers customers convenient operation tailored to their specific testing requirement, catering not only to research and development stage but also to quality check stage. Test Standards: MIL-STD-461 CS118 DO-160 SECTION 25 Bellcore GR-1089-Core ISO 14304 IEC 61000-6-2 IEC 61000-6-1 IEC 61326 IEC 61340-3-1 IEC 61000-4-2 ITU-T K.20 Features   >  3.5” HD color screen; >  Test voltage 20 kV; > 1.25 kg weight ( incl. battery ); >  Exquisite ergonomic design and UI design; > Built - in 3 test modes: standard test, sequence test and easy test; >  Changeable discharge tip; > Support remote control via optical fiber communication; >  Up to 18 working hours for rechargeable battery.   Standard Accessory Kit: Air Tip Contact Tip RC Module AC Adapter Ground Cable Alligator Clip Battery x2 Carrying Case Manual Stand
