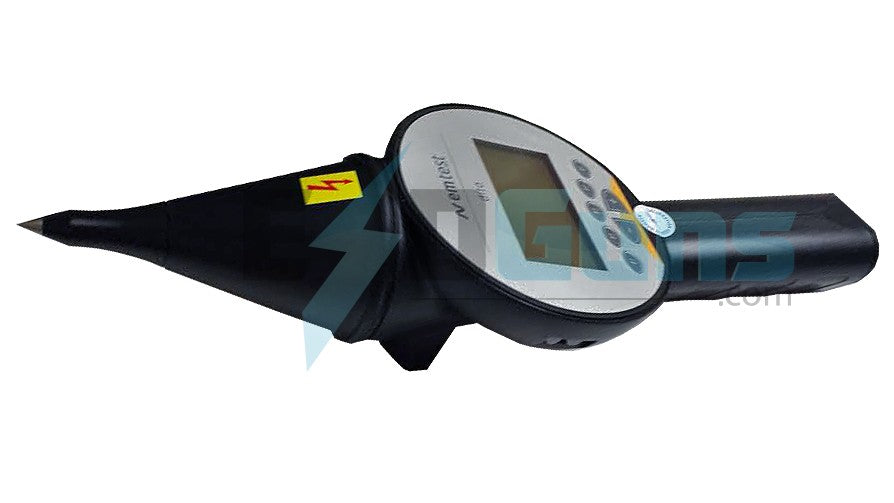

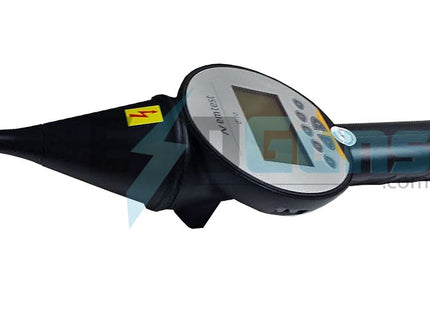

The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing ESD. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.
The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.
The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.
Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network!
EM Test Dito Features:
- Most ergonomic design
- Light weight (870g)
- Interchangeable discharge tips
- Interchangeable R/C networks
- LiFePO4 power booster to perform long duration tests
- Library of standard test routines
- Test voltage measurement and control
- Various test routines for testing and evaluation
EM Test Dito Includes:
- EM Test DM1: 150pF/330ohm discharge module with built-in contact discharge relay
- Discharge tips for Air Discharge and Contact Discharge
- PowerPack dito Rechargeable battery LiFePo4 12.8V - 1000mAh
- Built in safety module for low voltage protection
- CU dito Battery charger charging unit for EM Test Dito
- Transportation case
- grounding lead 2m
- test certificate
- operation manual
- 10% off Calibration Service for Life
