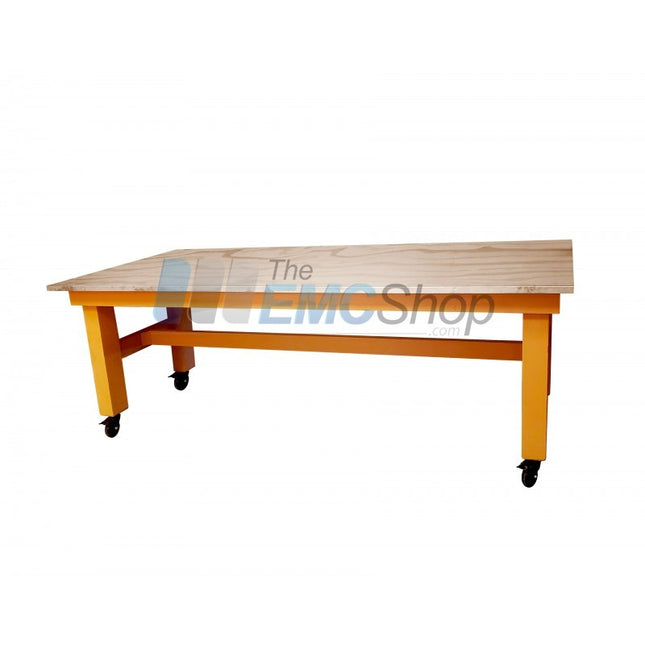

ESDGuns.com Wood Table in Accordance to IEC 61000-4-2

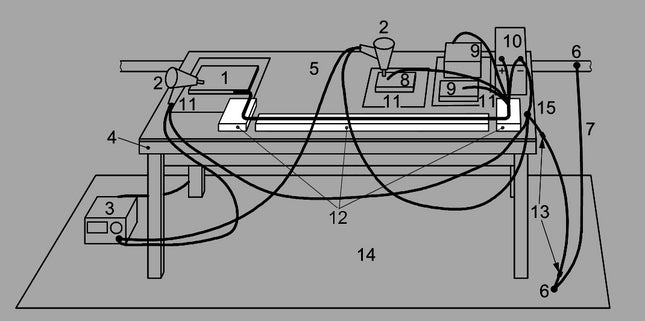

The complete ESD Test Setup includes a built in horizontal coupling plane with access points for the indirect portion of the test. This standard wood table removes the horizontal plane and leaving a standard wood top, allowing for multi-purpose use with other test standards. Custom sizes and other modifications are available upon request. IEC/EN 61000-4-2 Non-Conductive Wood Table Overview Wood Table made of High quality wood (Typically Lauan) Reinforced for sturdiness and weight load up to 750 pounds Typical Dims 160 cm x 80 cm x 80 cm Approximate 110 lbs
$1,775.00 - $2,375.00
-
ESDGuns.com Calibration 30 kV ESD Simulator - ISO 17025 (A2LA)
Yearly calibrations are important to keep your ESD generator in good working order, maintaining accurate discharges and a consistent output waveform, as well as extend the life of your test instrument. ESDGuns.com provides rental and calibration packages up to 50% off standard pricing. This keeps your test operation up and running at all times and maintaining a strong quality process. Processing Calibrations Online: Register or Login Process your order through this or another calibration product page An RMA form will be e-mailed after order submission Track progress in your online account Please submit a web request or call us now to inquiry about a rental-calibration package.
$975.00
-
ESDGuns.com ESD RGP - Ground Reference Plane
Interlocking Panels (3' by 6') 1/16" Aluminum supported by 1/2" plywood Easy access for Grounding Cables Standard size 9' X 6' **Please contact ESDGuns.com to see if delivery is available in your area. Shipping costs can be expensive.
$1,995.00
-
ESDGuns.com CST-ADAP Target Adapter Line for ESD Current Target Insertion Loss Measurement & Calibration
Ideal for use with ESD Guns CST2 Current Target Suitable for use with any ESD calibration target Designed per IEC 61000-4-2 and ISO 10605 Insertion Loss: ≤ 0.3 dB up to 4 GHz Reflection: < -30 dB up to 1 GHz, < -20 dB up to 4 GHz N-Type Connector Standard
$0.00
-

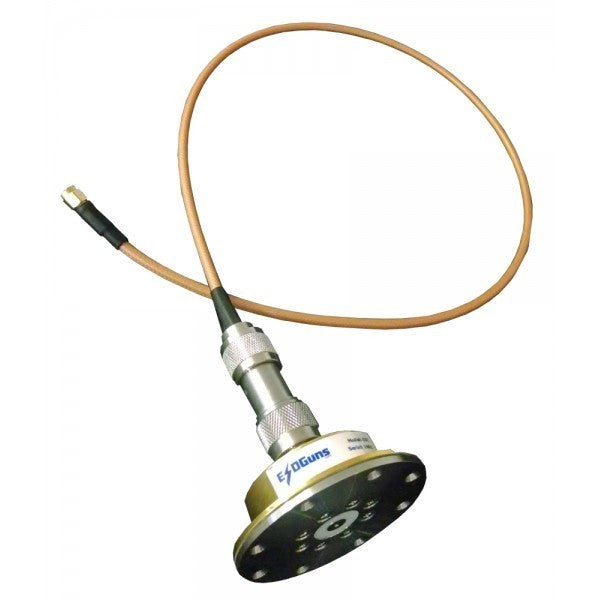

ESDGuns.com CST-PRP Current Sensing Target-Portable Reference Plane for ESD Generator Calibration
ESDGuns.com CST Current Sensing Transducer for ESD Generator Tip Verification allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz. ESDGuns.com CST Features: Wideband up to 4GHz < ± 0.5 dB up to 1GHz < ± 1.2 dB up to 4GHz 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V) Gold plating surface Excellent voltage linearity up to 30kV Meets EN/IEC61000-4-2 V2009, ISO 10605 V2008, GB/T17626.2 Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load) Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV ESDGuns.com CST Includes: CST ESD Current Target 30dB Precision Attenuator RG400 Coaxial Cable N to SMA PRP Portable Reference Plane 17" by 13" Traceable Calibration Certificate
$495.00 - $4,225.00
-
ESDGuns.com Mounting Board for Load Resistor - Coaxial Measurement Target
The board to fix the load resistor for measuring the discharge current waveform defined in IEC61000-4-2 Standard.
$155.00 - $930.00
-

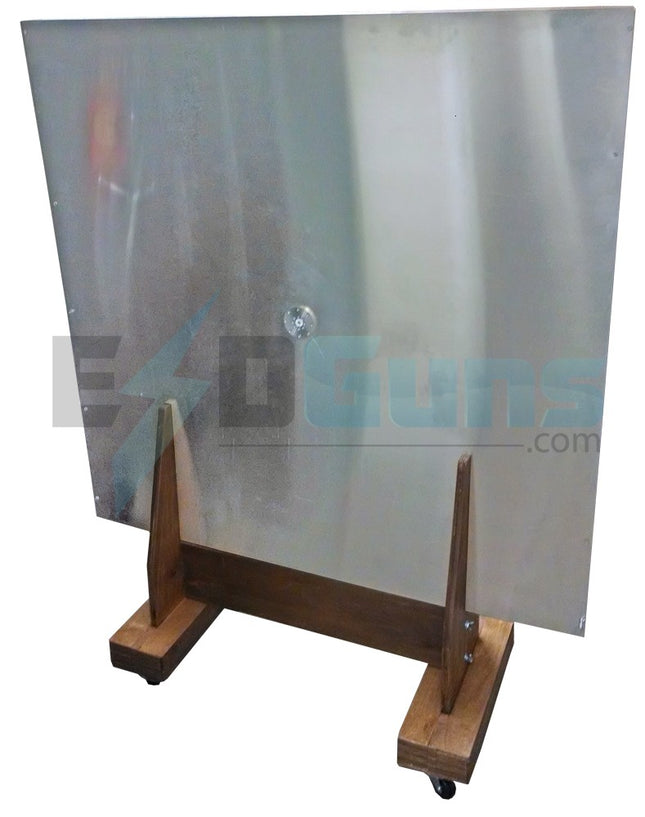

ESDGuns.com VCP-FS Floor Standing Vertical Coupling Plane with Voltage Bleeding Cable
VCP-FS Floor Standing Vertical Coupling Plane consists of: VCP Aluminum 20" by 20" (Larger sizes available upon request) Wood Stand with casters Vertical post with multiple height positions Ground Cable with 470k Ohm resistors for voltage bleeding
$1,475.00
-
ESDGuns.com ESD Generator Verification Equipment Package
ESDguns.com package for ESD equipment verification is everything you need to verify or calibrate an ESD simulator, less an oscilloscope usually available to most customers anyways.
$1,100.00 - $9,150.00
-
ESDGuns.com PRP Portable Reference Plane for Coaxial Current Target
17" x 13" 4 Pounds Suitable for precompliance ESD generator calibration
$0.00
-
ESDGuns.com ESVM-NC Non-Contact Electrostatic Voltmeter
The ESVM-NC Non-Contact Electrostatic Voltmeter utilizes a sensor shutter/switcher technology which provides long term stability without drift or the need to frequently re-zero the meter. This technology also eliminated false or offset readings due to charged air molecules/ air ions. The sensor has a 29 inch detachable cable which can be extended by an additional six feet. The meter measures the magnitude and polarity of static charge on objects or surfaces. The sensor is calibrated for measuring a surface at 1” from the sensor. On a metallic or conductive surface, the meter measures the voltage on the surface. (As with any electrostatic voltmeter, the displayed reading depends somewhat on the size of the object being measured and the distance between the object and the sensor.) On insulating surfaces, “voltage” is not a well-defined number. In this case, the meter reads a number proportional to the static charge present. The SVM2 has high sensitivity (resolution), and can detecteven a 1/10 volt change anywhere within its full range of +19,999.9 to -19,999.9 volts. An analog output jack provides a DC output voltage of +/- 0 to 2 volts which proportionally corresponds to the display and measurement of 0 to 20K volts. An optional USB port allows reading to be recorded and uploaded to a PC. Real-time data streaming is also supported via the USB Port. Note the “Record” has no function without the USB option installed. ESVM-NC Non-Contact Electrostatic Voltmeter Applications: Measurement of electrostatic surface charge build up Manufacturing processes Electronic assembly testing Semiconductor material testing Dissipative material testing Automotive electronics testing ESD Auditing and troubleshooting
$299.00
-
ESDGuns.com ESD-BR Electrostatic Charge Removal Brush
Removes residual electrostatic charge built up on an EUT by sweeping the surface in order to avoid unintended discharge voltage (Reducing possible miss discharge)
$1,495.00
-

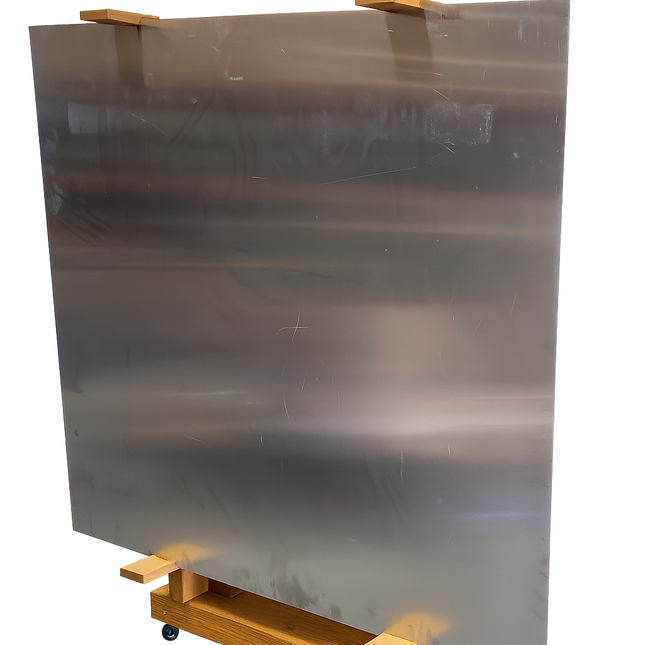

ESDGuns.com VCP Vertical Coupling Plane for Indirect ESD Testing
Utilize the vertical coupling plane with any ESD generator, setup in seconds on any lab bench and begin testing immediately. The indirect radiated portion of electrostatic immunity testing is required for compliance. If your product will be used in metal cabinets, next to industrial machinery or even on top of the metal counters at your corner supermarket, electric shock may cause radiated interference. VCP Vertical Coupling Plane consists of: VCP Aluminum 20" by 20" Wood Stand Ground Cable with 470k Ohm resistors for voltage bleeding
$675.00
