VCP Vertical Coupling Plane for Indirect ESD Testing

    Description

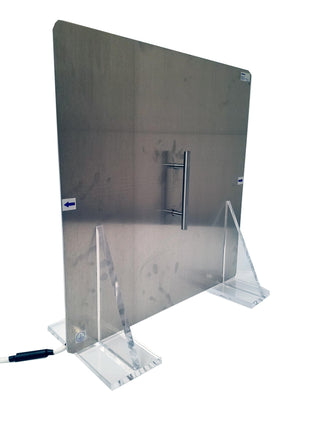

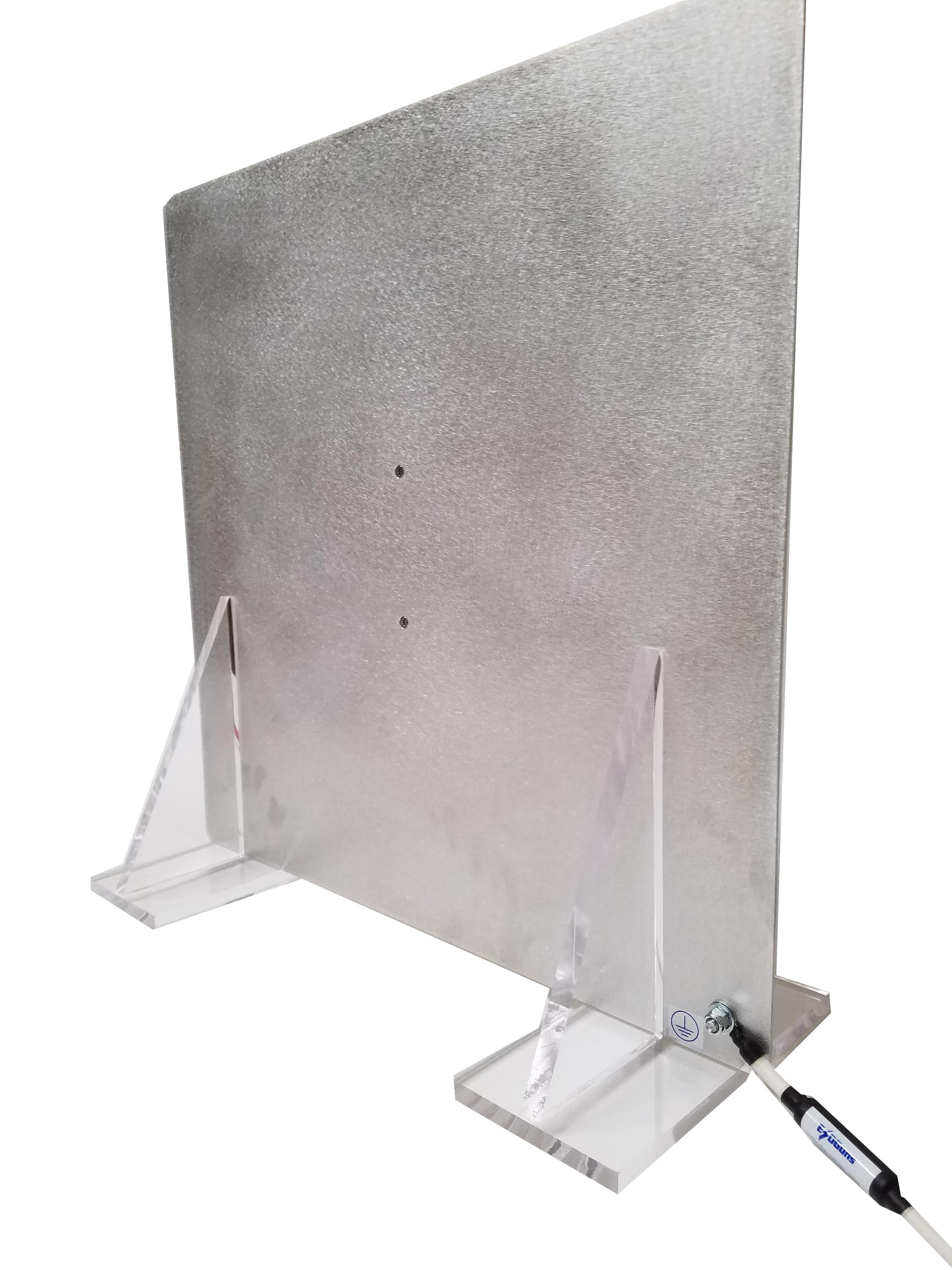

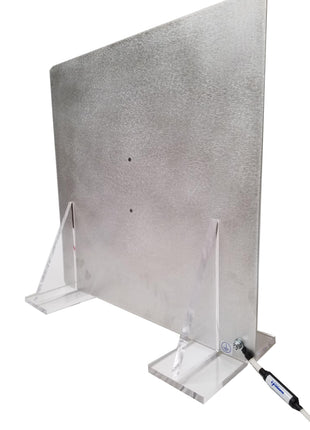

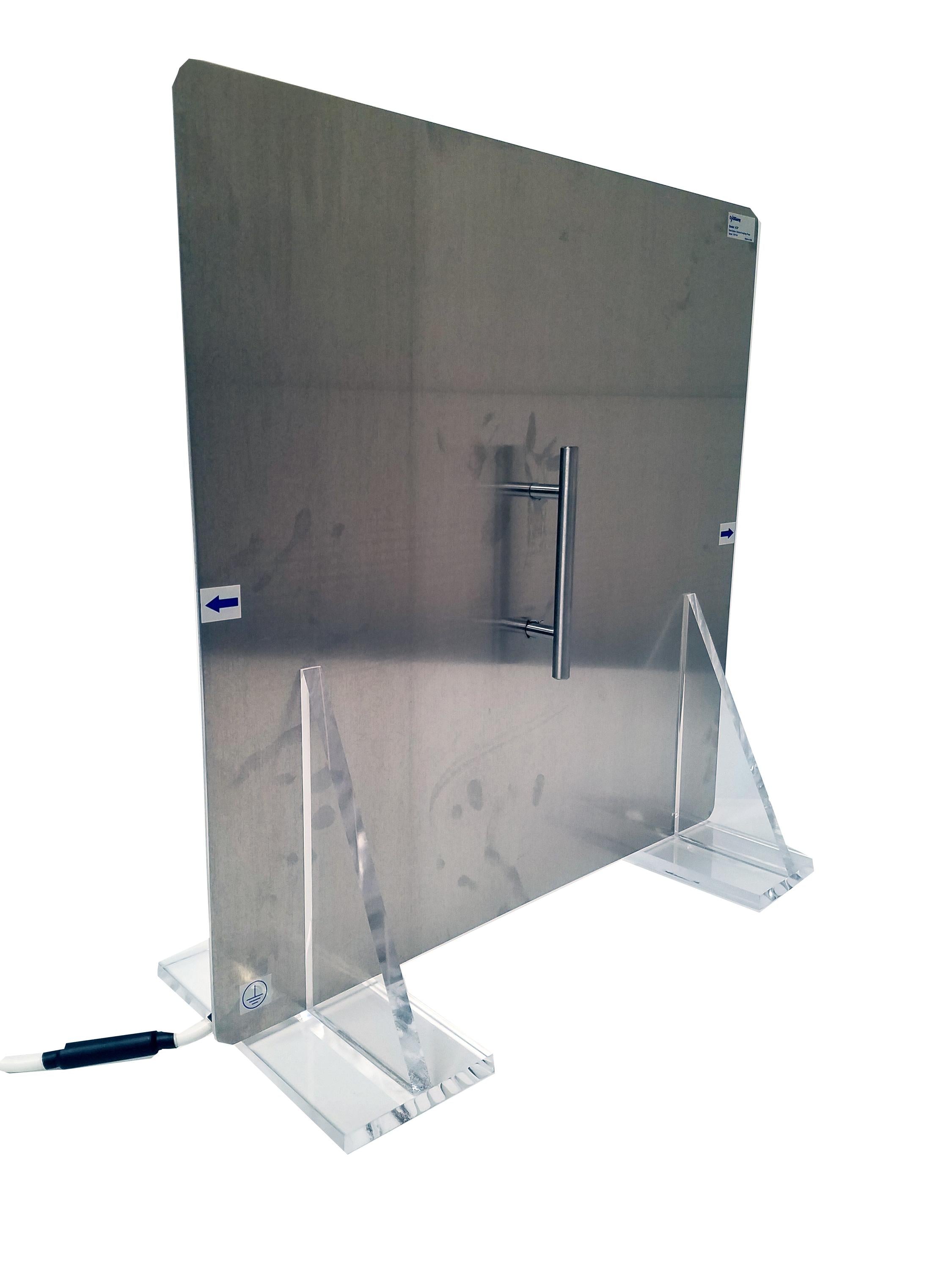

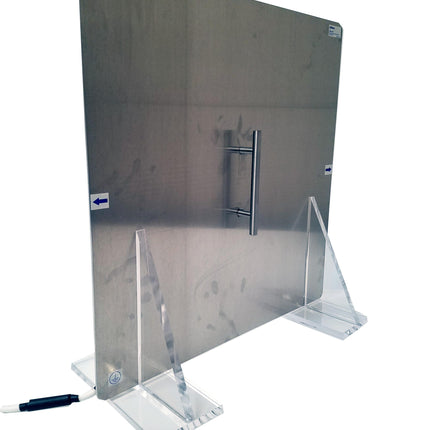

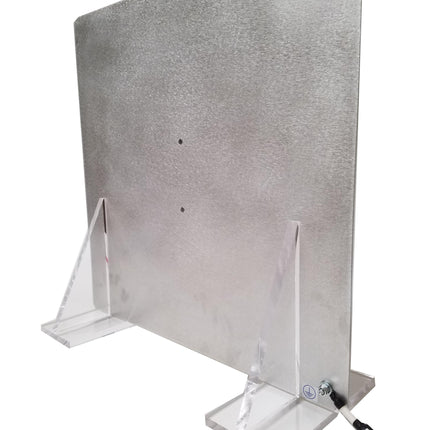

    Utilize the vertical coupling plane with any ESD generator, setup in seconds on any lab bench and begin testing immediately. The indirect radiated portion of electrostatic immunity testing is required for compliance. If your product will be used in metal cabinets, next to industrial machinery or even on top of the metal counters at your corner supermarket, electric shock may cause radiated interference.

    VCP Vertical Coupling Plane consists of:

    • VCP Aluminum 20" by 20"
    • Wood Stand
    • Ground Cable with 470k Ohm resistors for voltage bleeding
    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $675.00 + Shipping

        Accessory Kit

      • VCP Aluminum 20" by 20"
      • Wood Stand
      • Ground Cable with 470k Ohm resistors for voltage bleeding

        Features

      • Meets IEC 61000-4-2
      • Evaluate product susceptibility near metal cases, counters and more.
      • Setup in 1 minute
      • Includes:
        • VCP Aluminum 19.7" by 19.7"
        • Light Stands
        • Cable with Quantity 2 470k Ohm resistors

      Features

      Ask & Learn

      Previous answers and questions posted below

      Learn by asking questions, practicing, and getting guidance

      Ask Now

      Description

      Utilize the vertical coupling plane with any ESD generator, setup in seconds on any lab bench and begin testing immediately. The indirect radiated portion of electrostatic immunity testing is required for compliance. If your product will be used in metal cabinets, next to industrial machinery or even on top of the metal counters at your corner supermarket, electric shock may cause radiated interference.

      VCP Vertical Coupling Plane consists of:

      • VCP Aluminum 20" by 20"
      • Wood Stand
      • Ground Cable with 470k Ohm resistors for voltage bleeding
