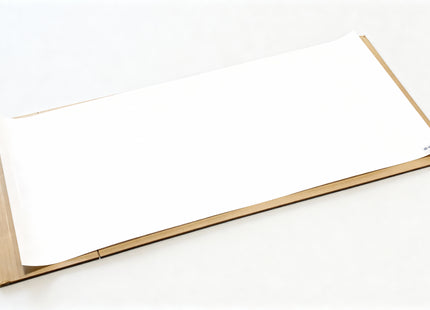

ESD Guns IF Insulating Support for ESD Compliance Testing

    Description

    If a formal quote is required please export the web page and send through your requisitioning system. We no longer generate formal quotes for orders under $500

    Standard Sizes:

    55" by 23.6" (1.4m by .6m) was cut based on the 10cm space required between the DUT and edge of HCP.

    63" by 31.5" (1.6m by .8m) will cover the full HCP

    Contact us for custom sizes.

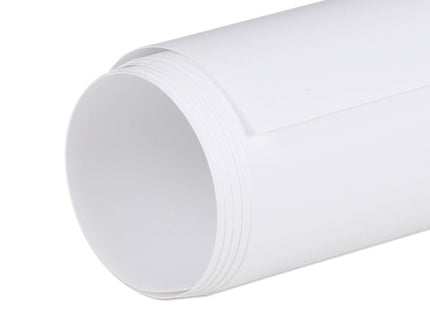

    Suitable for the test set-up of table-top equipment for ESD immunity per IEC-61000-4-2, the ESDGuns.com IF insulation foil is approximately .5 millimeter thick in accordance to the standard. Made of clean non-hygroscopic polyvinyl chloride (PVC) with a relative dielectric permittivity of 3.9, surface resistivity of 1014 Ω and a dissipation factor of 0.01.

    Product form

    $197.00 + Shipping

      Description of image
        Features

      • Suitable for EN/IEC 61000-4-2 ESD immunity compliance testing
      • Approximately .5 mm thickness
      • 130 cm x 68 cm
      • Material: High density PVC plastic
      • Non reflective for bright laboratories
      • Non texturized and easy to clean
      • Weight: 340 Grams (12 ounces)
